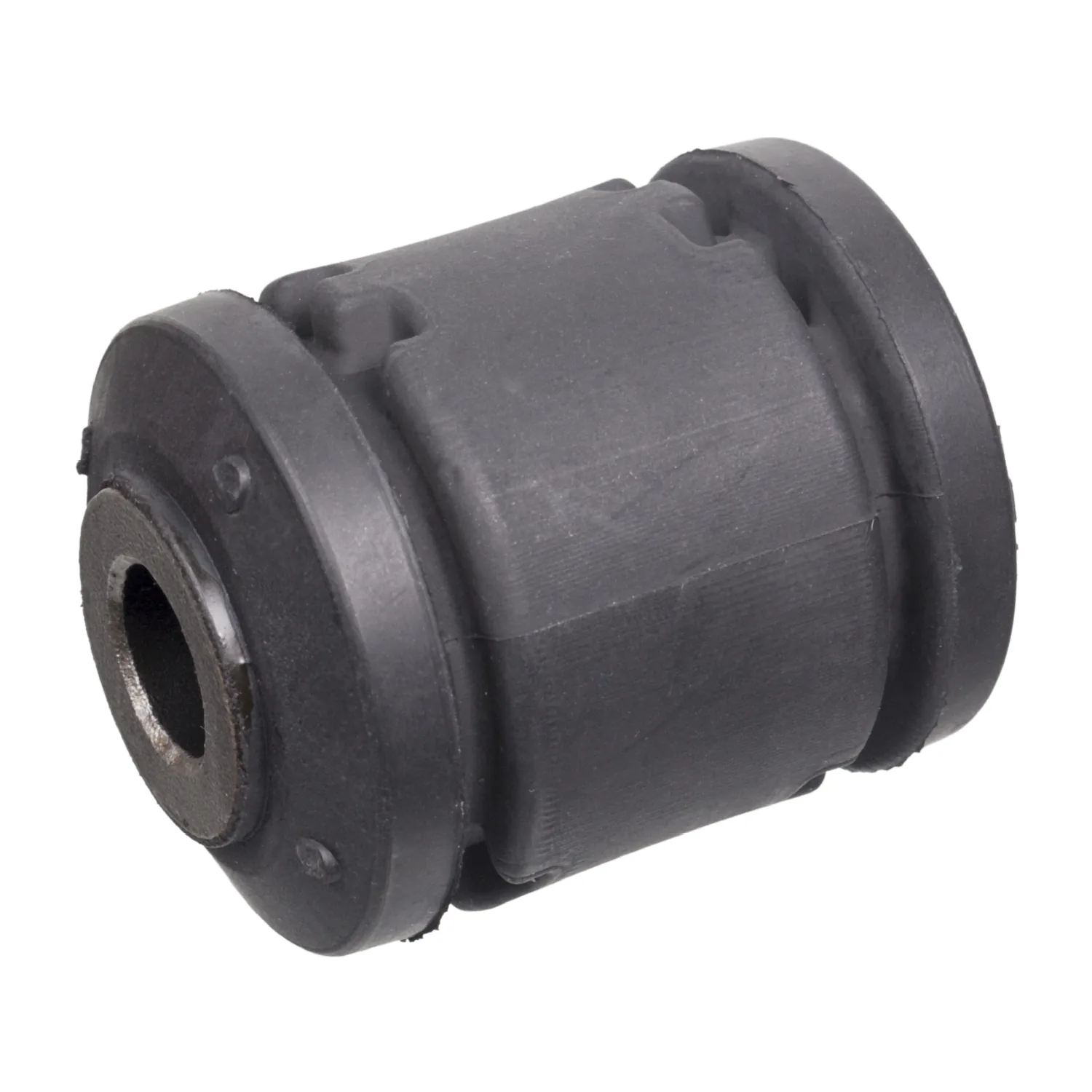

Kia e-Niro, Niro EV, Soul EV, EV3, EV4, Hyundai Kona Electric & Ioniq Electric Front Lower Control Arm Bush – Front
This rubber and metal bush fits the front (inner) mounting of the front lower control arm on the Kia e-Niro, Niro EV, Soul EV, EV3 and EV4 and the Hyundai Kona Electric and Ioniq Electric. It fits the front left or front right arm.
Replace the bush if the rubber is cracked or perished, or you hear knocks from the front over bumps or when braking. A worn front bush can cause a wandering feel, vibration under braking and uneven tyre wear.
Choose Febi 102673 or Blue Print ADG080279 from the options. Both are made by the bilstein group to the same specification and replace part number 54551-3X000.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric Kia e-Niro, Niro EV, Soul EV, EV3 and EV4 and the Hyundai Kona Electric and Ioniq Electric; see the table for each power output. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal bush, 54 mm long
- Fits the front left or front right arm
- Low-cost alternative to a complete arm
- Choice of Febi or Blue Print
Specifications
- Fitting Position: Front axle, lower arm, front, inner, left or right
- Length: 54 mm
- Inner Diameter: 12.2 mm
- Material: Rubber / metal
- Part Number: Febi 102673 | Blue Print ADG080279
Replaces Kia and Hyundai part number 54551-3X000; also Hyundai 54500-3Z000 and 54501-3Z000.
Installation
Professional installation recommended. The bush is pressed out and in with a bush tool. Tighten the bolts at normal ride height and have the alignment checked.
Explore More Parts
- All Hyundai Ioniq Electric Parts
- All Hyundai Kona Electric Parts
- All Kia e-Niro Parts
- All Kia Soul EV Parts
- All Kia EV3 Parts
- All Kia EV4 Parts
- All Kia Niro Parts
- All Suspension Bushes
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, lower arm, front, inner, left or right |
| Length | 54 mm |
| Inner Diameter | 12.2 mm |
| Material | Rubber / metal |
| Part Number | Febi 102673 | Blue Print ADG080279 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Hyundai | Ioniq 2016 – 2022 | (E) – 88 kW / 120 hp |
| Hyundai | Ioniq 2016 – 2022 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 150 kW / 204 hp |
| Hyundai | Kauai II 2023 – | (E) – 115 kW / 156 hp |
| Hyundai | Kauai II 2023 – | (E) – 160 kW / 218 hp |
| Hyundai | Kona I 2017 – | (E) – 100 kW / 136 hp |
| Hyundai | Kona I 2017 – | (E) – 150 kW / 204 hp |
| Hyundai | Kona II 2023 – | (E) – 99 kW / 135 hp |
| Hyundai | Kona II 2023 – | (E) – 115 kW / 156 hp |
| Hyundai | Kona II 2023 – | (E) – 150 kW / 204 hp |
| Hyundai | Kona II 2023 – | (E) – 160 kW / 218 hp |
| Kia | e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp |
| Kia | e-Soul 2019 – | (E) – 100 kW / 136 hp |
| Kia | e-Soul 2019 – | (E) – 150 kW / 204 hp |
| Kia | EV3 2024 – | (E) – 150 kW / 204 hp |
| Kia | EV4 2025 – | (E) – 150 kW / 204 hp |
| Kia | EV4 Fastback 2025 – | (E) – 150 kW / 204 hp |
| Kia | Niro I 2016 – 2022 | (E) – 150 kW / 204 hp |
| Kia | Niro II 2022 – | (E) – 150 kW / 204 hp |
| Kia | Soul III 2019 – | (E) – 100 kW / 136 hp |
| Kia | Soul III 2019 – | (E) – 150 kW / 204 hp |
| Kia | EV4 GT 4×4 2026 – | (E) – 215 kW / 292 hp |
Kia e-Niro, Niro EV, Soul EV, EV3, EV4, Hyundai Kona Electric & Ioniq Electric Front Lower Control Arm Bush – Front FAQs
Which part numbers does it replace?
It replaces Kia and Hyundai part number 54551-3X000; also Hyundai 54500-3Z000 and 54501-3Z000.
Does it fit both sides?
Yes. It fits the front left or front right lower arm. Each bush is sold on its own.
Febi or Blue Print?
Both are made by the bilstein group to the same specification and replace the same part number.
Is this the front or rear bush of the arm?
This is the front, inner bush of the front lower arm. The rear bush is a different part.
Will it fit my Kia or Hyundai?
The parts finder lists it for the electric Kia e-Niro, Niro EV, Soul EV (2019 on), EV3, EV4, EV4 Fastback and EV4 GT, and the Hyundai Kona Electric (first and second generation) and Ioniq Electric. See the table for the exact power outputs. Compare the part number on your existing part before ordering.
Is this a genuine Kia or Hyundai part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
