Kia e-Niro, Soul EV, PV5 & Hyundai Kona Electric Windscreen Washer Pump

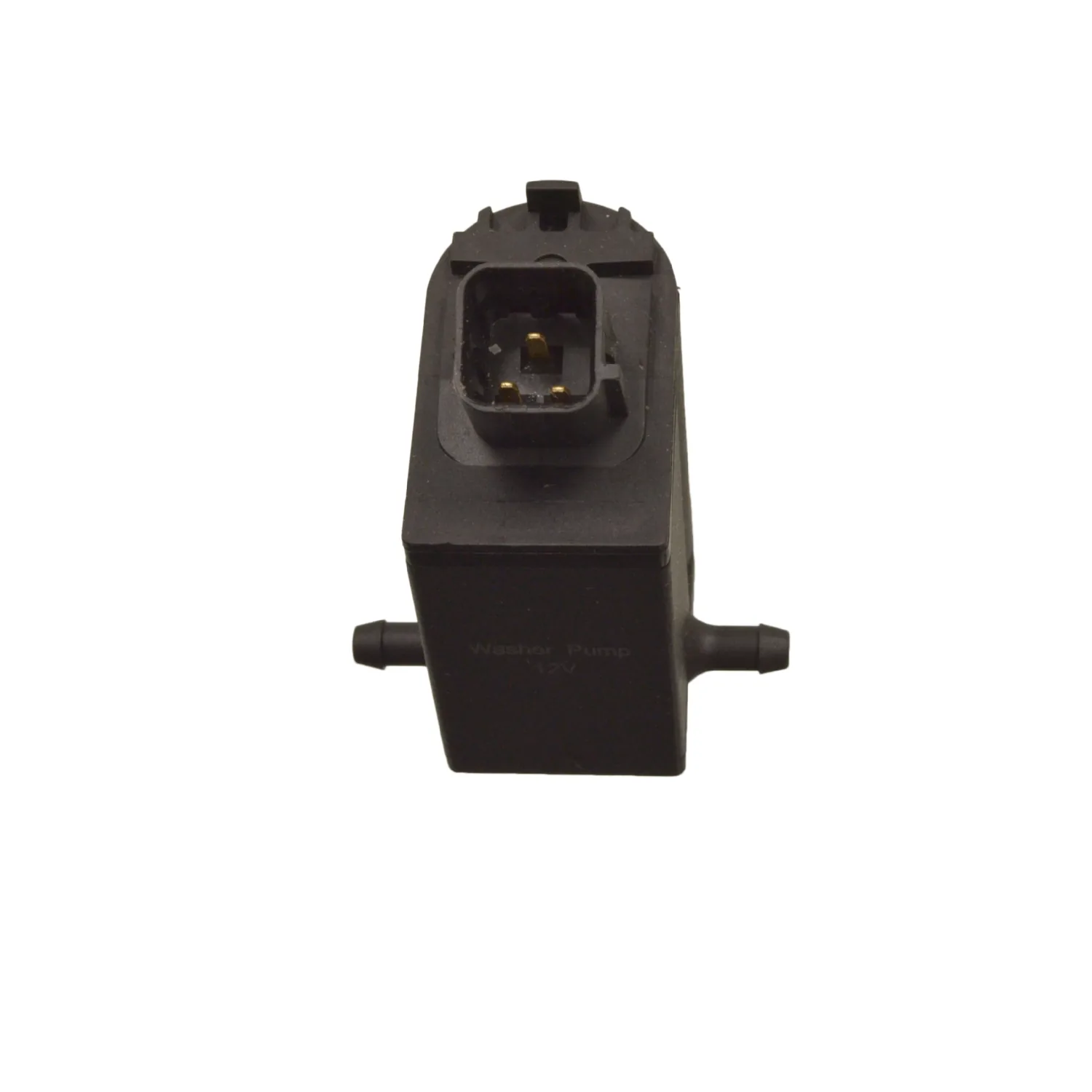

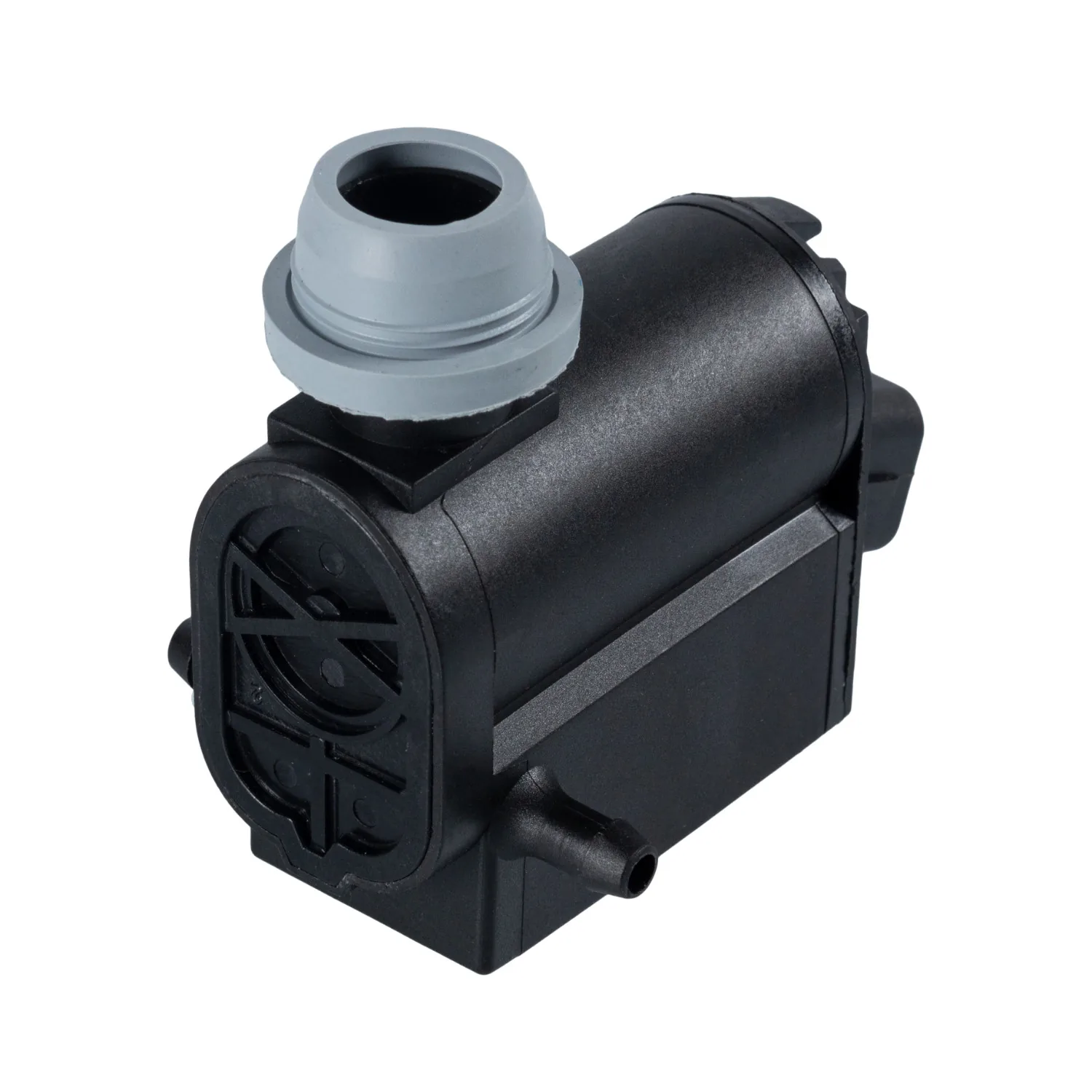

This 12 V dual washer pump feeds the windscreen washers on the Kia e-Niro, Soul EV (2019 on) and PV5 and the first-generation Hyundai Kona Electric. It has three connections and comes with a seal ring.
Replace the pump if the washers do not spray even though the reservoir is full and the fuse is good, if you can hear the pump buzzing with no water coming out, or if it leaks. A working washer system is needed to pass the MOT and to keep the windscreen clear.
Choose Febi 109277 or Blue Print ADG00307 from the options. Both are made by the bilstein group to the same specification and replace part number 98510-2J500 and others listed below.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric Kia e-Niro, Soul EV (2019 on) and PV5 and the first-generation Hyundai Kona Electric. The table below shows each power output. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 12 V dual pump, three connections
- Supplied with seal ring
- Needed to pass the MOT
- Choice of Febi or Blue Print
Specifications
- Voltage: 12 V
- Pump Type: Dual pump

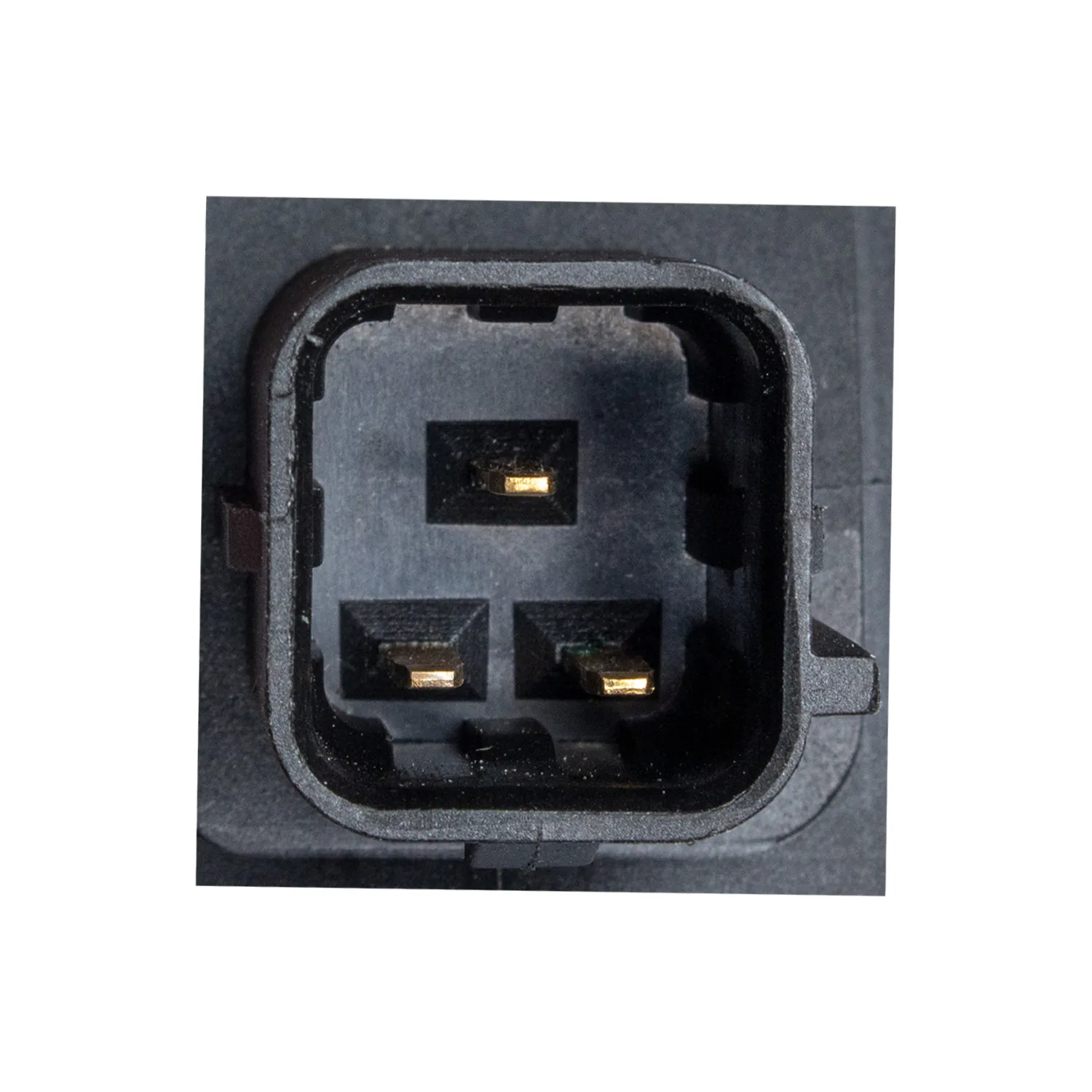

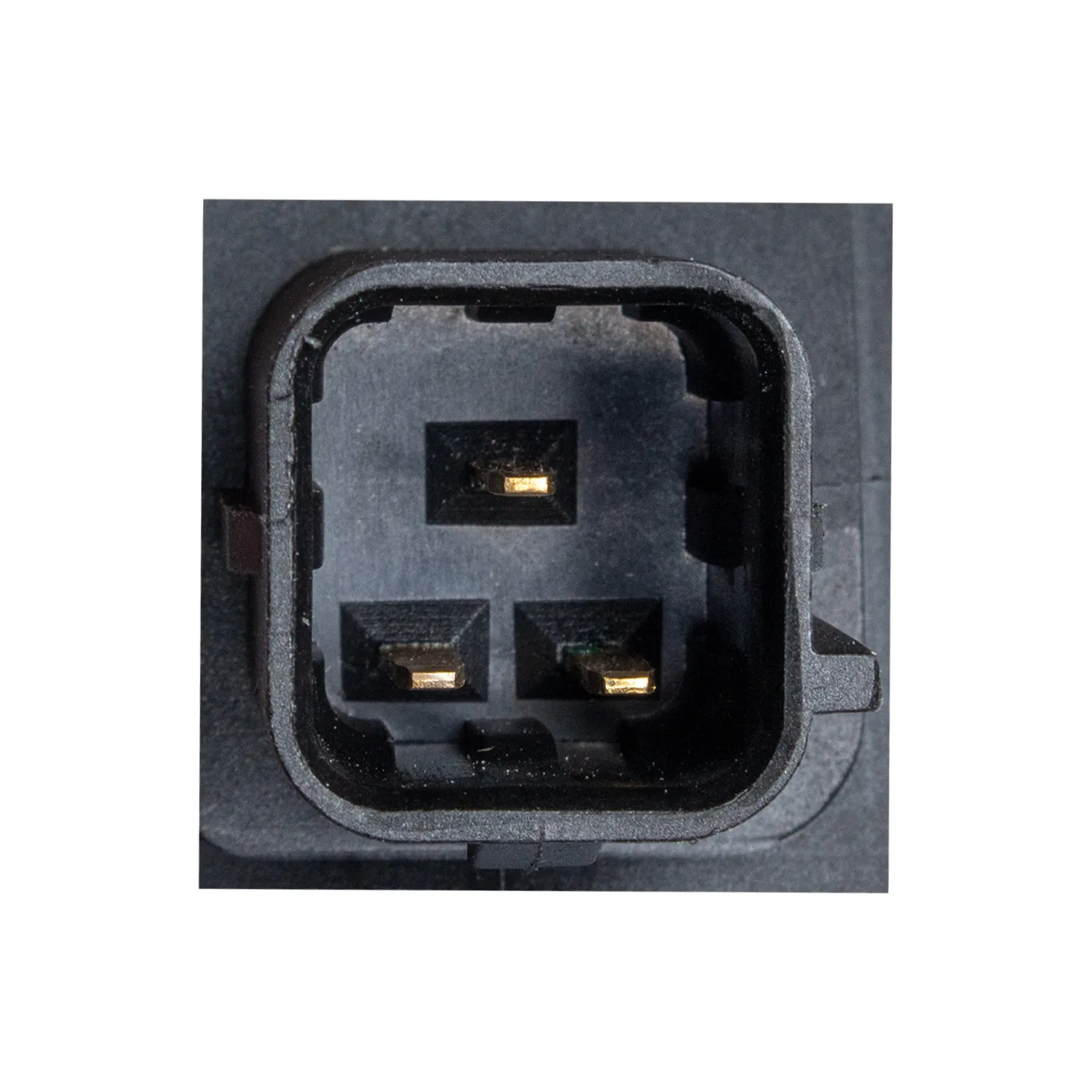

- Connections: 3
- Includes: Seal ring
- Part Number: Febi 109277 | Blue Print ADG00307
Replaces Kia and Hyundai part numbers 98510-2J500, 98510-26100, 98510-1C100, 98510-1W000, 98510-2J000, 98510-3E000, 98510-FD100 and 98510-G5000; also Kia 0K2FB-67-483.
Installation
The pump pushes into a grommet on the washer reservoir. Disconnect the plug and pipes, ease the old pump out and fit the new seal ring and pump. Check for leaks after refilling.
Explore More Parts
- All Hyundai Kona Electric Parts
- All Kia e-Niro Parts
- All Kia Soul EV Parts
- All Kia Niro Parts
- All Kia PV5 Parts
- All Wiper & Washer Parts
| Attribute | Value |
|---|---|
| Voltage | 12 V |
| Pump Type | Dual pump |
| Connections | 3 |
| Includes | Seal ring |
| Part Number | Febi 109277 | Blue Print ADG00307 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Hyundai | Kauai I 2017 – 2023 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 150 kW / 204 hp |
| Hyundai | Kona I 2017 – | (E) – 100 kW / 136 hp |
| Hyundai | Kona I 2017 – | (E) – 150 kW / 204 hp |
| Kia | e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp |
| Kia | e-Soul 2019 – | (E) – 100 kW / 136 hp |
| Kia | e-Soul 2019 – | (E) – 150 kW / 204 hp |
| Kia | Niro I 2016 – 2022 | (E) – 150 kW / 204 hp |
| Kia | Soul III 2019 – | (E) – 100 kW / 136 hp |
| Kia | Soul III 2019 – | (E) – 150 kW / 204 hp |
| Kia | PV5 2025 – | (E) – 89 kW / 121 hp |
| Kia | PV5 2025 – | (E) – 120 kW / 163 hp |
Kia e-Niro, Soul EV, PV5 & Hyundai Kona Electric Windscreen Washer Pump FAQs
Which part numbers does it replace?
It replaces Kia and Hyundai part numbers 98510-2J500, 98510-26100, 98510-1C100, 98510-1W000, 98510-2J000, 98510-3E000, 98510-FD100 and 98510-G5000; also Kia 0K2FB-67-483.
Is the seal ring included?
Yes. The pump comes with a new seal ring.
Febi or Blue Print?
Both are made by the bilstein group to the same specification and replace the same part numbers.
How do I know the pump has failed?
The washers do not spray with a full reservoir and good fuse, or the pump buzzes but no water comes out.
Will it fit my Kia or Hyundai Kona Electric?
The parts finder lists it for the electric Kia e-Niro (150 kW), Soul EV from 2019 (100 kW and 150 kW) and PV5 (89 kW and 120 kW), and the first-generation Hyundai Kona Electric (100 kW and 150 kW). Compare the part number on your existing part before ordering.
Is this a genuine Kia or Hyundai part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
