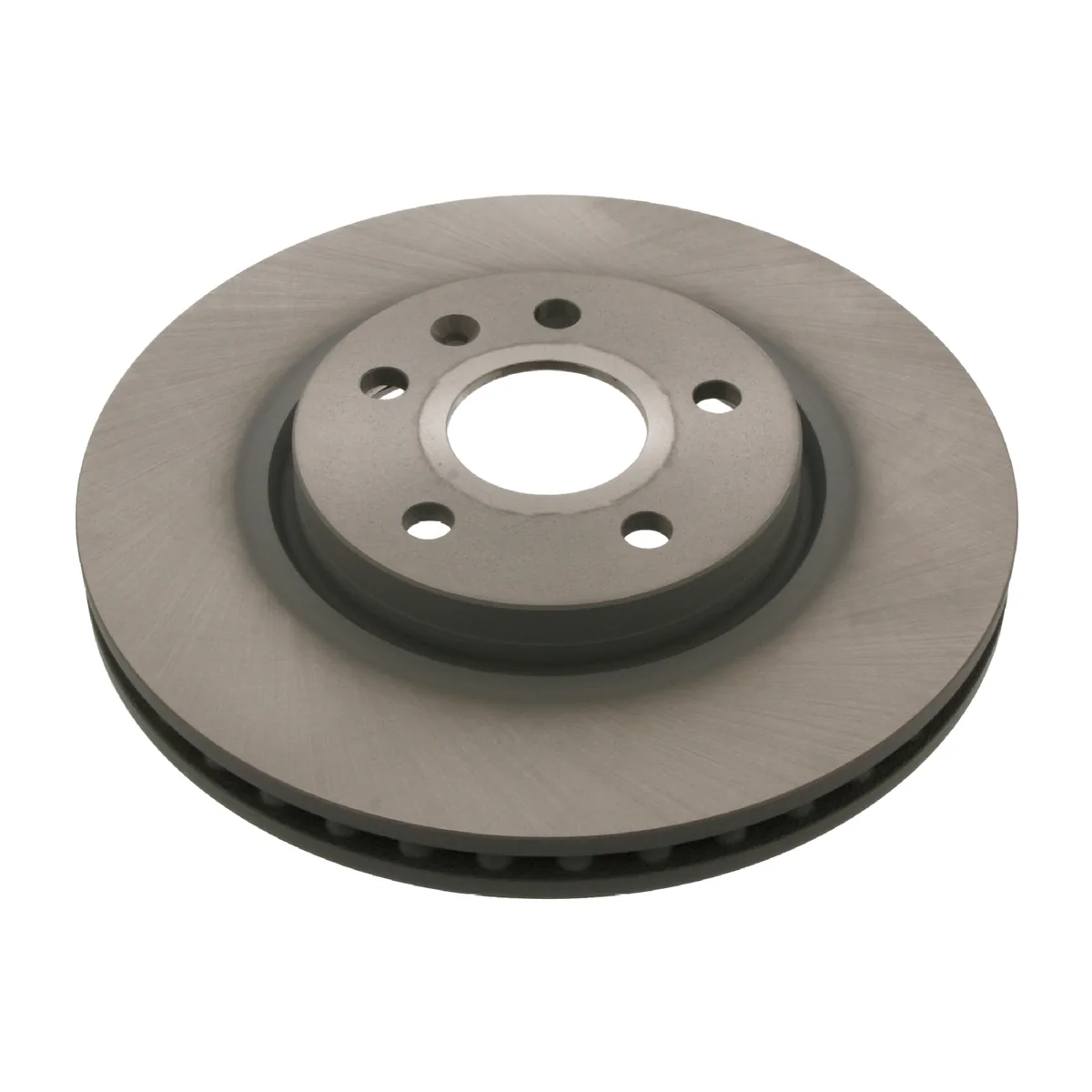

MG Marvel R Front Brake Discs – 321 mm
This front brake disc is for the MG Marvel R and Marvel R 4×4. It is a 321 mm vented disc, 30 mm thick, with a coated surface that helps resist corrosion on the hub and cooling vanes.
Replace the discs when they are worn close to the 27 mm minimum thickness, have a deep lip or scoring, or cause vibration through the steering under braking. Electric cars brake mostly through regeneration, so discs can also corrode from light use.
This is Febi part number 39196, made by the bilstein group. It is priced per disc and sold in pairs, so the basket goes up in 2s.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the MG versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the MG Marvel R (EP) 2021 – (132 kW) and the Marvel R 4×4 (EP) 2021 – (212 kW). Compare the MG part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 321 mm vented front disc
- Coated surface
- Priced per disc, sold in pairs
- 5 wheel bolt holes, 120 mm PCD
- Made by the bilstein group
Specifications
- Fitting Position: Front axle
- Outer Diameter: 321 mm
- Disc Thickness: 30 mm
- Minimum Thickness: 27 mm
- Disc Type: Vented
- Centre Diameter: 67 mm
- Height: 50.9 mm
- Wheel Bolt Holes: 5
- Pitch Circle Diameter: 120 mm
- Surface: Coated
- Part Number: Febi 39196
- Sold As: Priced per disc, sold in pairs
Replaces MG part number 13501320.
Installation
Professional installation recommended. Replace discs in pairs with new pads, clean the hub face before fitting, and bed the new discs and pads in gently.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle |
| Outer Diameter | 321 mm |
| Disc Thickness | 30 mm |
| Minimum Thickness | 27 mm |
| Disc Type | Vented |
| Centre Diameter | 67 mm |
| Height | 50.9 mm |
| Wheel Bolt Holes | 5 |
| Pitch Circle Diameter | 120 mm |
| Surface | Coated |
| Part Number | Febi 39196 |
| Sold As | Priced per disc, sold in pairs |
Fits The Following MG Models
| Model | Submodel |
|---|---|
| Marvel R (EP) 2021 – | (E) – 132 kW / 179 hp |
| Marvel R 4×4 (EP) 2021 – | (E) – 212 kW / 288 hp |
MG Marvel R Front Brake Discs – 321 mm FAQs
Which part numbers does it replace?
Replaces MG part number 13501320. The Febi part number is 39196.
Are the discs sold in pairs?
Yes. They are priced per disc and sold in pairs, so one order covers both front wheels.
What is the minimum thickness?
The disc is 30 mm new and the minimum thickness is 27 mm.
Will it fit my MG Marvel R?
Listed in the parts finder for the MG Marvel R (EP) 2021 – (132 kW) and the Marvel R 4×4 (EP) 2021 – (212 kW). Check the notes in the fitment table and compare the MG part number on your existing part.
Is this a genuine MG part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
