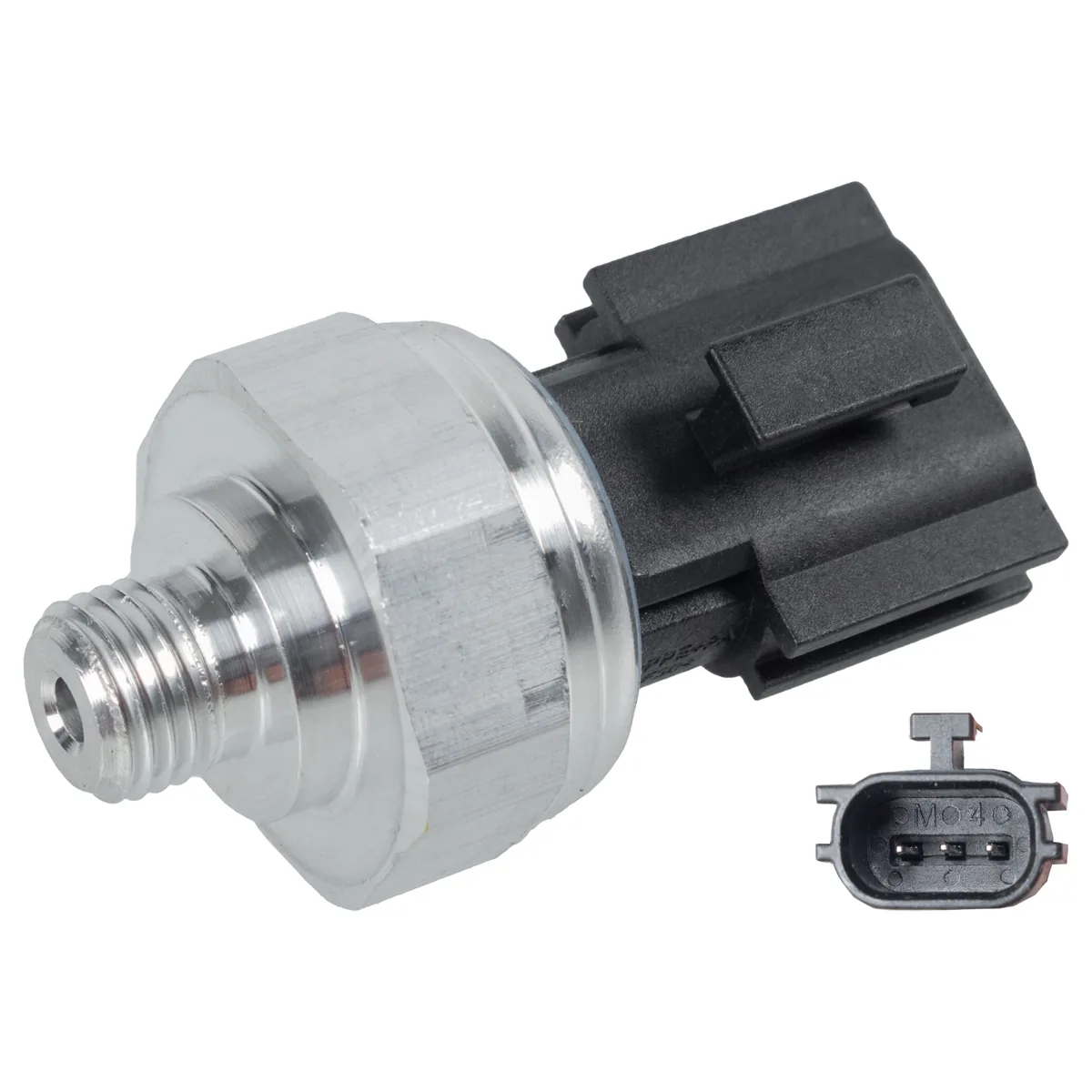

Nissan Leaf & e-NV200 Air Conditioning Pressure Switch
This air conditioning pressure switch monitors the refrigerant pressure on the Nissan Leaf and e-NV200 and tells the system when to run the compressor and cooling fan. It has three connections, a 3/8 inch 14 UNF thread and an oval plug.
A faulty pressure switch can stop the air conditioning cooling, make the compressor cut in and out, or leave the cooling fan running or not running at all. A fault code often points to it.
Choose Febi 171487 or Blue Print ADBP270000 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW, Leaf (ZE1, 2017 on) 110 kW and 160 kW and e-NV200 (ME0) 80 kW. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Monitors refrigerant pressure
- 3 connections, oval plug
- 3/8 inch 14 UNF thread
- Fits Leaf ZE0, ZE1 and e-NV200
- Febi and Blue Print options
Specifications
- Number of Connections: 3
- Thread: 3/8″ 14 UNF
- Plug Type: Oval
- Spanner Size: 24 mm
- Part Number: Febi 171487 | Blue Print ADBP270000
Replaces Nissan part numbers 92136-1FA0A, 92136-1HC1A, 92136-3NF0A, 92136-4EB0A and 92136-7S000 (the parts finder lists 12 more). The parts finder also lists Renault number 921361FA0A.
Installation
Professional installation recommended. Air conditioning work needs the refrigerant recovered and recharged by a qualified technician, with a new sealing ring fitted.
Explore More Parts
| Attribute | Value |
|---|---|
| Number of Connections | 3 |
| Thread | 3/8″ 14 UNF |
| Plug Type | Oval |
| Spanner Size | 24 mm |
| Part Number | Febi 171487 | Blue Print ADBP270000 |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan E-NV200 (ME0) 2014 – | (E) – 80 kW / 109 hp |
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
| Nissan Leaf (ZE1) 2017 – | (E) – 160 kW / 218 hp |
| Nissan Leaf (ZE1) 2017 – | (E) – 110 kW / 150 hp |
Nissan Leaf & e-NV200 Air Conditioning Pressure Switch FAQs
Which part numbers does it replace?
Replaces Nissan part numbers 92136-1FA0A, 92136-1HC1A, 92136-3NF0A, 92136-4EB0A and 92136-7S000 (the parts finder lists 12 more). The parts finder also lists Renault number 921361FA0A. Febi and Blue Print part numbers are listed in the specifications.
Do I need to re-gas the system?
The refrigerant has to be recovered before the switch is removed, so the system needs recharging by a qualified technician.
Will it fix poor cooling?
Only if the switch has failed. Low refrigerant and leaks cause the same symptoms, so have the system checked first.
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW, Leaf (ZE1, 2017 on) 110 kW and 160 kW and e-NV200 (ME0) 80 kW. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Nissan part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
