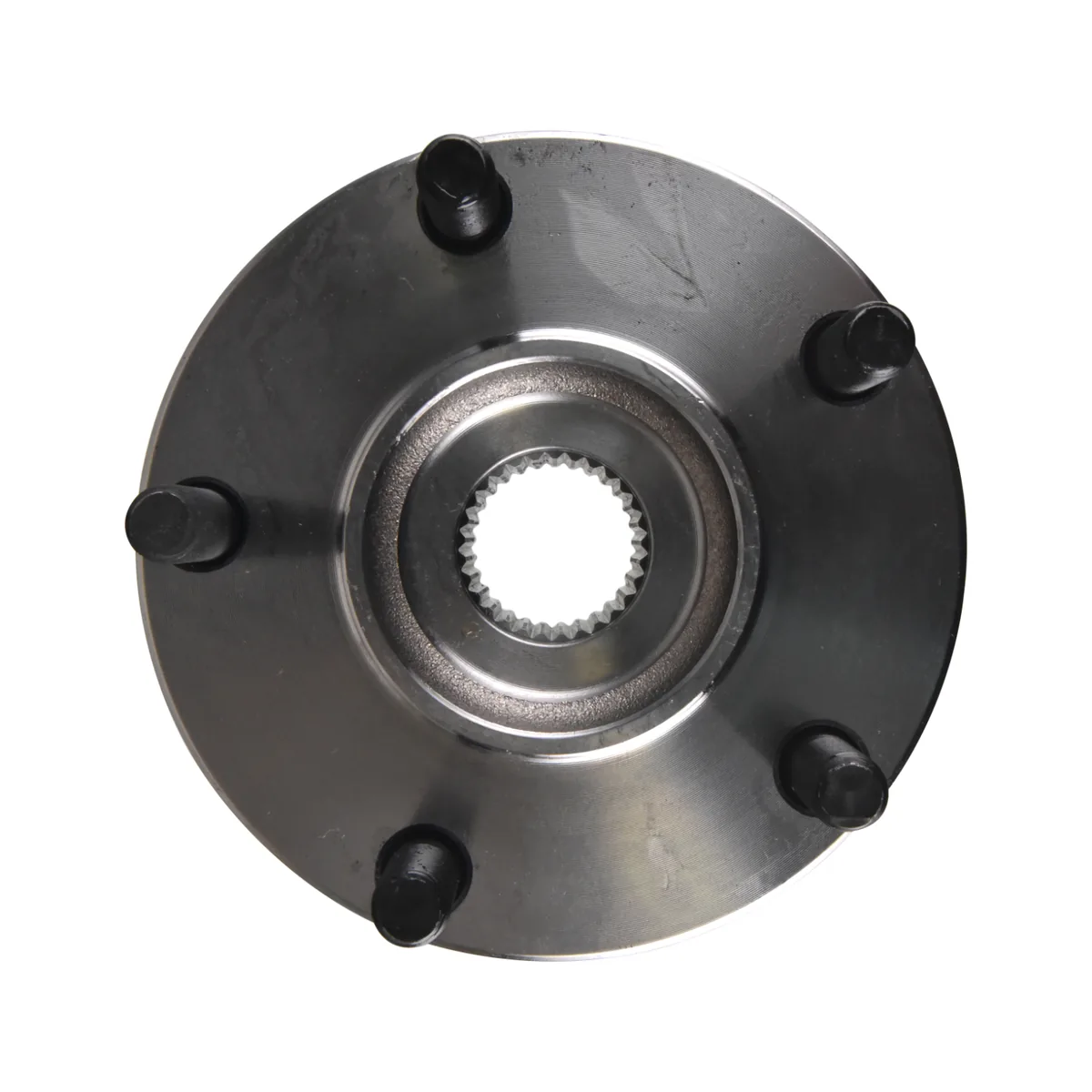

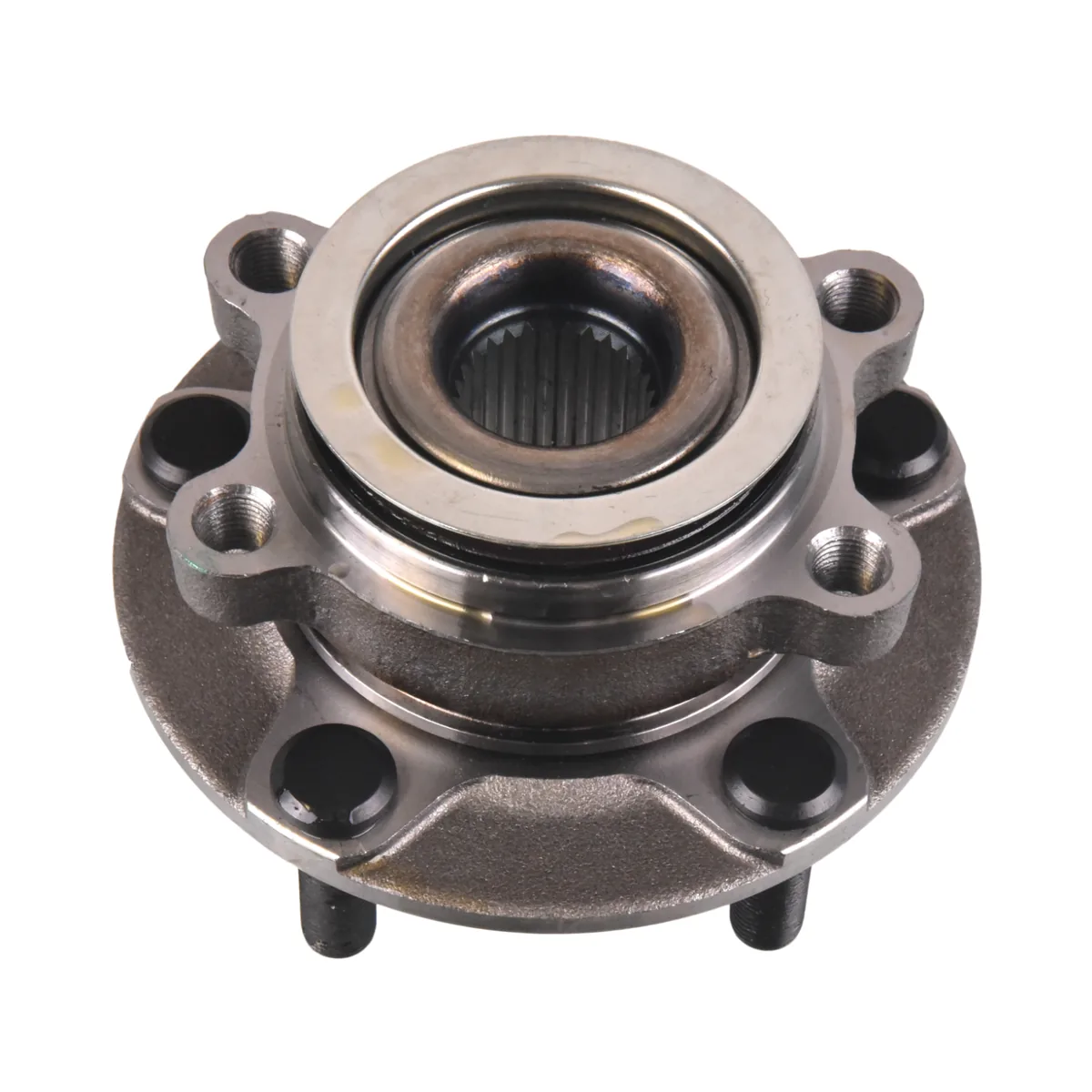

Nissan Leaf (ZE1) 110 kW Front Wheel Bearing Kit with Hub
This front wheel bearing kit for the Nissan Leaf (ZE1) 110 kW comes with the wheel hub and an integrated ABS sensor ring. The angular ball bearing is built into the hub, and the same kit fits the front left and front right.
A worn front wheel bearing usually makes a humming, rumbling or growling noise that rises with road speed and changes when cornering. You may also feel play in the wheel.
Choose Febi 173923 or Blue Print ADN18252 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE1, 2017 on) 110 kW. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Bearing integrated in the hub
- Integrated ABS sensor ring
- Fits the front left and front right
- For the ZE1 Leaf 110 kW
- Febi and Blue Print options
Specifications
- Fitting Position: Front axle left and right
- Bearing Type: Angular ball bearing, integrated in wheel hub
- ABS Sensor Ring: Integrated
- Inner Diameter: 30 mm
- Outer Diameter: 80 mm
- Outer Diameter 1: 68 mm
- Outer Diameter 2: 136 mm
- Width: 41 mm
- Part Number: Febi 173923 | Blue Print ADN18252
Replaces Nissan part numbers 40202-JG01B, 40202-5SK0A, 40202-BA60A S1, 40202-BR00A and 40202-1KA0A S1 (the parts finder lists 3 more).
Installation
Professional installation recommended. Tighten the hub bolts and drive shaft nut to the vehicle maker’s torque settings, keep the sensor ring clean, and check the ABS warning light is off after fitting.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle left and right |
| Bearing Type | Angular ball bearing, integrated in wheel hub |
| ABS Sensor Ring | Integrated |
| Inner Diameter | 30 mm |
| Outer Diameter | 80 mm |
| Outer Diameter 1 | 68 mm |
| Outer Diameter 2 | 136 mm |
| Width | 41 mm |
| Part Number | Febi 173923 | Blue Print ADN18252 |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE1) 2017 – | (E) – 110 kW / 150 hp |
Nissan Leaf (ZE1) 110 kW Front Wheel Bearing Kit with Hub FAQs
Which part numbers does it replace?
Replaces Nissan part numbers 40202-JG01B, 40202-5SK0A, 40202-BA60A S1, 40202-BR00A and 40202-1KA0A S1 (the parts finder lists 3 more). Febi and Blue Print part numbers are listed in the specifications.
Does it fit both sides?
Yes. The same kit fits the front left and front right. It is sold as one kit.
Does it fit the 160 kW e+?
The parts finder lists it for the ZE1 110 kW only.
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE1, 2017 on) 110 kW. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Nissan part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
