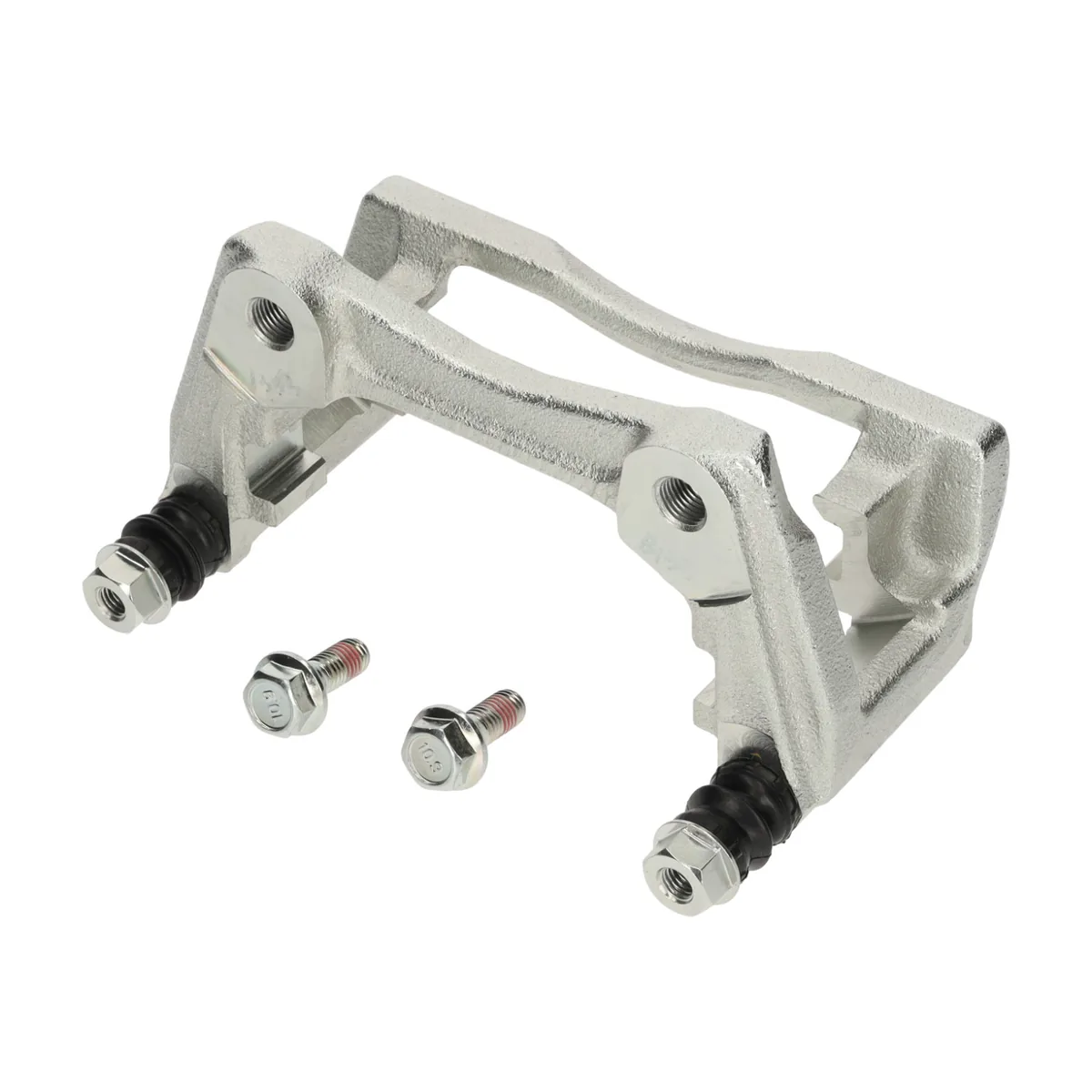

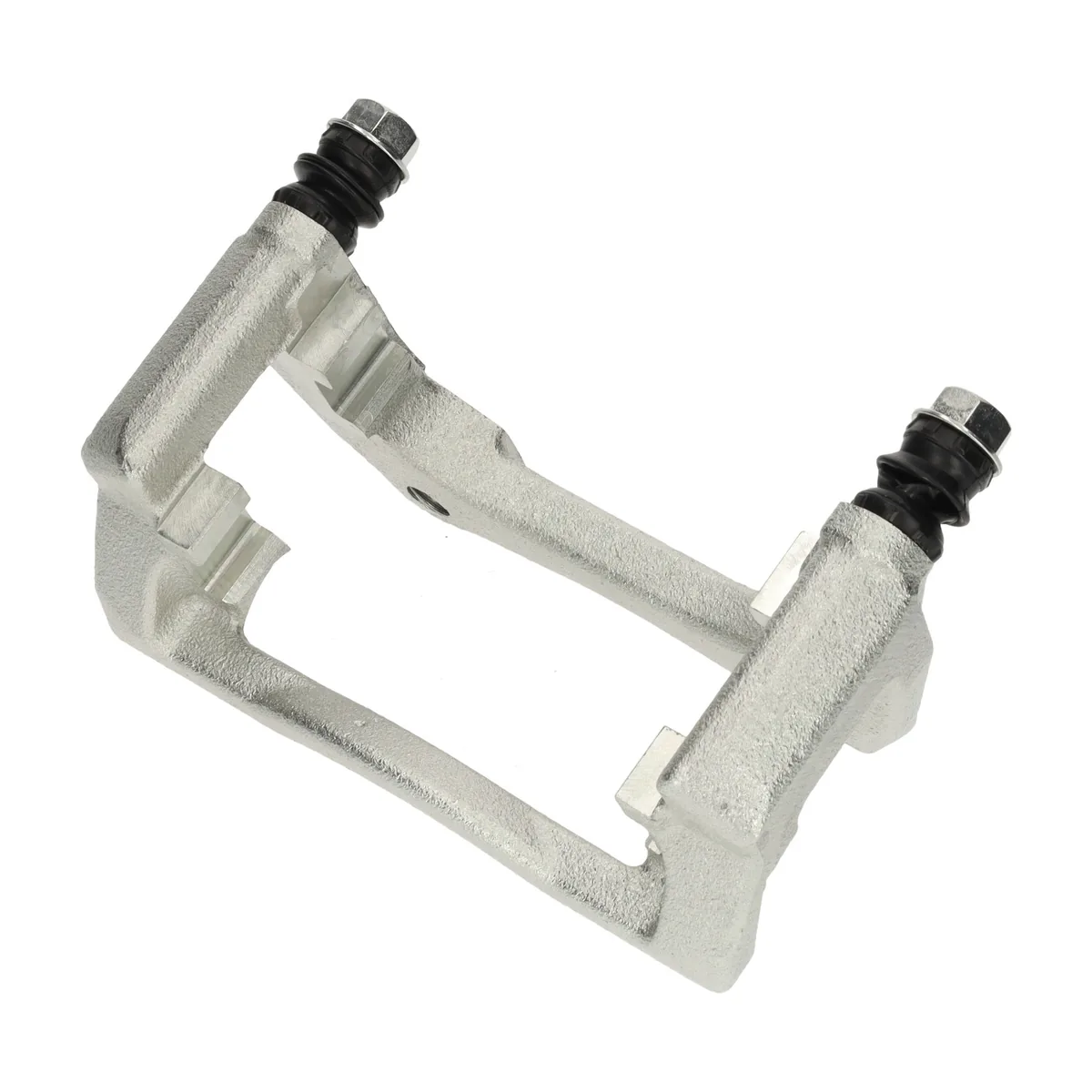

Renault Zoe & Kangoo Van Z.E. Front Brake Caliper Carrier
This front brake caliper carrier holds the caliper and pads in place on the Renault Zoe and Kangoo Van Z.E. with the TRW front brake system. It fits either side, with a 118 mm bolt distance.
Replace the carrier if it is badly corroded where the pad clips sit, the guide bores are damaged, or the pads no longer slide freely. Heavy rust on the abutments is a common reason pads stick on electric cars.
This is Febi part number 198806, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW and Kangoo Van Z.E. 44 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “to the year of construction: 09/2019”. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- For the TRW front brake system
- Fits left or right
- 118 mm bolt distance
- Fixes rusted pad abutments
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front axle, left or right
- Brake System: TRW
- Bolt Distance: 118 mm
- Mounting Hole Spacing: 144 mm
- Part Number: Febi 198806
Replaces Renault part number 77 01 059 704.
Installation
Professional installation recommended. Clean the hub mounting faces, fit the carrier and tighten the bolts to the service figure, then fit new pad clips and grease the slides.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Brake System | TRW |
| Bolt Distance | 118 mm |
| Mounting Hole Spacing | 144 mm |
| Part Number | Febi 198806 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Kangoo Van Z.E. – Kangoo II (2007 –) | (E) – 44 kW / 60 hp |
| Renault Zoe (2012 –) to the year of construction: 09/2019 |
(E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) to the year of construction: 09/2019 |
(E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) to the year of construction: 09/2019 |
(E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) to the year of construction: 09/2019 |
(E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) to the year of construction: 09/2019 |
(E) – 80 kW / 109 hp |
Renault Zoe & Kangoo Van Z.E. Front Brake Caliper Carrier FAQs
Which part numbers does it replace?
Replaces Renault part number 77 01 059 704. The Febi part number is 198806.
Does it fit every Zoe?
For the Zoe it is listed to the year of construction 09/2019. Check the notes in the fitment table.
Do I need one per side?
Yes. One carrier fits one side, so order two to do both front wheels.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW and Kangoo Van Z.E. 44 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “to the year of construction: 09/2019”. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
