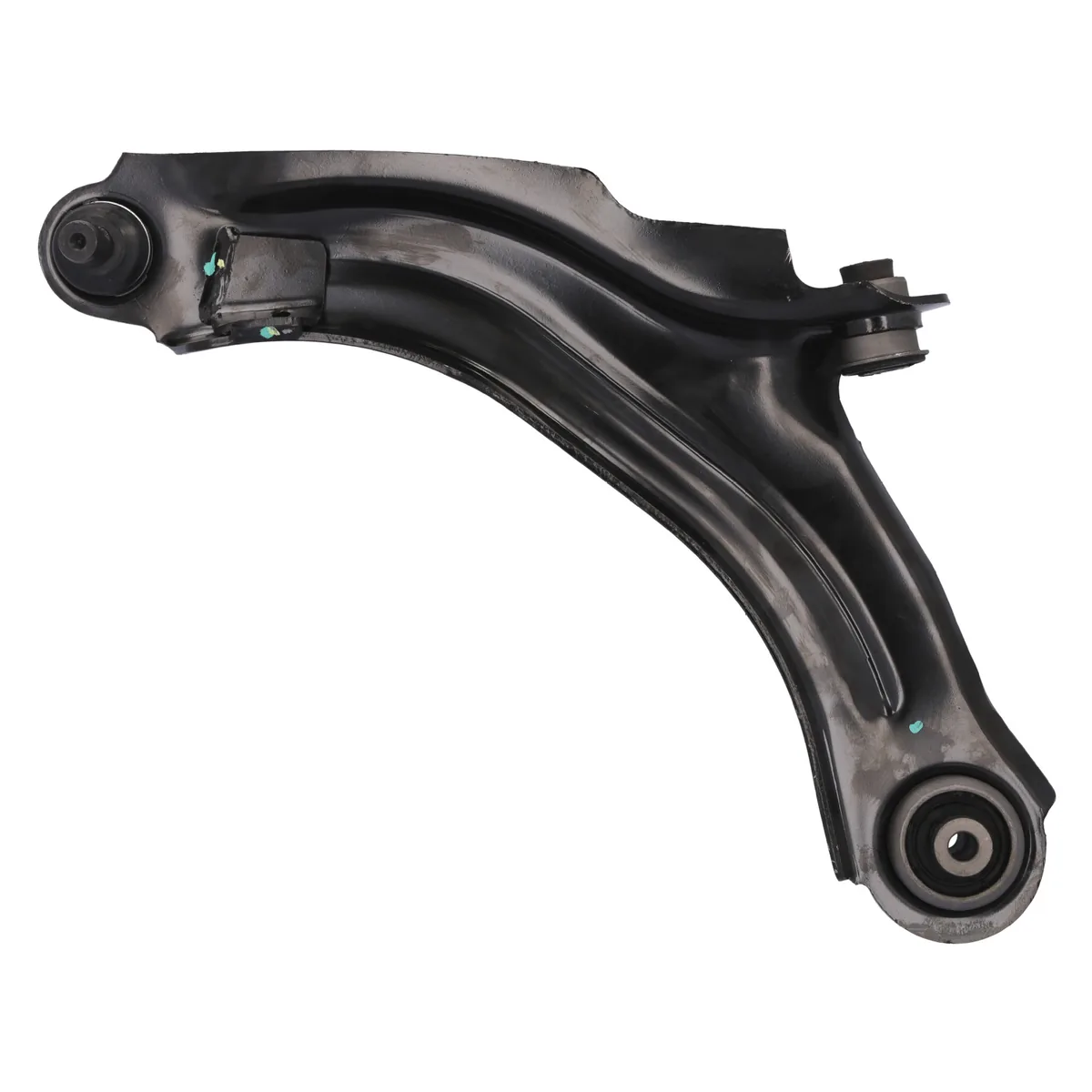

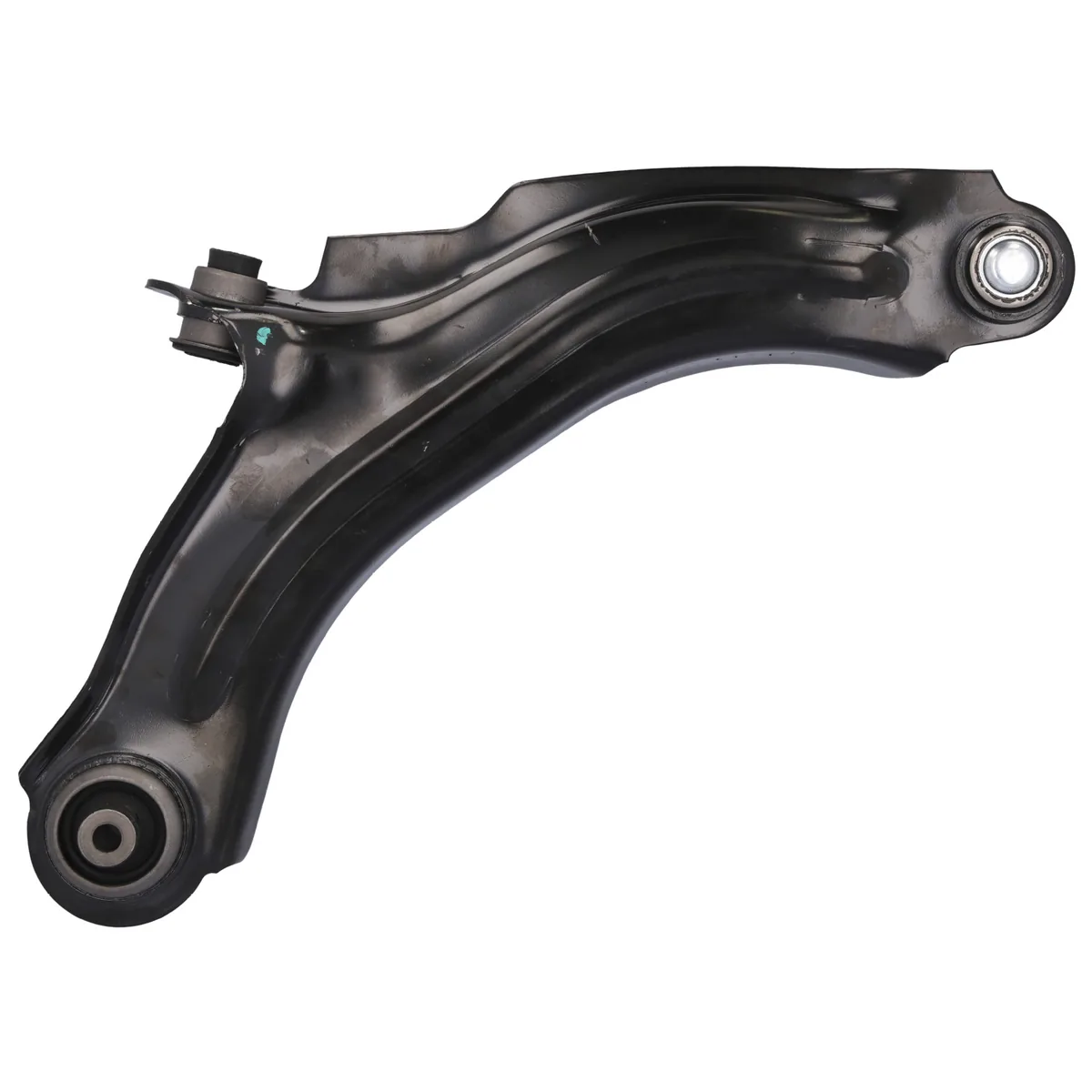

Renault Zoe Front Lower Control Arm – Left / Right, from 04/2019
This front lower control arm is for the later Renault Zoe. It comes complete with the bushes and ball joint fitted, in pressed sheet steel with an 18 mm ball joint cone, for the left or right side.
Replace the arm if the ball joint is loose or its boot is split, the bushes are cracked or perished, or you hear knocks over bumps and the steering feels vague. Uneven tyre wear is another sign.
Each side is a Febi part from the bilstein group: left is Febi 1000500 and right is Febi 1000501.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “from the year of construction: 04/2019”. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Arm, bushes and ball joint in one
- 18 mm ball joint cone
- Left and right available
- For later Zoe models
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front axle, lower
- Contents: Control arm with bushes and ball joint
- Cone Size: 18 mm
- Material: Sheet steel
- Part Number: Febi 1000500 (left) | Febi 1000501 (right)
Replaces Renault part numbers left (Febi 1000500): 54 50 141 20R and 54 50 551 65R; right (Febi 1000501): 54 50 426 44R and 54 50 486 58R.
Installation
Professional installation recommended. Tighten the bushes with the car at normal ride height, then have the wheel alignment checked. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, lower |
| Contents | Control arm with bushes and ball joint |
| Cone Size | 18 mm |
| Material | Sheet steel |
| Part Number | Febi 1000500 (left) | Febi 1000501 (right) |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) from the year of construction: 04/2019 |
(E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) from the year of construction: 04/2019 |
(E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) from the year of construction: 04/2019 |
(E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) from the year of construction: 04/2019 |
(E) – 80 kW / 109 hp |
Renault Zoe Front Lower Control Arm – Left / Right, from 04/2019 FAQs
Which part numbers does it replace?
Replaces Renault part numbers left (Febi 1000500): 54 50 141 20R and 54 50 551 65R; right (Febi 1000501): 54 50 426 44R and 54 50 486 58R. The Febi part numbers are 1000500 and 1000501.
Which Zoe does it fit?
The Zoe 100 kW, and the 57, 65, 68 and 80 kW from the year of construction 04/2019. Earlier cars use a different arm, which we list separately.
Do I need an alignment?
Yes. Have the wheel alignment checked after fitting a new control arm.
Will the driver assistance sensors need calibrating?
They may. The parts finder notes: “If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.”
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “from the year of construction: 04/2019”. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
