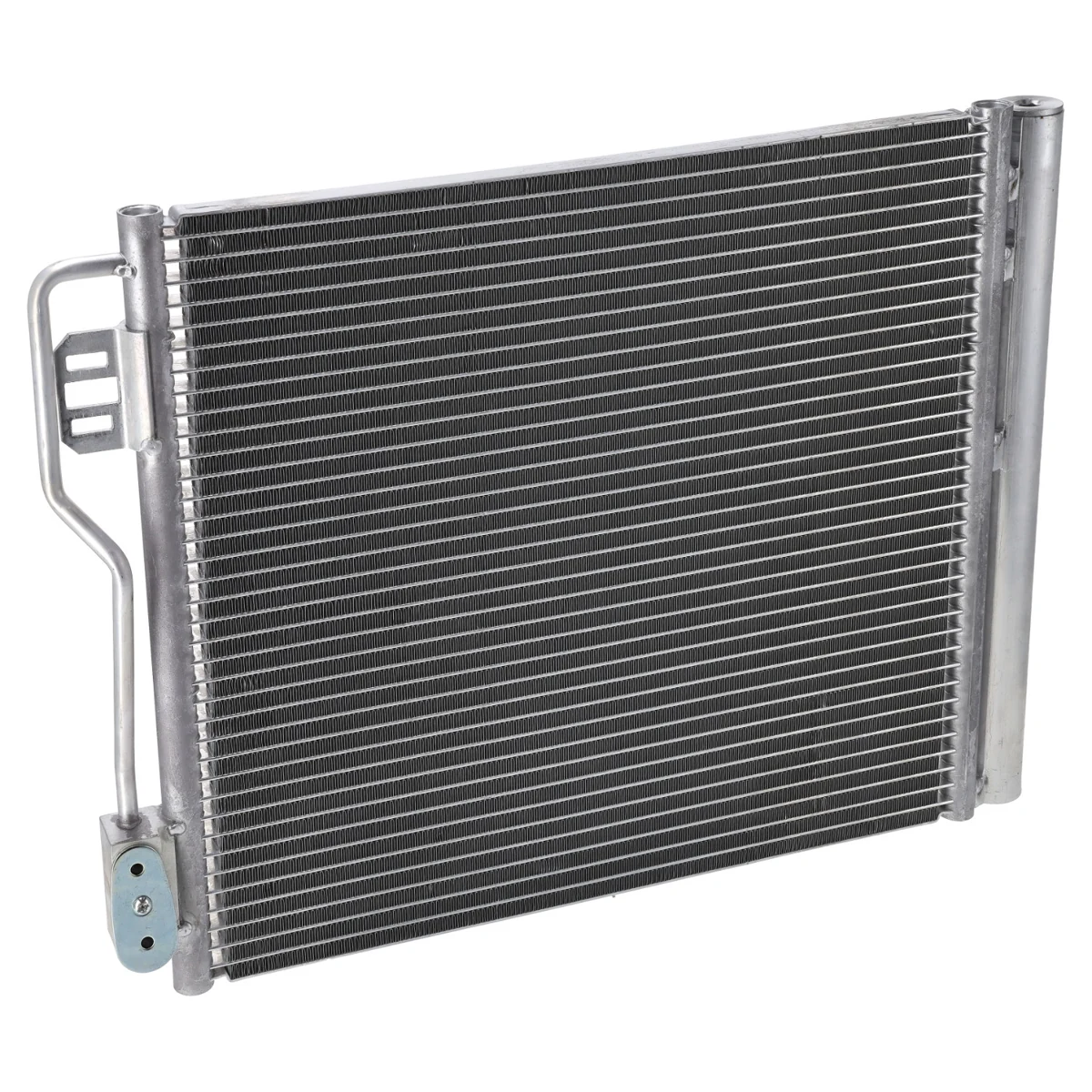

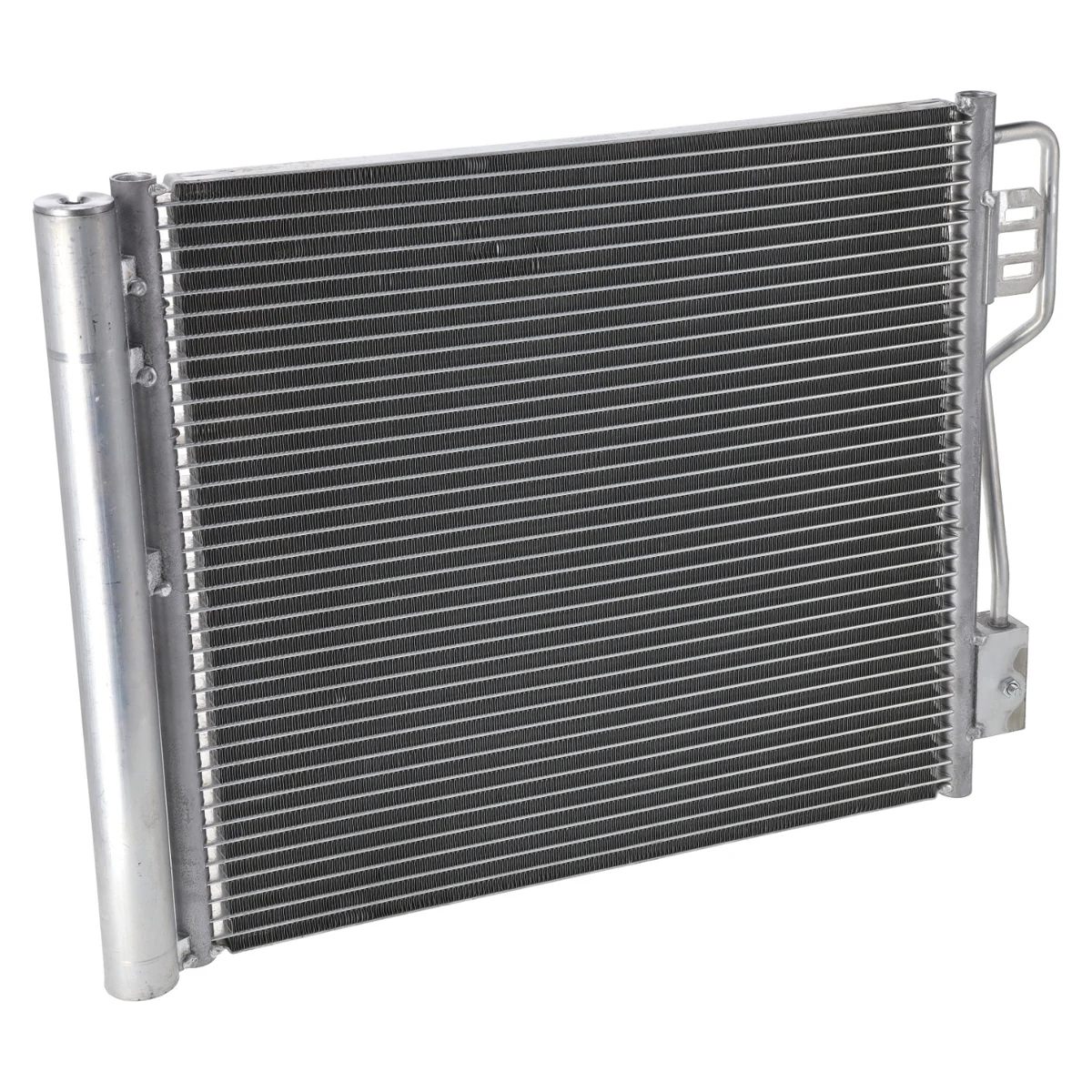

Air Conditioning Condenser with Dryer – Smart ForTwo Electric Drive
This air conditioning condenser sits at the front of the car and turns the hot refrigerant gas back into liquid. It comes with the dryer already fitted. The core measures 381 x 430 x 16 mm, and it works with R1234yf or R134a refrigerant.
At the front of the car, the condenser takes the full force of stones, grit and road salt. Over time the fins corrode and small leaks appear, so the system slowly loses gas and the air conditioning blows warm. A leaking system also lets in moisture, which can damage the compressor over time and make a later repair far more expensive. Fitting a condenser with a new dryer protects the rest of the system from moisture.
This is Febi part number 1007193, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this condenser for the electric Smart ForTwo (451) from 2007 to 2015, in the 20, 30, 35, 55 and 60 kW versions. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Dryer included
- 381 x 430 x 16 mm core
- R1234yf or R134a
- Made by the bilstein group
Specifications
- Core Size: 381 x 430 x 16 mm
- Dryer: Included
- Refrigerant: R1234yf / R134a
- Warranty: 3 years
- Part Number: Febi 1007193
Replaces Smart part numbers 451 500 01 54 and 451 500 00 54.
Installation
Professional installation by an air conditioning technician is required. The refrigerant must be recovered before work starts, new seals fitted on the pipe joints, and the system evacuated and recharged with the correct refrigerant and oil.
Explore More Parts
| Attribute | Value |
|---|---|
| Core Size | 381 x 430 x 16 mm |
| Dryer | Included |
| Refrigerant | R1234yf / R134a |
| Warranty | 3 years |
| Part Number | Febi 1007193 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Smart | Fortwo 2 (451) 2007 – 2015 | (E) – 20 kW / 27 hp |
| Smart | Fortwo 2 (451) 2007 – 2015 | (E) – 30 kW / 41 hp |
| Smart | Fortwo 2 (451) 2007 – 2015 | (E) – 35 kW / 48 hp |
| Smart | Fortwo 2 (451) 2007 – 2015 | (E) – 55 kW / 75 hp |
| Smart | Fortwo 2 (451) 2007 – 2015 | (E) – 60 kW / 82 hp |
Air Conditioning Condenser with Dryer – Smart ForTwo Electric Drive FAQs
Which part numbers does it replace?
It replaces Smart part numbers 451 500 01 54 and 451 500 00 54.
Is the dryer included?
Yes, the condenser comes with the dryer already fitted.
Which refrigerant does it use?
It works with R1234yf or R134a. Use the type shown on the label under your bonnet.
Can I fit it myself?
The refrigerant must be recovered and recharged by an air conditioning technician, so professional fitting is needed.
Will it fit my Smart ForTwo Electric Drive?
The parts finder lists it for the electric Smart ForTwo (451) from 2007 to 2015, in the 20, 30, 35, 55 and 60 kW versions. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Smart part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
