Self-Locking Nut M10 x 1.5, Box of 10 – VW e-up!, e-Golf & More

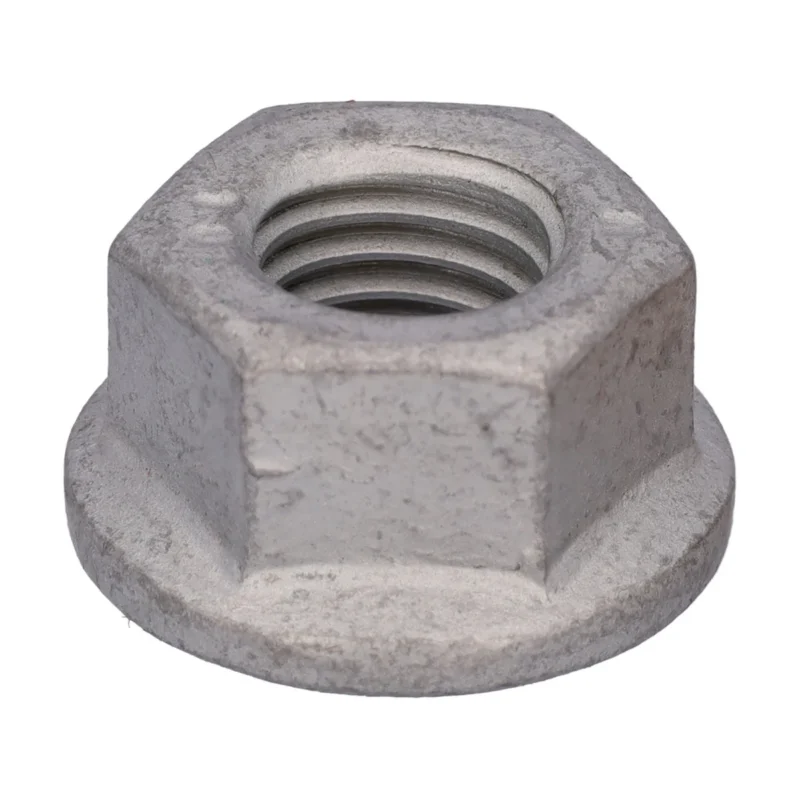

This self-locking hexagon nut has an M10 x 1.5 thread, a flat seat, a 16 mm wrench size and tensile strength grade 10. It is galvanised steel to DIN ISO 6927. Price shown is per nut, sold in boxes of 10.
Self-locking nuts should be renewed when they are undone, as the locking part loses its grip. Rusted nuts may also have to be cut off.
This is Febi part number 22263, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this nut for the Volkswagen e-up! (BL1, 2013 to 2016) 60 kW; Volkswagen e-load up! (BL1, 2014 to 2016) 60 kW; Volkswagen Golf 3 CitySTROMer (1H, 1994 to 1997) 20 kW; Volkswagen e-Golf (BE, 2014 to 2021) 85 and 100 kW; Mercedes-Benz A-Class E-Cell (169, 2004 to 2012) 50 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- M10 x 1.5, self-locking
- 16 mm hex
- Grade 10, galvanised
- Made by the bilstein group
Specifications
- Collar Shape for Screws And Nuts: Flat seat
- DIN – ISO: 6927
- Fastening Type: Hexagonal
- Height or Thickness: 11 mm
- Internal Thread: M10 x 1.5
- Material: Steel
- Outer Diameter: 21.2 mm
- Surface: Galvanized
- Tensile Strength Grade: 10
- Thread Mode: Self locking
- Wrench Size (Metric): 16 mm
- Part Number: Febi 22263
Replaces Mercedes-Benz and Volkswagen part numbers including 913023 010002, 000000 003275, 000000 005268. The full list is in the FAQs.
Installation
Easy to fit. Tighten to the carmaker torque.
Explore More Parts
- All Mercedes-Benz A-Class E-Cell Parts
- All Volkswagen e-Golf Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-up! Parts
- All Volkswagen Golf 3 CitySTROMer Parts
- All Fasteners
| Attribute | Value |
|---|---|
| Collar Shape for Screws And Nuts | Flat seat |
| DIN – ISO | 6927 |
| Fastening Type | Hexagonal |
| Height or Thickness | 11 mm |
| Internal Thread | M10 x 1.5 |
| Material | Steel |
| Outer Diameter | 21.2 mm |
| Surface | Galvanized |
| Tensile Strength Grade | 10 |
| Thread Mode | Self locking |
| Wrench Size (Metric) | 16 mm |
| Part Number | Febi 22263 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Mercedes-Benz | A (169) 2004 – 2012 | A E-Cell (E) – 50 kW / 68 hp |
| Volkswagen | e-Golf (BE) 2014 – 2021 | (E) – 100 kW / 136 hp |
| Volkswagen | e-Golf (BE) 2014 – 2021 | (E) – 85 kW / 116 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | Golf 3 CitySTROMer (1H) 1994 – 1997 | (E) – 20 kW / 27 hp |
Self-Locking Nut M10 x 1.5, Box of 10 – VW e-up!, e-Golf & More FAQs
Which part numbers does it replace?
It replaces Mercedes-Benz and Volkswagen part numbers 913023 010002, 000000 003275, 000000 005268, N 102 861 10, 1S0 201 651 A, 4D0 411 317 D, 8D0 407 257 M, 8D0 407 257 N, 8D0 407 258 M, 8D0 407 258 N, 8D0 498 998 A, 8E0 253 301 EM, 8T0 513 028 AB, 8T0 513 028 R, 8T0 513 029, 8T0 513 029 A, N0111852, N0111854, N0111858, N0111859, N0211953, N 102 861 02, N 102 951 01 and N 104 060 01.
What size is it?
M10 x 1.5 with a 16 mm hex.
How many come in a box?
They are sold in boxes of 10. The price shown is per nut, so a box of 10 costs 10 times the price shown.
Will it fit my e-up!, e-load up!, Golf 3 CitySTROMer, e-Golf or Mercedes-Benz A-Class E-Cell?
The parts finder lists it for the Volkswagen e-up!, e-load up!, Golf 3 CitySTROMer, e-Golf and Mercedes-Benz A-Class E-Cell. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Mercedes-Benz or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
