Rear Axle Beam Bush – VW e-up!, Mii Electric & Citigo-e iV – Febi 37122

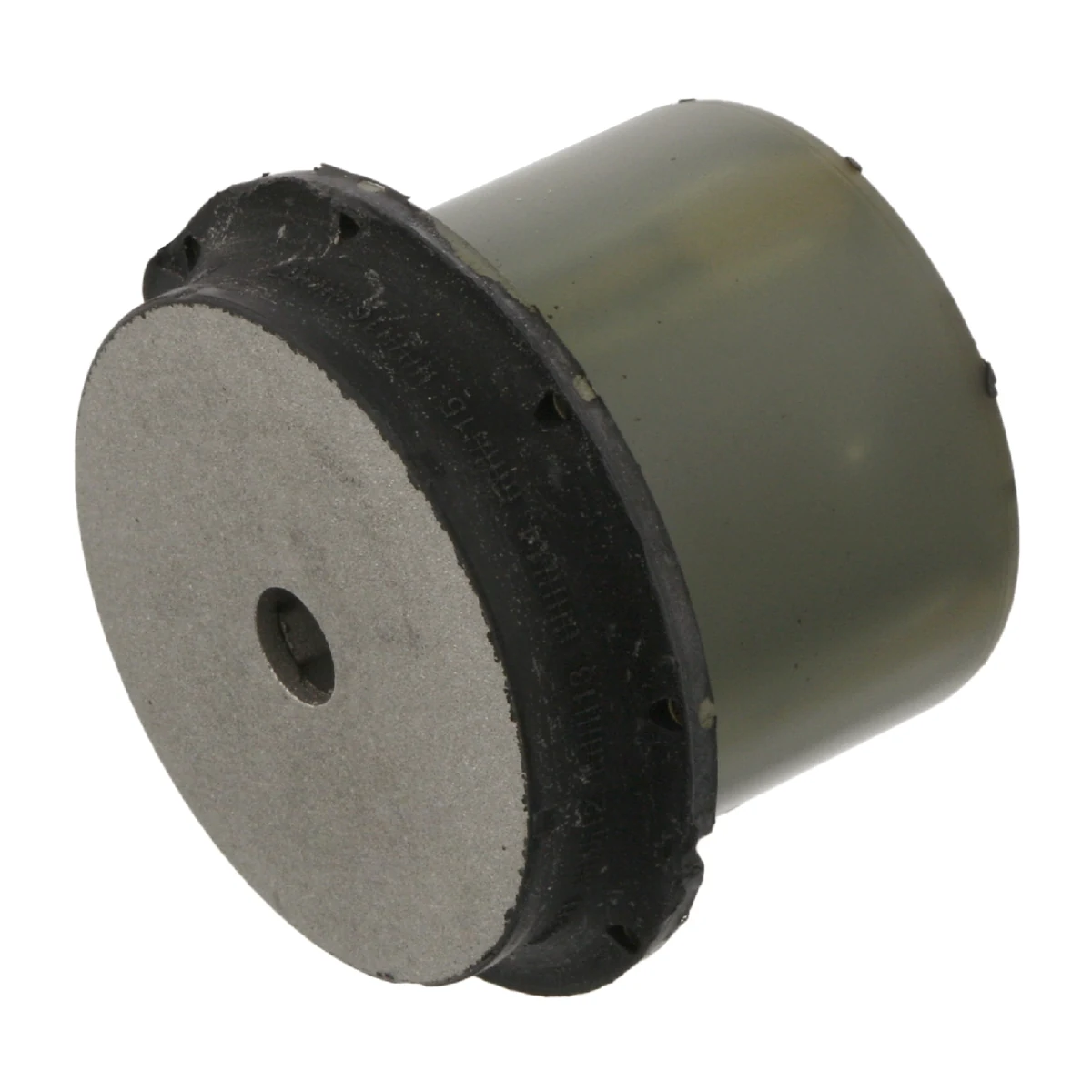

This axle beam mount fits the rear axle beam, left or right, of the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. It is a rubber and metal bush, 65 mm long with a 58 mm outer diameter and a 10 mm inner diameter.
The rear axle beam is held to the body by two rubber bushes, which soak up road shocks and keep the rear wheels in line. As they age the rubber splits or sags, causing a knock or clunk from the rear over bumps, a vague feel at the back of the car and uneven rear tyre wear.
This is Febi part number 37122, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this mount for the Volkswagen e-up! (BL1, 2013 to 2016) 60 kW and (BL2, 2016 on) 60 and 61 kW; Volkswagen e-load up! (BL1, 2014 to 2016) 60 kW and (BL2, 2016 to 2019) 60 kW; SEAT Mii Electric (KE, 2020 on) 61 kW; Skoda Citigo-e iV (2019 to 2021) 61 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal bush
- 58 mm outer diameter
- Fits the left or right side
- Made by the bilstein group
Specifications
- Inner Diameter: 10 mm
- Length: 65 mm
- Material: Rubber / metal
- Outer Diameter: 58 mm
- Fitting Position: Rear axle, left or right
- Part Number: Febi 37122
Replaces SEAT, Skoda and Volkswagen part numbers 1S0 501 541 F and 1S0 501 541 B.
Installation
Professional installation recommended. The axle beam must be lowered and the old bush pressed out with a suitable tool.
Explore More Parts
- All SEAT Mii Electric Parts
- All Skoda Citigo-e iV Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-up! Parts
- All Axle Beam Parts
| Attribute | Value |
|---|---|
| Inner Diameter | 10 mm |
| Length | 65 mm |
| Material | Rubber / metal |
| Outer Diameter | 58 mm |
| Fitting Position | Rear axle, left or right |
| Part Number | Febi 37122 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| SEAT | Mii (KE) 2020 – | (E) E 61 kW / 83 hp |
| Skoda | E-Citigo 2019 – 2021 | (E) – 61 kW / 83 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-load up! (BL2) 2016 – 2019 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 61 kW / 83 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
Rear Axle Beam Bush – VW e-up!, Mii Electric & Citigo-e iV – Febi 37122 FAQs
Which part numbers does it replace?
It replaces SEAT, Skoda and Volkswagen part numbers 1S0 501 541 F and 1S0 501 541 B.
Which side does it fit?
It fits the rear left or right side.
What are the signs of a worn mount?
A knock or clunk from the rear over bumps and uneven rear tyre wear.
Do I need a press?
Yes. The bush is pressed into the axle beam, so a press or bush tool is needed.
Will it fit my e-up!, e-load up!, Mii Electric or Citigo-e iV?
The parts finder lists it for the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine SEAT, Skoda or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
