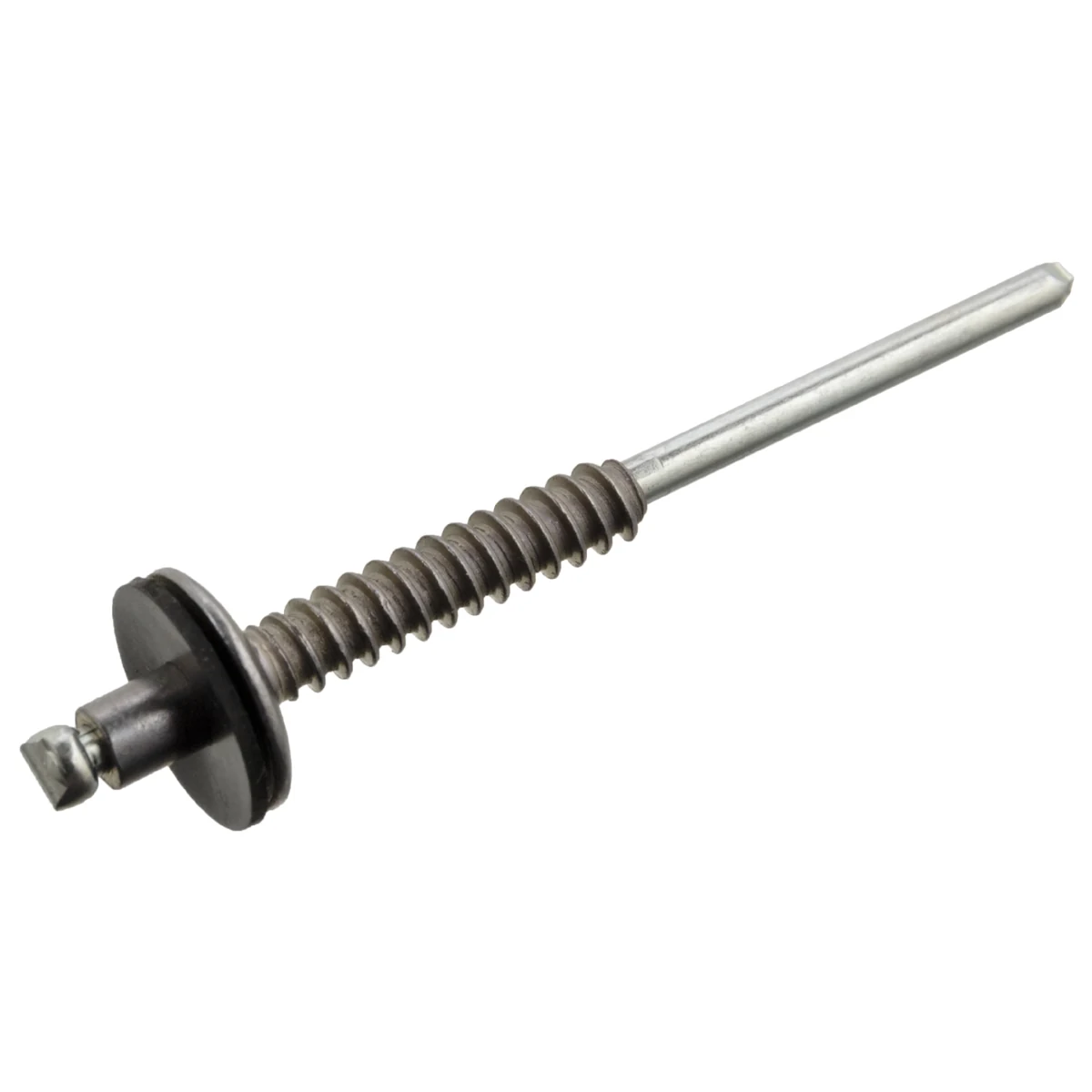

Volkswagen e-up!, SEAT Mii Electric & Skoda Citigo-e iV Blind Rivet with Gasket – 4.8 mm
This blind rivet fits the Volkswagen e-up!, e-load up!, SEAT Mii Electric and Skoda Citigo-e iV. A blind rivet is fitted from one side only. It is galvanised steel with a gasket and a 4.8 mm bore diameter.
Original rivets are drilled out whenever the part they hold has to come off, so a new rivet is needed to refit it. The gasket helps seal the hole against water.
This is Febi part number 104111, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this rivet for the Volkswagen e-up! (BL1, 2013 to 2016) 60 kW and (BL2, 2016 on) 60 and 61 kW; Volkswagen e-load up! (BL1, 2014 to 2016) 60 kW and (BL2, 2016 to 2019) 60 kW; SEAT Mii Electric (KE, 2020 on) 61 kW; Skoda Citigo-e iV (2019 to 2021) 61 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Fitted from one side
- Gasket under the head
- Galvanised steel
- Replaces N 907 161 03
Specifications
- Type: Blind rivet with gasket
- Bore Diameter: 4.8 mm
- Length: 65 mm
- Length Under Head: 54 mm
- Thread Length: 24 mm
- Outer Diameter: 14 mm
- Material: Steel
- Surface: Galvanised
- Part Number: Febi 104111
Replaces SEAT, Skoda and Volkswagen part number N 907 161 03.
Installation
Easy to fit with the right tools. Drill out the old rivet, clean the hole, and set the new rivet with a suitable blind rivet tool. Check the part it holds is firm afterwards.
Explore More Parts
- All SEAT Mii Electric Parts
- All Skoda Citigo-e iV Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-up! Parts
- All Fittings and Fasteners
| Attribute | Value |
|---|---|
| Type | Blind rivet with gasket |
| Bore Diameter | 4.8 mm |
| Length | 65 mm |
| Length Under Head | 54 mm |
| Thread Length | 24 mm |
| Outer Diameter | 14 mm |
| Material | Steel |
| Surface | Galvanised |
| Part Number | Febi 104111 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| SEAT | Mii (KE) 2020 – | (E) E 61 kW / 83 hp |
| Skoda | E-Citigo 2019 – 2021 | (E) – 61 kW / 83 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-load up! (BL2) 2016 – 2019 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 61 kW / 83 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
Volkswagen e-up!, SEAT Mii Electric & Skoda Citigo-e iV Blind Rivet with Gasket – 4.8 mm FAQs
Which part numbers does it replace?
It replaces SEAT, Skoda and Volkswagen part number N 907 161 03.
Is the price for one rivet?
Yes. The rivet is sold individually, so choose the quantity you need in the basket.
What size is it?
It has a 4.8 mm bore diameter, 14 mm outer diameter, 65 mm length and 54 mm length under the head, with a 24 mm thread length.
Do I need a special tool?
Yes, a blind rivet tool that suits the rivet is needed to set it.
Will it fit my e-up!, Mii Electric or Citigo-e iV?
The parts finder lists it for the e-up! BL1 and BL2, the e-load up! BL1 and BL2, the Mii Electric and the Citigo-e iV. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine SEAT, Skoda or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
