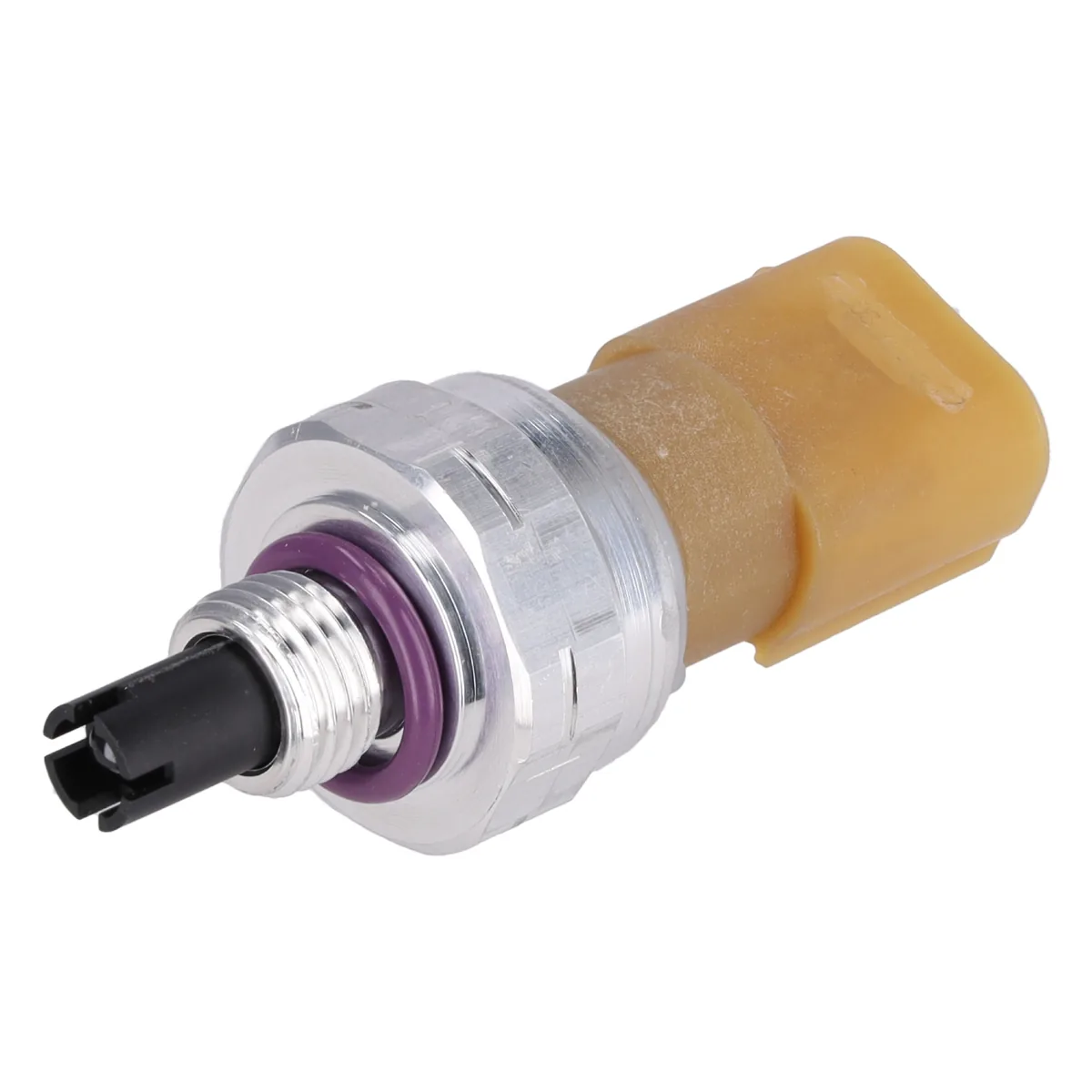

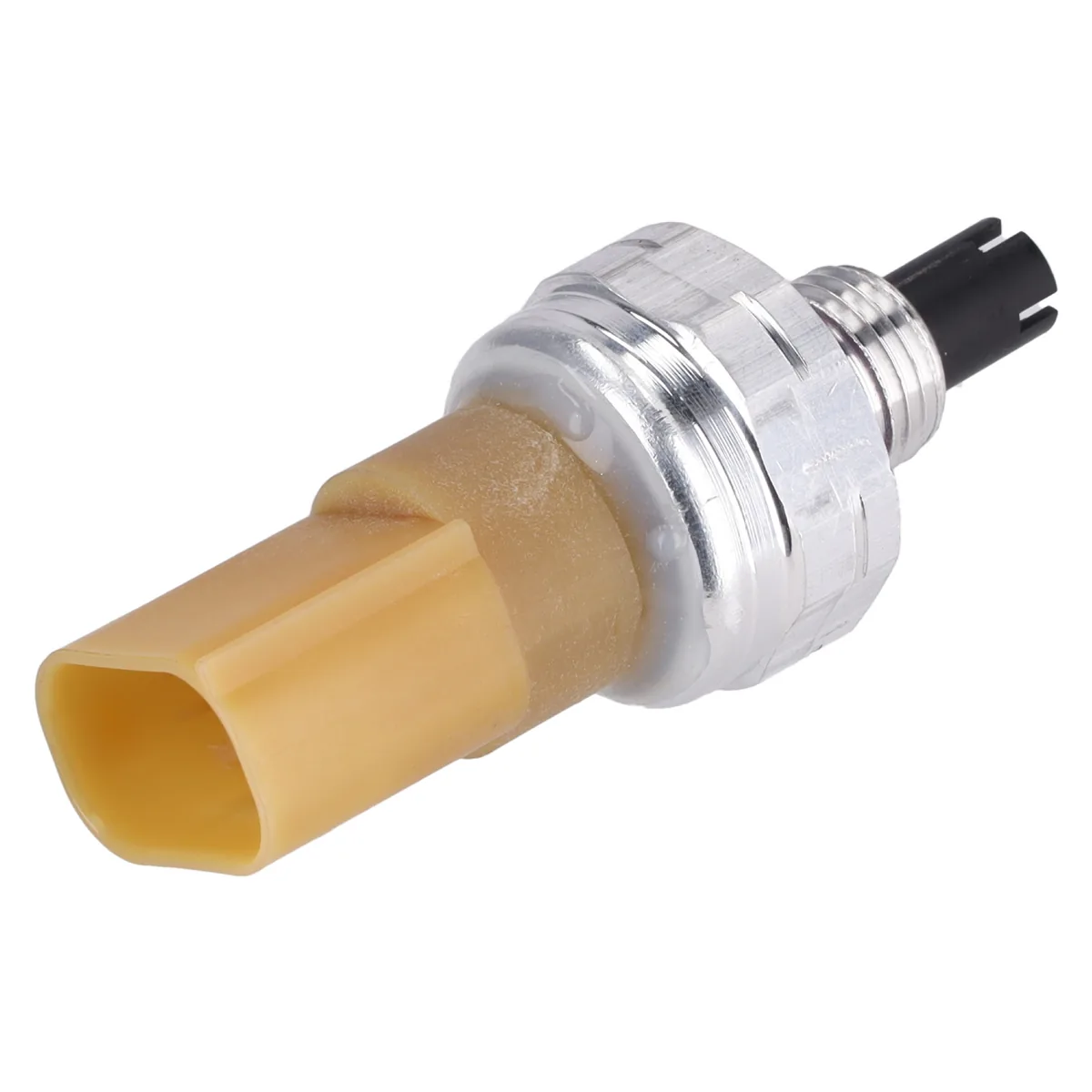

BMW i3 & i3s (Non-REx) Air Conditioning Pressure Switch – 4-Pin
This air conditioning pressure switch monitors the refrigerant pressure in the BMW i3 climate system. The car uses its signal to run the compressor and cooling fan safely, and to protect the system if the pressure goes too high or too low.
A faulty pressure switch can stop the air conditioning blowing cold, make the cooling fan run all the time or not at all, or store a refrigerant pressure fault. On an electric car the same circuit also helps manage battery and cabin cooling, so it is worth fixing promptly.
This is Febi part number 1004338, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to.
The table below shows the BMW i3 versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: i3s 135 kW and i3 125 kW only. Compare the BMW part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Restores correct air conditioning control
- 24 mm hex body
- Matches the original connector
- Direct replacement for the original switch
- Febi quality from the bilstein group
Specifications

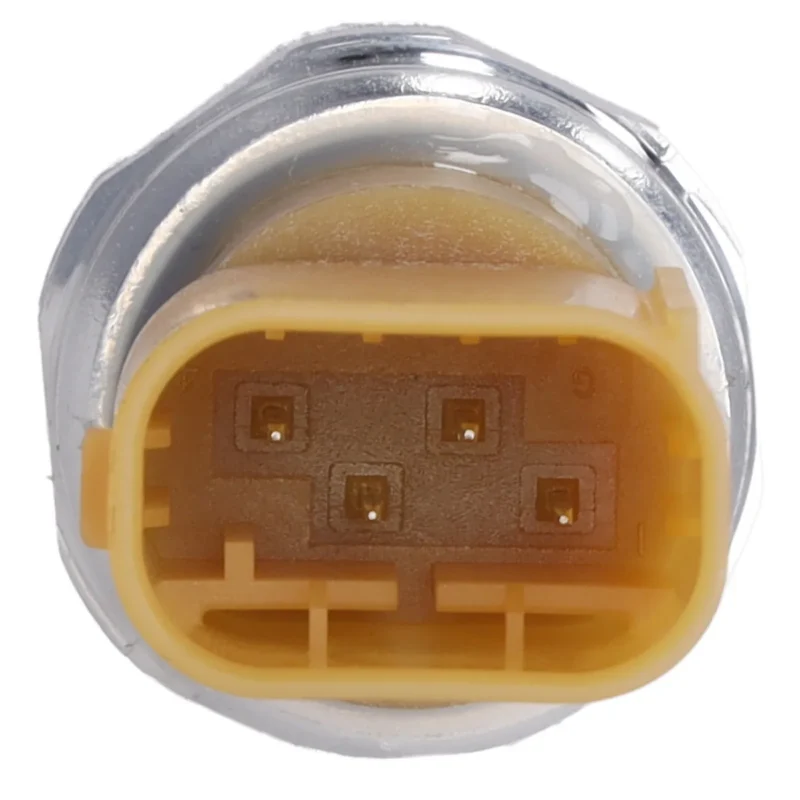

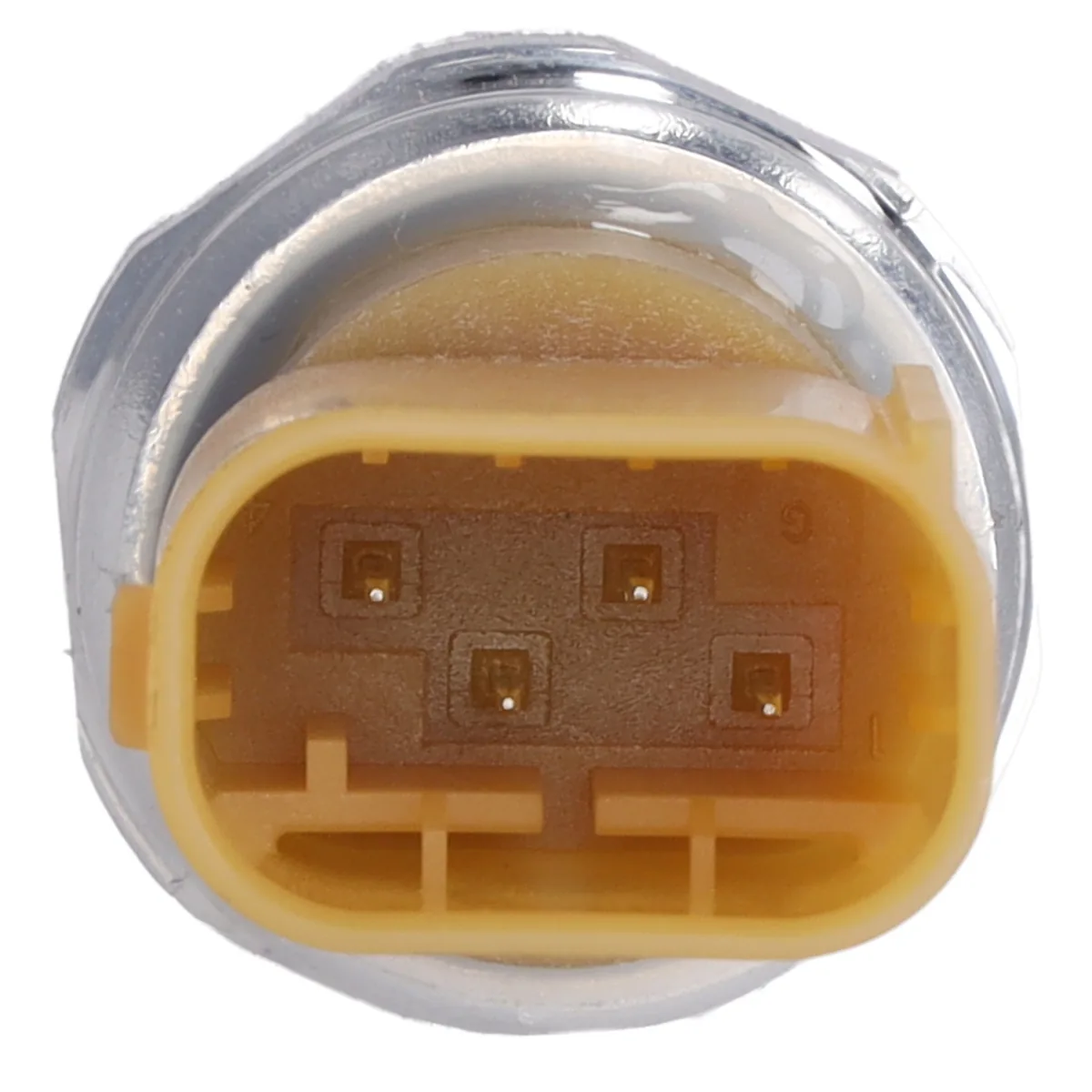

- No. of Connections: 4
- Spanner Size: 24 mm
- Part Number: Febi 1004338
Replaces BMW part number 64 53 9 306 476.
Installation
Professional installation recommended. The switch screws into the refrigerant line, so the system should be handled by an air conditioning specialist who can recover and recharge the refrigerant correctly.
Explore More Parts
| Attribute | Value |
|---|---|
| No. of Connections | 4 |
| Spanner Size | 24 mm |
| Part Number | Febi 1004338 |
Fits The Following BMW Models
| Model | Submodel |
|---|---|
| i3 (I01) 2013 – 2022 | i3s – 135 kW / 184 hp |
| i3 (I01) 2013 – 2022 | i3 – 125 kW / 170 hp |
BMW i3 & i3s (Non-REx) Air Conditioning Pressure Switch – 4-Pin FAQs
Which part numbers does it replace?
Replaces BMW part number 64 53 9 306 476. The Febi part number is 1004338.
Do I need to regas the air conditioning?
Usually the system must be recovered before the switch is removed and then recharged, so have it fitted by an air conditioning specialist.
How do I know which switch I have?
Check the number of pins on the connector and the BMW part number on your existing switch, then compare it with the numbers on this page.
Will it fit my BMW i3?
Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: i3s 135 kW and i3 125 kW only. Check the notes in the fitment table and compare the BMW part number on your existing part.
Is this a genuine BMW part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
