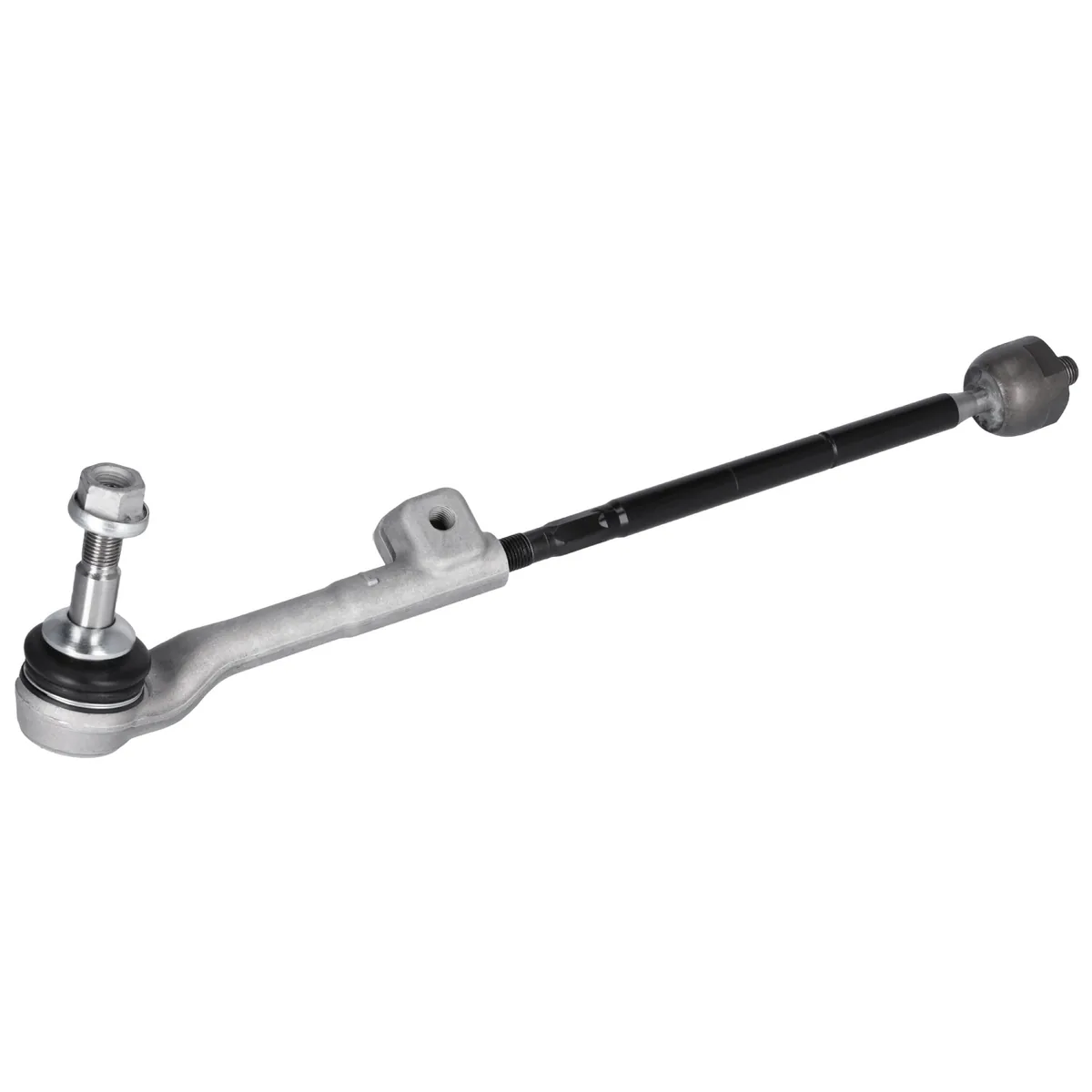

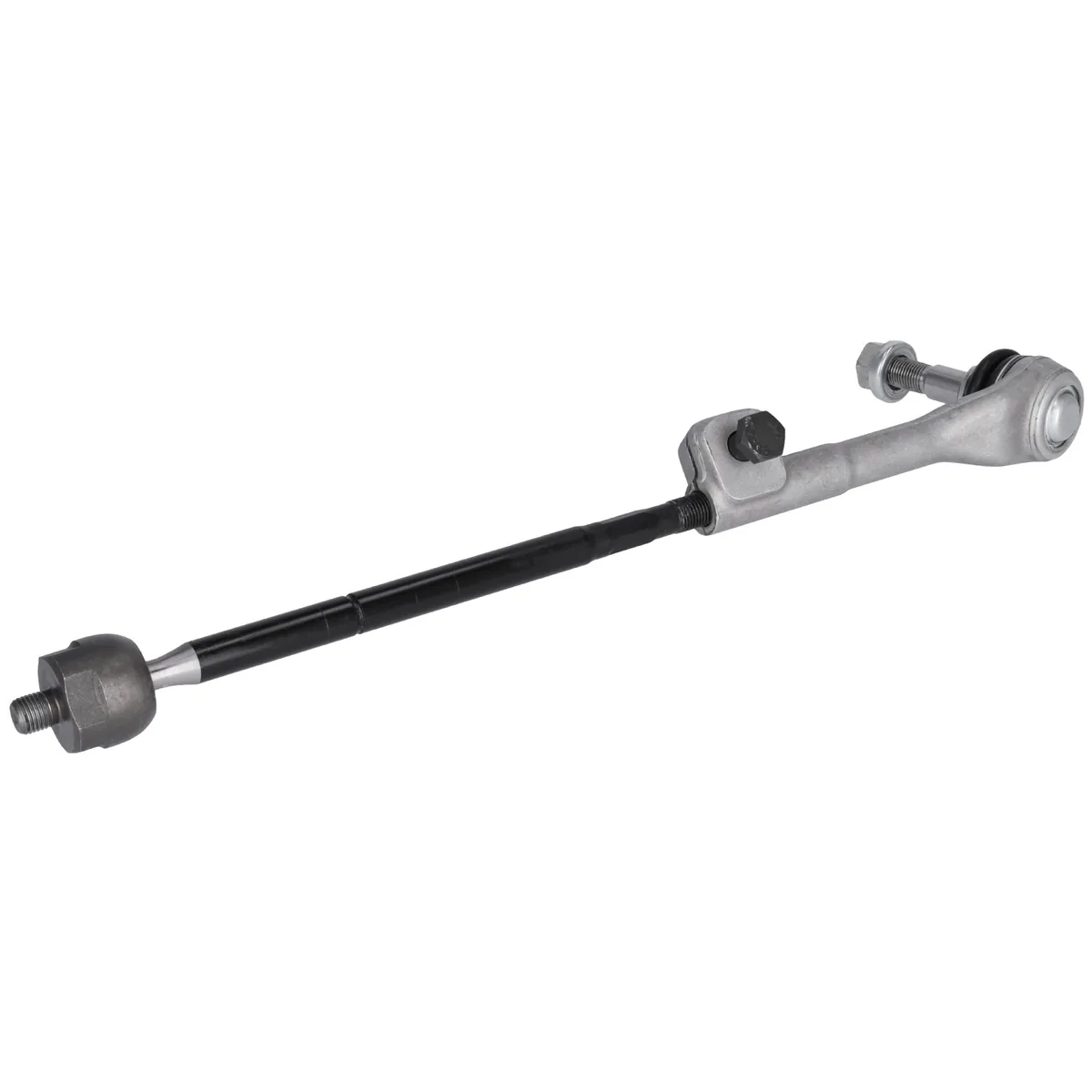

BMW i3 Front Tie Rod with Tie Rod End – Left / Right
This front tie rod with tie rod end connects the steering rack to the front wheel on the BMW i3. It is a complete assembly with the inner tie rod, outer tie rod end and fitting parts, so it replaces both wear points in one job. The left and right tie rods are different parts, so choose the side you need from the options.
Worn tie rods show up as play or a knock in the steering, vague handling, a car that wanders on the motorway or uneven wear on the inner or outer edge of the front tyres.
Each side is a Febi part from the bilstein group: front axle left is Febi 180976 and front axle right is Febi 180975.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world.
The table below shows the BMW i3 versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: the i3 and i3s, with and without Range Extender. Compare the BMW part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Complete tie rod with tie rod end
- Left and right versions available
- M14 x 1.5 thread
- Restores precise steering
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front Axle Left (180976) | Front Axle Right (180975)
- Length: 442.5 mm (left) | 442 mm (right)
- Outside Thread: M14 x 1.5
- Supplied with: Tie rod end and additional parts
- Part Number: Febi 180976 (left) | Febi 180975 (right)
Replaces BMW part numbers left (Febi 180976): 32 21 6 851 409; right (Febi 180975): 32 21 6 851 410.
Installation
Professional installation recommended. Count the turns as you remove the old tie rod to get the tracking close, then have a full wheel alignment done after fitting. Tighten all nuts to the BMW torque settings. Please note: if the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front Axle Left (180976) | Front Axle Right (180975) |
| Length | 442.5 mm (left) | 442 mm (right) |
| Outside Thread | M14 x 1.5 |
| Supplied with | Tie rod end and additional parts |
| Part Number | Febi 180976 (left) | Febi 180975 (right) |
Fits The Following BMW Models
| Model | Submodel |
|---|---|
| i3 (I01) 2013 – 2022 | i3s – 135 kW / 184 hp |
| i3 (I01) 2013 – 2022 | i3s Range Extender – 135 kW / 184 hp |
| i3 (I01) 2013 – 2022 | i3 – 125 kW / 170 hp |
| i3 (I01) 2013 – 2022 | i3 Range Extender – 125 kW / 170 hp |
BMW i3 Front Tie Rod with Tie Rod End – Left / Right FAQs
Which part numbers does it replace?
Replaces BMW part numbers left (Febi 180976): 32 21 6 851 409; right (Febi 180975): 32 21 6 851 410. The Febi part numbers are 180976 and 180975.
Which side do I need?
Febi 180976 is for the front left and Febi 180975 is for the front right. Choose the side from the options above.
Do I need a wheel alignment?
Yes. Always have the alignment checked and set after replacing a tie rod.
Will it fit my BMW i3?
Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: the i3 and i3s, with and without Range Extender. Check the notes in the fitment table and compare the BMW part number on your existing part.
Is this a genuine BMW part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
