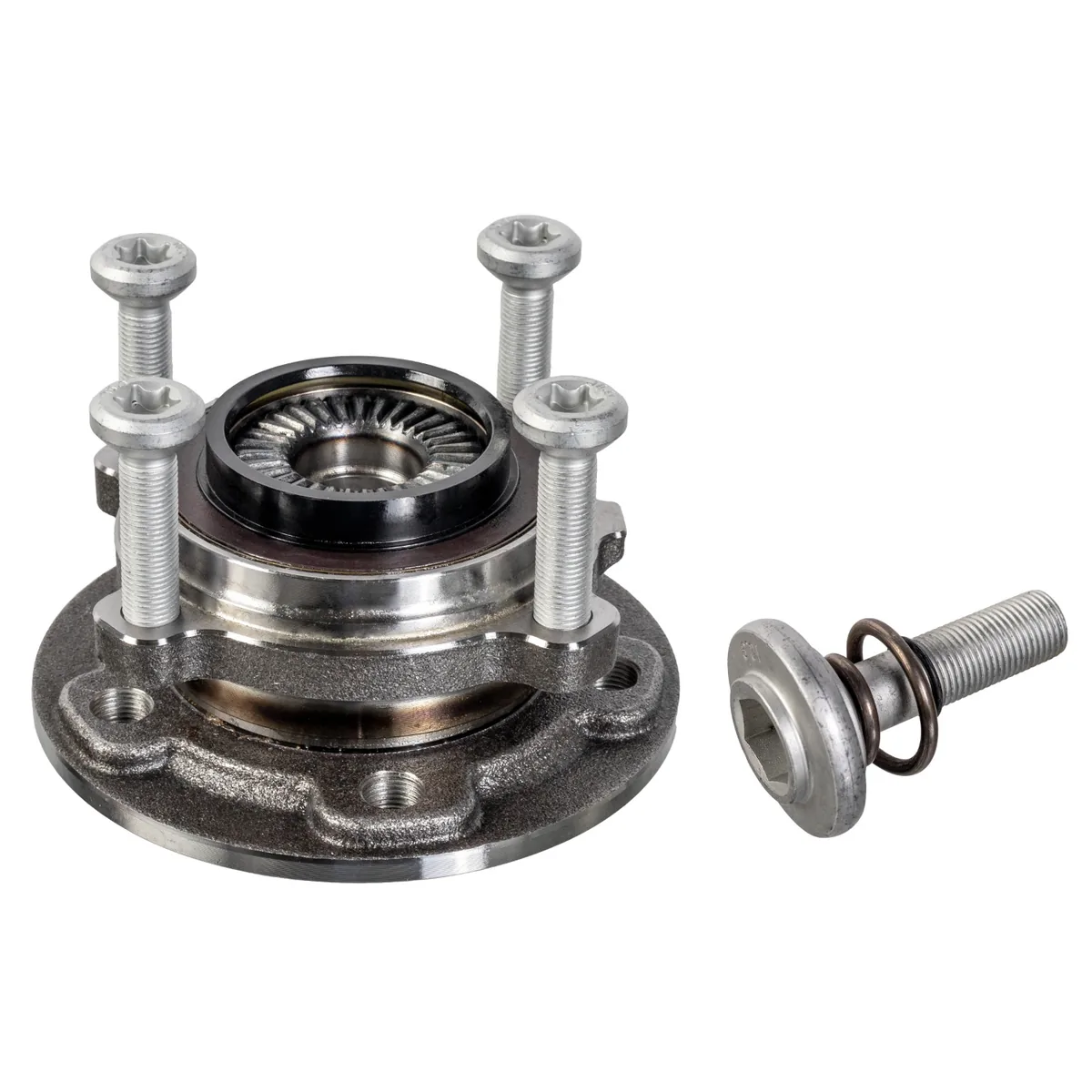

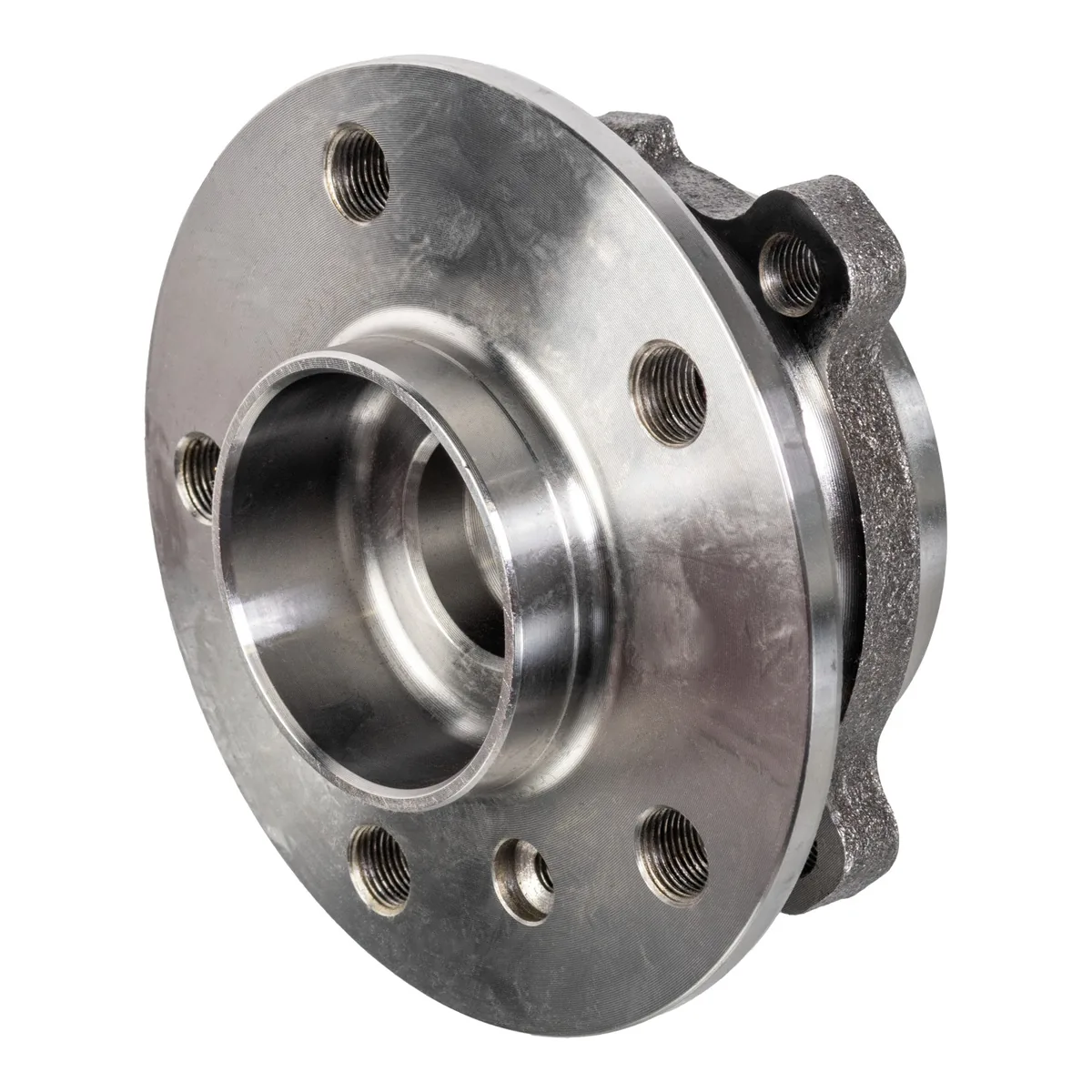

BMW i3 Rear Wheel Bearing and Hub
This wheel bearing kit has the bearing built into the wheel hub, with five studs on a 112 mm pitch circle. It replaces the bearing and hub in one job on the BMW i3.
A worn wheel bearing usually makes a humming or droning noise that rises with speed and changes as you turn. You may also feel play in the wheel.
This is Febi part number 176975, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the BMW i3 versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: the i3 and i3s, with and without Range Extender. Compare the BMW part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Bearing integrated into the hub
- Angular ball bearing
- 5 studs, 112 mm PCD
- Direct replacement for the original
- Febi quality from the bilstein group
Specifications
- Fitting Position: Rear axle left or right
- Design: Bearing integrated into the wheel hub
- Bearing Type: Angular ball bearing
- Inner Diameter: 30 mm
- Outer Diameter: 95 mm
- Outer Diameter 1: 67 mm
- Outer Diameter 2: 143 mm
- Width: 43 mm
- Studs: 5
- Pitch Circle Diameter: 112 mm
- Part Number: Febi 176975
Replaces BMW part numbers 31 20 8 845 775, 31 20 6 874 443, 31 22 6 850 415, 33 41 6 852 157 and 33 41 6 857 926.
Installation
Professional installation recommended. Use new fixings where BMW requires them, tighten them to the BMW torque settings and check the ABS signal after fitting.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle left or right |
| Design | Bearing integrated into the wheel hub |
| Bearing Type | Angular ball bearing |
| Inner Diameter | 30 mm |
| Outer Diameter | 95 mm |
| Outer Diameter 1 | 67 mm |
| Outer Diameter 2 | 143 mm |
| Width | 43 mm |
| Studs | 5 |
| Pitch Circle Diameter | 112 mm |
| Part Number | Febi 176975 |
Fits The Following BMW Models
| Model | Submodel |
|---|---|
| i3 (I01) 2013 – 2022 Fitting Position:Rear Axle Left Fitting Position:Rear Axle Right | i3s – 135 kW / 184 hp |
| i3 (I01) 2013 – 2022 Fitting Position:Rear Axle Left Fitting Position:Rear Axle Right | i3s Range Extender – 135 kW / 184 hp |
| i3 (I01) 2013 – 2022 Fitting Position:Rear Axle Left Fitting Position:Rear Axle Right | i3 – 125 kW / 170 hp |
| i3 (I01) 2013 – 2022 Fitting Position:Rear Axle Left Fitting Position:Rear Axle Right | i3 Range Extender – 125 kW / 170 hp |
BMW i3 Rear Wheel Bearing and Hub FAQs
Which part numbers does it replace?
Replaces BMW part numbers 31 20 8 845 775, 31 20 6 874 443, 31 22 6 850 415, 33 41 6 852 157 and 33 41 6 857 926. The Febi part number is 176975.
Is the hub included?
Yes. The bearing is integrated into the wheel hub.
How many studs does it have?
It has 5 studs on a 112 mm pitch circle.
Will it fit my BMW i3?
Listed in the parts finder for the BMW i3 (I01) 2013 – 2022: the i3 and i3s, with and without Range Extender. Check the notes in the fitment table and compare the BMW part number on your existing part.
Is this a genuine BMW part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
