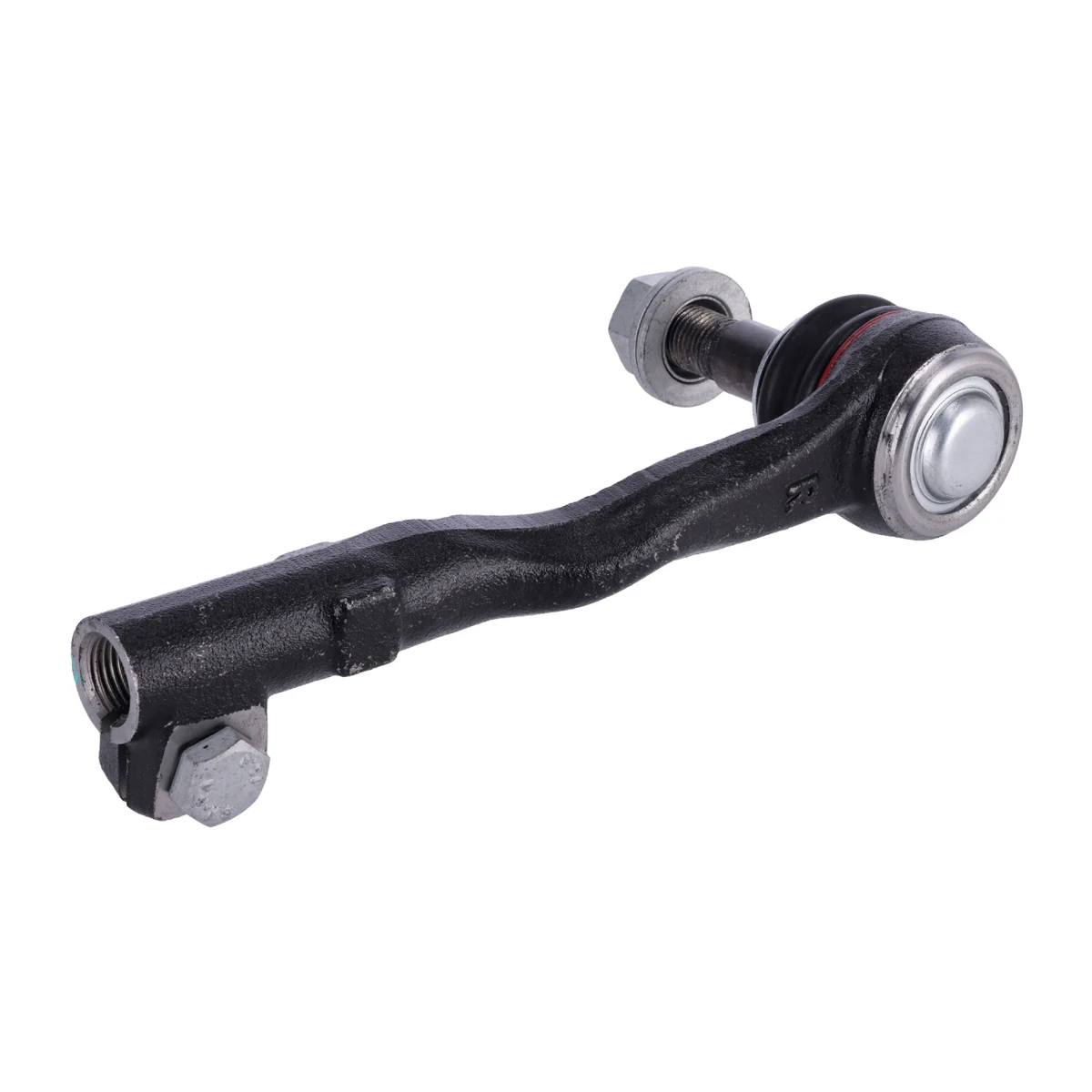

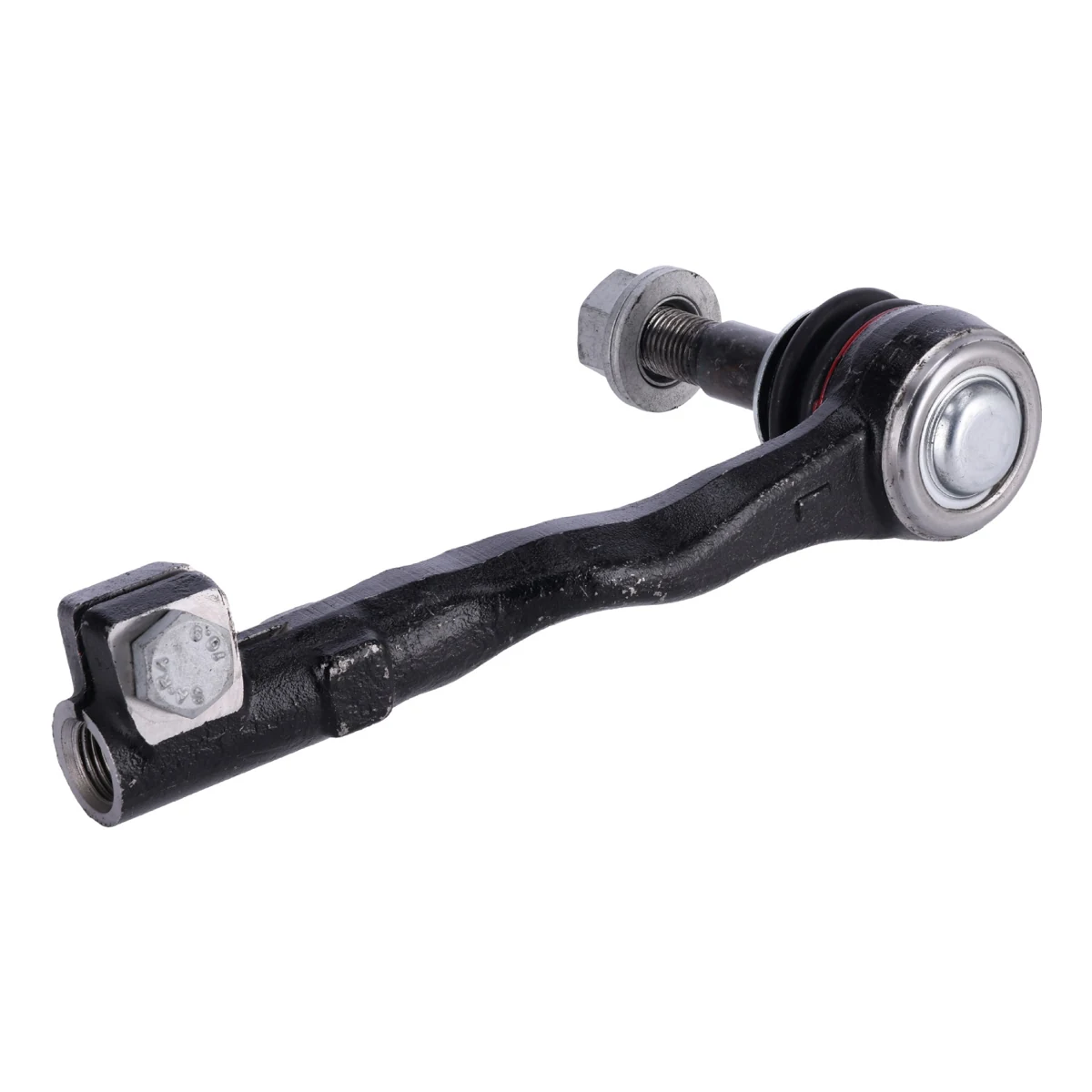

Front Tie Rod End – BMW i5
This front tie rod end connects the steering rack to the wheel hub. Choose the left side (Febi 1004003) or the right side (Febi 1004004). Each one comes with a lock nut and bolt, has an M16 x 1.5 internal thread and an M14 x 1.5 external thread, is 186 mm long and takes a 21 mm spanner.
The tie rod end passes every steering movement to the wheel, so wear in its ball joint shows up quickly. Typical signs are a knock over bumps, play or vagueness in the steering, a car that wanders on the motorway and uneven wear on the inside or outside of the front tyre. A new tie rod end restores precise steering.
This listing covers Febi part numbers 1004003 (left) and 1004004 (right), made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists these tie rod ends for the BMW i5 saloon from 2023 and the BMW i5 Touring from 2024, in the eDrive40, xDrive40 and M60 xDrive versions. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Left and right options
- Lock nut and bolt included
- 186 mm long, 21 mm spanner size
- Made by the bilstein group
Specifications
- Fitting Position: Front left or right
- Threads: M16 x 1.5 / M14 x 1.5
- Length: 186 mm
- Spanner Size: 21 mm
- Warranty: 3 years
- Part Number: Febi 1004003 / 1004004
Replaces BMW part numbers 32 10 5 A71 039 and 32 10 5 A71 040.
Installation
Professional installation recommended. Use the new lock nut and bolt, and have the front wheel alignment set straight after. If the car has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front left or right |
| Threads | M16 x 1.5 / M14 x 1.5 |
| Length | 186 mm |
| Spanner Size | 21 mm |
| Warranty | 3 years |
| Part Number | Febi 1004003 / 1004004 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| BMW | i5 (G60) 2023 – | i5 40 – 250 kW / 340 hp |
| BMW | i5 (G60) 2023 – | i5 40 xDrive – 290 kW / 394 hp |
| BMW | i5 (G60) 2023 – | i5 M60 xDrive – 442 kW / 601 hp |
| BMW | i5 (G61) 2024 – | (E) – 290 kW |
| BMW | i5 (G61) 2024 – | i5 40 touring – 250 kW / 340 hp |
| BMW | i5 (G61) 2024 – | i5 M60 xDrive touring – 442 kW / 601 hp |
Front Tie Rod End – BMW i5 FAQs
Which part numbers does it replace?
It replaces BMW part numbers 32 10 5 A71 039 and 32 10 5 A71 040.
Which side do I need?
Choose Front Axle Left for Febi 1004003 or Front Axle Right for Febi 1004004. Left and right are as seen from the driver’s seat.
Is the lock nut included?
Yes, each tie rod end comes with a lock nut and bolt.
Will the car need calibrating?
If the car has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Will it fit my BMW i5?
The parts finder lists it for the BMW i5 saloon and i5 Touring eDrive40, xDrive40 and M60 xDrive. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine BMW part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
