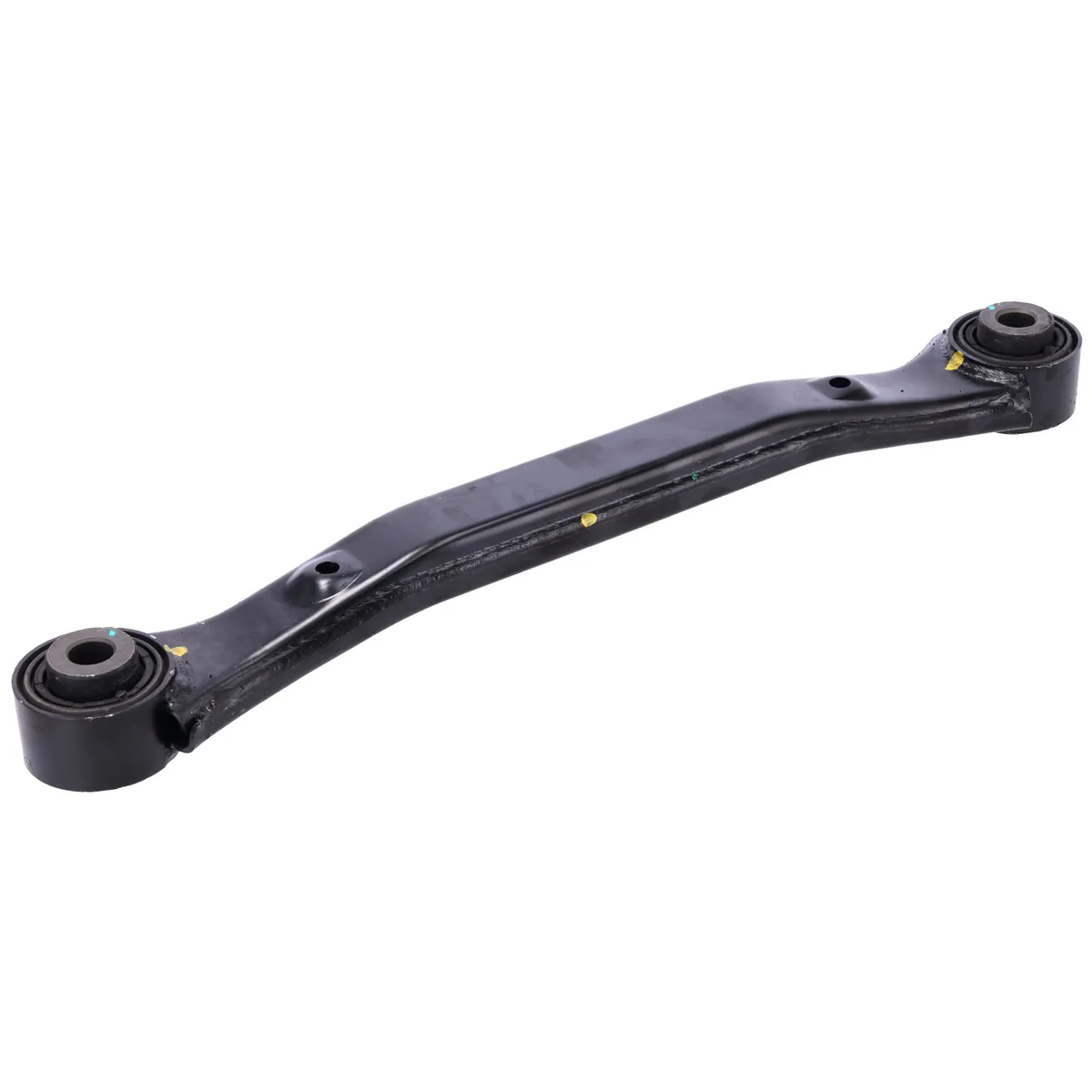

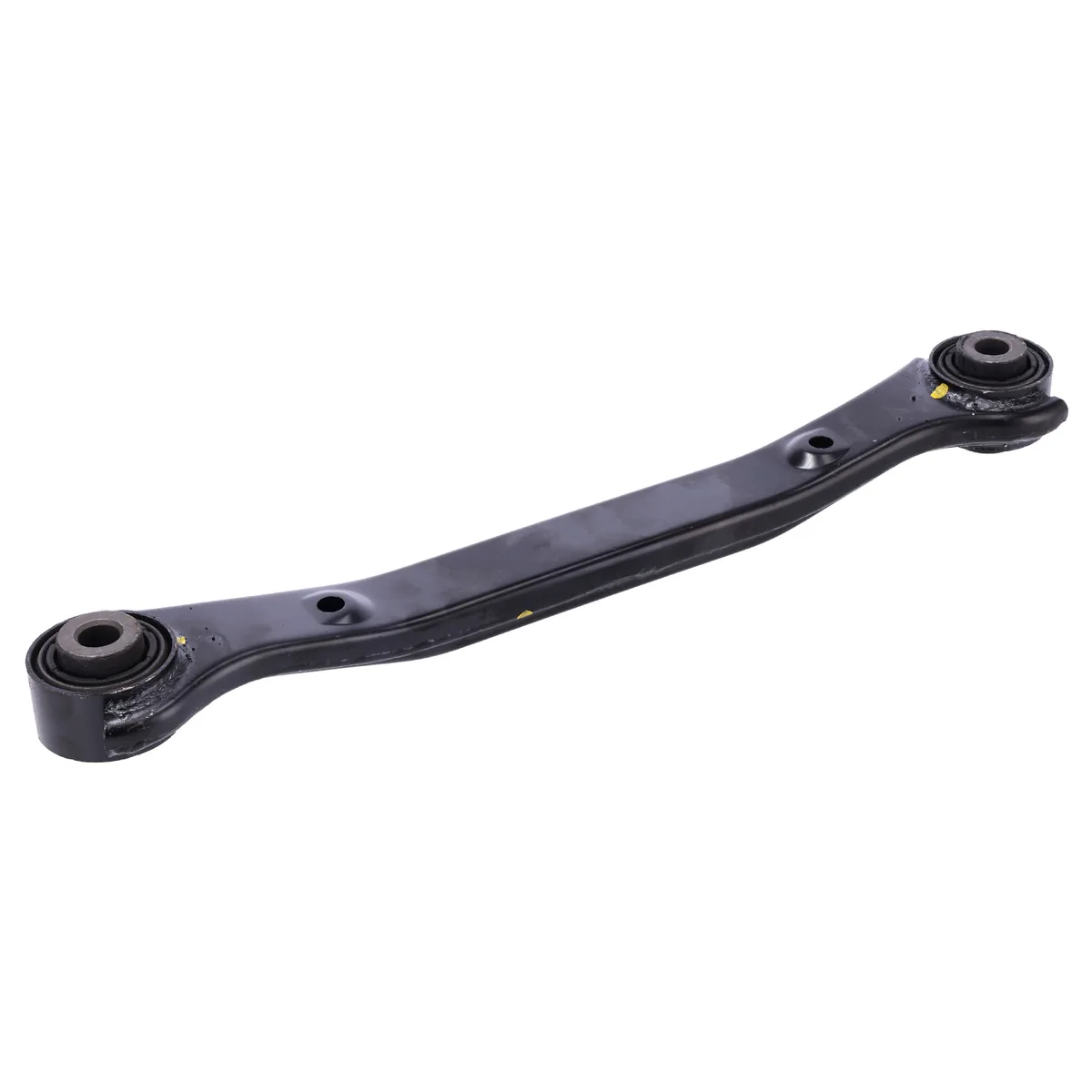

BYD Atto 2, Atto 3 & Dolphin Rear Upper Control Arm – Rear, 393 mm
This rear upper control arm is the rear upper link of the rear suspension on the BYD Atto 2, Atto 3 and Dolphin. It is a 393 mm sheet steel arm supplied with its bushes and fits the left or right side.
Replace the arm if the bush is split or perished, the arm is bent or corroded, or you hear knocks from the rear suspension or notice uneven rear tyre wear.
This is Febi part number 1009815, made by the bilstein group. Blue Print ADBP860429 is the same part under another brand name.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the BYD versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the BYD Atto 2 150 kW, Atto 3 100 and 150 kW and Dolphin 130 and 150 kW. Compare the BYD part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rear upper arm, rear position
- 393 mm long
- Bushes fitted
- Fits left or right
- Febi quality from the bilstein group
Specifications
- Fitting Position: Rear axle, left or right, upper, rear
- Length: 393 mm
- Material: Sheet steel
- Contents: With bushes
- Part Number: Febi 1009815 | Blue Print ADBP860429
Replaces BYD part numbers 13437940-00 and SC2E-2914110A.
Installation
Professional installation recommended. Support the suspension, tighten the bolts with the car at normal ride height so the bushes are not twisted, then have the wheel alignment checked.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle, left or right, upper, rear |
| Length | 393 mm |
| Material | Sheet steel |
| Contents | With bushes |
| Part Number | Febi 1009815 | Blue Print ADBP860429 |
Fits The Following BYD Models
| Model | Submodel |
|---|---|
| BYD Atto 2 (2024 –) | (E) – 150 kW / 204 hp |
| BYD Atto 3 (2022 –) | (E) – 100 kW / 136 hp |
| BYD Atto 3 (2022 –) | (E) – 150 kW / 204 hp |
| BYD Dolphin (2021 –) | (E) – 130 kW / 177 hp |
| BYD Dolphin (2021 –) | (E) – 150 kW / 204 hp |
BYD Atto 2, Atto 3 & Dolphin Rear Upper Control Arm – Rear, 393 mm FAQs
Which part numbers does it replace?
Replaces BYD part numbers 13437940-00 and SC2E-2914110A. Febi and Blue Print part numbers are listed in the specifications.
Does it fit both sides?
Yes. The parts finder lists it for the rear axle, left and right.
Are the bushes included?
Yes. The arm comes with its bushes fitted.
Will it fit my BYD Atto 2?
Listed in the parts finder for the BYD Atto 2 150 kW, Atto 3 100 and 150 kW and Dolphin 130 and 150 kW. Check the notes in the fitment table and compare the BYD part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine BYD part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
