Tesla Model S Rear Integral Link

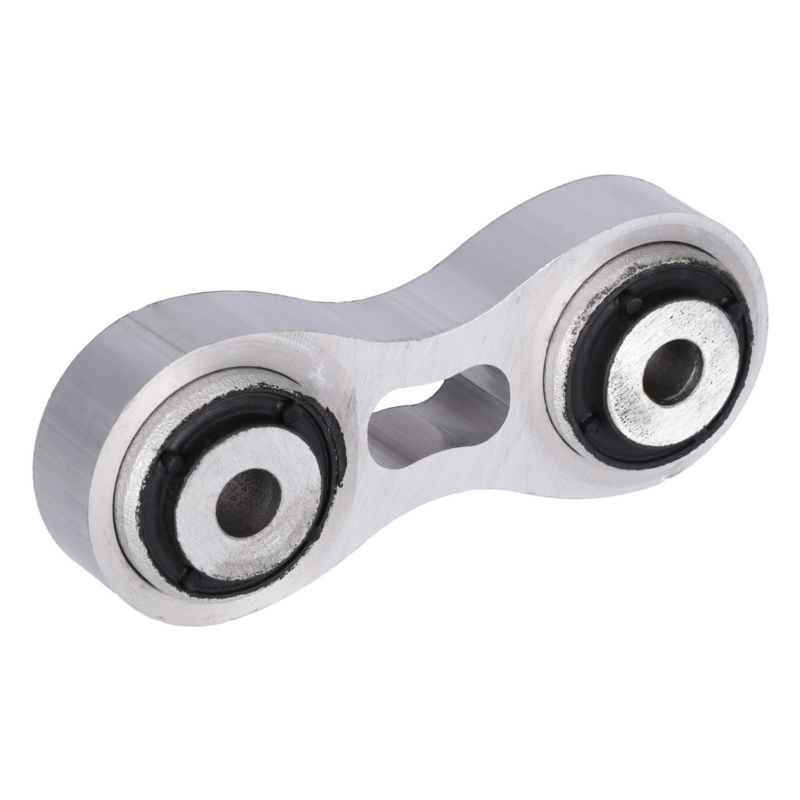

This rear integral link is the short aluminium link on the Tesla Model S rear axle. Tesla calls it the integral link. This listing replaces 6006895-00-A, 1021422-00-A and 1021422-00-B only.
A worn integral link is a common cause of a knock from the rear of a Model S over speed bumps. It is not the rear toe link and it is not an anti-roll bar drop link.
Choose Febi 180097, Delphi TC8267, Meyle 70-16-050-0038, MOOG TE-LS-17346, SKF VKDS449002 or Viaco V58-0020.
This is a replacement part for the original factory link. Left and right use the same part. Sold each. Order two if you are doing both sides.
Aftermarket Part Numbers
- Febi 180097
- Delphi TC8267
- Meyle 70-16-050-0038
- MOOG TE-LS-17346
- SKF VKDS449002
- Viaco V58-0020
Tesla Part Numbers
- 6006895-00-A
- 1021422-00-A
- 1021422-00-B
Key Benefits
- Direct replacement rear integral link for Model S
- Aluminium link, left or right
- Replaces 6006895-00-A, 1021422-00-A and 1021422-00-B
- Several brand options on one page
Specifications
- Fitting Position: Rear axle, left or right
- Material: Aluminium
- Length listed on this product: 85 mm
Compatibility
Fits Tesla Model S from 2012, including Dual Motor from 2014 and the Tri Motor applications listed against 6006895-00-A, 1021422-00-A and 1021422-00-B.
Model X is not listed on this page.
Please send your registration number if you need exact confirmation before ordering.
Installation
Professional fitting is recommended. A four-wheel alignment is required after replacement. This listing does not include fitting instructions.
Pro tip: If one side has failed, inspect the opposite link and the rear toe link. They often wear together.
Explore More Model S Parts
| Attributes | |
|---|---|
| Length | 85 mm |
| Material | Aluminium |
| Suitable to replace | Reference(s) |
|---|---|
| Tesla | 6006895-00-A | 1021422-00-B | 1021422-00-A |
| Model | Submodel |
|---|---|
| Model S 2012 – | (E) – 222 kW / 302 hp |
| Model S 2012 – | (E) – 225 kW / 306 hp |
| Model S 2012 – | (E) – 235 kW / 320 hp |
| Model S 2012 – | (E) – 270 kW / 367 hp |
| Model S 2012 – | (E) – 283 kW / 385 hp |
| Model S 2012 – | (E) – 285 kW / 387 hp |
| Model S 2012 – | (E) – 310 kW / 421 hp |
| Model S 2012 – | (E) – 350 kW / 476 hp |
| Model S Dual Motor 2014 – | (E) – 241 kW / 328 hp |
| Model S Dual Motor 2014 – | (E) – 245 kW / 333 hp |
| Model S Dual Motor 2014 – | (E) – 276 kW / 375 hp |
| Model S Dual Motor 2014 – | (E) – 279 kW / 379 hp |
| Model S Dual Motor 2014 – | (E) – 290 kW / 394 hp |
| Model S Dual Motor 2014 – | (E) – 310 kW / 421 hp |
| Model S Dual Motor 2014 – | (E) – 346 kW / 470 hp |
| Model S Dual Motor 2014 – | (E) – 385 kW / 523 hp |
| Model S Dual Motor 2014 – | (E) – 386 kW / 525 hp |
| Model S Dual Motor 2014 – | (E) – 397 kW / 540 hp |
| Model S Dual Motor 2014 – | (E) – 413 kW / 562 hp |
| Model S Dual Motor 2014 – | (E) – 421 kW / 572 hp |
| Model S Dual Motor 2014 – | (E) – 450 kW / 612 hp |
| Model S Dual Motor 2014 – | (E) – 493 kW / 670 hp |
| Model S Dual Motor 2014 – | (E) – 515 kW / 700 hp |
| Model S Dual Motor 2014 – | (E) – 543 kW / 738 hp |
| Model S Dual Motor 2014 – | (E) – 568 kW / 772 hp |
| Model S Dual Motor 2014 – | (E) – 585 kW / 795 hp |
| Model S Dual Motor 2014 – | (E) – 599 kW / 814 hp |
| Model S Tri Motor 2021 – | (E) – 750 kW / 1020 hp |
Tesla Model S Rear Integral Link FAQs
What is a Tesla Model S rear integral link?
It is the short aluminium link on the Model S rear axle. Tesla calls it the integral link. A worn one often knocks over bumps.
Does this fit my Model S?
It is listed for Tesla Model S from 2012 against 6006895-00-A, 1021422-00-A and 1021422-00-B. Send your registration number if you need us to confirm.
Does it fit a Model X?
No. Model X is not listed on this page.
Is this the same as the rear toe link?
No. The rear toe link is a different arm. That listing is the Model S and Model X rear toe link.
Do I need one or two?
This is sold each. Left and right use the same part. Order two if you are replacing both sides.
What Tesla numbers does this replace?
Replaces 6006895-00-A, 1021422-00-A and 1021422-00-B.
