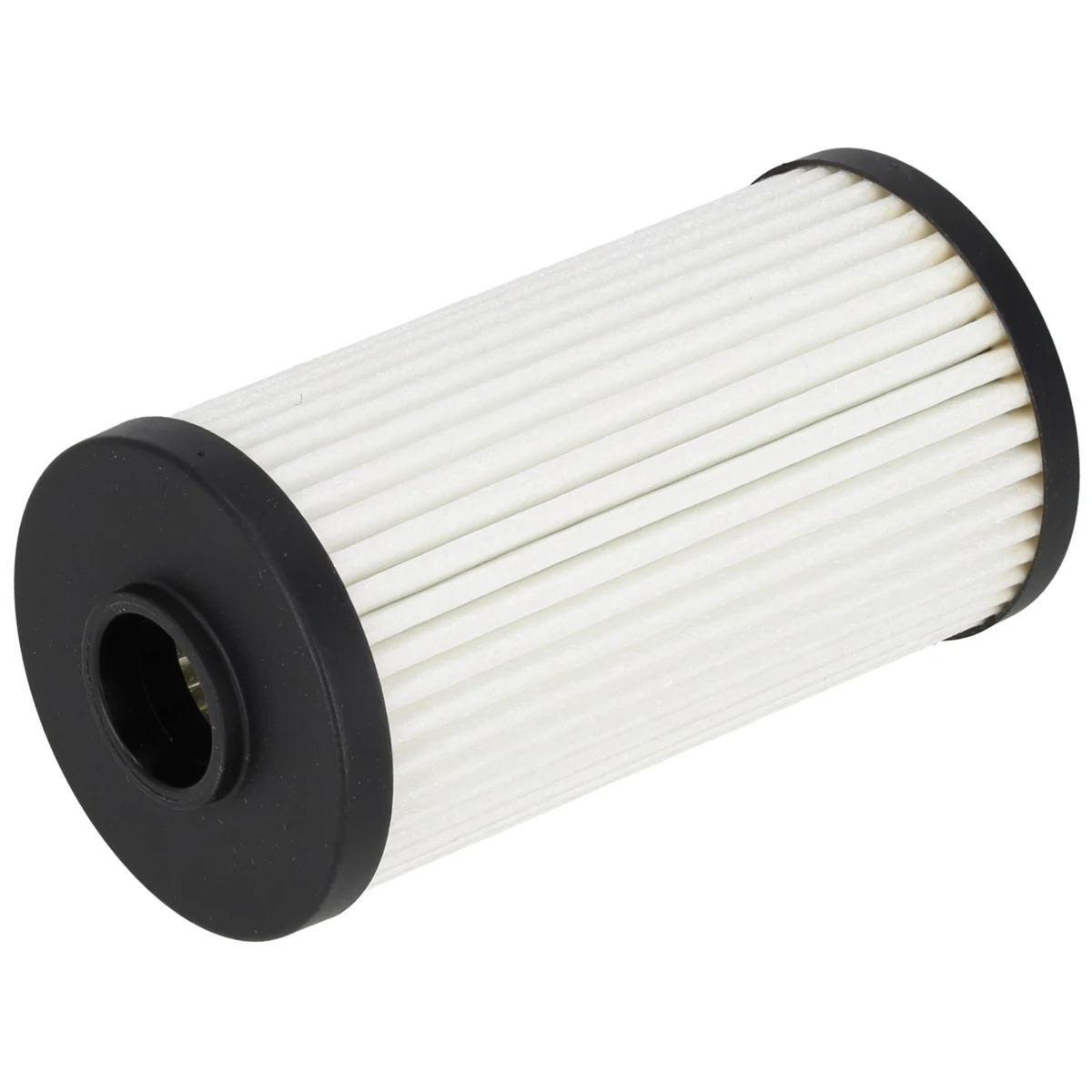

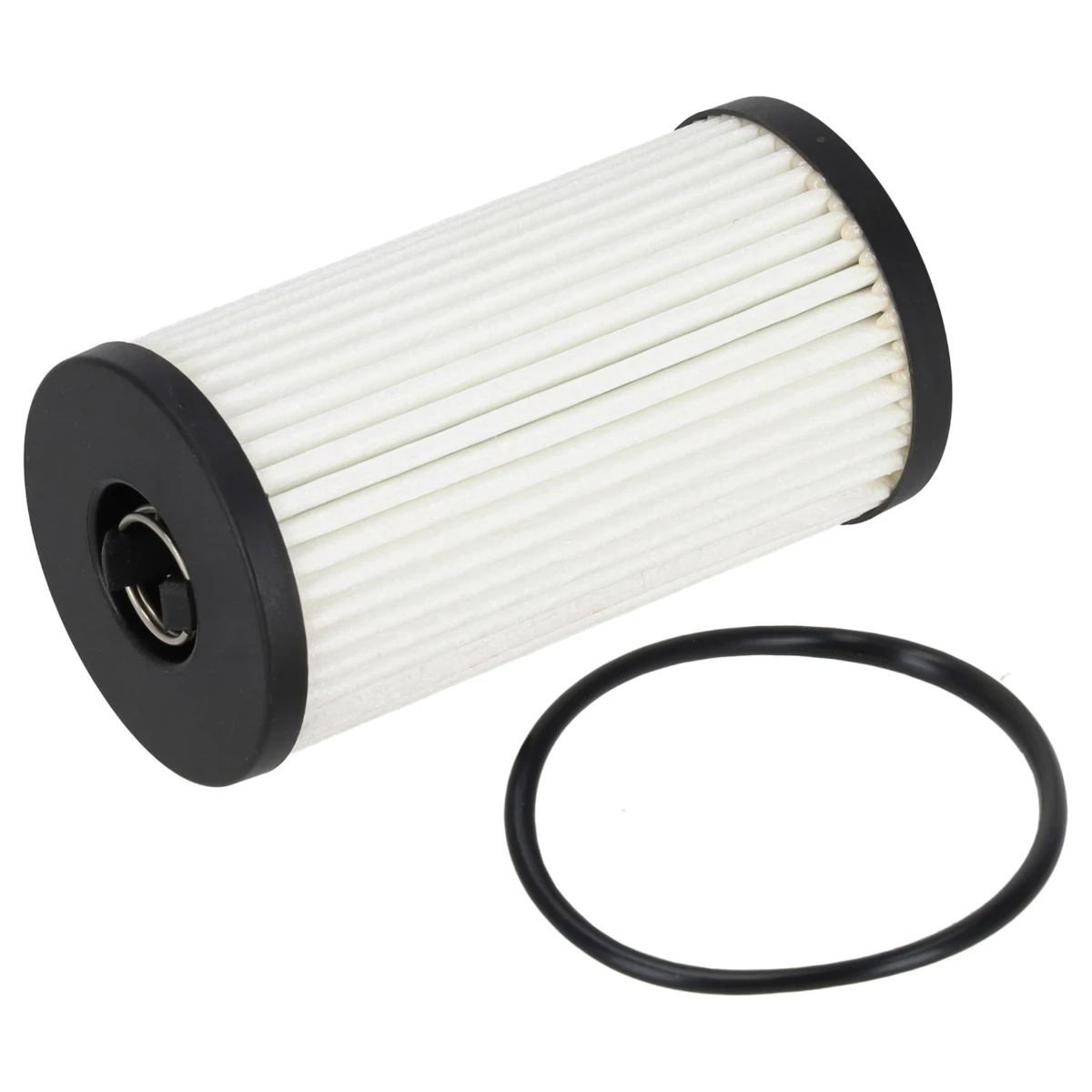

Transmission Oil Filter with Seal Ring – BYD Seal
This transmission oil filter is the filter insert for the direct shift gearbox and comes with a new seal ring. It is 105 mm high, with an 18 mm inner diameter and a 56 mm outer diameter. Choose Blue Print or Febi; both are made to the same specification.
The filter catches fine particles and wear debris in the gearbox oil before they reach the gears and bearings. A blocked filter restricts the oil flow, which raises the oil temperature and speeds up wear inside the drive unit. Fit a new filter whenever the transmission oil is changed, and always use the new seal ring so the housing does not weep oil.
This listing covers Blue Print part number ADBP210232 and Febi part number 197831, both made by the bilstein group to the same specification.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this transmission oil filter for the BYD Seal electric saloon from 2022, in the 100, 150, 170 and 230 kW rear-wheel drive versions, and the BYD Seal AWD 390 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Seal ring included
- 105 mm high, 56 mm outer diameter
- Blue Print or Febi
- Made by the bilstein group
Specifications
- Filter Type: Filter insert
- Height: 105 mm
- Inner Diameter: 18 mm
- Outer Diameter: 56 mm
- Seal Ring: Included
- Warranty: 3 years
- Part Number: Blue Print ADBP210232 / Febi 197831
Replaces BYD part numbers including 10920739-00, 12314299-00, 6DT35-1711100. The full list is in the FAQs.
Installation
Professional installation recommended. Drain the transmission oil, change the filter insert and fit the new seal ring, then refill with the oil grade and quantity the manufacturer specifies and check the level.
Explore More Parts
| Attribute | Value |
|---|---|
| Filter Type | Filter insert |
| Height | 105 mm |
| Inner Diameter | 18 mm |
| Outer Diameter | 56 mm |
| Seal Ring | Included |
| Warranty | 3 years |
| Part Number | Blue Print ADBP210232 / Febi 197831 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| BYD | Seal (BY) 2022 – | (E) – 100 kW / 136 hp |
| BYD | Seal (BY) 2022 – | (E) – 150 kW / 204 hp |
| BYD | Seal (BY) 2022 – | (E) – 170 kW / 231 hp |
| BYD | Seal (BY) 2022 – | (E) – 230 kW / 313 hp |
| BYD | Seal 4×4 (BY) 2022 – | (E) – 390 kW / 530 hp |
Transmission Oil Filter with Seal Ring – BYD Seal FAQs
Which part numbers does it replace?
It replaces BYD part numbers 10920739-00, 12314299-00, 6DT35-1711100 and 12314254-00.
Is the seal ring included?
Yes, a new seal ring comes with the filter.
What size is the filter?
It is 105 mm high, with an 18 mm inner diameter and a 56 mm outer diameter.
When should it be changed?
Change it whenever the transmission oil is changed, following the service schedule for your car.
What is the difference between Blue Print and Febi?
Both are bilstein group brands made to the same specification, so choose whichever you prefer.
Will it fit my BYD Seal?
The parts finder lists it for the BYD Seal 100, 150, 170 and 230 kW rear-wheel drive versions from 2022, and the Seal AWD 390 kW. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine BYD part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
