Renault Zoe, Kangoo & Master E-Tech Transmission Drain Plug with Seal – M16 x 1.5

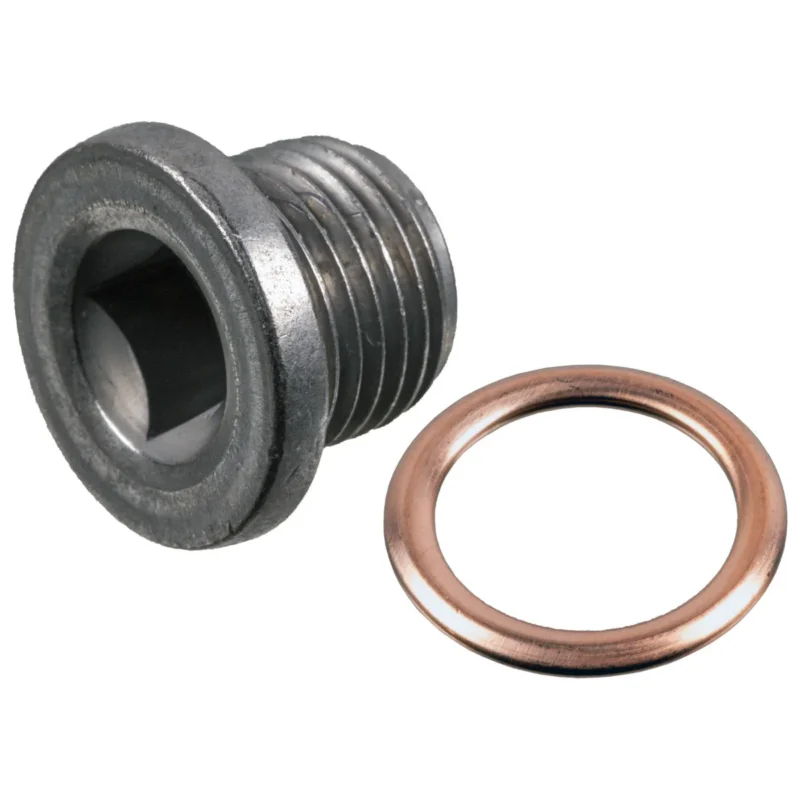

This oil drain plug with a copper sealing ring is for the reduction gearbox of the Renault Zoe and other Renault E-Tech electric models. It is an M16 x 1.5 plug with an 8 mm square drive and a zinc-nickel coating.
Replace the plug if the drive is rounded, the thread is damaged or it weeps oil. Always use a new sealing ring when the plug is removed.
This is Febi part number 194717, made by the bilstein group.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW, Kangoo E-Tech Electric 90 kW, Kangoo Van E-Tech Electric 90 kW, Grand Kangoo E-Tech Electric 90 kW, 4 E-Tech Electric 90 and 110 kW and Master E-Tech Electric 96 and 105 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- M16 x 1.5 drain plug
- Copper sealing ring included
- 8 mm square drive
- Zinc-nickel coated
- Febi quality from the bilstein group
Specifications
- Thread Size: M16 x 1.5
- Length: 16 mm
- Thread Length: 12 mm
- Drive: 8 mm square socket
- Outer Diameter: 22 mm
- Surface: Zinc-nickel coated
- Contents: Drain plug (Febi 178850) and sealing ring (Febi 44850)
- Part Number: Febi 194717
Replaces Renault part numbers 77 03 075 347 S1, 60 01 543 168, 74 01 271 562, 77 03 075 129, 77 03 075 152, 79 03 075 033, 96 22 774 480, 96 33 755 880 and 96 39 839 980.
Installation
Professional installation recommended. Clean the seat, fit the new ring, tighten to the service figure and refill the transmission with the oil Renault specifies to the correct level.
Explore More Parts
- All Renault Zoe Parts
- All Transmission
- All Renault 4 E-Tech Parts
- All Renault Kangoo III Parts
- All Renault Grand Kangoo III Parts
| Attribute | Value |
|---|---|
| Thread Size | M16 x 1.5 |
| Length | 16 mm |
| Thread Length | 12 mm |
| Drive | 8 mm square socket |
| Outer Diameter | 22 mm |
| Surface | Zinc-nickel coated |
| Contents | Drain plug (Febi 178850) and sealing ring (Febi 44850) |
| Part Number | Febi 194717 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault 4 E-Tech Electric (2025 –) | (E) – 110 kW / 150 hp |
| Renault 4 E-Tech Electric (2025 –) | (E) – 90 kW / 122 hp |
| Renault Grand Kangoo E-Tech Electric (2024 –) | (E) – 90 kW / 122 hp |
| Renault Kangoo E-Tech Electric (2022 –) | (E) – 90 kW / 122 hp |
| Renault Kangoo Van E-Tech Electric (2022 –) | (E) – 90 kW / 122 hp |
| Renault Master E-Tech Electric (2024 –) | (E) – 105 kW / 143 hp |
| Renault Master E-Tech Electric (2024 –) | (E) – 96 kW / 131 hp |
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe, Kangoo & Master E-Tech Transmission Drain Plug with Seal – M16 x 1.5 FAQs
Which part numbers does it replace?
Replaces Renault part numbers 77 03 075 347 S1, 60 01 543 168, 74 01 271 562, 77 03 075 129, 77 03 075 152, 79 03 075 033, 96 22 774 480, 96 33 755 880 and 96 39 839 980. The Febi part number is 194717.
Is the sealing ring included?
Yes. This kit has the plug (Febi 178850) and a sealing ring (Febi 44850).
Does it fit the Zoe 100 kW?
The parts finder lists it for the Zoe 57, 65, 68 and 80 kW.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW, Kangoo E-Tech Electric 90 kW, Kangoo Van E-Tech Electric 90 kW, Grand Kangoo E-Tech Electric 90 kW, 4 E-Tech Electric 90 and 110 kW and Master E-Tech Electric 96 and 105 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
