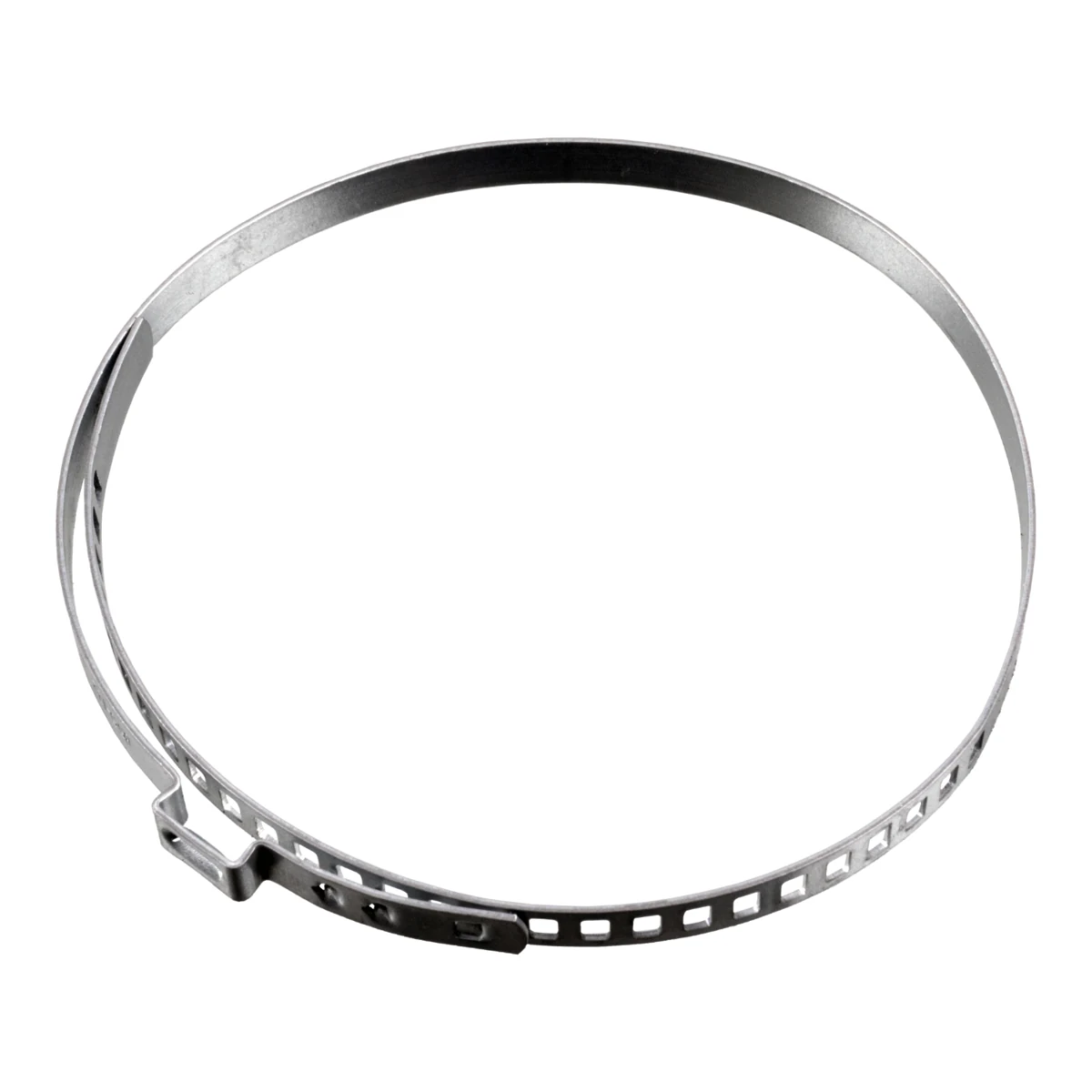

Clamping Clip 85.5–122 mm, Box of 10 – VW e-up!, e-load up! & e-Golf – Febi 38765
This clamping clip holds a rubber boot, hose or pipe tight on its fitting. It is galvanised steel, 7 mm wide and 0.8 mm thick, with a clamping range of 85.5 to 122 mm. Price shown is per clip, sold in boxes of 10. Each clip is galvanised steel, 7 mm wide and 0.8 mm thick, with a clamping range of 85.5 to 122 mm.
Clips are often cut off when a boot or hose is removed, and an old clip that has been bent open rarely grips as well again. A loose clip lets dirt and water in, or lets grease or fluid out. A new clip of the right size keeps the joint sealed.
This is Febi part number 38765, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this clip for the Volkswagen e-up! (BL1, 2013 to 2016) 60 kW; Volkswagen e-load up! (BL1, 2014 to 2016) 60 kW; Volkswagen e-Golf (BE, 2014 to 2021) 85 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Clamping range 85.5 to 122 mm
- Galvanised steel
- 7 mm wide
- Sold in boxes of 10
Specifications
- Clamping Range from: 85.5 mm
- Clamping Range to: 122 mm
- Height or Thickness: 0.8 mm
- Material: Steel
- Surface: Galvanized
- Width: 7 mm
- Part Number: Febi 38765
Replaces Volkswagen part numbers including N 107 013 01, N 902 080 01, N 904 417 01, N 904 424 01, N 904 427 01, N 906 307 01. The full list is in the FAQs.
Installation
Easy to fit with the right tools.
Explore More Parts
- All Volkswagen e-up! Parts
- All Volkswagen e-load up! Parts
- All Volkswagen e-Golf Parts
- All Fasteners
| Attribute | Value |
|---|---|
| Clamping Range from | 85.5 mm |
| Clamping Range to | 122 mm |
| Height or Thickness | 0.8 mm |
| Material | Steel |
| Surface | Galvanized |
| Width | 7 mm |
| Part Number | Febi 38765 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Volkswagen | e-Golf (BE) 2014 – 2021 | (E) – 85 kW / 116 hp |
| Volkswagen | e-load up! (BL1) 2014 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
Clamping Clip 85.5–122 mm, Box of 10 – VW e-up!, e-load up! & e-Golf – Febi 38765 FAQs
Which part numbers does it replace?
It replaces Volkswagen part numbers N 107 013 01, N 902 080 01, N 904 417 01, N 904 424 01, N 904 427 01, N 906 307 01, N 906 794 01, N 907 724 01, N 910 235 01, 431 407 291 A, 431 407 291 B and N 909 411 01.
Is the price for one clip?
Yes. Price shown is per clip, sold in boxes of 10, so add 10, 20, 30 and so on to your basket.
What size is it?
It clamps from 85.5 to 122 mm, and is 7 mm wide and 0.8 mm thick.
Do I need a special tool?
Clip pliers make it much easier to close the clip evenly.
Will it fit my e-up!, e-load up! or e-Golf?
The parts finder lists it for the Volkswagen e-up!, e-load up! and e-Golf. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
