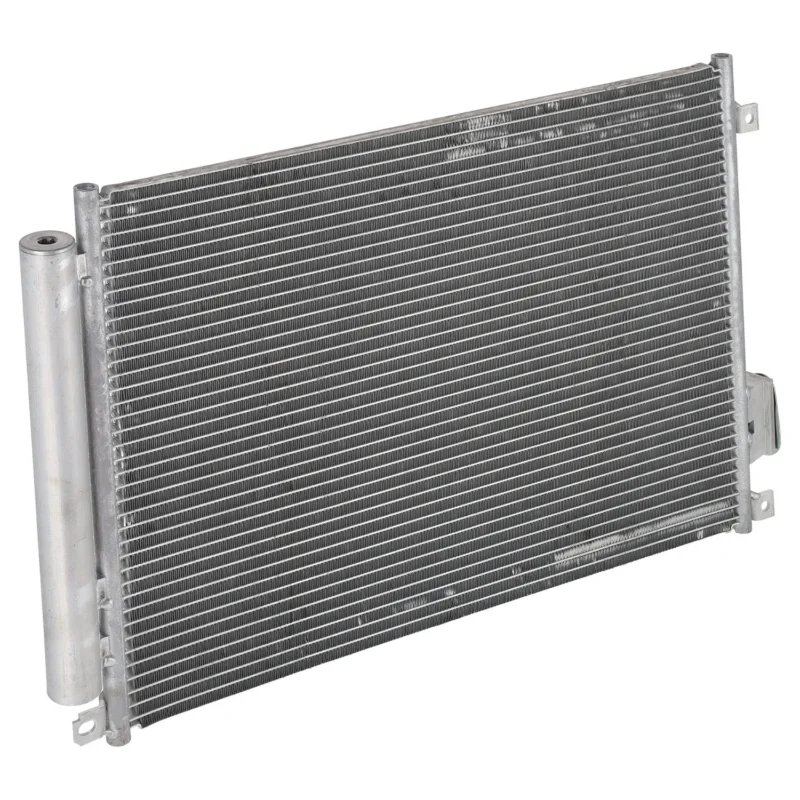

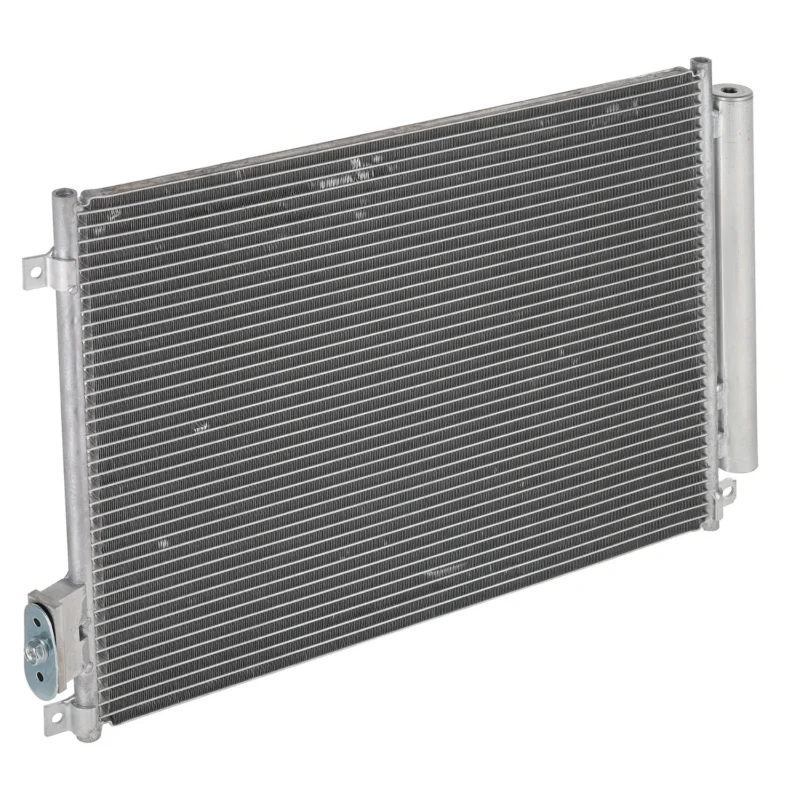

Fiat 500e & Abarth 500e Air Conditioning Condenser with Dryer
This air conditioning condenser with built-in dryer fits the Fiat 500e and Abarth 500e. It sits at the front of the car, where air flowing through it cools the hot refrigerant from the compressor and turns it back into a liquid.
Replace the condenser if it is leaking, damaged by stones or corroded, or if the air conditioning no longer blows cold after a regas. A leak test often shows oily marks or dye on the condenser core.
This is Febi 1001613, made by the bilstein group. It replaces Abarth and Fiat part number 52217410. The core is 524 x 363 x 12 mm, and it is listed for R 134a refrigerant.
The dryer is part of the condenser, so you get a new dryer at the same time. A fresh dryer is always recommended whenever the system has been opened.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the Abarth 500e (332, 2023 on) with 114 kW / 155 hp and the Fiat 500e (2020 on) with 70 kW / 95 hp or 87 kW / 118 hp. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Condenser with built-in dryer
- Restores cold air conditioning
- Core 524 x 363 x 12 mm
- Made by the bilstein group to match the original
Specifications
- Additional Information: With dryer
- Core Length: 524 mm
- Core Depth: 363 mm
- Core Width: 12 mm
- Refrigerant: R 134a (as listed by the parts finder)
- Part Number: Febi 1001613
Replaces Abarth part number 52217410; Fiat part number 52217410, also 51930033, 51786211 and 51953633.
Installation
Professional installation recommended. The refrigerant must be recovered by a qualified technician before the condenser is removed, and the system evacuated and recharged afterwards. Fit new sealing rings on every joint.
Explore More Parts
| Attribute | Value |
|---|---|
| Additional Information | With dryer |
| Core Length | 524 mm |
| Core Depth | 363 mm |
| Core Width | 12 mm |
| Refrigerant | R 134a (as listed by the parts finder) |
| Part Number | Febi 1001613 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp |
Suitable To Replace
| Make | Reference(s) |
|---|---|
| Abarth | 52217410 |
| FIAT | 51930033 | 51786211 | 51953633 | 52217410 |
Fiat 500e & Abarth 500e Air Conditioning Condenser with Dryer FAQs
Which part numbers does it replace?
It replaces Abarth part number 52217410 and Fiat part number 52217410, also 51930033, 51786211 and 51953633.
Is the dryer included?
Yes. The dryer is built into this condenser.
Which refrigerant does it list?
The parts finder lists it for R 134a refrigerant. Check the label under your bonnet and compare your part number before ordering.
Do I need a regas after fitting?
Yes. The system must be evacuated and recharged with the correct refrigerant and oil.
Will it fit my Fiat 500e or Abarth 500e?
The parts finder lists it for the Abarth 500e (332, 2023 on) 114 kW / 155 hp, and the Fiat 500e (2020 on) 70 kW / 95 hp and 87 kW / 118 hp. Compare the part number on your existing part before ordering.
Is this a genuine Fiat or Abarth part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
