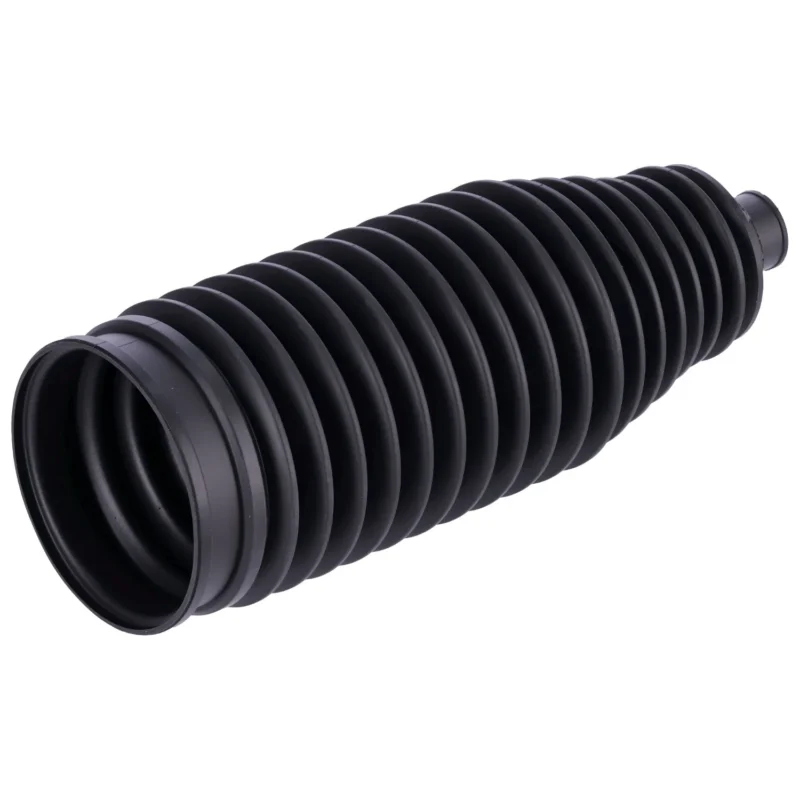

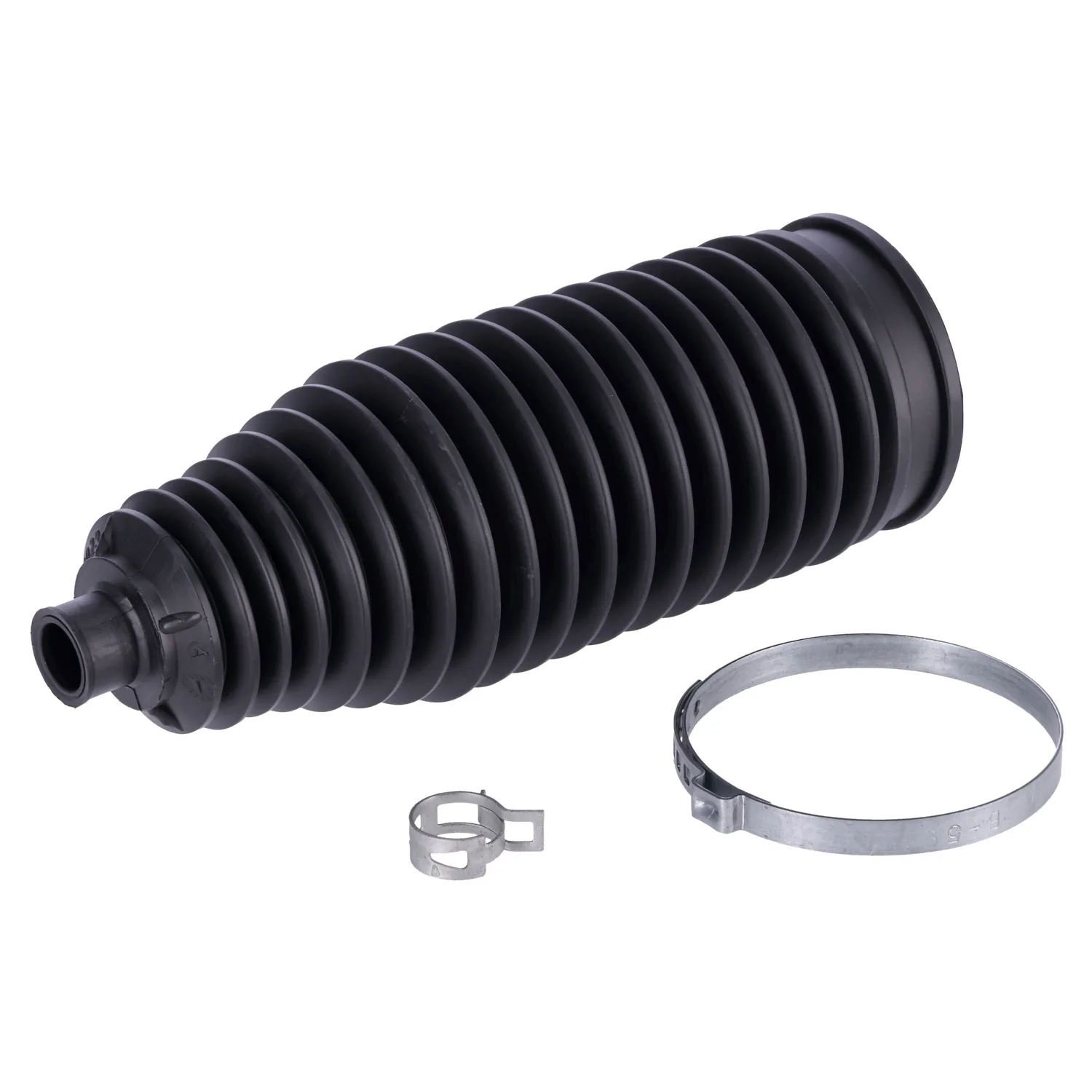

Fiat 500e & Abarth 500e Steering Rack Boot Kit
This steering boot kit fits the steering rack of the Fiat 500e and Abarth 500e, on the left or right side. The boot seals the end of the rack where the inner tie rod comes out, keeping water, dirt and road salt away from the rack.
Replace the boot as soon as you see a split, a tear or a missing clip. Once water and grit get into the rack, the inner joints and the rack itself wear quickly, and a new steering rack costs far more than a boot. Boots are often checked at the MOT, and a split boot is a common advisory.
This is Febi 1000030, made by the bilstein group. It replaces Fiat and Abarth part number 77366697. The boot is made from Hytrel, 180 mm long, with inner diameters of 12 mm and 55 mm.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the Abarth 500e (332, 2023 on) with 114 kW / 155 hp and the Fiat 500e (2020 on) with 70 kW / 95 hp or 87 kW / 118 hp. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Hytrel boot, 180 mm long
- Fits left or right side of the rack
- Keeps water and grit out of the rack
- Made by the bilstein group to match the original
Specifications
- Fitting Position: Front axle, left or right
- Length: 180 mm
- Inner Diameter 1: 12 mm
- Inner Diameter 2: 55 mm
- Material: Hytrel
- Part Number: Febi 1000030
Replaces Fiat and Abarth part number 77366697.
Installation
Professional installation recommended. The outer tie rod end is removed so the old boot can come off and the new one slide on. Check the wheel alignment afterwards, as the tie rod end must go back in exactly the same place.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Length | 180 mm |
| Inner Diameter 1 | 12 mm |
| Inner Diameter 2 | 55 mm |
| Material | Hytrel |
| Part Number | Febi 1000030 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp |
Suitable To Replace
| Make | Reference(s) |
|---|---|
| Abarth | 77366697 S1 |
| FIAT | 77366697 S1 |
Fiat 500e & Abarth 500e Steering Rack Boot Kit FAQs
Which part numbers does it replace?
It replaces Fiat and Abarth part number 77366697.
Does it fit both sides?
Yes. The kit fits the left or right side of the steering rack.
How many do I need?
The price is for one kit. Order two if both boots are split.
Is it in stock?
It is currently on back order, so it can be ordered now and is sent as soon as it arrives.
Will it fit my Fiat 500e or Abarth 500e?
The parts finder lists it for the Abarth 500e (332, 2023 on) 114 kW / 155 hp, and the Fiat 500e (2020 on) 70 kW / 95 hp and 87 kW / 118 hp. Compare the part number on your existing part before ordering.
Is this a genuine Fiat or Abarth part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
