Fiat 500e & Abarth 500e Front Control Arm Bush – Front / Rear
These rubber and metal bushes locate the front control arm on the Fiat 500e and Abarth 500e. Each front arm has two bushes: a smaller front bush and a larger rear bush. Choose the position you need from the options. Both fit the left or right arm.
Replace a bush if the rubber is cracked, split or has come away from the metal, or if you hear knocks from the front over bumps, feel the steering wander or see uneven tyre wear. Worn bushes let the arm move, which upsets the wheel alignment.

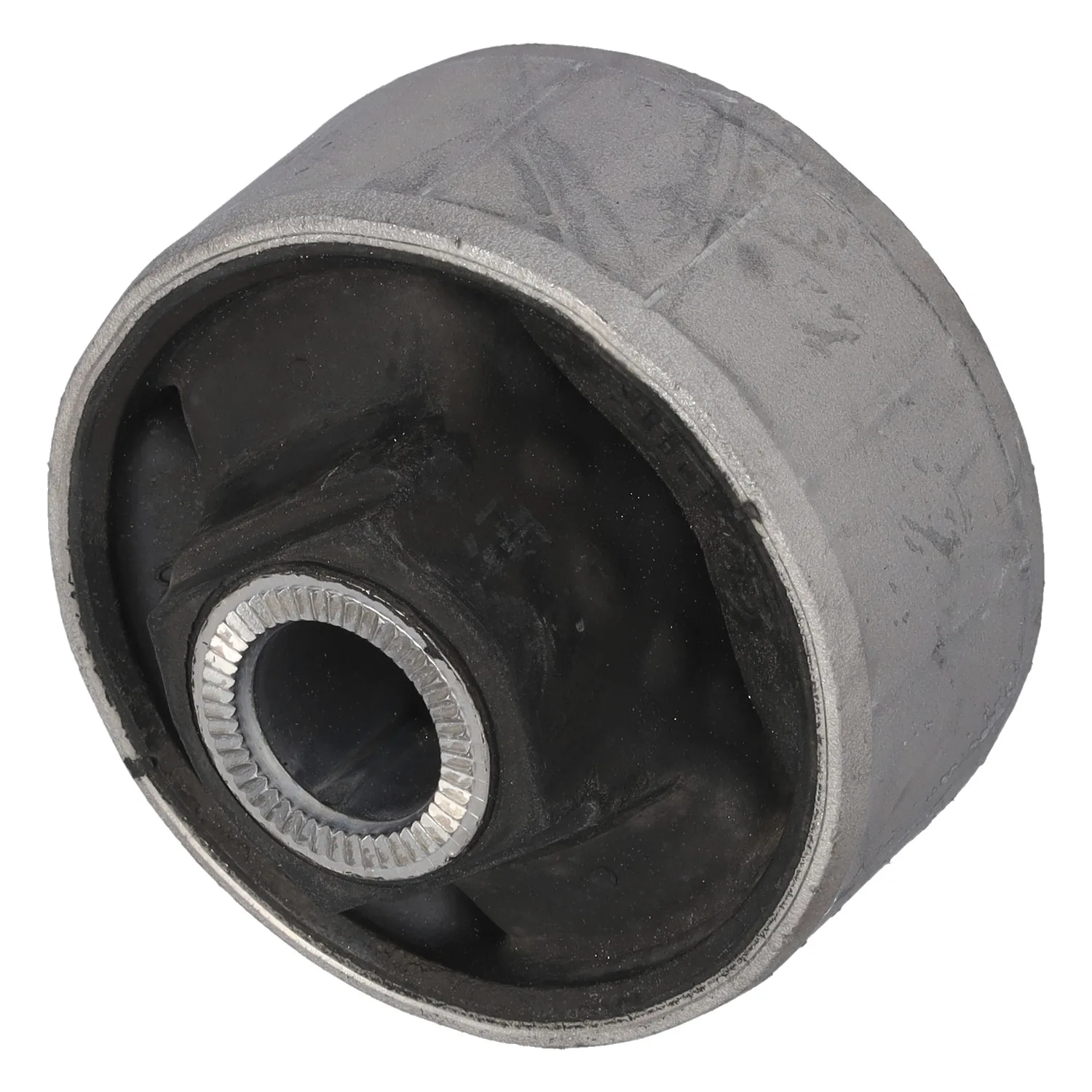

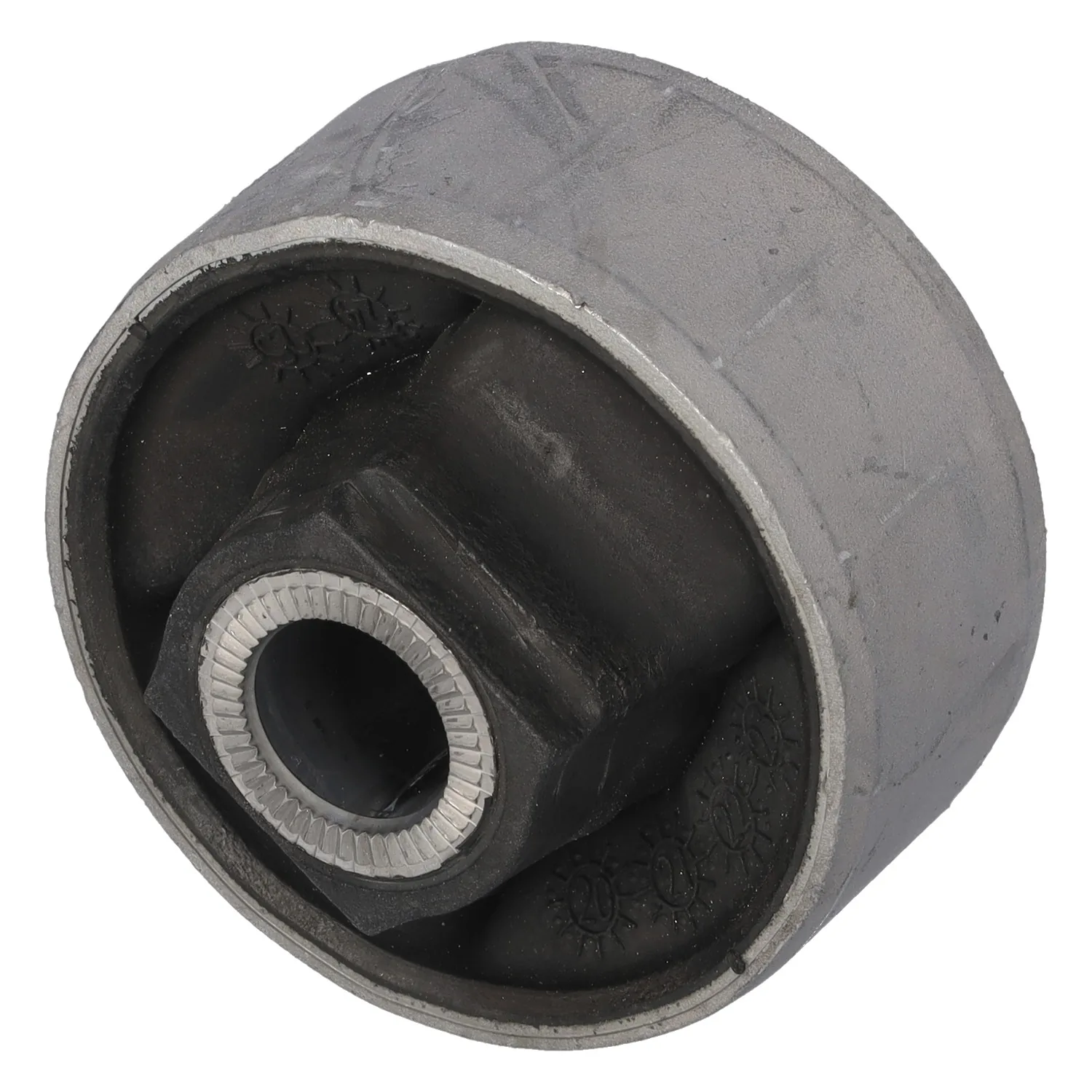

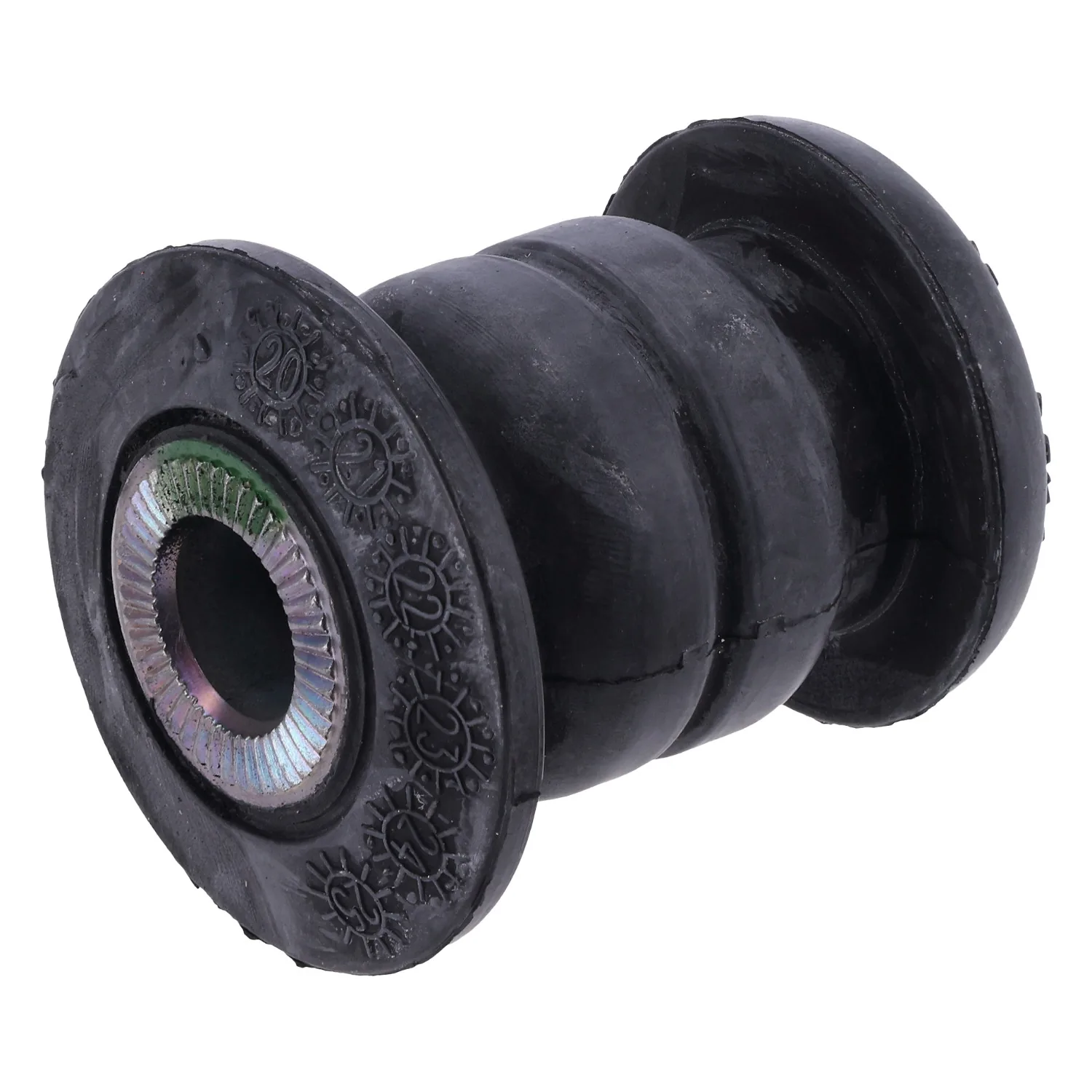

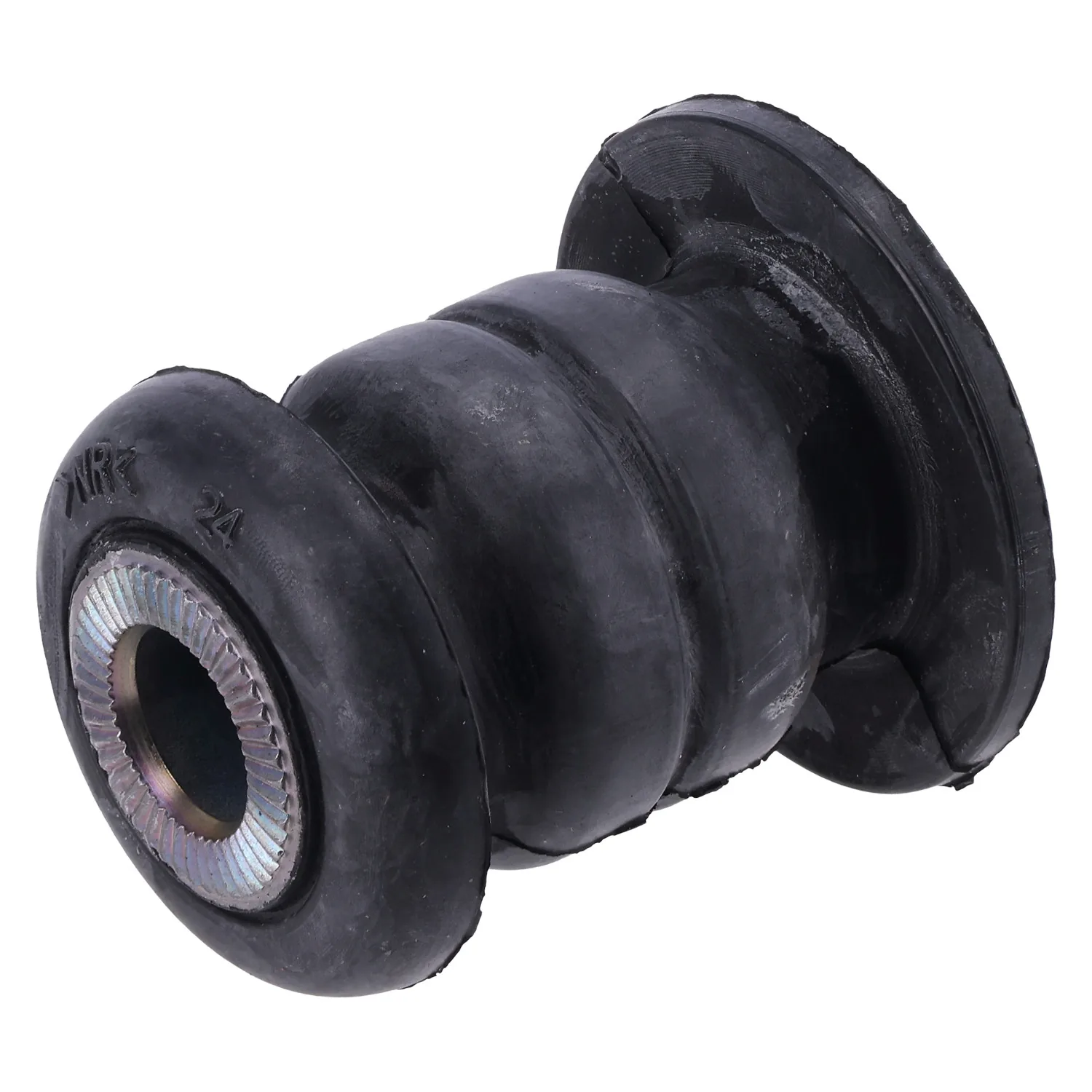

Front bush: Febi 196417, 32 mm outside. Rear bush: Febi 196418, 60 mm outside. Both are made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the Abarth 500e (332, 2023 on) with 114 kW / 155 hp and the Fiat 500e (2020 on) with 70 kW / 95 hp or 87 kW / 118 hp. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal bush
- Front or rear position, left or right arm
- Restores precise steering and braking
- Made by the bilstein group to match the original
Specifications
- Fitting Position: Front axle, left or right
- Height: 52 mm
- Inner Diameter: 12.2 mm (front) | 14 mm (rear)
- Outer Diameter: 32 mm (front) | 60 mm (rear)
- Material: Rubber / metal
- Part Number: Febi 196417 | 196418
Replaces Fiat and Abarth part number 52140627 (front) and 52140628 (rear).
Installation
Professional installation recommended. The bushes are pressed into the control arm, so the arm is usually removed. Tighten the arm bolts with the car on its wheels, then check the wheel alignment.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Height | 52 mm |
| Inner Diameter | 12.2 mm (front) | 14 mm (rear) |
| Outer Diameter | 32 mm (front) | 60 mm (rear) |
| Material | Rubber / metal |
| Part Number | Febi 196417 | 196418 |
Fits The Following Models
| Make | Model | Submodel | Part |
|---|---|---|---|
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp | Front bush (196417) |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp | Front bush (196417) |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp | Front bush (196417) |
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp | Rear bush (196418) |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp | Rear bush (196418) |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp | Rear bush (196418) |
Note from the parts finder: If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Suitable To Replace
| Make | Reference(s) |
|---|---|
| Abarth – Front (196417) | 52140627 | 52140445 SK1 | 52140446 SK1 |
| FIAT – Front (196417) | 52140627 | 52140445 SK1 | 52140446 SK1 |
| Abarth – Rear (196418) | 52140628 | 52140445 SK2 | 52140446 SK2 |
| FIAT – Rear (196418) | 52140628 | 52140445 SK2 | 52140446 SK2 |
Fiat 500e & Abarth 500e Front Control Arm Bush – Front / Rear FAQs
Which part numbers does it replace?
The front bush (Febi 196417) replaces 52140627, and the rear bush (Febi 196418) replaces 52140628. Both are also listed against 52140445 and 52140446.
Which bush do I need?
Choose Front for Febi 196417 (smaller, 32 mm outside) or Rear for Febi 196418 (larger, 60 mm outside). Each arm has one of each.
Does it fit the left and right arm?
Yes. Each bush fits the front left or front right control arm.
How many should I order?
The price is for one bush. To do both front arms fully you need two front bushes and two rear bushes.
Will it fit my Fiat 500e or Abarth 500e?
The parts finder lists it for the Abarth 500e (332, 2023 on) 114 kW / 155 hp, and the Fiat 500e (2020 on) 70 kW / 95 hp and 87 kW / 118 hp. Compare the part number on your existing part before ordering.
Is this a genuine Fiat or Abarth part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
