Fiat 500e & Abarth 500e Motor & Transmission Mount – Left / Right / Rear
These rubber and metal mounts hold the electric motor and its transmission in the Fiat 500e and Abarth 500e. There are three: the left mount for the EV transmission, the right mount for the electric motor and the rear mount for the electric motor. Choose the position you need from the options.
Replace a mount if the rubber is cracked, split or has come away from the metal, or if you feel a clunk when pulling away, lifting off or switching between drive and reverse. An electric motor delivers full torque instantly, so a worn mount lets the drive unit move and knock.

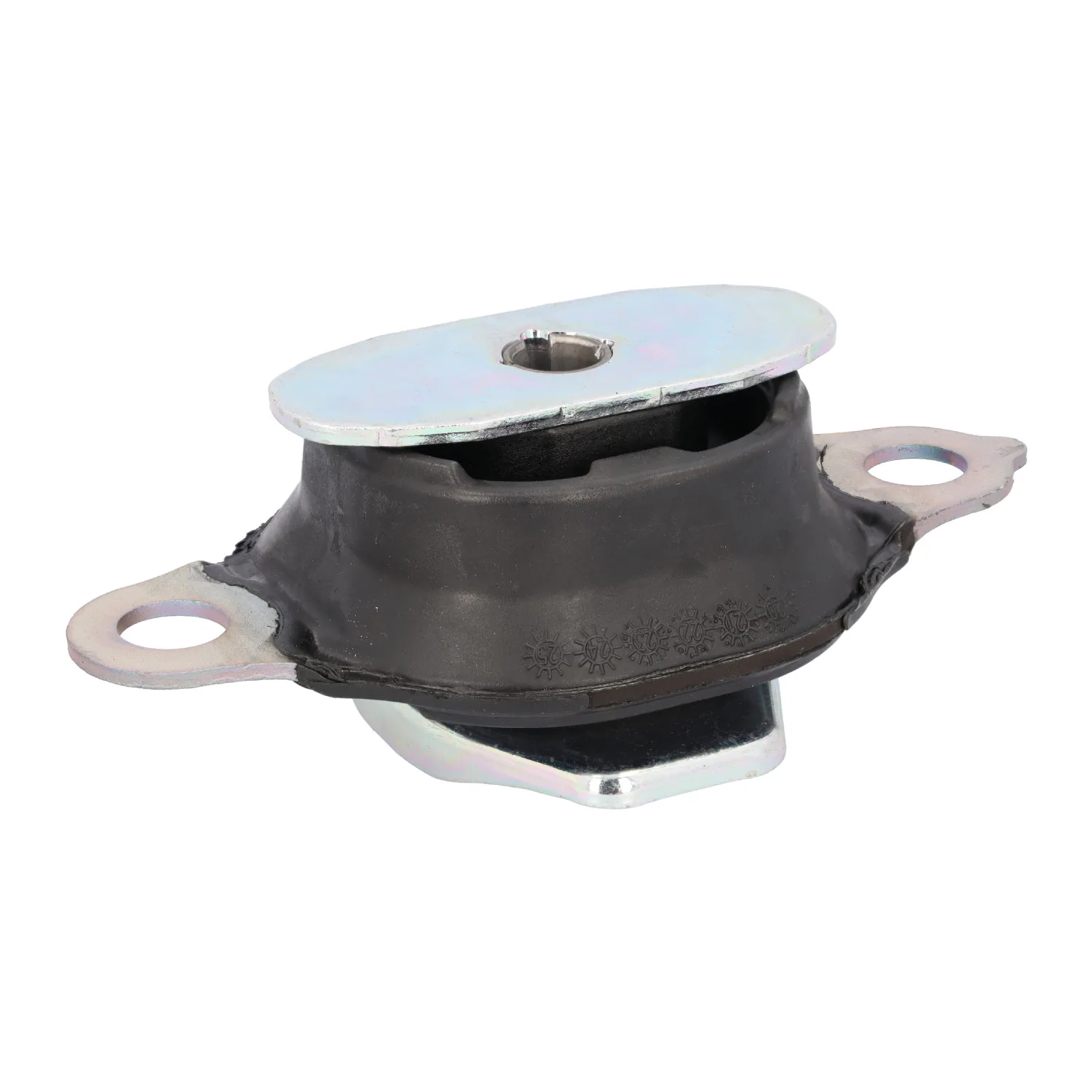

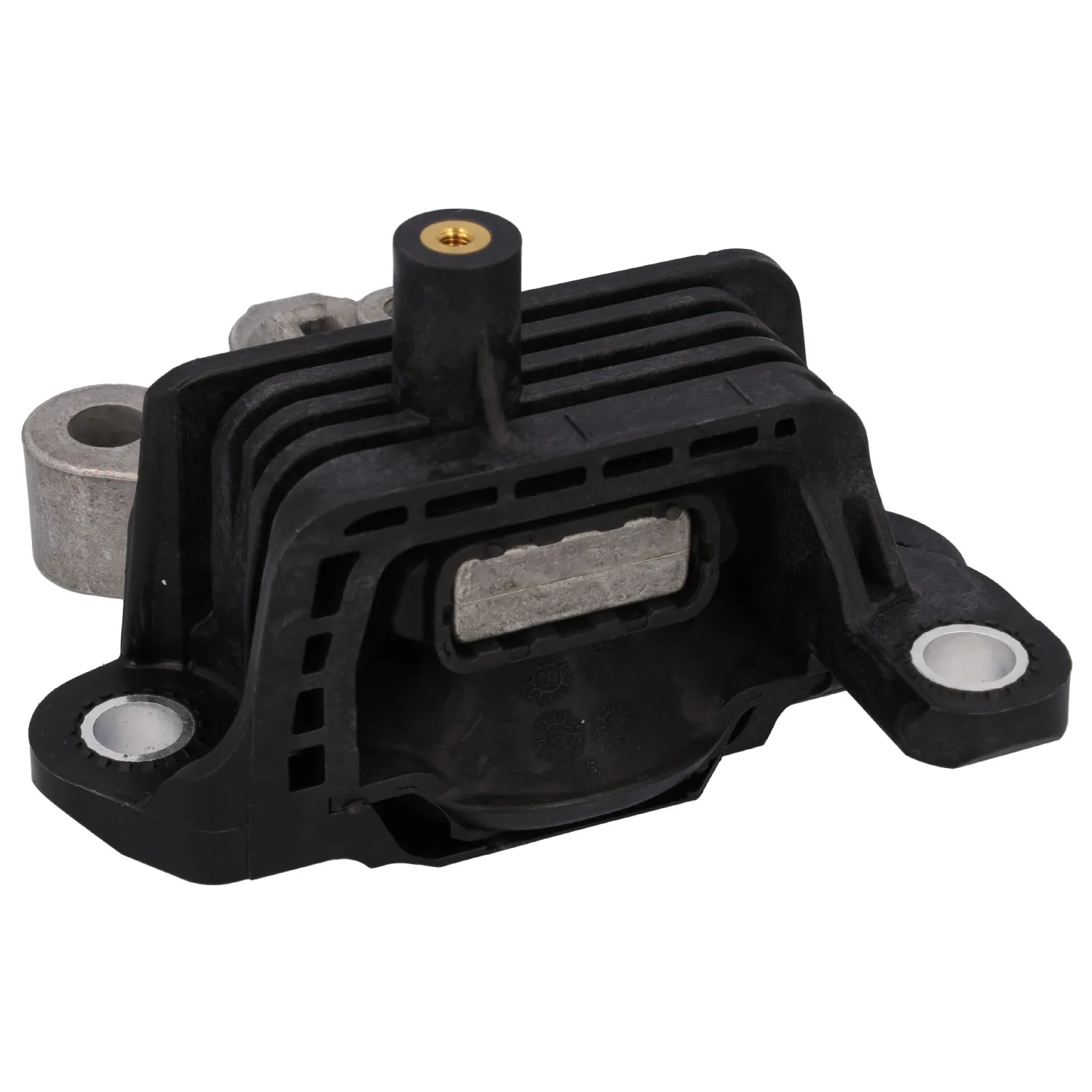

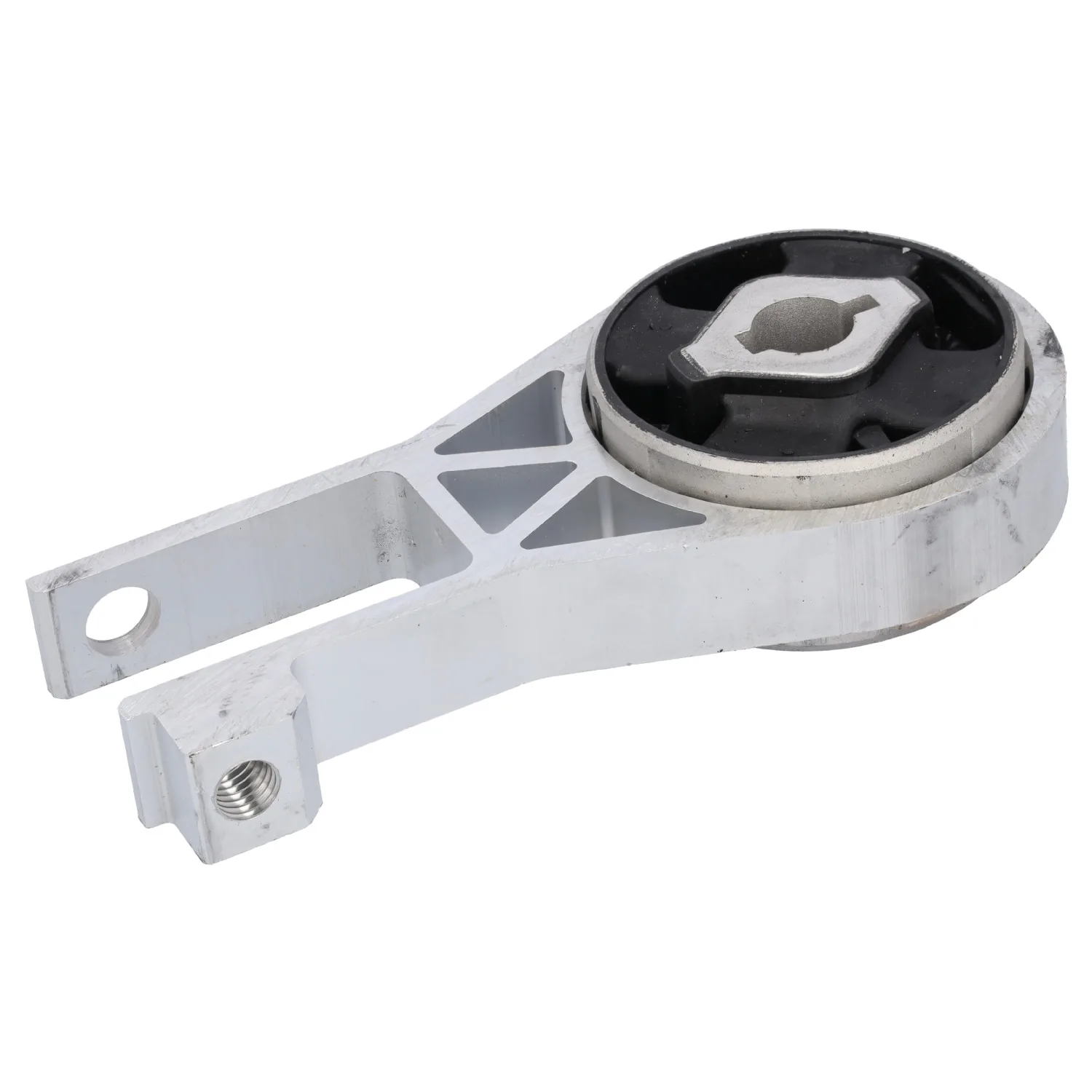

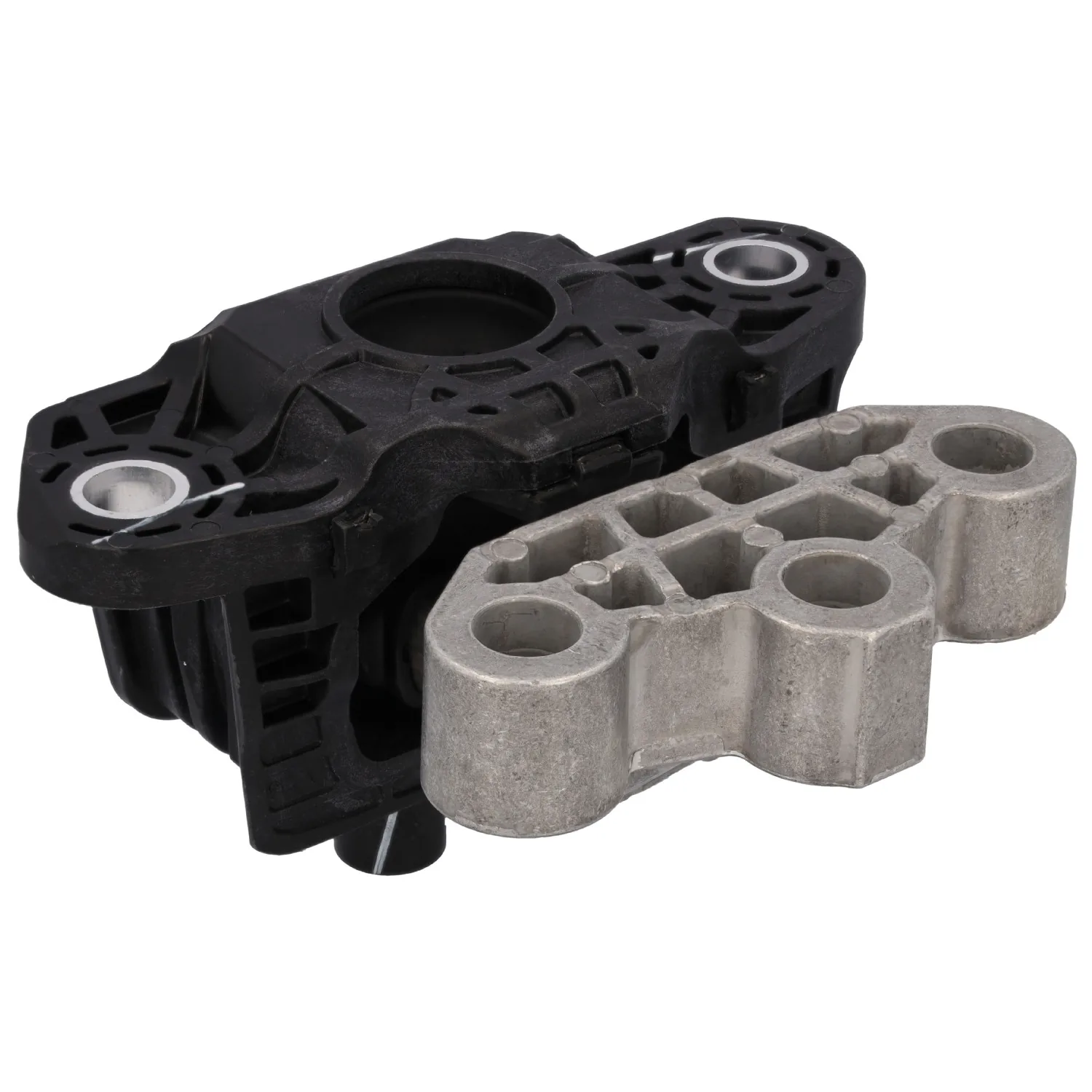

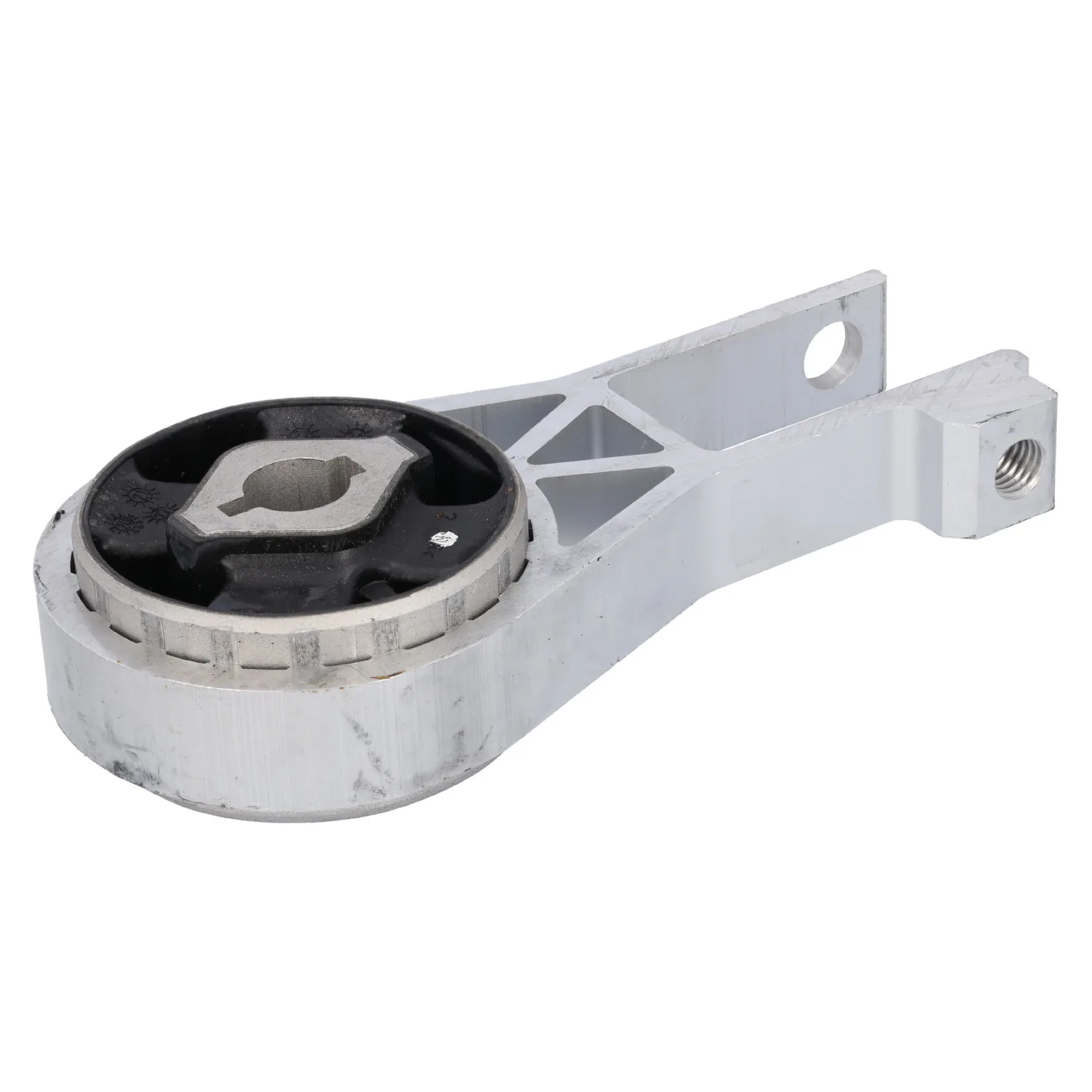

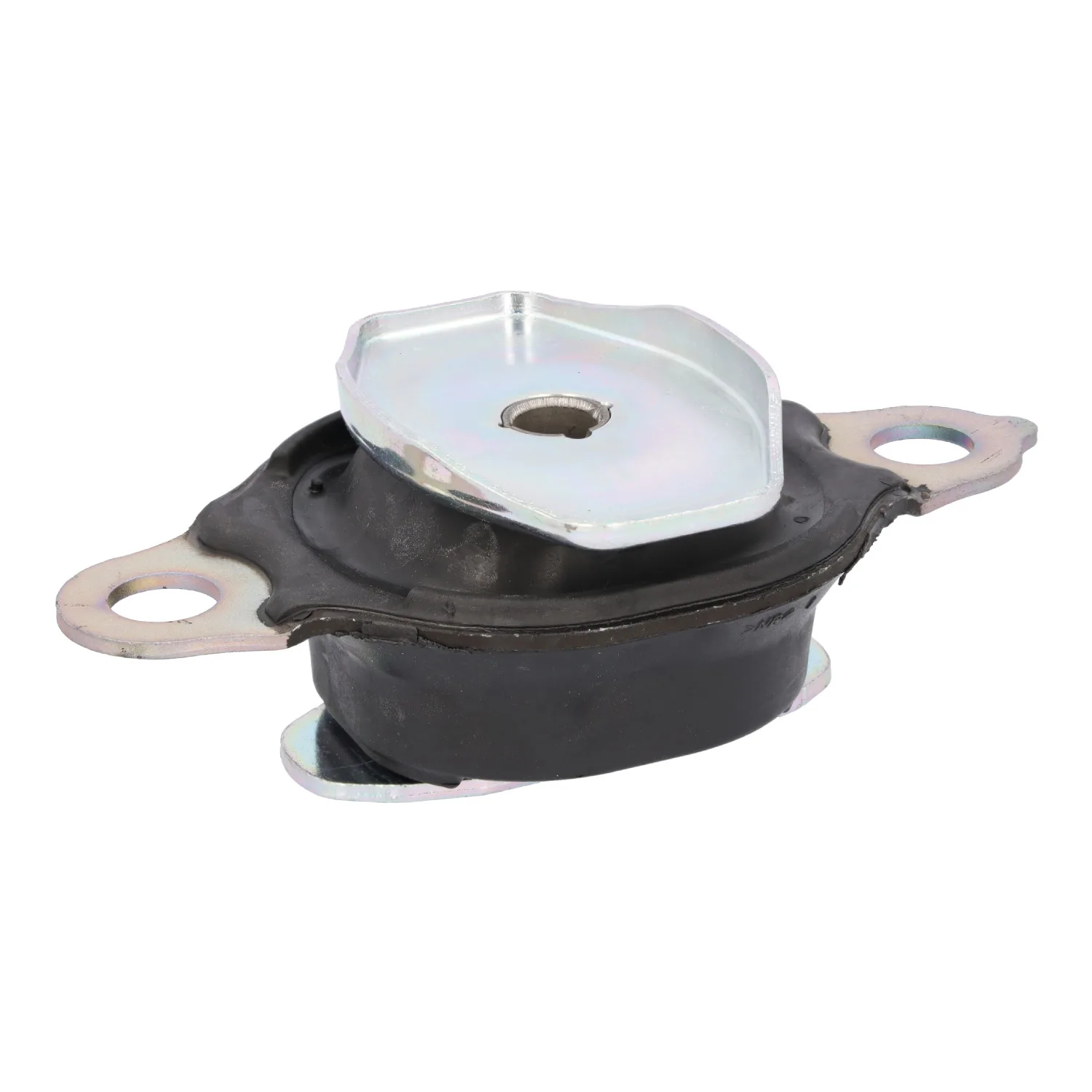

Left: Febi 183630, replaces 52199209. Right: Febi 196412, replaces 52184799. Rear: Febi 196328, replaces 52138428; it is a non-hydraulic rubber and metal bush.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the Abarth 500e (332, 2023 on) with 114 kW / 155 hp and the Fiat 500e (2020 on) with 70 kW / 95 hp or 87 kW / 118 hp. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal mounts
- Three positions to choose from
- Stops clunks when pulling away
- Made by the bilstein group to match the original
Specifications
- Fitting Position: Left (transmission) | Right (motor) | Rear (motor)
- Mounting Type: Rubber metal bush
- Rear Mount Size: 207 x 100 x 26 mm
- Part Number: Febi 183630 (left) | 196412 (right) | 196328 (rear)
Replaces Fiat and Abarth part number 52199209 (left; also 52184800 and 52192462), 52184799 (right) and 52138428 (rear).
Installation
Professional installation recommended. The drive unit must be supported from below before a mount is unbolted. Tighten all bolts to the maker’s torque settings.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Left (transmission) | Right (motor) | Rear (motor) |
| Mounting Type | Rubber metal bush |
| Rear Mount Size | 207 x 100 x 26 mm |
| Part Number | Febi 183630 (left) | 196412 (right) | 196328 (rear) |
Fits The Following Models
| Make | Model | Submodel | Part |
|---|---|---|---|
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp | Left, transmission (183630) |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp | Left, transmission (183630) |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp | Left, transmission (183630) |
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp | Right, motor (196412) |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp | Right, motor (196412) |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp | Right, motor (196412) |
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp | Rear, motor (196328) |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp | Rear, motor (196328) |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp | Rear, motor (196328) |
Suitable To Replace
| Make | Reference(s) |
|---|---|
| Abarth / FIAT – Left (183630) | 52199209 | 52184800 | 52192462 |
| Abarth / FIAT – Right (196412) | 52184799 |
| Abarth / FIAT – Rear (196328) | 52138428 |
Fiat 500e & Abarth 500e Motor & Transmission Mount – Left / Right / Rear FAQs
Which part numbers does it replace?
The left mount (Febi 183630) replaces 52199209, 52184800 and 52192462. The right mount (Febi 196412) replaces 52184799, and the rear mount (Febi 196328) replaces 52138428.
Which mount do I need?
Choose Left for the EV transmission mount (183630), Right for the motor mount (196412) or Rear for the rear motor mount (196328). Each is sold on its own.
Should I replace them all?
If one mount has failed, check the others at the same time, as they share the load.
What are the signs of a worn mount?
A clunk when pulling away or changing direction, extra vibration, or cracked rubber you can see.
Will it fit my Fiat 500e or Abarth 500e?
The parts finder lists it for the Abarth 500e (332, 2023 on) 114 kW / 155 hp, and the Fiat 500e (2020 on) 70 kW / 95 hp and 87 kW / 118 hp. Compare the part number on your existing part before ordering.
Is this a genuine Fiat or Abarth part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
