Fiat 500e & Abarth 500e Rear Axle Beam Mount

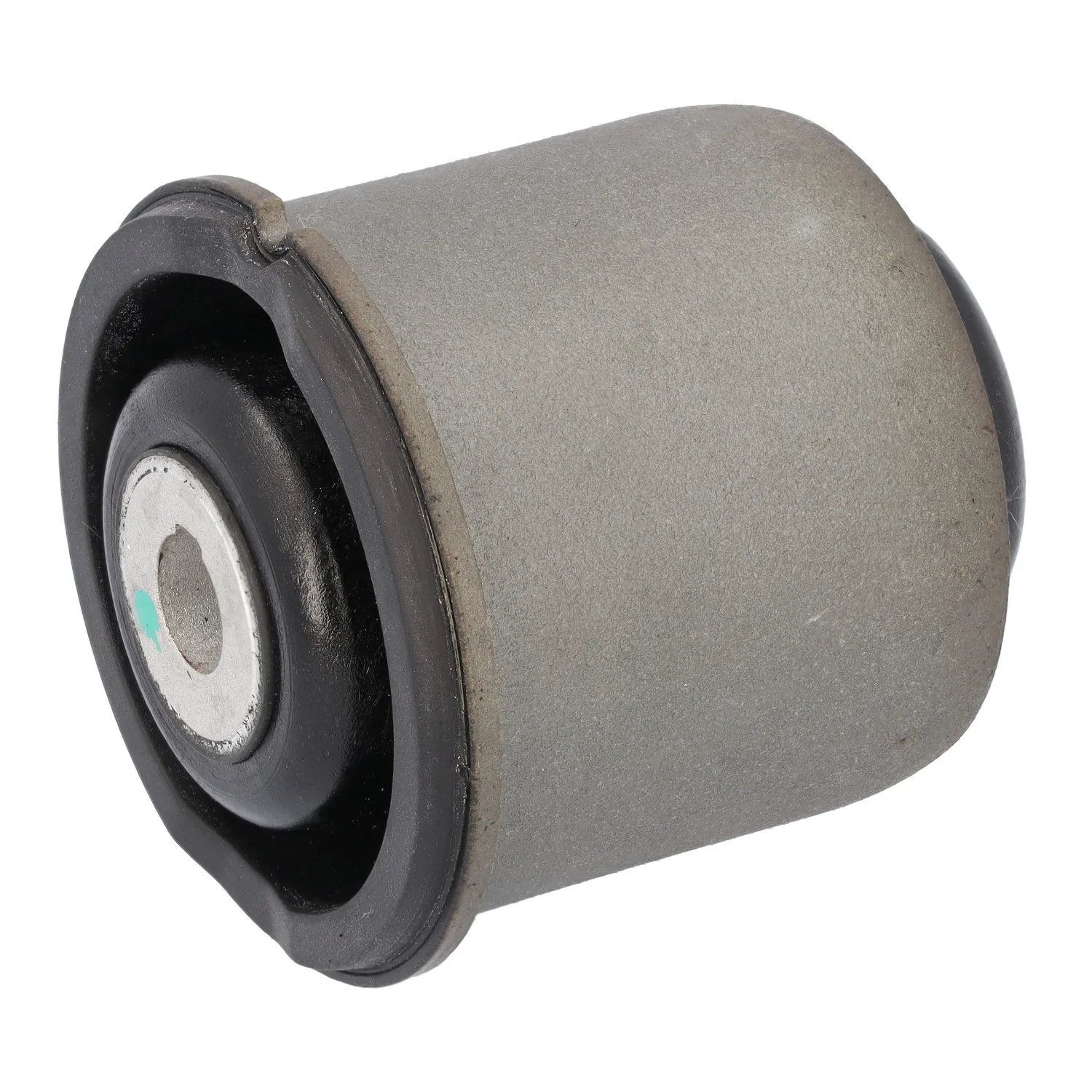

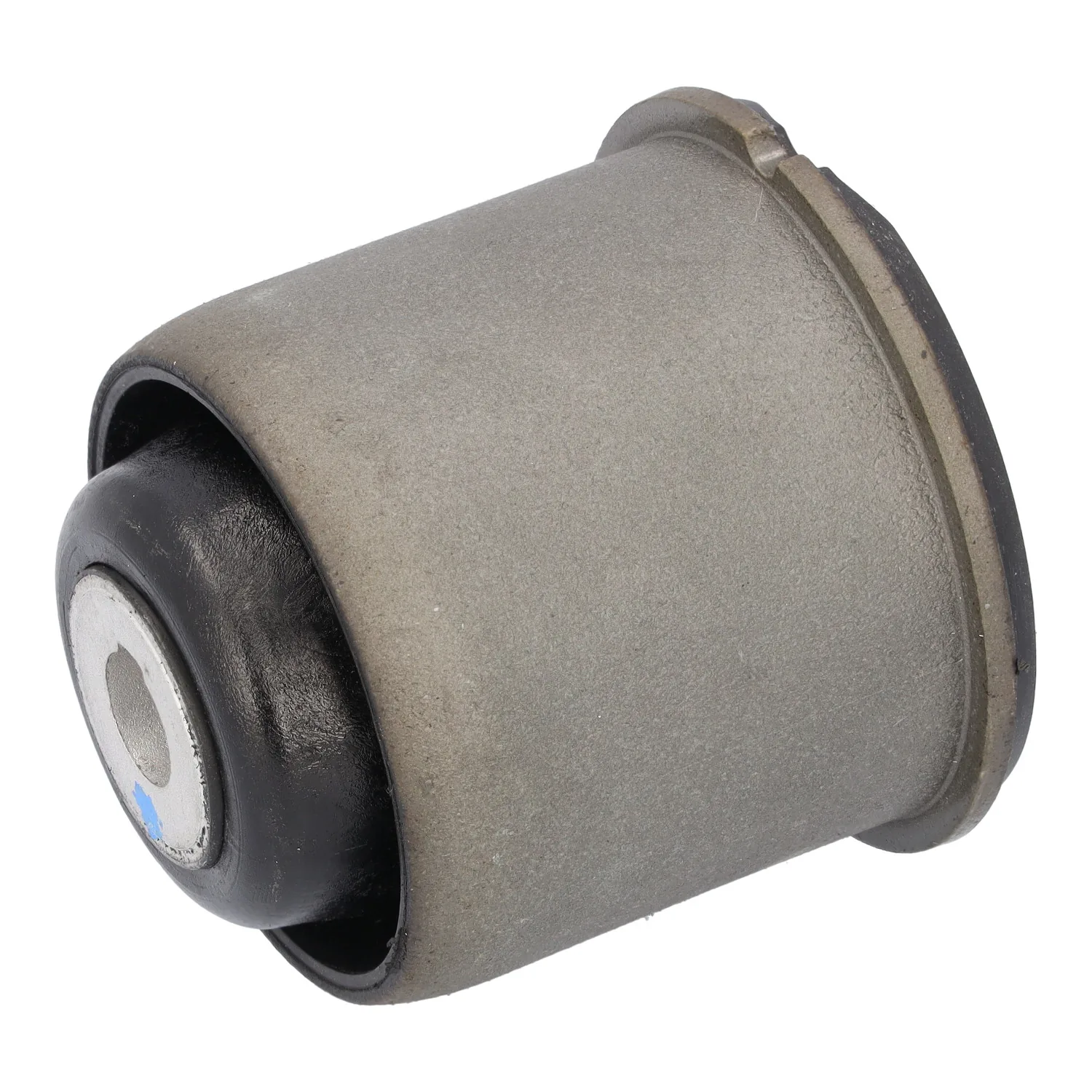

This rubber and metal bush mounts the rear axle beam to the body on the Fiat 500e and Abarth 500e. It fits the rear left or rear right mounting point and controls how the rear axle moves over bumps and through corners.
Replace the mount if the rubber is cracked, split or has come away from the metal, or if you hear knocks or clonks from the rear over bumps. A worn mount can also make the rear feel loose in corners or under braking. The weight of the battery in an electric car puts extra load on these bushes.
This is Febi 183677, made by the bilstein group. It replaces Fiat and Abarth part number 52140469. It is 64 mm high with an 11.7 mm inner diameter and a 63.9 mm outer diameter.
The axle beam has a mount on each side, and they wear at a similar rate, so check both when one has failed.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the Abarth 500e (332, 2023 on) with 114 kW / 155 hp and the Fiat 500e (2020 on) with 70 kW / 95 hp or 87 kW / 118 hp. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber and metal bush
- Fits rear left or rear right
- Stops knocks from the rear axle
- Made by the bilstein group to match the original
Specifications
- Fitting Position: Rear axle, left or right
- Height: 64 mm
- Inner Diameter: 11.7 mm
- Outer Diameter: 63.9 mm
- Material: Rubber / metal
- Part Number: Febi 183677
Replaces Fiat and Abarth part number 52140469.
Installation
Professional installation recommended. The axle beam is supported and lowered to press out the old bush and press in the new one. Tighten the mounting bolts with the car on its wheels.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle, left or right |
| Height | 64 mm |
| Inner Diameter | 11.7 mm |
| Outer Diameter | 63.9 mm |
| Material | Rubber / metal |
| Part Number | Febi 183677 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Abarth | 500E (332) 2023 – | (E) – 114 kW / 155 hp |
| FIAT | 500E V 2020 – | (E) – 87 kW / 118 hp |
| FIAT | 500E V 2020 – | (E) – 70 kW / 95 hp |
Suitable To Replace
| Make | Reference(s) |
|---|---|
| Abarth | 52140469 |
| FIAT | 52140469 |
Fiat 500e & Abarth 500e Rear Axle Beam Mount FAQs
Which part numbers does it replace?
It replaces Fiat and Abarth part number 52140469.
How many do I need?
The price is for one mount. There is one on each side, so order two to do both.
Does it fit both sides?
Yes. It fits the rear left or rear right.
What are the signs of a worn mount?
Knocks or clonks from the rear over bumps, a loose feel in corners, or cracked rubber.
Will it fit my Fiat 500e or Abarth 500e?
The parts finder lists it for the Abarth 500e (332, 2023 on) 114 kW / 155 hp, and the Fiat 500e (2020 on) 70 kW / 95 hp and 87 kW / 118 hp. Compare the part number on your existing part before ordering.
Is this a genuine Fiat or Abarth part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
