Front Lower Control Arm – Mercedes-Benz EQV & eVito

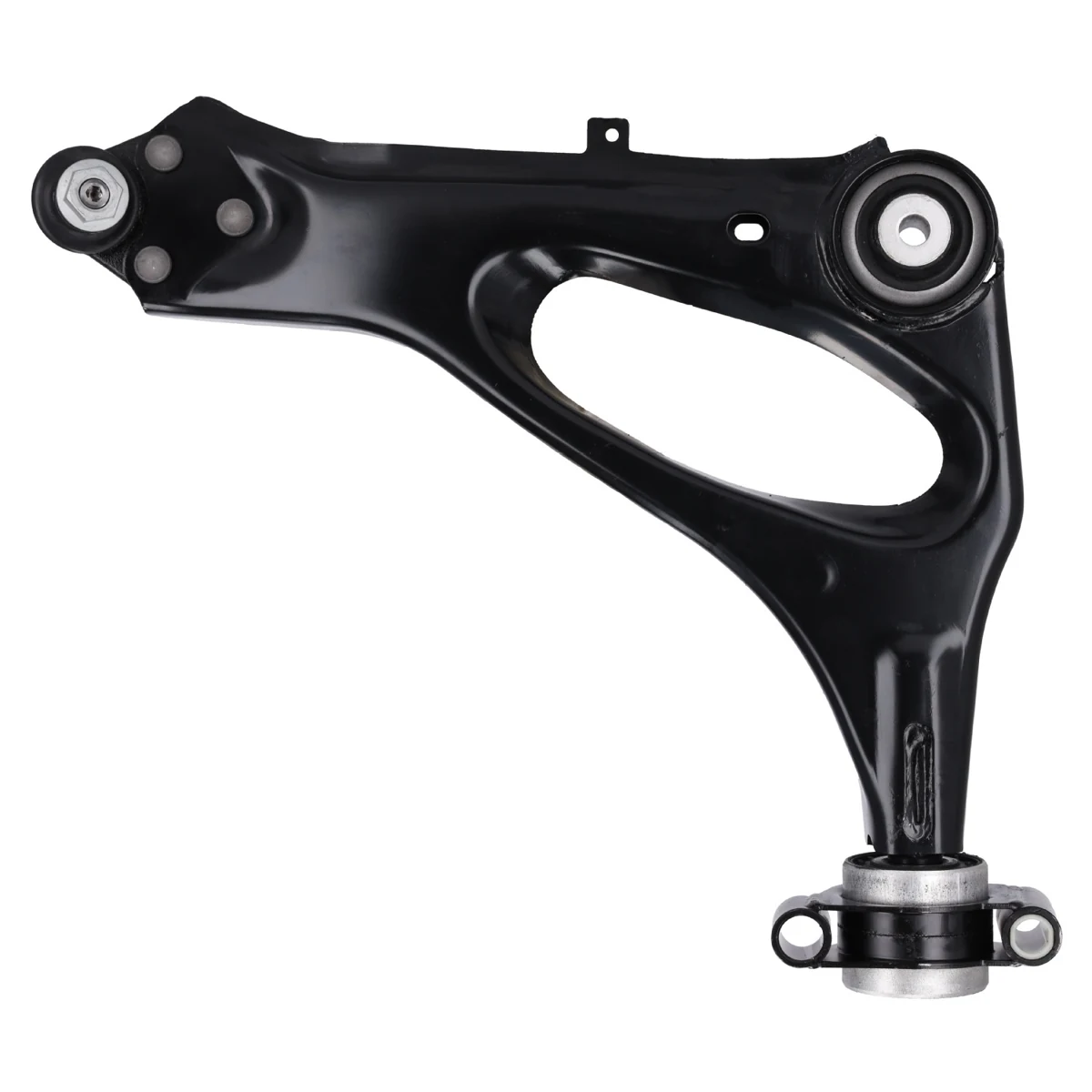

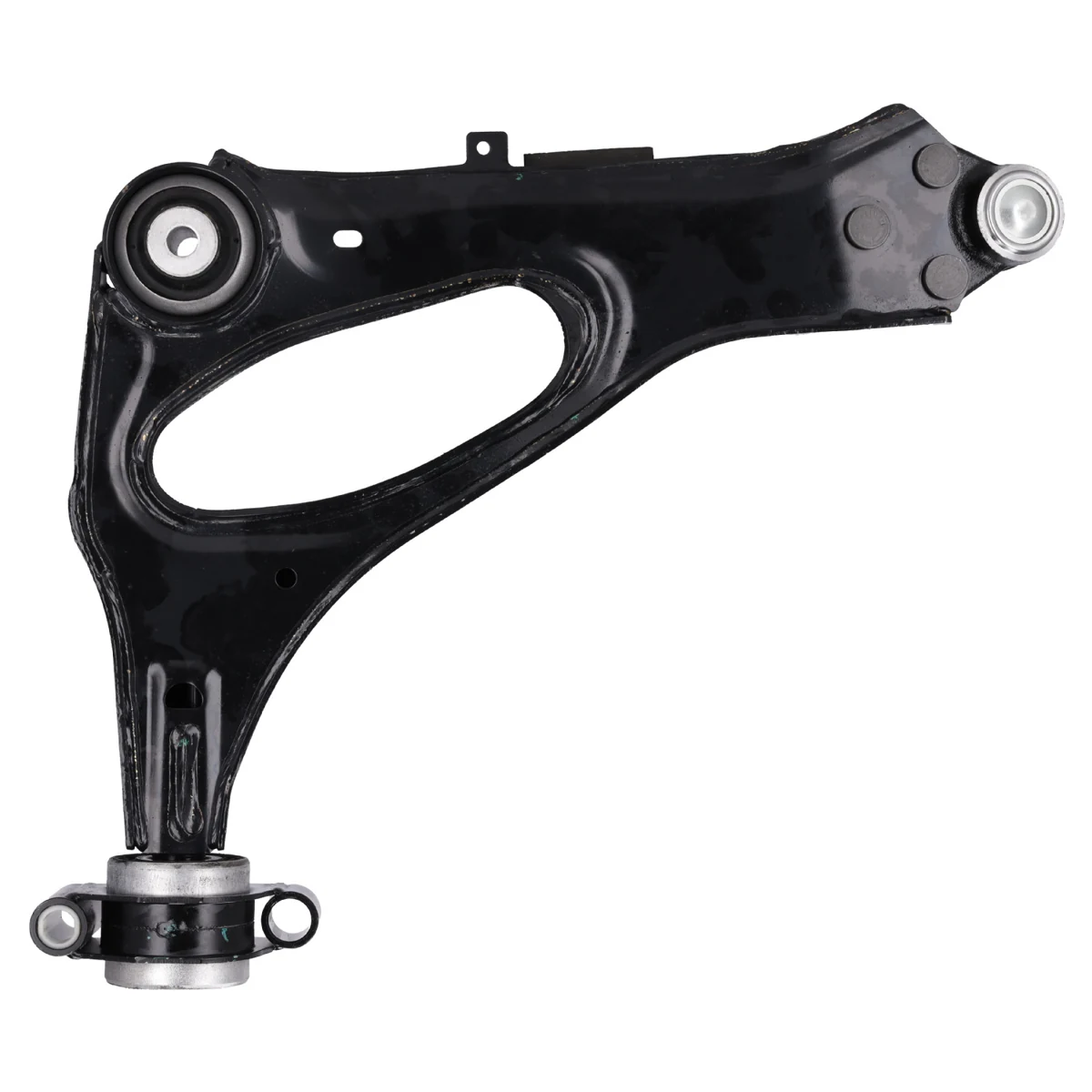

This front lower control arm fits the left or right side. It is pressed sheet steel and comes with its bushes and ball joint fitted, plus a lock nut, with an M16 x 1.5 ball joint thread. Choose the left or right side from the Side menu.
The control arm locates the bottom of the front wheel. Worn bushes or a worn ball joint cause knocking over bumps, vague steering, pulling under braking and uneven tyre wear. Fitting a complete arm is quicker than pressing in new bushes and a joint. Replace the arms on both sides if the other one shows the same wear. The specifications below show the size and type, so you can compare them with your old part before ordering.
These are Febi part numbers 196497 (left) and 196496 (right), made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this control arm for electric versions of the Mercedes-Benz EQV and eVito. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Bushes and ball joint fitted
- Lock nut included
- Pressed sheet steel
- Made by the bilstein group
Specifications
- Cone Size: 16 mm
- Cone Size Large: 23.5 mm
- Material: Sheet steel
- Thread Size: M16 x 1.5
- Fitting Position: Front axle left or right, lower
- Part Number: Febi 196497 (left) / 196496 (right)
Replaces Mercedes-Benz part numbers 447 330 75 00 and 447 330 34 00 for the left side, and 447 330 76 00 and 447 330 35 00 for the right side.
Installation
Professional installation recommended. Tighten the bolts with the van at ride height and have the wheel alignment checked afterwards. If the van has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Explore More Parts
| Attribute | Value |
|---|---|
| Cone Size | 16 mm |
| Cone Size Large | 23.5 mm |
| Material | Sheet steel |
| Thread Size | M16 x 1.5 |
| Fitting Position | Front axle left or right, lower |
| Part Number | Febi 196497 (left) / 196496 (right) |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Mercedes-Benz | eVito (447) 2019 – | (E) – 150 kW / 204 hp |
| Mercedes-Benz | eVito (447) 2019 – | (E) – 85 kW / 116 hp |
| Mercedes-Benz | EQV (447) 2020 – | EQV 250 (E) – 150 kW / 204 hp |
| Mercedes-Benz | EQV (447) 2020 – | EQV 300 (E) – 150 kW / 204 hp |
Front Lower Control Arm – Mercedes-Benz EQV & eVito FAQs
Which part numbers does it replace?
It replaces Mercedes-Benz part numbers 447 330 75 00 and 447 330 34 00 for the left side, and 447 330 76 00 and 447 330 35 00 for the right side.
Does it come with bushes and a ball joint?
Yes, the bushes and ball joint are fitted.
Which side is it for?
The front left or right side.
Will the van need calibrating?
If the van has driver assistance systems, sensor calibration may be needed after fitting, as the parts finder notes.
Will it fit my electric car?
The parts finder lists it for the Mercedes-Benz EQV and eVito. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Mercedes-Benz part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
