Gearbox Oil Drain Plug with Seal – VW e-up!, ID.3, ID.4 & More – Febi 188327

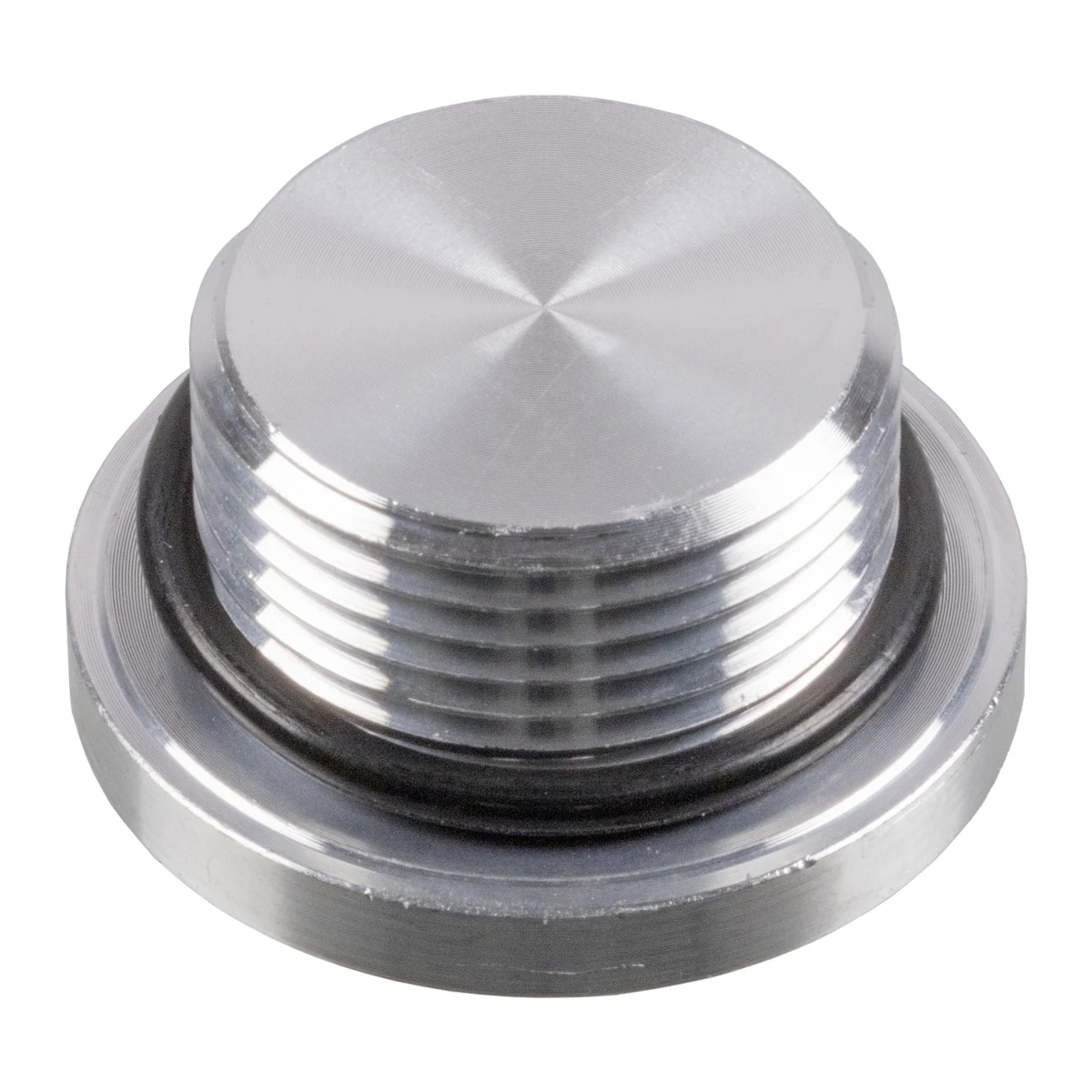

This oil drain plug with seal ring fits the gearbox on a range of electric Volkswagen group cars, including the e-up!, e-Golf, ID.3, ID.4, ID.5 and e-Crafter, the SEAT Mii Electric and the Skoda Citigo-e iV. The parts finder lists it as a drain plug for the automatic transmission. It is aluminium with an M22 x 1.5 thread and a T60 Torx head.
The drain plug is removed whenever the gearbox oil is changed. Aluminium plugs and their seals are designed to be used once, and a reused plug can weep oil or strip its thread. A new plug and seal ring make sure the gearbox stays sealed.
This is Febi part number 188327, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this drain plug for electric versions of the Volkswagen e-up! (2013 on), e-Golf, ID.3, ID.4, ID.5 and e-Crafter, the SEAT Mii Electric and the Skoda Citigo-e iV. It is not listed for the e-load up! The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Supplied with seal ring
- M22 x 1.5 thread
- T60 Torx head
- Aluminium plug
Specifications
- Fastening Type: Internal torx
- Length: 15.2 mm
- Length under Head: 11 mm
- Material: Aluminium
- Outer Diameter: 30 mm
- Outside Thread: M22 x 1.5
- Thread Length: 9.5 mm
- Wrench Size (Torx): T60
- Part Number: Febi 188327
Replaces SEAT, Skoda and Volkswagen part numbers WHT 005 623 A, WHT 003 697 and WHT 005 623 B.
Installation
Easy to fit with the right tools.
Explore More Parts
- All Volkswagen e-up! Parts
- All Volkswagen ID.3 Parts
- All Volkswagen ID.4 Parts
- All Volkswagen ID.5 Parts
- All Volkswagen e-Golf Parts
- All Transmission Lubrication Parts
| Attribute | Value |
|---|---|
| Fastening Type | Internal torx |
| Length | 15.2 mm |
| Length under Head | 11 mm |
| Material | Aluminium |
| Outer Diameter | 30 mm |
| Outside Thread | M22 x 1.5 |
| Thread Length | 9.5 mm |
| Wrench Size (Torx) | T60 |
| Part Number | Febi 188327 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| SEAT | Mii (KE) 2020 – | (E) E 61 kW / 83 hp |
| Skoda | E-Citigo 2019 – 2021 | (E) – 61 kW / 83 hp |
| Volkswagen | e-Crafter II (SX) 2018 – 2024 | (E) – 100 kW / 136 hp |
| Volkswagen | e-Golf (BE) 2014 – 2021 | (E) – 100 kW / 136 hp |
| Volkswagen | e-Golf (BE) 2014 – 2021 | (E) – 85 kW / 116 hp |
| Volkswagen | e-up! (BL1) 2013 – 2016 | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 61 kW / 83 hp |
| Volkswagen | e-up! (BL2) 2016 – | (E) – 60 kW / 82 hp |
| Volkswagen | e-up! (BL3) 2019 – | (E) – 61 kW / 83 hp |
| Volkswagen | ID.3 (E1) 2019 – | (E) – 93 kW / 126 hp |
| Volkswagen | ID.3 (E1) 2019 – | (E) – 107 kW / 145 hp |
| Volkswagen | ID.3 (E1) 2019 – | (E) – 110 kW / 150 hp |
| Volkswagen | ID.3 (E1) 2019 – | (E) – 150 kW / 204 hp |
| Volkswagen | ID.4 (E2) 2020 – | (E) – 128 kW / 174 hp |
| Volkswagen | ID.4 (E2) 2020 – | (E) – 125 kW / 170 hp |
| Volkswagen | ID.4 (E2) 2020 – | (E) – 109 kW / 148 hp |
| Volkswagen | ID.4 (E2) 2020 – | (E) – 150 kW / 204 hp |
| Volkswagen | ID.4 4motion (E2) 2021 – | (E) – 195 kW / 265 hp |
| Volkswagen | ID.4 4motion (E2) 2021 – | (E) – 220 kW / 299 hp |
| Volkswagen | ID.5 (E3) 2021 – | (E) – 128 kW / 174 hp |
| Volkswagen | ID.5 (E3) 2021 – | (E) – 150 kW / 204 hp |
| Volkswagen | ID.5 4motion (E3) 2021 – | (E) – 220 kW / 299 hp |
Gearbox Oil Drain Plug with Seal – VW e-up!, ID.3, ID.4 & More – Febi 188327 FAQs
Which part numbers does it replace?
It replaces SEAT, Skoda and Volkswagen part numbers WHT 005 623 A, WHT 003 697 and WHT 005 623 B.
Does it come with a seal?
Yes. The plug is supplied with a seal ring.
What tool do I need?
A T60 Torx bit fits the plug head.
Can I reuse the old plug?
It is best to fit a new plug and seal each time the oil is drained, so the gearbox stays sealed.
Will it fit my e-up!, ID.3, ID.4, ID.4 4Motion, ID.5, ID.5 4Motion, e-Crafter, e-Golf, Mii Electric or Citigo-e iV?
The parts finder lists it for the Volkswagen e-up!, ID.3, ID.4, ID.4 4Motion, ID.5, ID.5 4Motion, e-Crafter, e-Golf, SEAT Mii Electric and Skoda Citigo-e iV. It is not listed for the e-load up! Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine SEAT, Skoda or Volkswagen part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
