Honda e Front Brake Discs, 282 mm Vented (Pair)

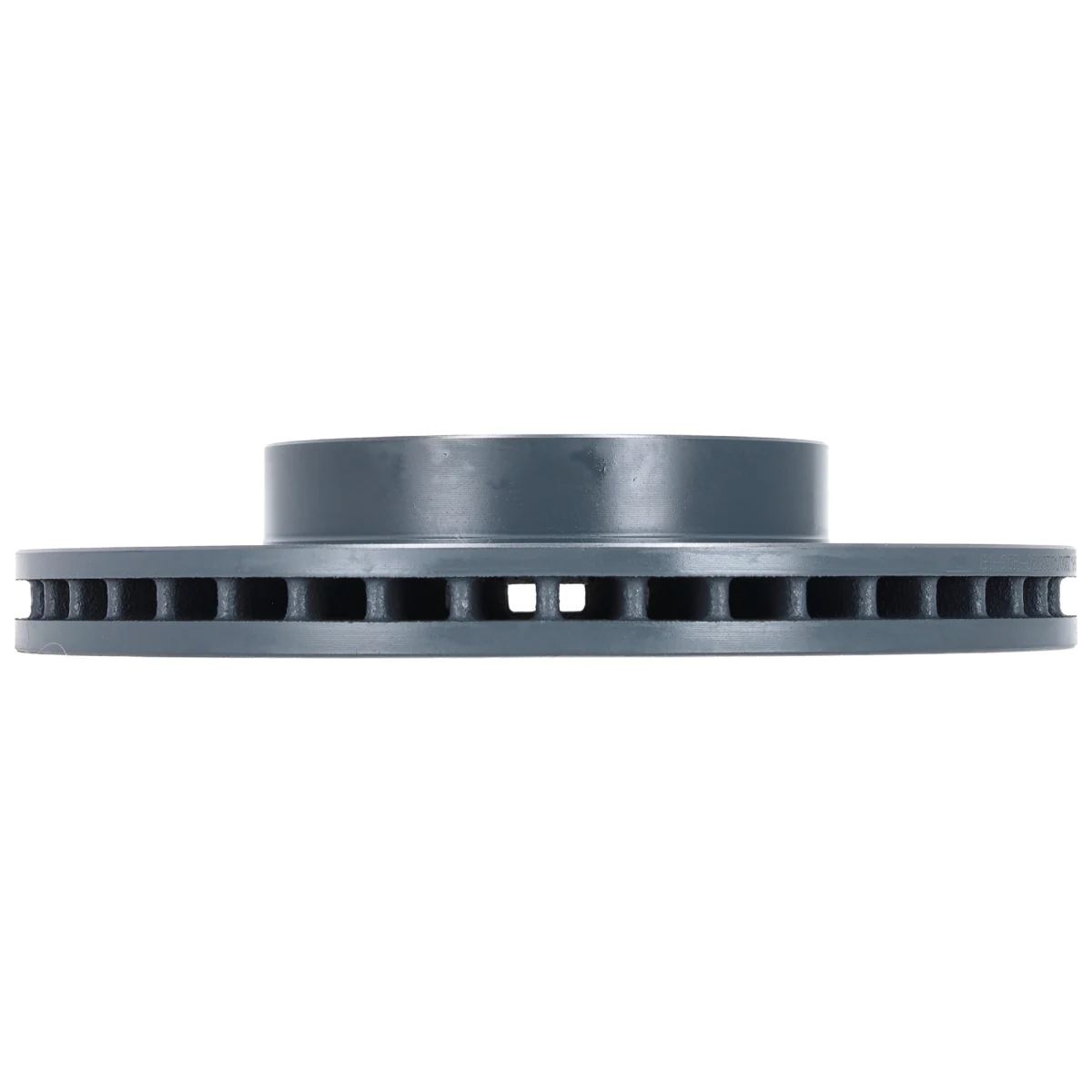

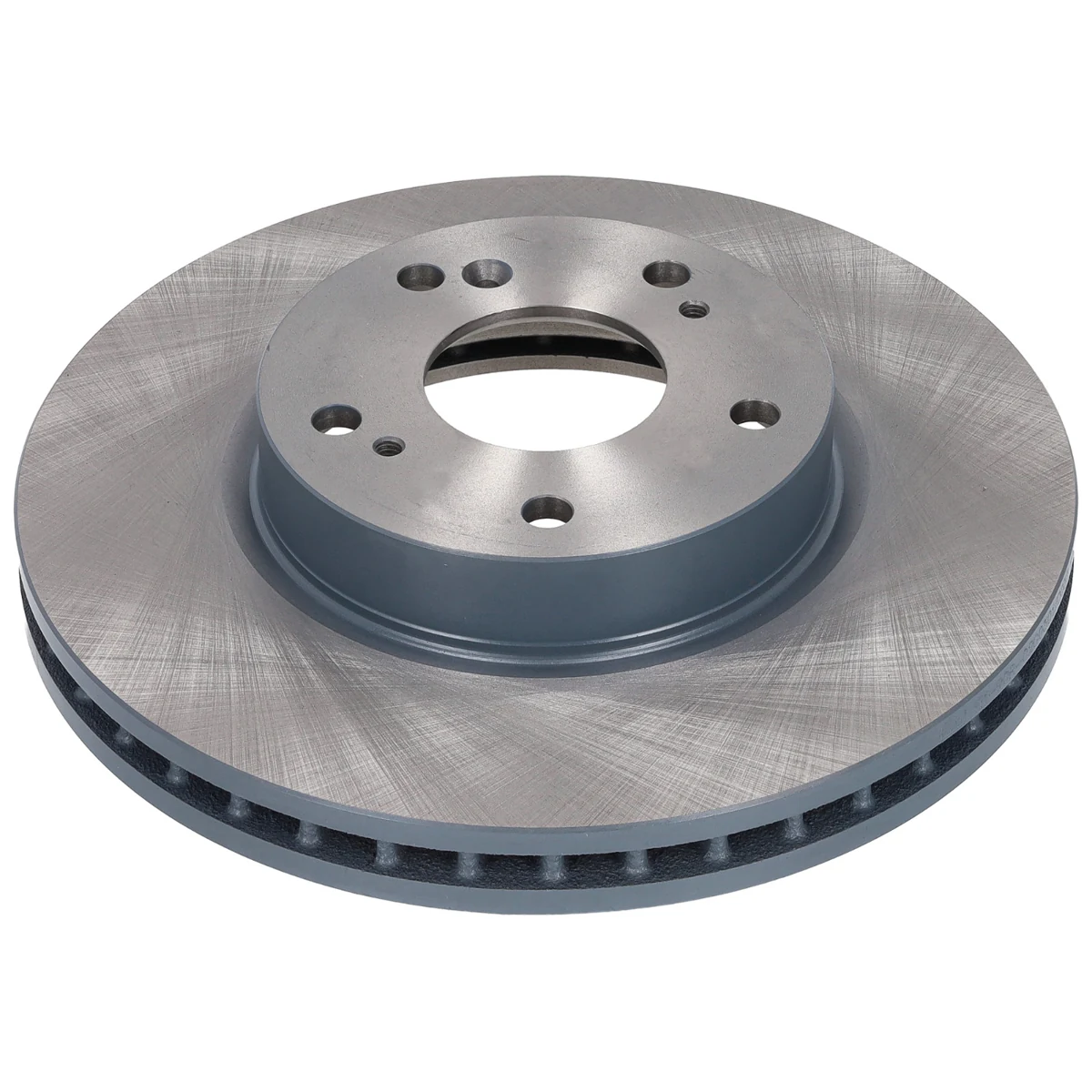

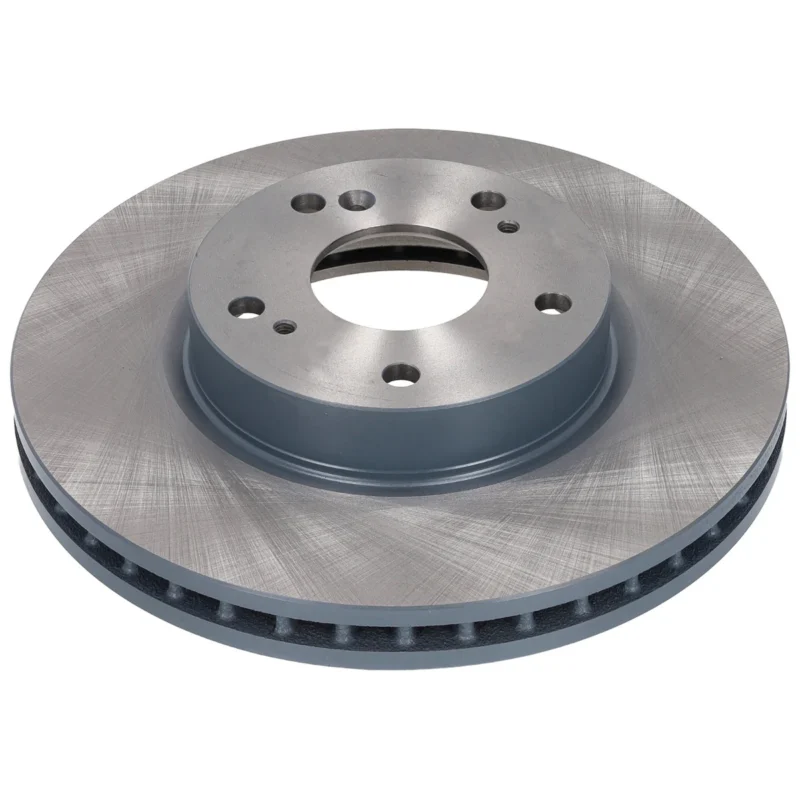

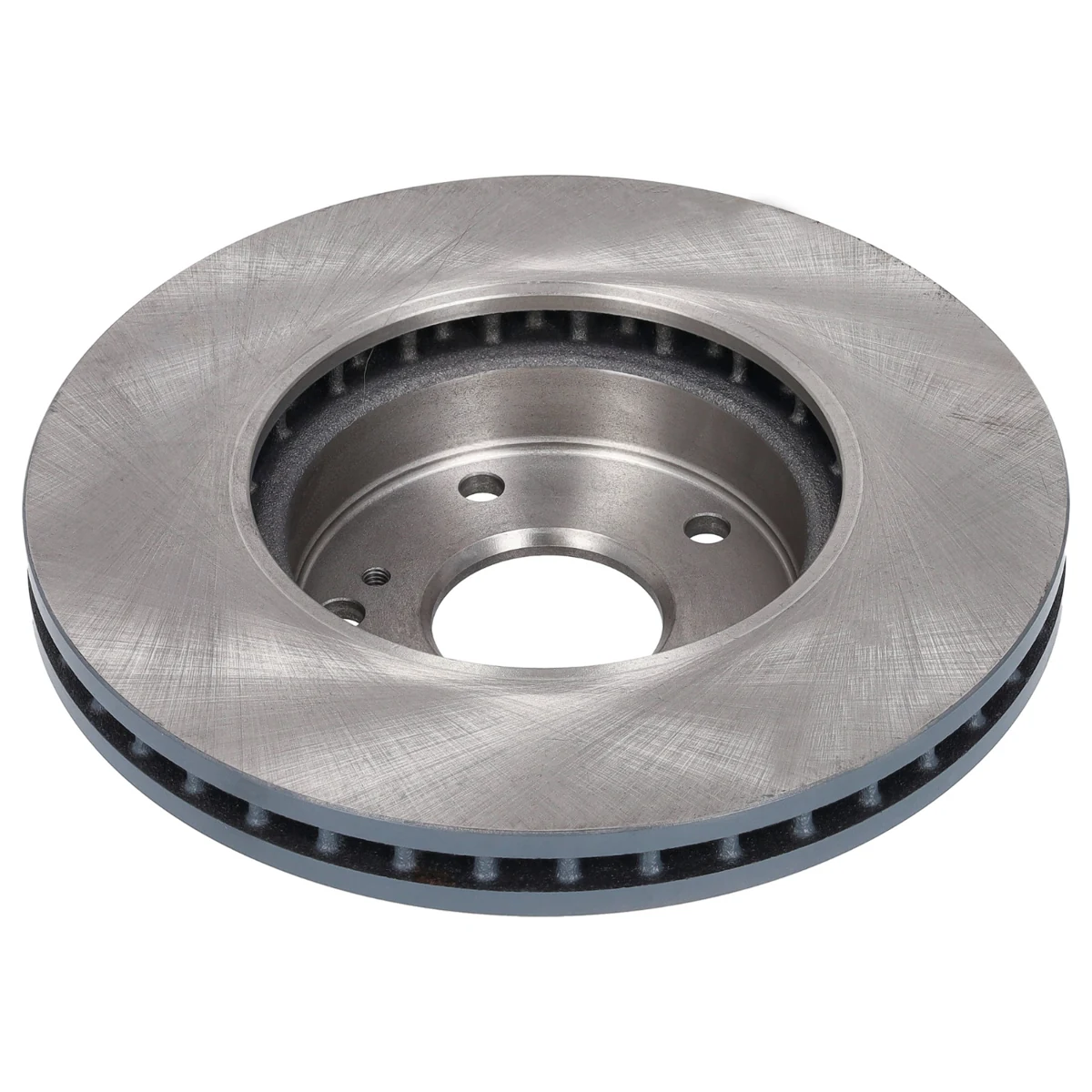

These front brake discs are factory replacement parts for the Honda e (ZC7, 2019 on), listed for both the 100 kW (136 hp) and 113 kW (154 hp) versions. They are internally vented discs, 282 mm across and 23 mm thick, with a 21 mm minimum thickness. Each disc has a 64 mm centre bore, a 47 mm overall height, five wheel stud holes on a 114.3 mm pitch circle and one fixing hole. The discs come oiled and coated to protect them against corrosion.
You can choose from two brands: Febi part number 196935 or Blue Print part number ADBP430237. Both are made to the same specification and both replace Honda part number 45251-TYF-E00. Pick the brand you prefer from the options before adding to your basket. The discs are sold in pairs, so one order covers both sides of the front axle.
Why discs wear differently on an electric car
The Honda e does much of its slowing down with regenerative braking, so the friction brakes are used far less than on a petrol or diesel car. As a result, the discs often rust, pit or build up a lip on the outer edge long before the pads are worn out. Signs that the discs need replacing include vibration through the brake pedal, grinding or scraping noises, uneven braking and a deep rust ring on the braking surface. If a disc measures at or below its 21 mm minimum thickness, it is due for replacement.
Key Benefits
- 282 mm internally vented disc
- Oiled and coated against corrosion
- Choice of Febi or Blue Print
- Sold in pairs for the front axle
- Replaces Honda 45251-TYF-E00
Fitting Advice
Professional installation is recommended. Always replace discs in pairs and fit new front brake pads at the same time. Clean the hub face so the new disc sits flat, then bed the discs and pads in gently over the first few miles. While the wheels are off, it is worth checking the caliper slide pins and brake hoses.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies factory replacement parts for cars and vans around the world. Each part is made to match the original in fit and function.
Explore More Parts
| Attribute | Value |
|---|---|
| Brake Disc Thickness | 23 mm |
| Brake Disc Type | Internally vented |
| Centre Diameter | 64 mm |
| Height or Thickness | 47 mm |
| Minimum Thickness of Brake Disc | 21 mm |
| No. of Fixing Holes | 1 |
| No. of Wheel Bolt/Stud Holes | 5 |
| Outer Diameter | 282 mm |
| Pitch Circle Diameter | 114.3 mm |
| Surface | Oiled and coated |
| Fitting Position | Front axle |
| Part Number | Febi 196935 / Blue Print ADBP430237 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Honda | e (ZC7) 2019 – | (E) – 113 kW / 154 hp |
| Honda | e (ZC7) 2019 – | (E) – 100 kW / 136 hp |
Honda e Front Brake Discs FAQs
Which Honda e models do these discs fit?
The bilstein group parts finder lists them for the Honda e (ZC7, 2019 on) in both the 100 kW (136 hp) and 113 kW (154 hp) versions. They fit the front axle.
Which part numbers do they replace?
They replace Honda part number 45251-TYF-E00. The Febi part number is 196935 and the Blue Print part number is ADBP430237.
What size are the discs?
They are 282 mm across and 23 mm thick, with a 21 mm minimum thickness, a 64 mm centre bore, a 47 mm overall height and five wheel stud holes on a 114.3 mm pitch circle.
What is the difference between Febi and Blue Print?
Both are bilstein group brands and both discs are made to the same specification. Choose the brand you prefer.
Are they sold singly or in pairs?
They are sold in pairs, so one order covers both sides of the front axle. Discs should always be replaced on both sides at the same time.
Should I fit new brake pads at the same time?
Yes. Fitting new pads with new discs gives the best braking feel and helps the discs and pads bed in evenly.
