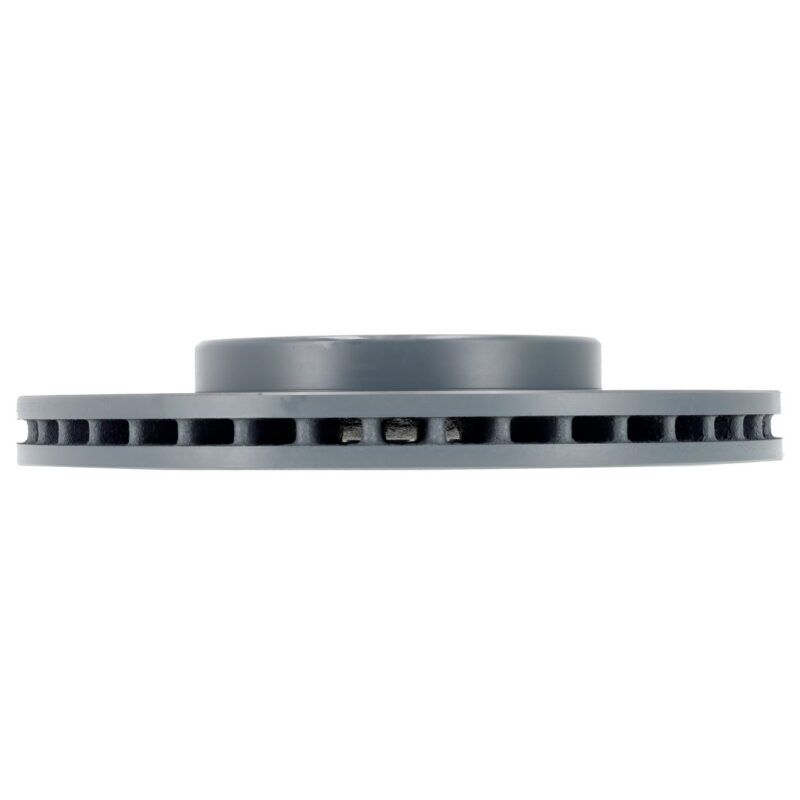

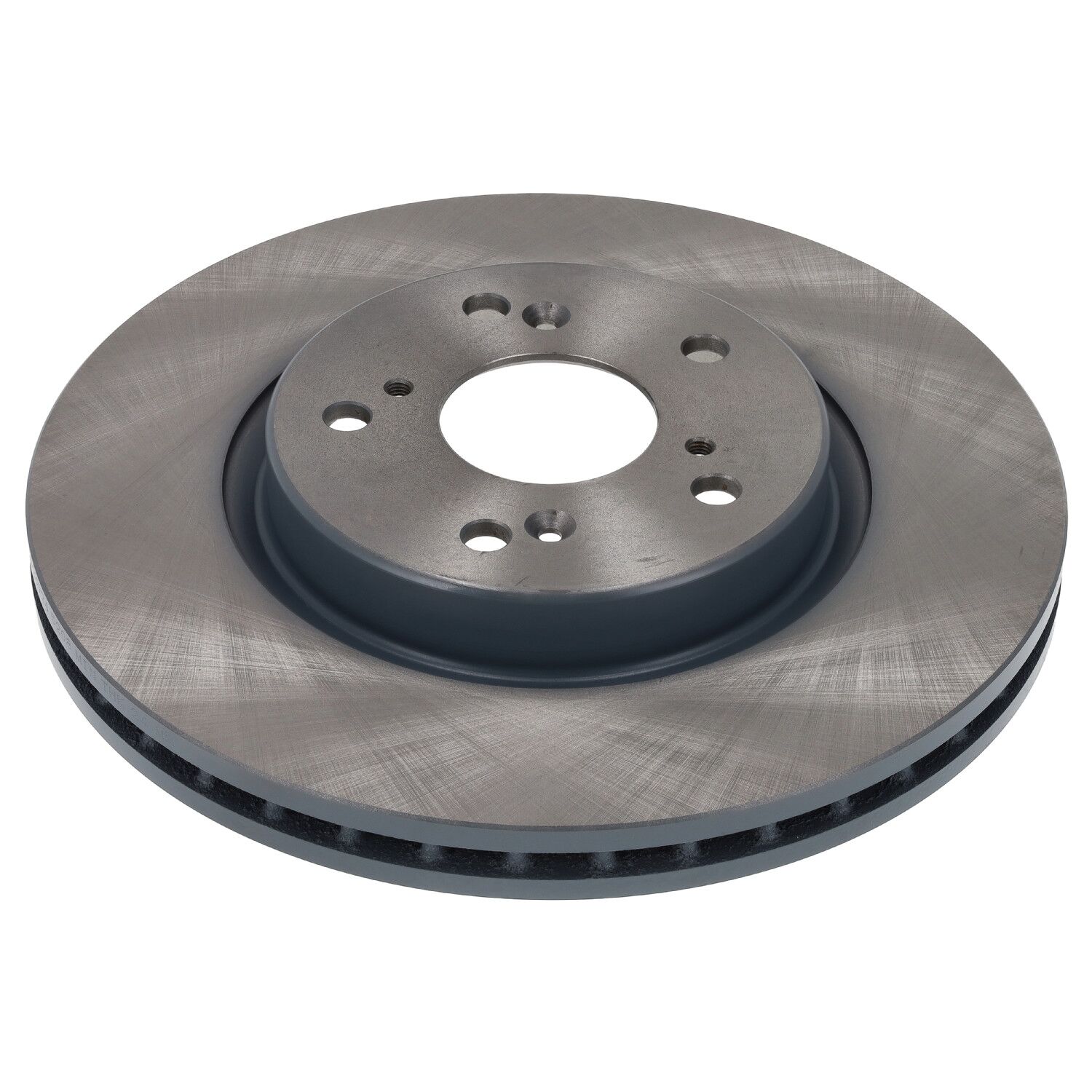

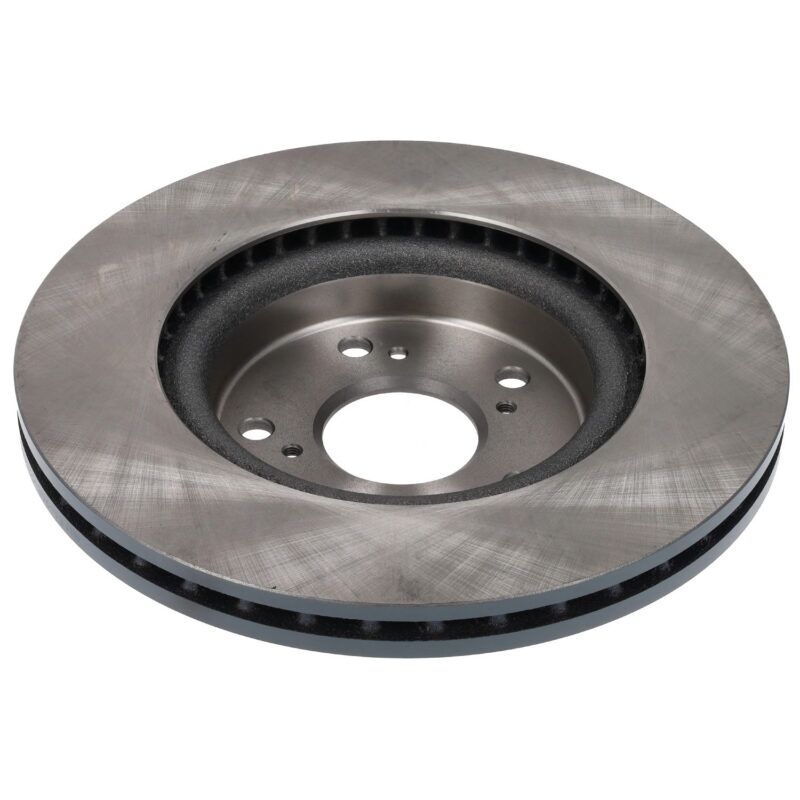

BYD Atto 3 Front Brake Disc 298 mm
High-quality front brake disc specifically chosen for the BYD Atto 3. These discs are optimised for the unique demands of regenerative braking found in modern BYD electric vehicles while delivering strong, consistent stopping power on UK roads.
Key Benefits
- Excellent heat dissipation for repeated braking
- Optimised for regenerative braking systems
- Direct fit – no modifications required
- Reduces brake fade under heavy use
- Long service life in UK conditions
Compatibility
- BYD Atto 3 – all variants
Aftermarket Part Numbers
- Febi 198760
- Blue Print ADBP430248
Installation
Standard brake disc replacement. Basic tools required. We recommend replacing brake pads at the same time for best performance.
Pro tip: Pair with our BYD Brake Pads for a complete brake service.
| Attributes | |
|---|---|
| Brake Disc Thickness | 26 mm |
| Brake Disc Type | internally vented |
| Centre Diameter | 62 mm |
| Height or Thickness | 47 mm |
| Minimum Thickness of Brake Disc | 24 mm |
| No. of Fixing Holes | 2 |
| No. of Wheel Bolt/Stud Holes | 5 |
| Outer Diameter | 298 mm |
| Pitch Circle Diameter | 114,3 mm |
| Surface | oiled and coated |
BYD Part Numbers
| Suitable to replace | Reference(s) |
|---|---|
| BYD | 13781672-00 | 13188254-00 | HA2EL-3501111 | HA2EL-3501111A |
Fit BYD Models
| Model | Submodel |
|---|---|
| BYD Atto 3 (2022 –) | (E) – 100 kW / 136 hp |
| BYD Atto 3 (2022 –) | (E) – 150 kW / 204 hp |
BYD Front Brake Disc FAQs
.faq-accordion h3 { cursor: pointer; margin: 0; padding: 15px; border: 1px solid #ddd; } .faq-accordion div[itemprop=”acceptedAnswer”] { display: none; padding: 15px; border: 1px solid #ddd; border-top: none; background: #fff; } .faq-accordion .active + div[itemprop=”acceptedAnswer”] { display: block; }Which BYD models does this front brake disc fit?
Fits the BYD Atto 3 (2022 onwards), 100 kW and 150 kW.
Is this disc optimised for regenerative braking?
Yes – it is specifically chosen to work well with BYD’s regenerative braking system while maintaining strong friction braking performance.
Should I replace the brake pads at the same time?
Yes – for best performance and safety we recommend replacing the brake pads together with the discs.
How difficult is it to fit?
Standard brake disc replacement. Basic tools required.
