Hyundai Ioniq 5, Kona Electric, Ioniq Electric & Kia e-Niro, Niro EV, Soul EV Air Conditioning Pressure Switch

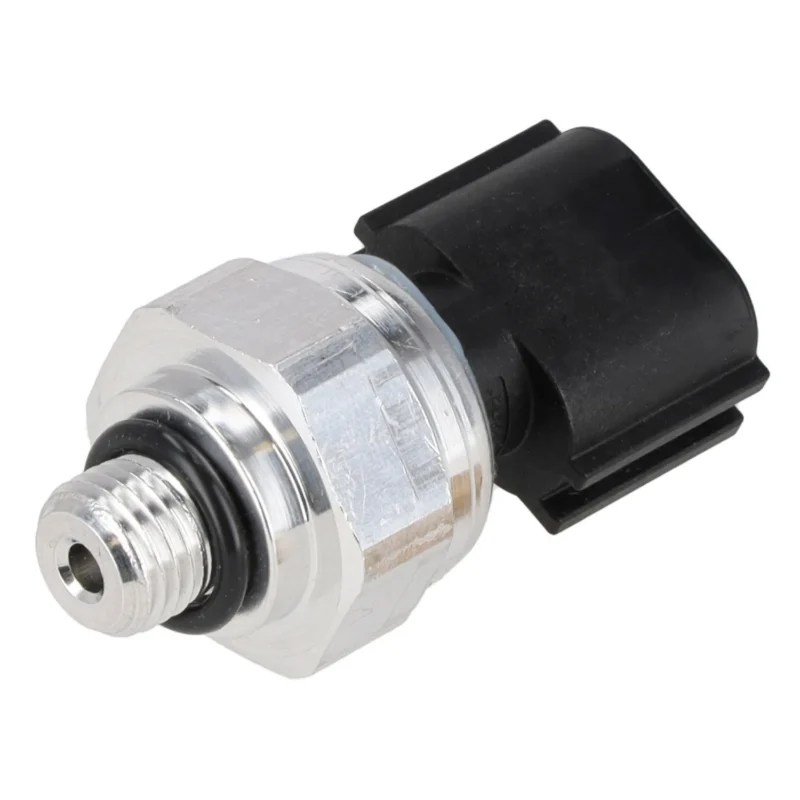

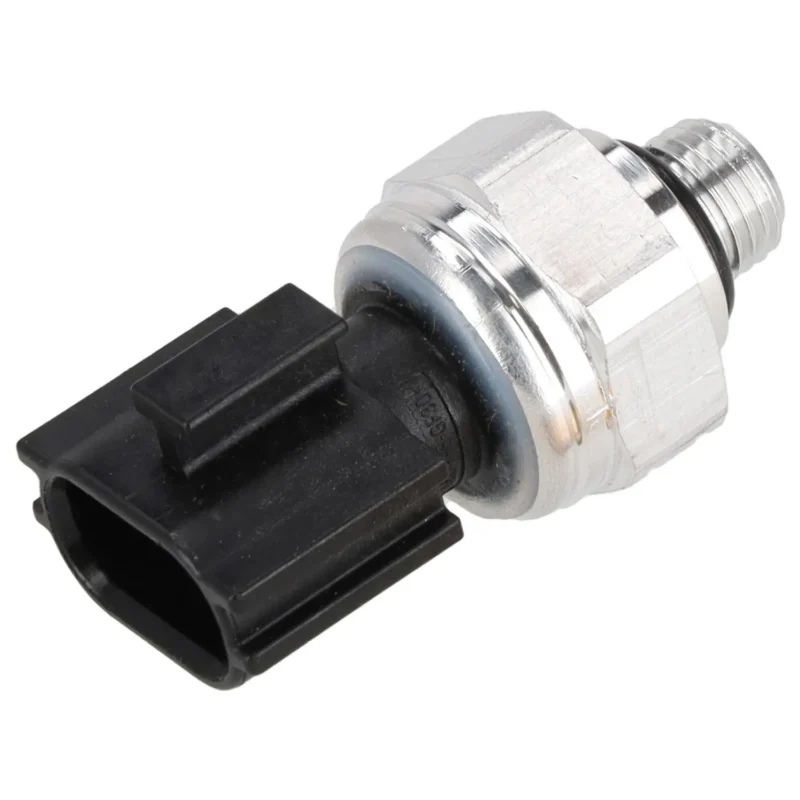

This pressure switch monitors the refrigerant pressure in the air conditioning system of the Hyundai Ioniq 5, Kona Electric and Ioniq Electric and the Kia e-Niro, Niro EV and Soul EV (2014 to 2019). It has an aluminium body, three connections and a 3/8 inch 24 UNF thread.
The switch tells the control unit when the pressure is too high or too low so the compressor can be switched off before damage occurs. Replace it if the air conditioning will not switch on even though the system is correctly filled, if it cuts in and out, or if a fault code points to the pressure switch.
This is Febi 198435, made by the bilstein group. It replaces part numbers 97721-D2000, 97721-3K000 and 97721-D9000.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the Hyundai Ioniq 5 (including 4×4), Kona Electric (first and second generation) and Ioniq Electric, and the electric Kia e-Niro, Niro EV, Niro Plus and Soul EV (2014 to 2019). The table below shows each power output. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Aluminium body with three connections
- 3/8 inch 24 UNF thread, 21 mm
- Protects the compressor from damage
- Made by the bilstein group to match the original
Specifications
- Material: Aluminium
- Connections: 3
- Thread: 3/8 inch 24 UNF
- Spanner Size: 21 mm
- Part Number: Febi 198435
Replaces Kia and Hyundai part numbers 97721-D2000, 97721-3K000 and 97721-D9000.
Installation
Professional installation recommended. The switch is fitted to the high-pressure line and the system must be recovered and recharged by an air conditioning specialist.
Explore More Parts
- All Hyundai Ioniq 5 Parts
- All Hyundai Ioniq Electric Parts
- All Hyundai Kona Electric Parts
- All Kia e-Niro Parts
- All Kia Niro Parts
- All Kia Soul EV Parts
- All Heating & Air Conditioning Parts
| Attribute | Value |
|---|---|
| Material | Aluminium |
| Connections | 3 |
| Thread | 3/8 inch 24 UNF |
| Spanner Size | 21 mm |
| Part Number | Febi 198435 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Hyundai | Ioniq 5 4×4 2021 – | (E) – 173 kW / 235 hp |
| Hyundai | Ioniq 5 4×4 2021 – | (E) – 225 kW / 306 hp |
| Hyundai | Ioniq 5 4×4 2021 – | (E) – 239 kW / 325 hp |
| Hyundai | Ioniq 5 2021 – | (E) – 125 kW / 170 hp |
| Hyundai | Ioniq 5 2021 – | (E) – 160 kW / 218 hp |
| Hyundai | Ioniq 5 2021 – | (E) – 168 kW / 228 hp |
| Hyundai | Ioniq 2016 – 2022 | (E) – 88 kW / 120 hp |
| Hyundai | Ioniq 2016 – 2022 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 150 kW / 204 hp |
| Hyundai | Kona I 2017 – | (E) – 100 kW / 136 hp |
| Hyundai | Kona I 2017 – | (E) – 150 kW / 204 hp |
| Hyundai | Kona II 2023 – | (E) – 150 kW / 204 hp |
| Kia | e-Niro 2018 – 2022 | (E) – 100 kW / 136 hp |
| Kia | e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp |
| Kia | Niro I 2016 – 2022 | (E) – 100 kW / 136 hp |
| Kia | Niro I 2016 – 2022 | (E) – 150 kW / 204 hp |
| Kia | Niro II 2022 – | (E) – 108 kW / 147 hp |
| Kia | Niro II 2022 – | (E) – 150 kW / 204 hp |
| Kia | Niro Plus 2022 – | (E) – 150 kW / 204 hp |
| Kia | Soul II 2014 – 2019 | (E) – 81 kW / 110 hp |
Hyundai Ioniq 5, Kona Electric, Ioniq Electric & Kia e-Niro, Niro EV, Soul EV Air Conditioning Pressure Switch FAQs
Which part numbers does it replace?
It replaces Kia and Hyundai part numbers 97721-D2000, 97721-3K000 and 97721-D9000.
Do I need to regas the system?
Yes. The refrigerant must be recovered before the switch is removed and the system recharged afterwards by an air conditioning specialist.
What are the signs of a faulty switch?
The air conditioning will not switch on, cuts in and out, or a fault code points to the pressure switch.
Does it fit the first Soul EV?
Yes. The parts finder lists it for the 81 kW Soul EV built from 2014 to 2019.
Will it fit my Hyundai or Kia?
The parts finder lists it for the Hyundai Ioniq 5 (125, 160 and 168 kW) and Ioniq 5 4×4 (173, 225 and 239 kW), the Kona Electric first generation (100 kW and 150 kW) and second generation (150 kW), the Ioniq Electric (88 kW and 100 kW), and the Kia e-Niro and Niro EV, Niro Plus and Soul EV 2014 to 2019 (81 kW). Compare the part number on your existing part before ordering.
Is this a genuine Kia or Hyundai part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
