Choose From Febi Biltsein or Blue Print.

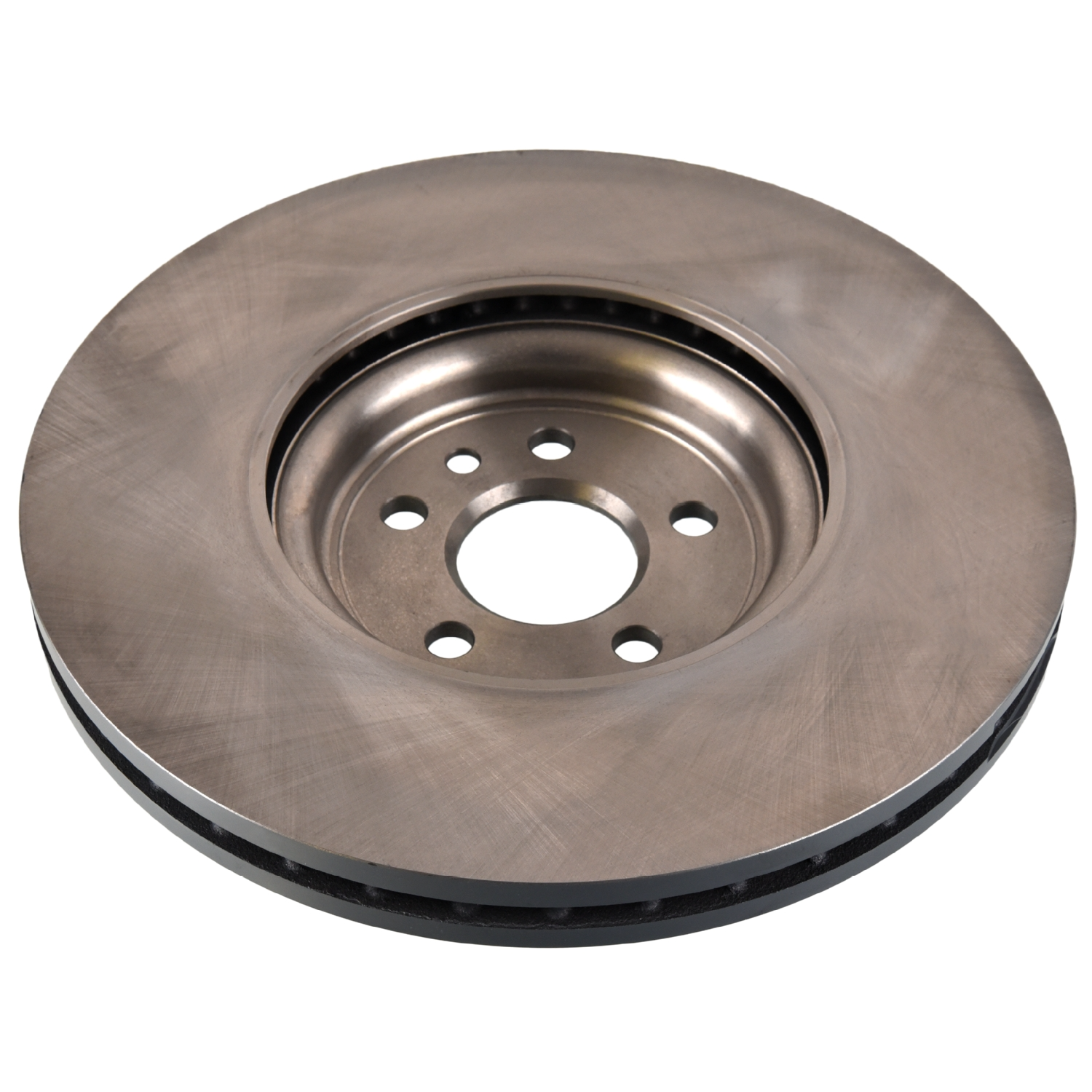

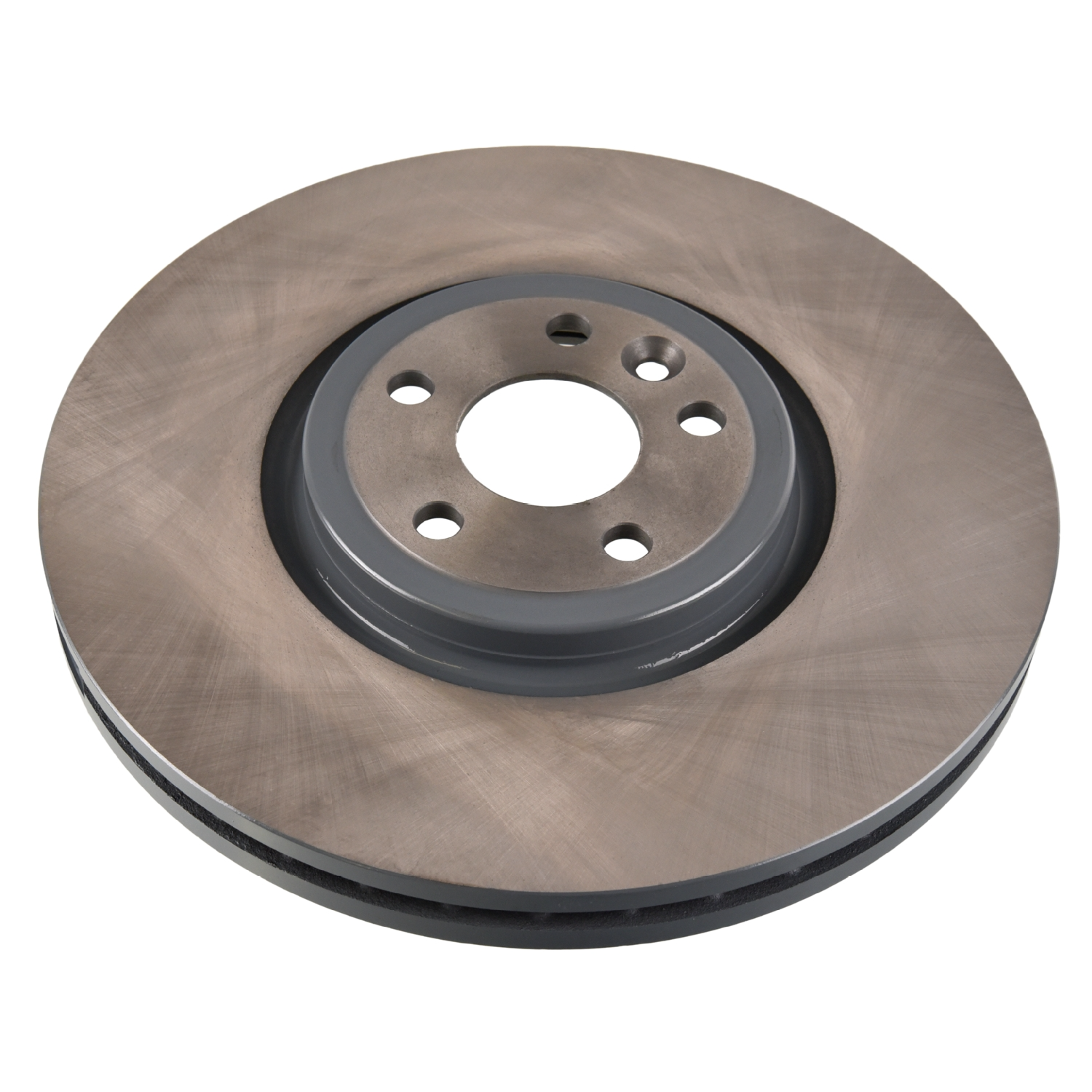

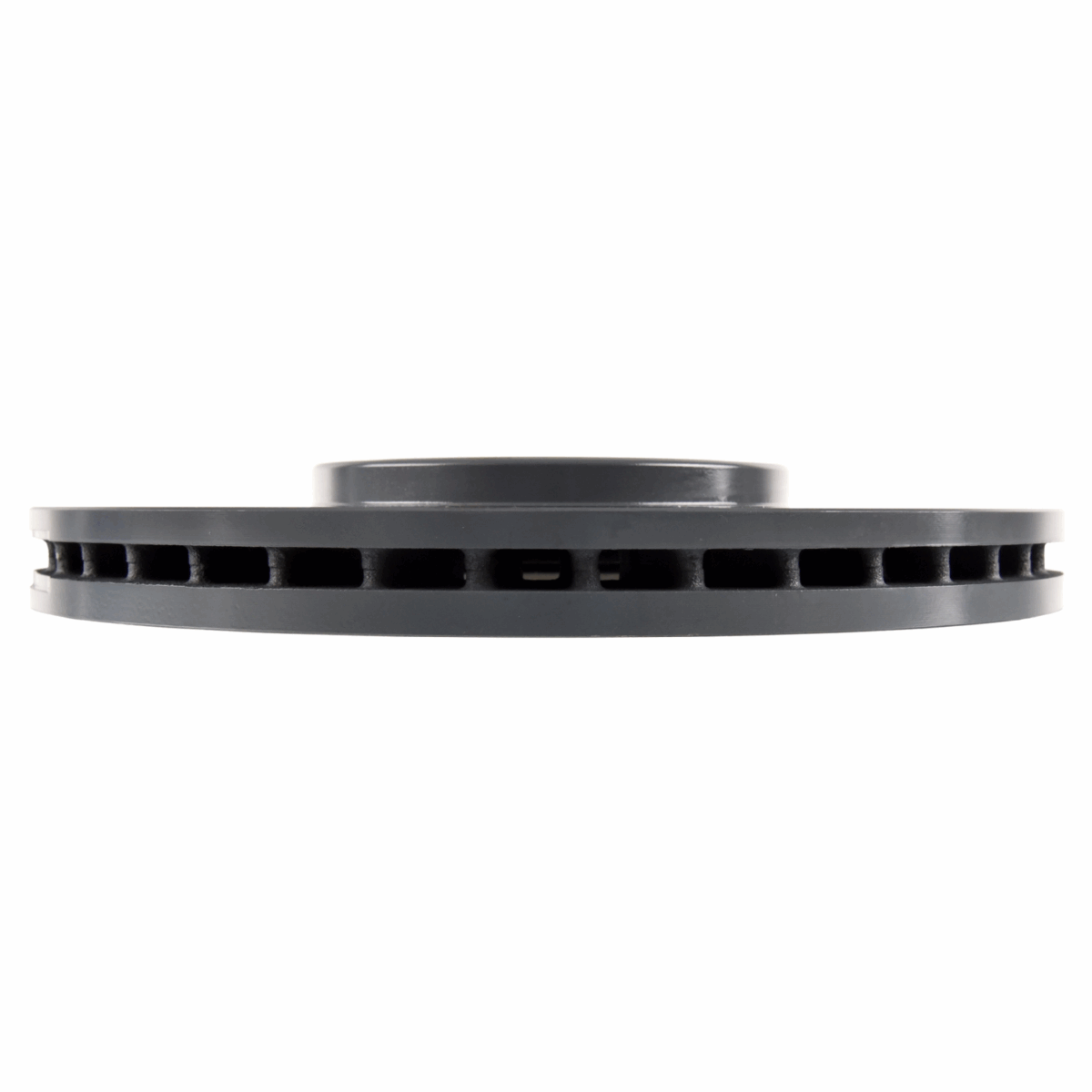

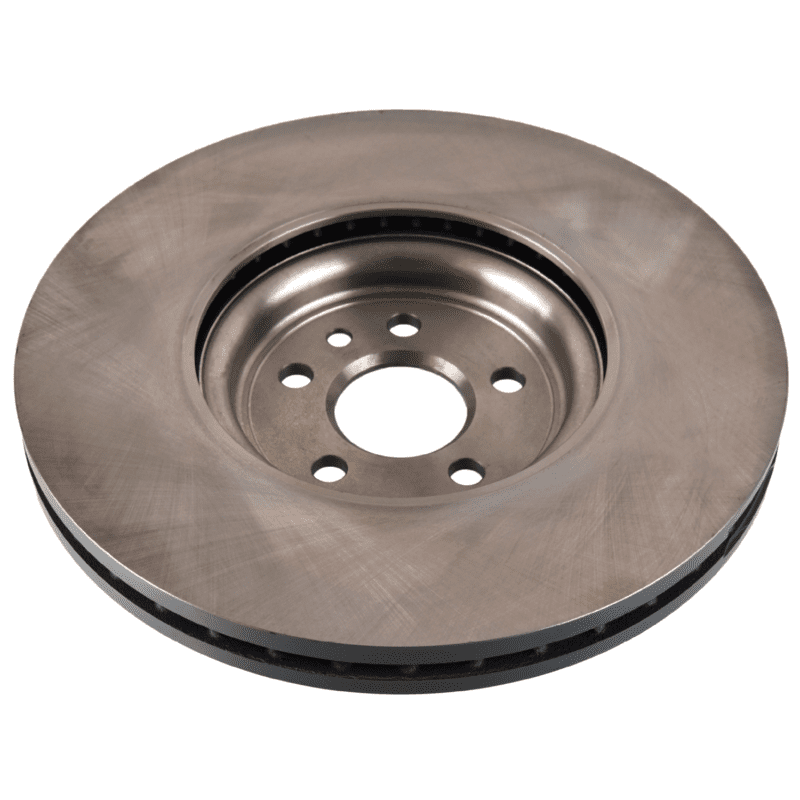

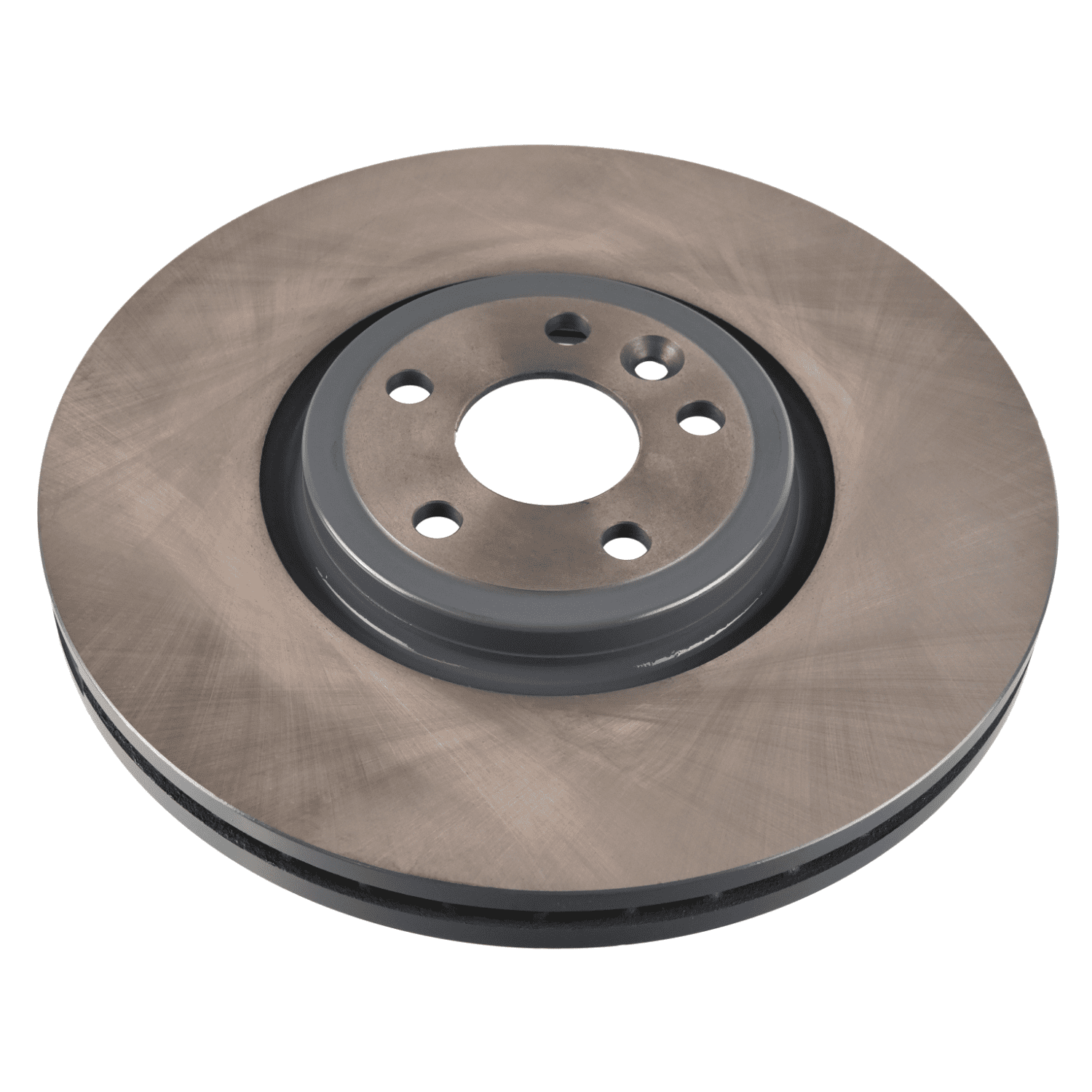

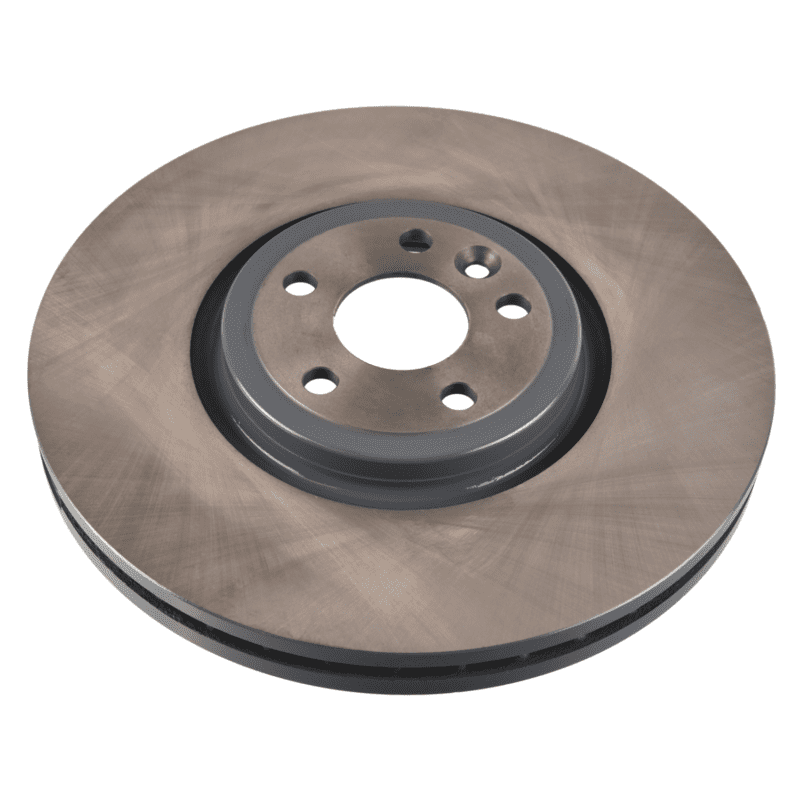

Price is per Brake Disc
Fitting Position: front axle
| Attributes | |
|---|---|
| Brake Disc Thickness | 32 mm |
| Brake Disc Type | internally vented |
| Centre Diameter | 63,5 mm |
| Height or Thickness | 48,2 mm |
| Machining | high-carbon |
| Minimum Thickness of Brake Disc | 30 mm |
| No. of Fixing Holes | 1 |
| No. of Wheel Bolt/Stud Holes | 5 |
| Outer Diameter | 350 mm |
| Pitch Circle Diameter | 108 mm |
| Surface | Coated |
| Suitable to replace | Reference(s) |
|---|---|
| Jaguar | T4A 2343 | T4K 5014 |
| Land Rover | LR090685 |
Fit Jaguar Models
F-Pace Models Vehicle Identification Number (VIN) to: LA999999
| Model | Submodel |
|---|---|
| F-Pace (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 16V – 184 kW / 250 hp |
| F-Pace (X761) 2015 – suitable for engine code: 204DTD (AJ20D4) Vehicle Identification Number (VIN) to: LA999999 | 2.0 D 16V – 120 kW / 163 hp |
| F-Pace (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 D 16V – 132 kW / 179 hp |
| F-Pace (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 16V – 177 kW / 241 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 D200 MHEV 16V – 150 kW / 204 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 D 16V – 177 kW / 241 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 16V – 221 kW / 300 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 16V – 184 kW / 250 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 3.0 D 24V – 221 kW / 300 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 2.0 D 16V – 132 kW / 179 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 3.0 24V – 254 kW / 345 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 3.0 24V – 280 kW / 381 hp |
| F-Pace AWD (X761) 2015 – Vehicle Identification Number (VIN) to: LA999999 | 3.0 24V – 250 kW / 340 hp |
| I-Pace AWD (X590) 2018 – Vehicle Identification Number (VIN) to: LA999999 | (E) – 236 kW / 321 hp |
| I-Pace AWD (X590) 2018 – Vehicle Identification Number (VIN) to: LA999999 | (E) – 294 kW / 400 hp |
Fits Land Rover Models
Vehicle Identification Number (VIN) to: *********LA999999 Rim Size [inch]: 18″
| Model | Submodel |
|---|---|
| Range Rover Velar 4WD (L560) 2017 – | 2.0 P400e PHEV 16V – 297 kW / 404 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 P340 MHEV 24V – 250 kW / 340 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 P340 MHEV 24V – 295 kW / 401 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 P400 MHEV 24V – 294 kW / 400 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 P400 24V – 294 kW / 400 hp |
| Range Rover Velar 4WD (L560) 2017 – | 2.0 D200 16V – 150 kW / 204 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 D300 MHEV 24V – 221 kW / 300 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 TD 24V – 202 kW / 275 hp |
| Range Rover Velar 4WD (L560) 2017 – | 2.0 16V – 221 kW / 300 hp |
| Range Rover Velar 4WD (L560) 2017 – | 2.0 SD4 – 177 kW / 241 hp |
| Range Rover Velar 4WD (L560) 2017 – | 2.0 16V – 184 kW / 250 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 TD 24V – 221 kW / 300 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 24V – 280 kW / 381 hp |
| Range Rover Velar 4WD (L560) 2017 – | 2.0 TD4 – 132 kW / 179 hp |
| Range Rover Velar 4WD (L560) 2017 – | 5.0 32V – 405 kW / 551 hp |
| Range Rover Velar 4WD (L560) 2017 – | 3.0 24V – 250 kW / 340 hp |
