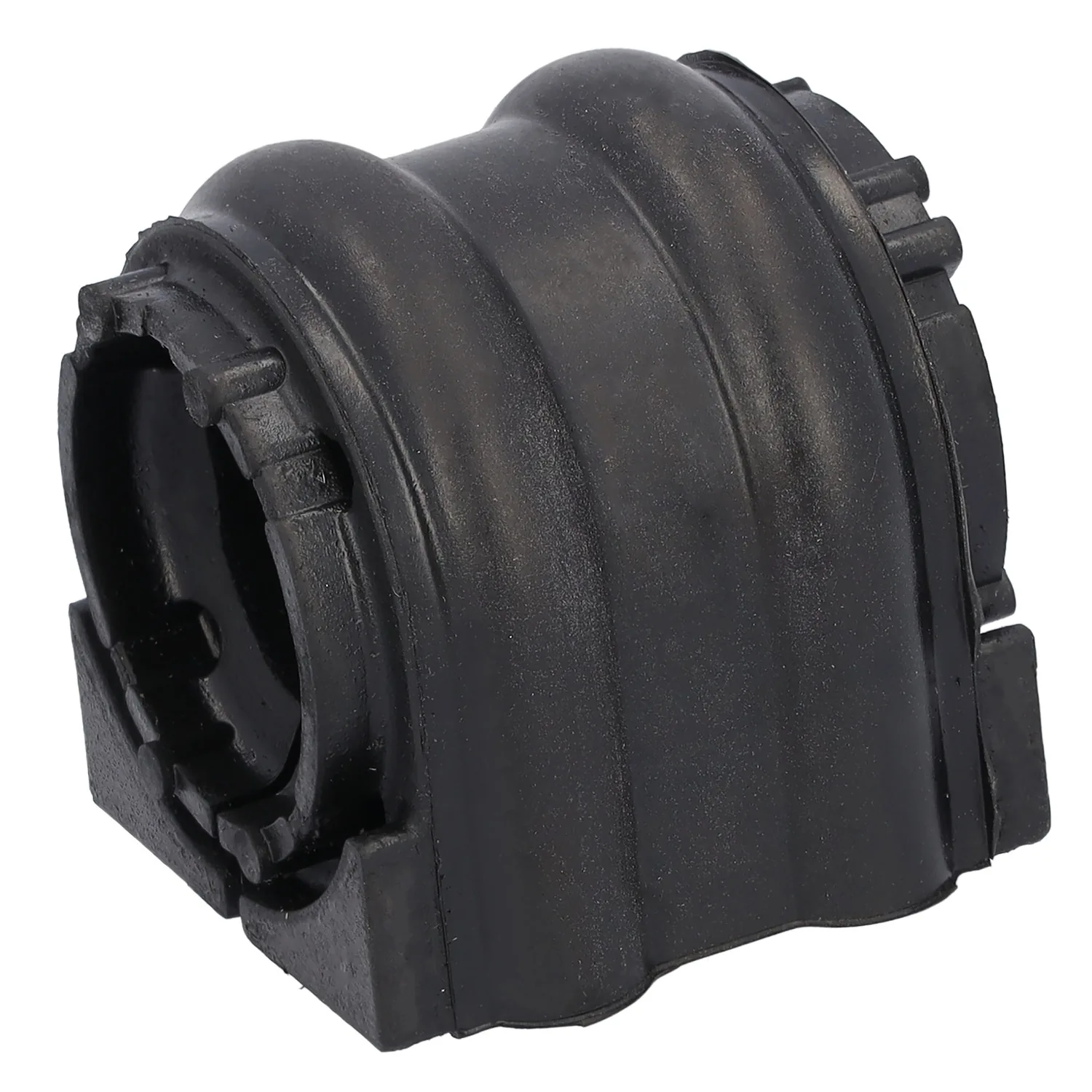

Kia e-Niro, Soul EV & Hyundai Kona Electric Front Anti-Roll Bar Bush – 21 mm
This rubber anti-roll bar bush holds the front anti-roll bar to the subframe on the Kia e-Niro, the Kia Soul EV (including the first-generation 81 kW Soul EV) and the first-generation Hyundai Kona Electric. It has a 21 mm inner diameter and fits the left or right side.
Replace the bushes if you hear creaks or clunks from the front over bumps or when turning, or if the rubber is split or worn oval. Worn bushes let the bar move in its mounts and increase body roll.
Choose Febi 182560 or Blue Print ADBP800491 from the options. Both are made by the bilstein group to the same specification and replace part numbers 54813-3S110 and 55513-C6000. The bush is 46 mm high, 47 mm long and 45 mm wide.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the front axle of the electric Kia e-Niro and Soul EV (first generation and 2019 on) and the first-generation Hyundai Kona Electric. The table below shows each power output. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rubber bush with 21 mm bore
- Fits the left or right side
- Cures creaks and clunks from the front
- Choice of Febi or Blue Print
Specifications
- Fitting Position: Front axle, left or right
- Inner Diameter: 21 mm
- Height: 46 mm
- Length: 47 mm
- Width: 45 mm
- Material: Rubber
- Part Number: Febi 182560 | Blue Print ADBP800491
Replaces Kia and Hyundai part numbers 54813-3S110 and 55513-C6000.
Installation
Professional installation recommended. Raise the car, undo the bush clamps, fit the new bushes in the same position and tighten the clamps with the car on its wheels.
Explore More Parts
- All Hyundai Kona Electric Parts
- All Kia e-Niro Parts
- All Kia Soul EV Parts
- All Kia Niro Parts
- All Stabiliser Links & Anti-Roll Bars
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Inner Diameter | 21 mm |
| Height | 46 mm |
| Length | 47 mm |
| Width | 45 mm |
| Material | Rubber |
| Part Number | Febi 182560 | Blue Print ADBP800491 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Hyundai | Kauai I 2017 – 2023 | (E) – 100 kW / 136 hp |
| Hyundai | Kauai I 2017 – 2023 | (E) – 150 kW / 204 hp |
| Hyundai | Kona I 2017 – | (E) – 100 kW / 136 hp |
| Hyundai | Kona I 2017 – | (E) – 150 kW / 204 hp |
| Kia | e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp |
| Kia | e-Soul 2019 – | (E) – 100 kW / 136 hp |
| Kia | e-Soul 2019 – | (E) – 150 kW / 204 hp |
| Kia | Niro I 2016 – 2022 | (E) – 150 kW / 204 hp |
| Kia | Soul II 2014 – 2019 | (E) – 81 kW / 110 hp |
| Kia | Soul III 2019 – | (E) – 100 kW / 136 hp |
| Kia | Soul III 2019 – | (E) – 150 kW / 204 hp |
Note from the parts finder: Front axle. Please check the dimensions (21 mm inner diameter) against your existing bush.
Kia e-Niro, Soul EV & Hyundai Kona Electric Front Anti-Roll Bar Bush – 21 mm FAQs
Which part numbers does it replace?
It replaces Kia and Hyundai part numbers 54813-3S110 and 55513-C6000.
How many do I need?
There is one bush on each side of the front anti-roll bar, so most owners order two and replace both together.
What size is it?
It has a 21 mm inner diameter. Check this against your existing bush before ordering.
Febi or Blue Print?
Both are made by the bilstein group to the same specification and replace the same part numbers.
Will it fit my Kia e-Niro, Soul EV or Hyundai Kona Electric?
The parts finder lists it for the front axle of the electric Kia e-Niro (150 kW), the Soul EV 2014 to 2019 (81 kW), the Soul EV from 2019 (100 kW and 150 kW) and the first-generation Hyundai Kona Electric (100 kW and 150 kW). Please check the 21 mm inner diameter against your existing bush. Compare the part number on your existing part before ordering.
Is this a genuine Kia or Hyundai part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
