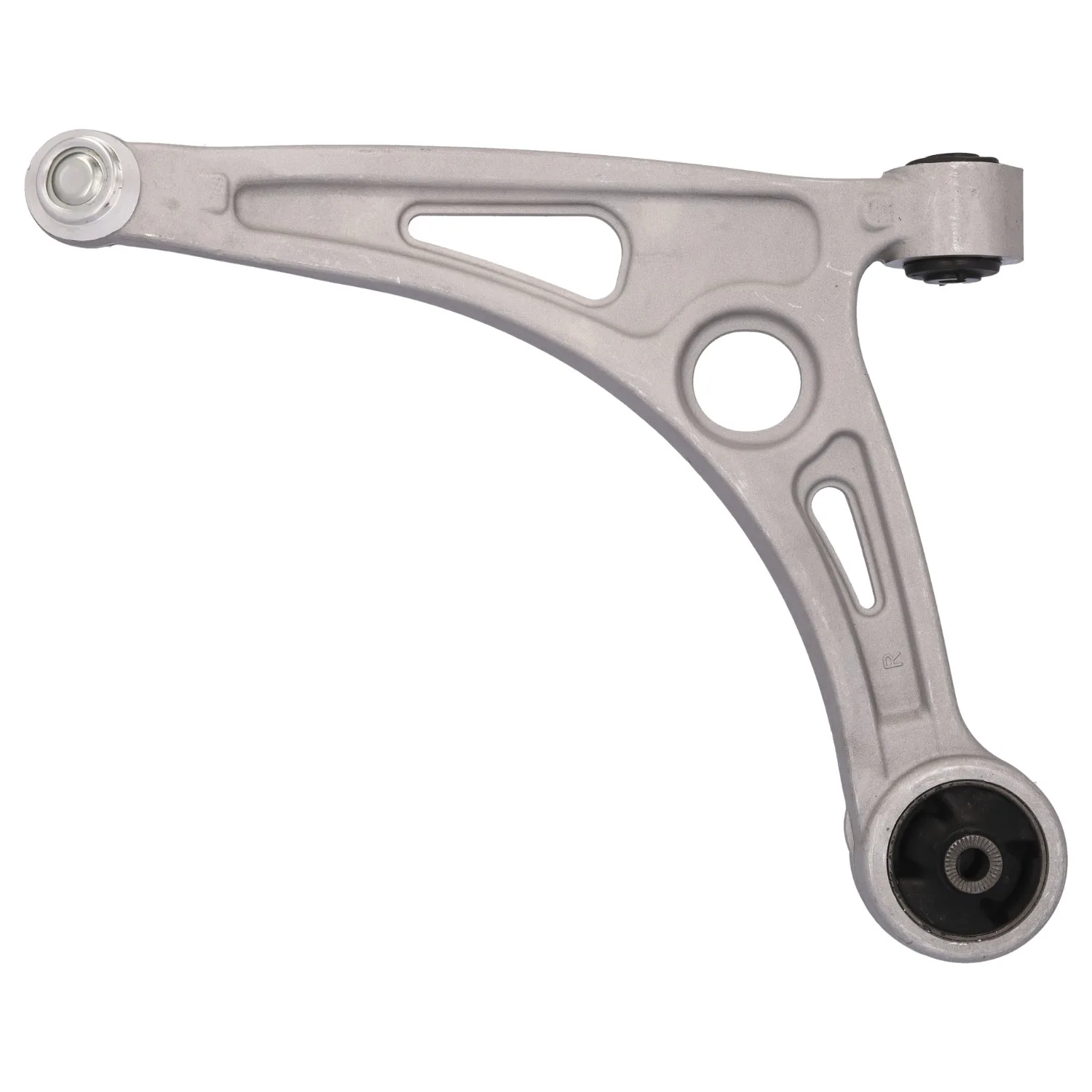

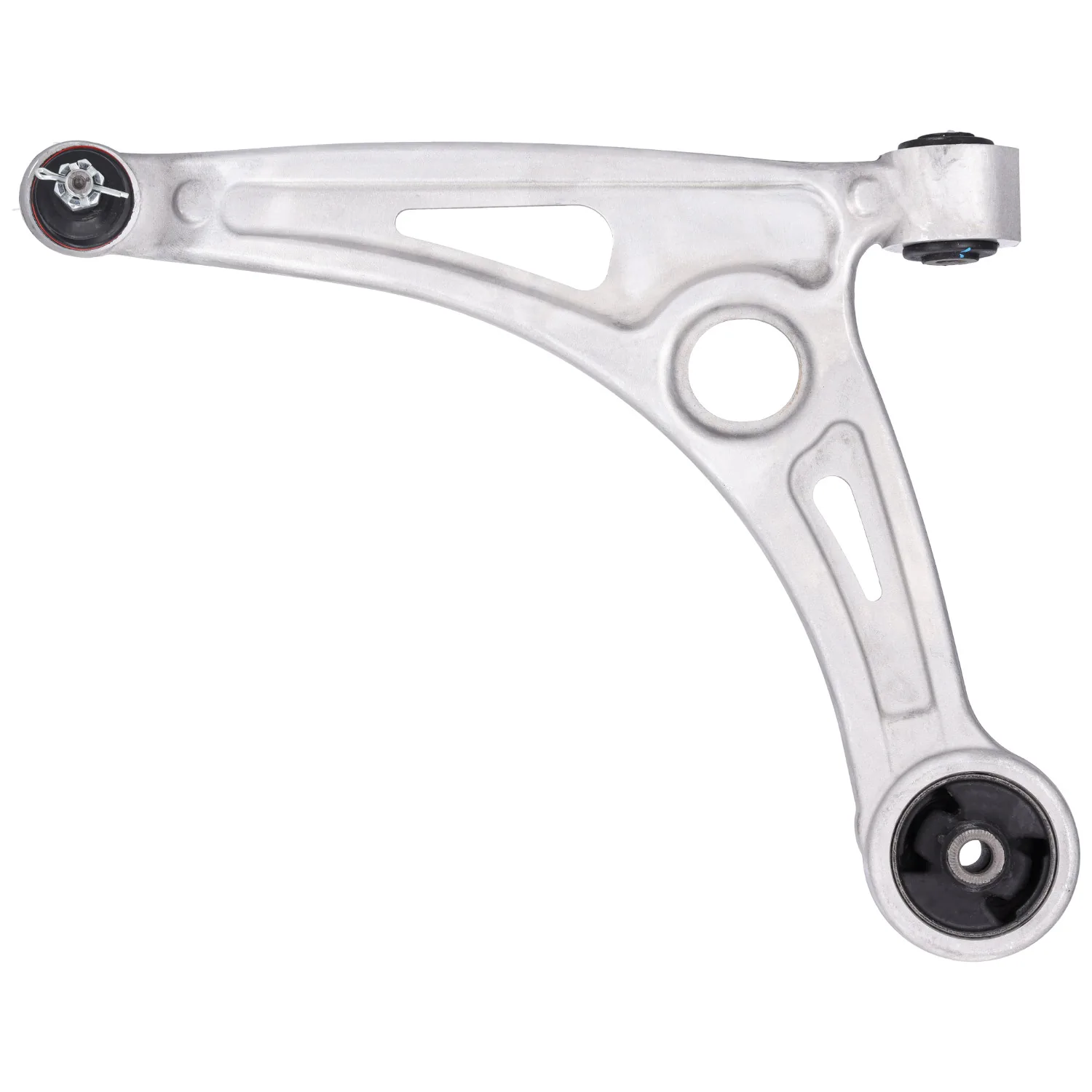

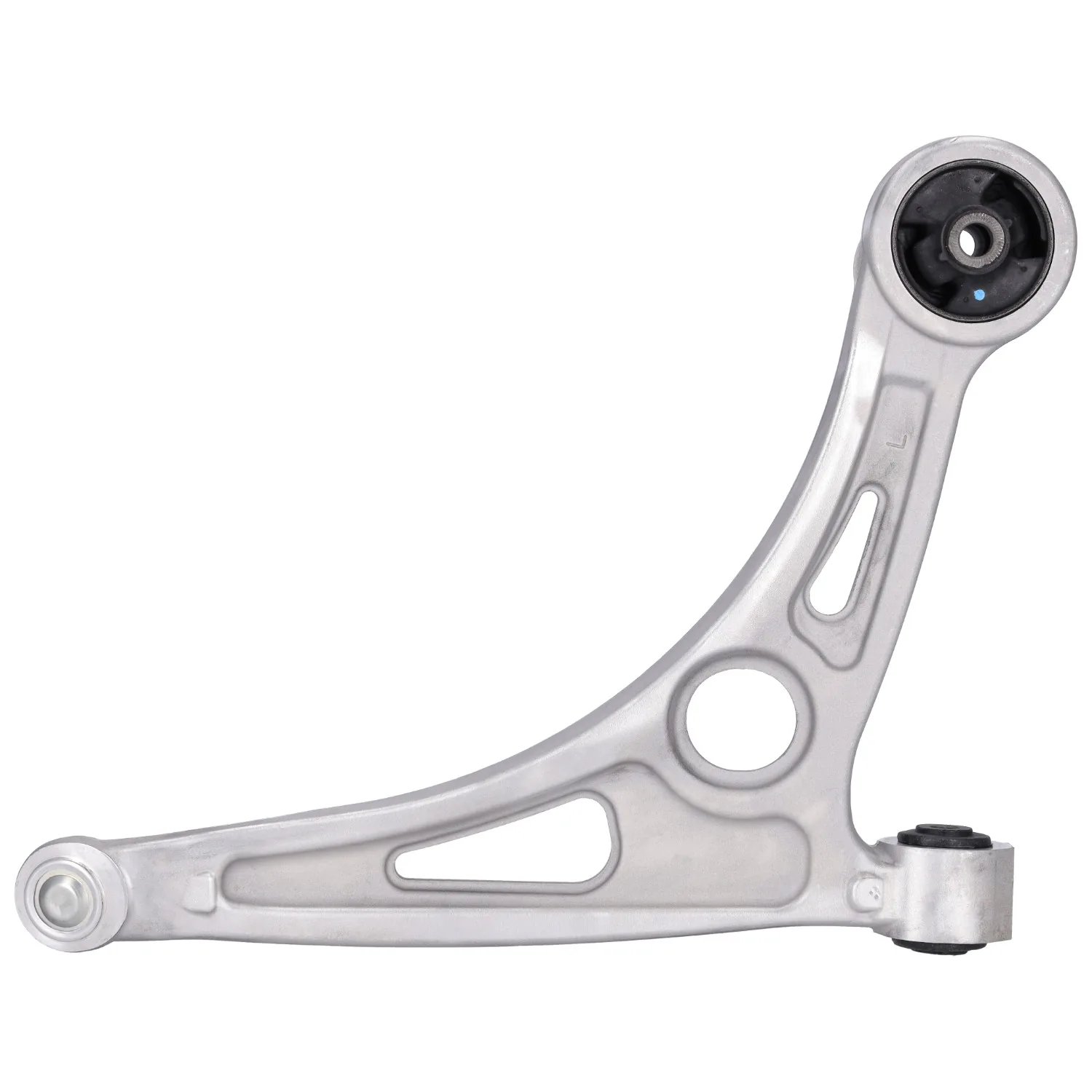

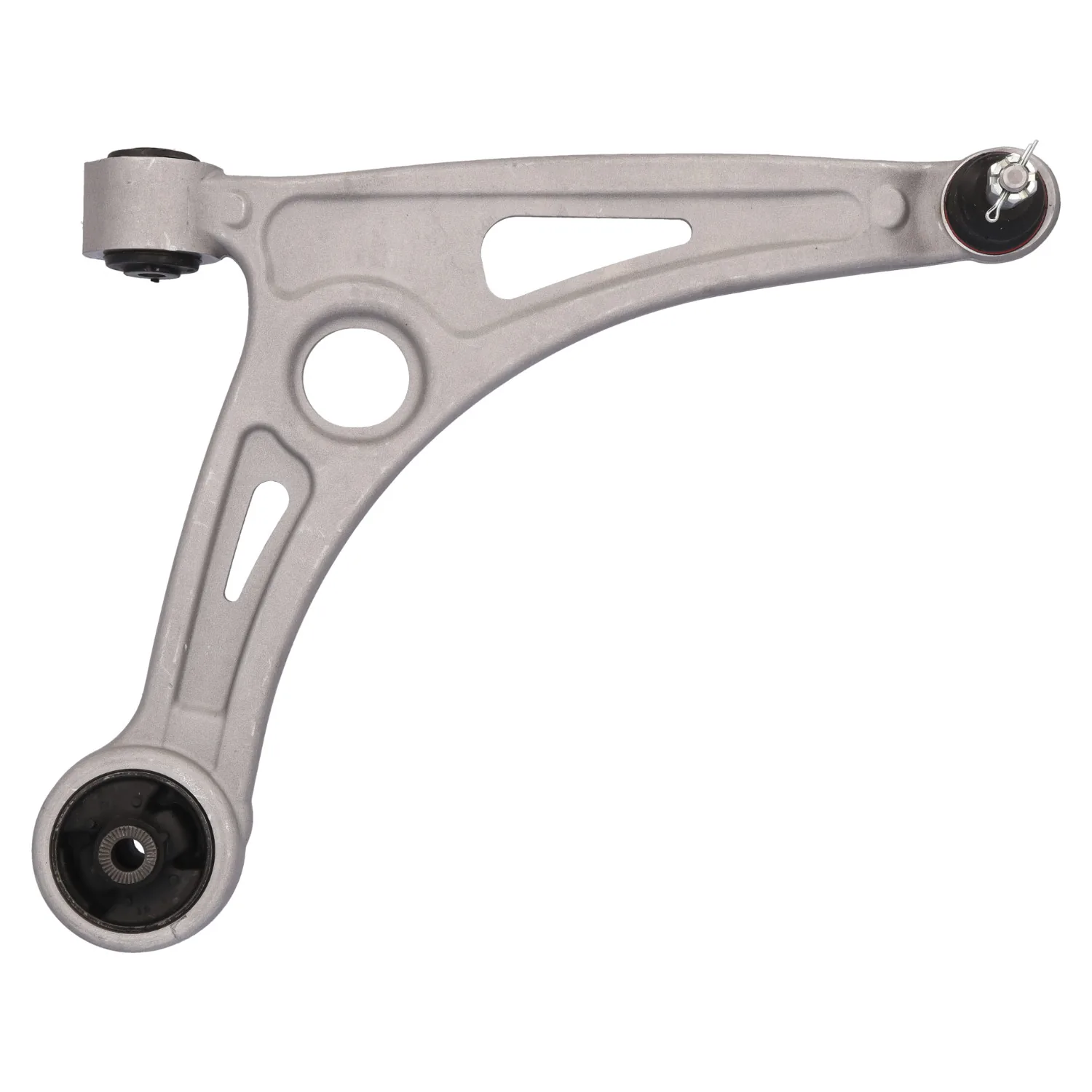

Kia e-Niro, Niro EV & Soul EV Front Lower Control Arm – Left / Right
This front lower control arm is an aluminium replacement for the Kia e-Niro, the Niro EV from 2022 and the Soul EV. It comes complete with bushes, ball joint, castle nut and cotter pin, for the left or right side.
Replace the arm if the ball joint is loose or its boot is split, the bushes are cracked or perished, or you hear knocks over bumps and the steering feels vague. Uneven or rapid inner tyre wear is another common sign.
Both brands are made by the bilstein group. Left: Febi 183592 or Blue Print ADBP860163 (Kia 54500-G2100). Right: Febi 183593 or Blue Print ADBP860164 (Kia 54501-G2100).
Electric cars carry a heavy battery, so the front arms and their bushes take more load than on a similar petrol car. If one side is worn, check the other side too.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists it for the electric versions of the Kia e-Niro 2018 – 2022, e-Soul 2019 -, e-Soul Cargo 2020 -, Niro I 2016 – 2022, Niro II 2022 – and Soul III 2019 -. The table below shows each power output. Compare the Kia part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Aluminium arm
- Bushes and ball joint fitted
- Castle nut and cotter pin included
- Left and right available
Specifications
- Fitting Position: Front axle, lower
- Material: Aluminium
- Cone Size: 14 mm / 18 mm
- Outside Thread: M12 x 1.25
- Includes: Bushes, ball joint, castle nut and cotter pin
Replaces Kia part numbers 54500-G2100 and 54501-G2100.
Installation
Professional installation recommended. Tighten the bushes with the car at normal ride height, then have the wheel alignment checked. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, lower |
| Material | Aluminium |
| Cone Size | 14 mm / 18 mm |
| Outside Thread | M12 x 1.25 |
| Includes | Bushes, ball joint, castle nut and cotter pin |
Fits The Following Kia Models
| Model | Submodel |
|---|---|
| e-Niro 2018 – 2022 | (E) – 150 kW / 204 hp |
| e-Soul 2019 – | (E) – 100 kW / 136 hp |
| e-Soul 2019 – | (E) – 150 kW / 204 hp |
| e-Soul Cargo 2020 – | (E) – 100 kW / 136 hp |
| e-Soul Cargo 2020 – | (E) – 150 kW / 204 hp |
| Niro I 2016 – 2022 | (E) – 150 kW / 204 hp |
| Niro II 2022 – | (E) – 108 kW / 147 hp |
| Niro II 2022 – | (E) – 150 kW / 204 hp |
| Soul III 2019 – | (E) – 100 kW / 136 hp |
| Soul III 2019 – | (E) – 150 kW / 204 hp |
Note from the parts finder: If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Kia e-Niro, Niro EV & Soul EV Front Lower Control Arm – Left / Right FAQs
Which part numbers does it replace?
It replaces Kia part numbers 54500-G2100 and 54501-G2100.
Is the ball joint included?
Yes. The arm comes with bushes and ball joint fitted, plus a castle nut and cotter pin.
Is it sold as a pair?
No. Each arm is sold on its own. Choose the left or right side.
Do I need an alignment?
Yes. Have the wheel alignment checked after fitting. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Will it fit my Kia e-Niro, Niro EV and Soul EV?
The bilstein group parts finder lists it for the electric e-Niro 2018 – 2022 (150 kW / 204 hp); e-Soul 2019 – (100 kW / 136 hp and 150 kW / 204 hp); e-Soul Cargo 2020 – (100 kW / 136 hp and 150 kW / 204 hp); Niro I 2016 – 2022 (150 kW / 204 hp); Niro II 2022 – (108 kW / 147 hp and 150 kW / 204 hp); Soul III 2019 – (100 kW / 136 hp and 150 kW / 204 hp). If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary. Compare the Kia part number on your existing part before ordering.
Is this a genuine Kia part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
