MG ZS EV 105 kW, 110 kW & 115 kW Rear Wheel Bearing Kit with Hub

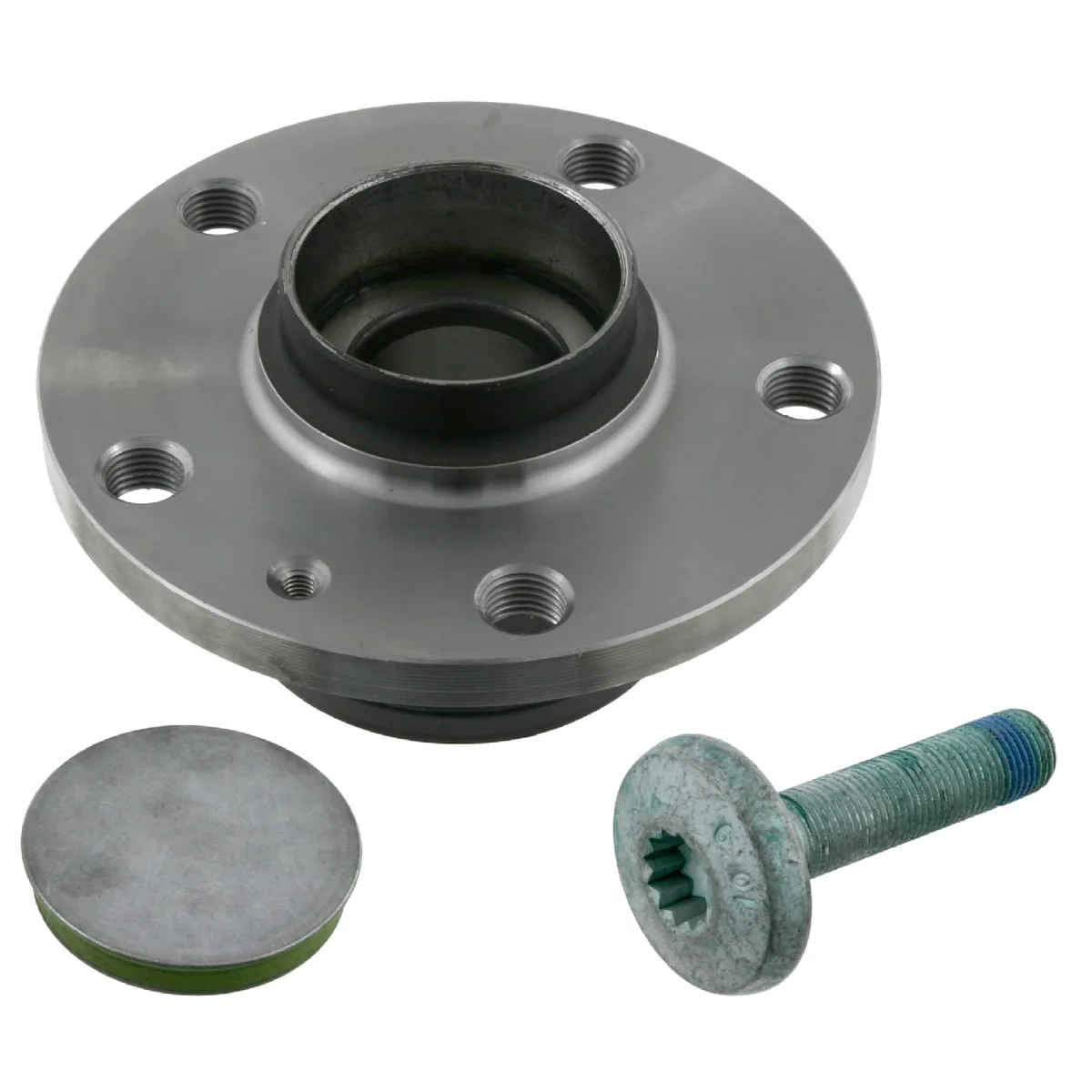

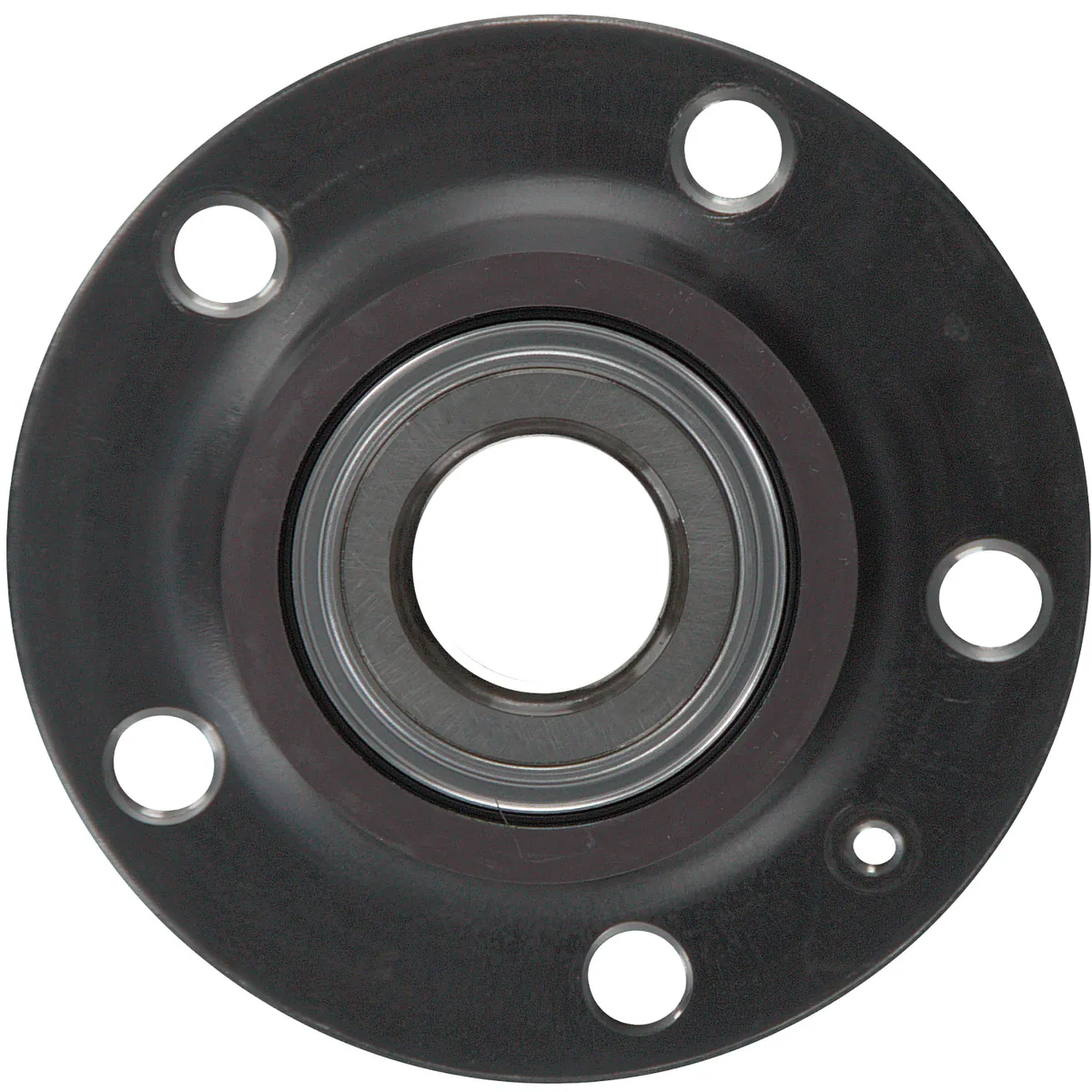

This rear wheel bearing kit for the MG ZS EV comes with the wheel hub, an integrated ABS sensor ring, a dust cap and a hub bolt. The angular ball bearing is integrated into the hub, and the same kit fits the rear left and rear right.
A worn rear wheel bearing usually makes a humming or rumbling noise that rises with road speed. You may also feel play in the wheel, and a damaged sensor ring can bring on the ABS warning light.
This is Febi part number 23320, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world.
The table below shows the MG versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the MG ZS EV: ZS II (CS) 2017 – (105 kW and 110 kW), ZS II (NA) 2020 – (115 kW) and ZS II (ZS) 2017 – (130 kW, with the engine code note shown in the table). The parts finder adds this note: “suitable for engine code: EDU, TZ204XS105K02, TZ204XS1152”. Compare the MG part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Bearing integrated in the hub
- Integrated ABS sensor ring
- Dust cap and hub bolt included
- Fits the rear left and rear right
- Febi quality from the bilstein group
Specifications
- Fitting Position: Rear axle left and right
- Bearing Type: Angular ball bearing, integrated in wheel hub
- ABS Sensor Ring: Integrated
- Inner Diameter: 32 mm
- Outer Diameter: 136 mm
- Width: 70 mm
- Wheel Bolt Holes: 5
- Pitch Circle Diameter: 112 mm
- Supplied with: Dust cap and hub bolt
- Part Number: Febi 23320
Replaces MG part number 10866350.
Installation
Professional installation recommended. Fit the new hub bolt supplied rather than reusing the old one, tighten it to the vehicle maker’s torque setting, and check the ABS warning light is off after fitting.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle left and right |
| Bearing Type | Angular ball bearing, integrated in wheel hub |
| ABS Sensor Ring | Integrated |
| Inner Diameter | 32 mm |
| Outer Diameter | 136 mm |
| Width | 70 mm |
| Wheel Bolt Holes | 5 |
| Pitch Circle Diameter | 112 mm |
| Supplied with | Dust cap and hub bolt |
| Part Number | Febi 23320 |
Fits The Following MG Models
| Model | Submodel |
|---|---|
| ZS II (CS) 2017 – | (E) – 105 kW / 143 hp |
| ZS II (CS) 2017 – | (E) – 110 kW / 150 hp |
| ZS II (NA) 2020 – | (E) – 115 kW / 156 hp |
| ZS II (ZS) 2017 – suitable for engine code: EDU, TZ204XS105K02, TZ204XS1152 |
(E) – 130 kW / 177 hp |
MG ZS EV 105 kW, 110 kW & 115 kW Rear Wheel Bearing Kit with Hub FAQs
Which part numbers does it replace?
Replaces MG part number 10866350. The Febi part number is 23320.
What is in the kit?
One wheel bearing kit with hub, one dust cap (9 mm high, 51 mm inner and 55 mm outer diameter) and one hub bolt (M16 x 1.5, 70 mm, grade 10.9).
Does it fit both sides?
Yes. The same kit fits the rear left and rear right. It is sold as one kit, so order one for each wheel you are replacing.
Is this the same as Febi 40659?
No. We also list Febi 40659 as a rear wheel bearing kit for the MG5 and the ZS EV 105 kW and 110 kW. It has different MG part numbers, so compare the number on your old hub with MG part number 10866350 for this kit.
Will it fit my MG ZS EV?
Listed in the parts finder for the MG ZS EV: ZS II (CS) 2017 – (105 kW and 110 kW), ZS II (NA) 2020 – (115 kW) and ZS II (ZS) 2017 – (130 kW, with the engine code note shown in the table). The parts finder adds this note: “suitable for engine code: EDU, TZ204XS105K02, TZ204XS1152”. Check the notes in the fitment table and compare the MG part number on your existing part.
Is this a genuine MG part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
