MG4 II & MG ZS EV Front Brake Discs – 300mm

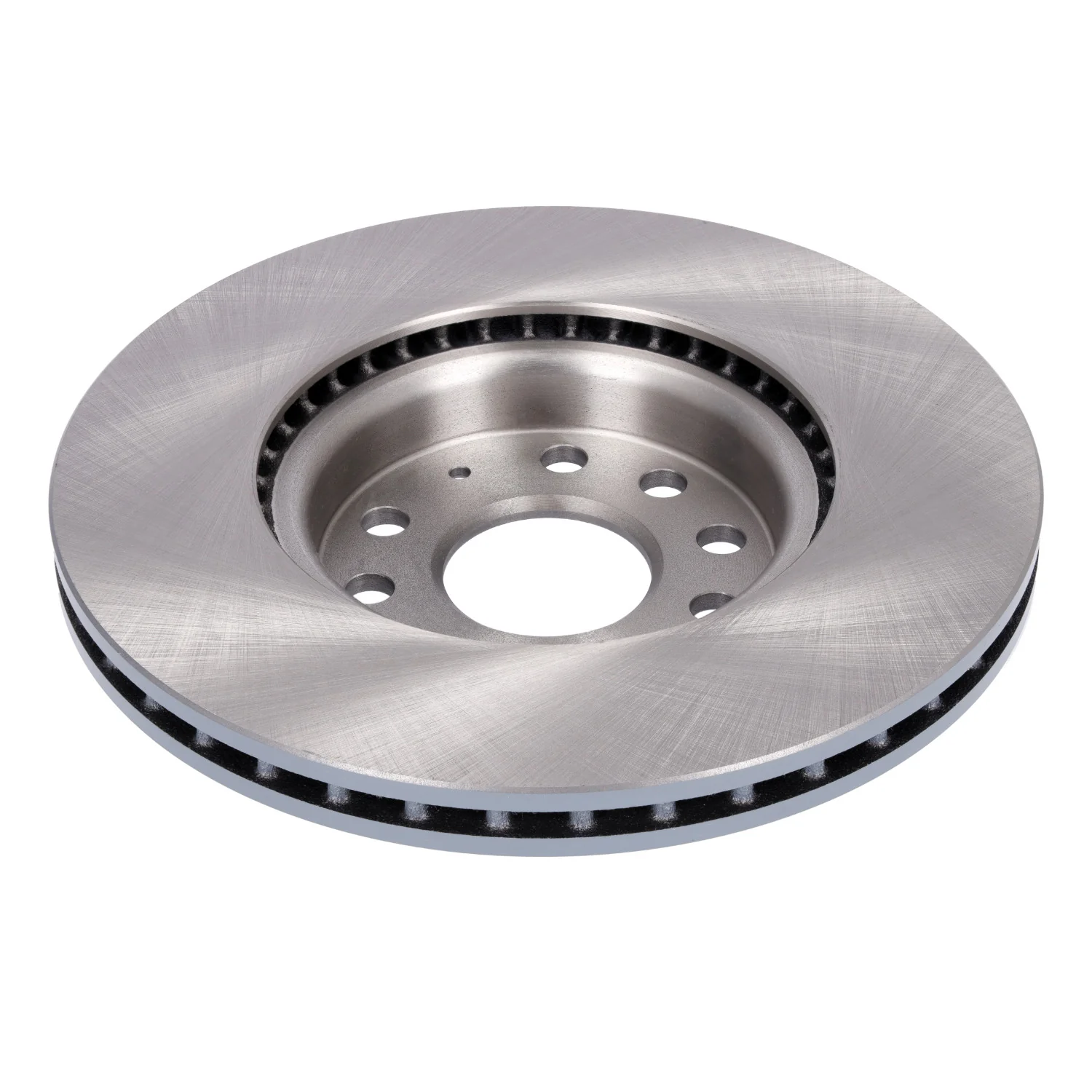

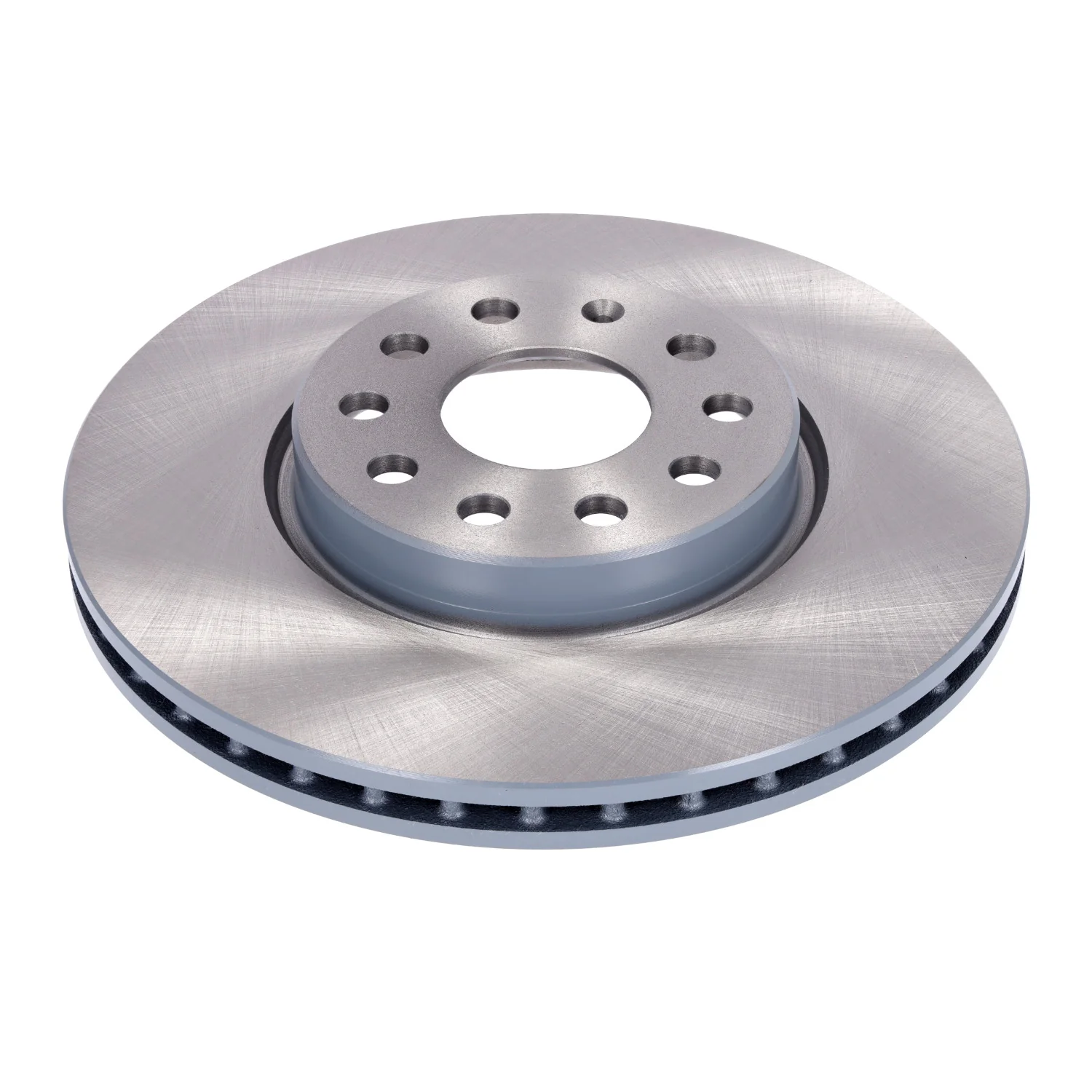

These front brake discs are for the MG ZS EV and the new MG4 (MG 4 II). Each disc is 300 mm across and 25 mm thick, internally vented to carry heat away from the pads, and coated to resist corrosion on the hub face and outer edge.
Replace the discs when they are worn close to the 23 mm minimum thickness, when there is a deep lip at the outer edge, or when you feel judder through the steering under braking. Electric cars brake mostly through regeneration, so discs can also corrode before they wear out; check them at every service.
Choose Febi 181561 or Blue Print ADBP430159 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names. It is priced per disc and sold in pairs, so the basket goes up in 2s.
The table below shows the MG versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the MG ZS EV: ZS II (CS) 2017 – (105 kW and 110 kW), ZS II (NA) 2020 – (115 kW) and ZS II (ZS) 2017 – (130 kW), and for the MG 4 II (NA) 2025 – (120 kW). Not listed for the MG5. Compare the MG part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 300 mm internally vented disc
- Coated against corrosion
- Priced per disc, sold in pairs
- Febi and Blue Print options
- Made by the bilstein group
Specifications
- Fitting Position: Front axle
- Outer Diameter: 300 mm
- Disc Thickness: 25 mm
- Minimum Thickness: 23 mm
- Disc Type: Internally vented
- Centre Diameter: 65 mm
- Height: 47 mm
- Wheel Bolt Holes: 5
- Pitch Circle Diameter: 112 mm
- Surface: Coated
- Part Number: Febi 181561 | Blue Print ADBP430159
- Sold As: Priced per disc, sold in pairs
Replaces MG part numbers 11193996 and 10282168.
Installation
Professional installation recommended. Fit new pads with new discs, clean the hub face so the disc sits flat, tighten the wheel nuts to the correct torque and bed the pads in gently over the first few miles.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle |
| Outer Diameter | 300 mm |
| Disc Thickness | 25 mm |
| Minimum Thickness | 23 mm |
| Disc Type | Internally vented |
| Centre Diameter | 65 mm |
| Height | 47 mm |
| Wheel Bolt Holes | 5 |
| Pitch Circle Diameter | 112 mm |
| Surface | Coated |
| Part Number | Febi 181561 | Blue Print ADBP430159 |
| Sold As | Priced per disc, sold in pairs |
Fits The Following MG Models
| Model | Submodel |
|---|---|
| MG 4 II (NA) 2025 – | (E) – 120 kW / 163 hp |
| ZS II (CS) 2017 – | (E) – 105 kW / 143 hp |
| ZS II (CS) 2017 – | (E) – 110 kW / 150 hp |
| ZS II (NA) 2020 – | (E) – 115 kW / 156 hp |
| ZS II (ZS) 2017 – | (E) – 130 kW / 177 hp |
MG4 II & MG ZS EV Front Brake Discs – 300mm FAQs
Which part numbers does it replace?
Replaces MG part numbers 11193996 and 10282168. Febi and Blue Print part numbers are listed in the specifications.
Does it fit the MG5?
No. The parts finder does not list this disc for the MG5. It lists the MG ZS EV and the MG 4 II (NA) only.
Should I replace the pads at the same time?
Yes. Fit new front pads with new discs so they bed in together and brake evenly.
Will it fit my car?
Listed in the parts finder for the MG ZS EV: ZS II (CS) 2017 – (105 kW and 110 kW), ZS II (NA) 2020 – (115 kW) and ZS II (ZS) 2017 – (130 kW), and for the MG 4 II (NA) 2025 – (120 kW). Not listed for the MG5. Check the notes in the fitment table and compare the MG part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine MG part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
