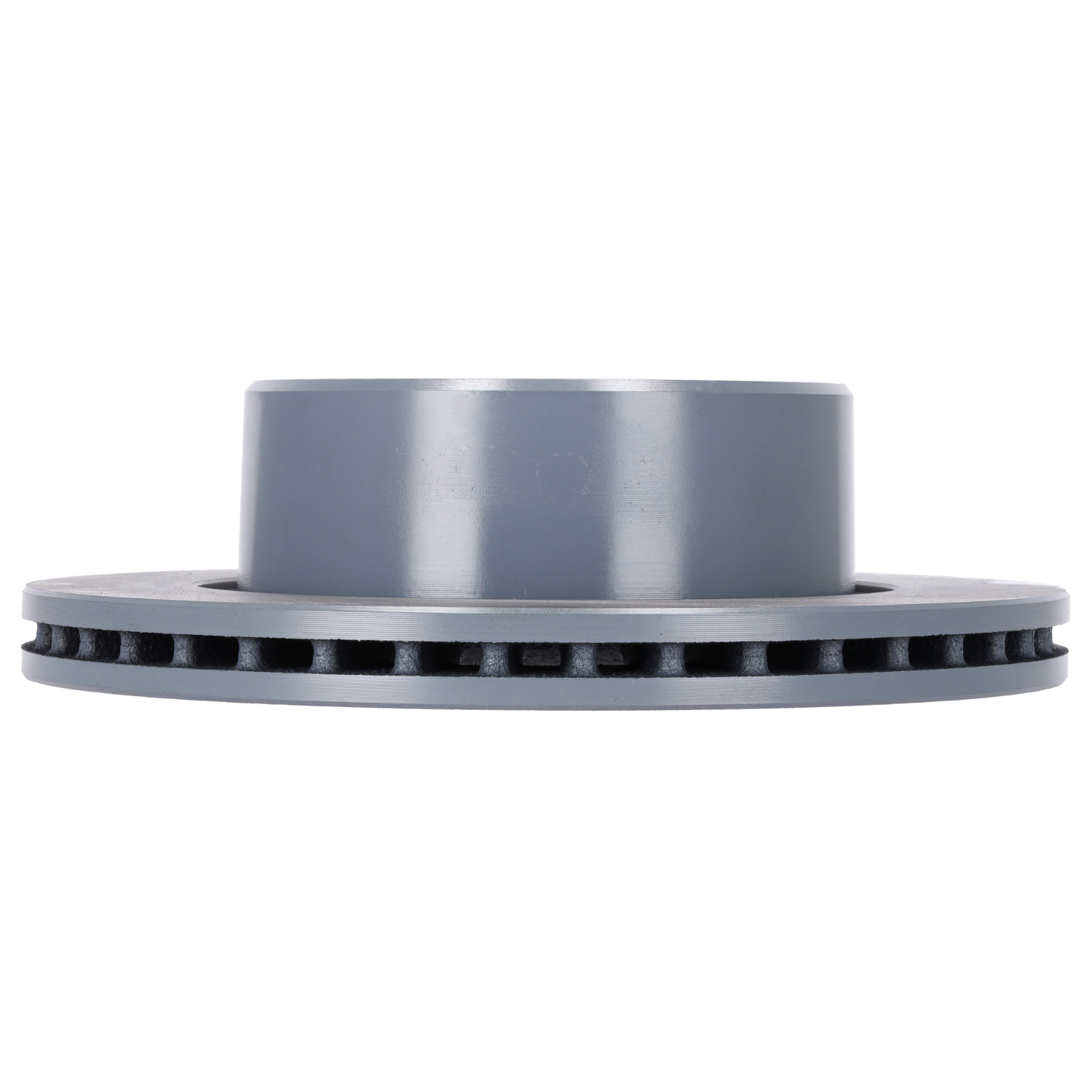

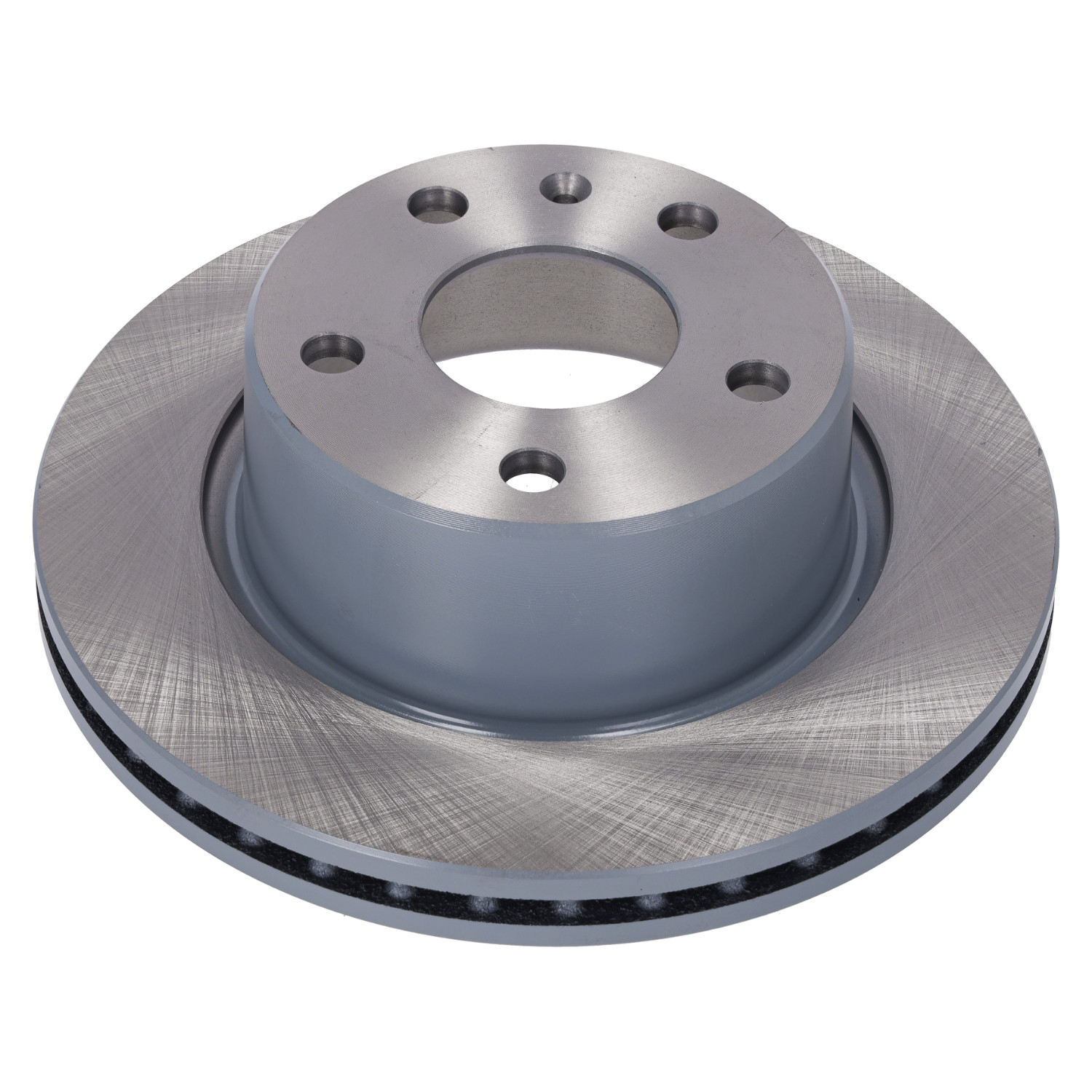

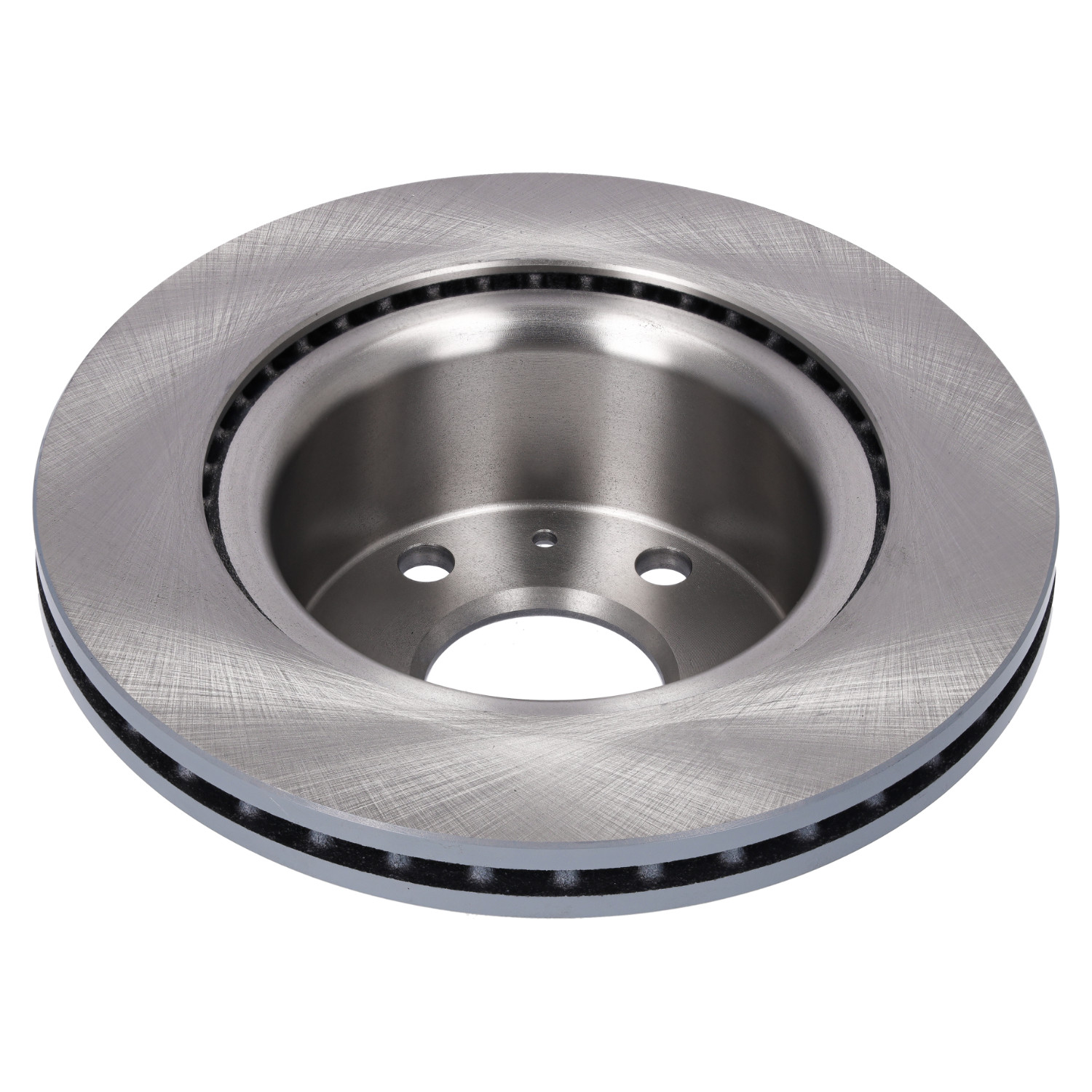

MG5 Rear Brake Discs
The MG5 (EV and Long Range) is a popular family EV that sees a mix of daily commuting and occasional spirited driving. These rear brake discs are direct replacements that deliver strong, fade-resistant braking while working perfectly with the vehicle’s regenerative braking system.
Key Benefits
- Excellent heat dissipation for consistent braking performance
- Optimised for regenerative braking on the MG5
- Reduces brake fade under heavy use
- Direct fit – no modifications required
- High-quality aftermarket discs for long service life
Compatibility
- MG5 EV – all years
- MG5 Long Range – all years
Installation
Standard rear brake disc replacement. Basic tools required.
Pro tip: Pair with our MG5 Rear Brake Pads for a complete rear brake service.
Drive Train Position Rear
| Attributes | |
|---|---|
| Brake Disc Thickness | 19 mm |
| Brake Disc Type | internally vented |
| Centre Diameter | 65 mm |
| Height or Thickness | 62 mm |
| Minimum Thickness of Brake Disc | 17 mm |
| No. of Fixing Holes | 1 |
| No. of Wheel Bolt/Stud Holes | 5 |
| Outer Diameter | 265 mm |
| Pitch Circle Diameter | 112 mm |
| Surface | oiled and coated |
Replaces The Following Part Numbers
| Suitable to replace | Reference(s) |
|---|---|
| MG | 10347628 |
| Roewe (Saic) | 10347628 |
Fits The Following MG Models
| Model | Submodel |
|---|---|
| ES I (EP) 2023 – | (E) – 130 kW / 177 hp |
| MG 5 (UN) 2020 – | (E) – 115 kW / 156 hp |
| MG 5 (UN) 2020 – | (E) – 130 kW / 177 hp |
Fits The Following Roewe Models
| Model | Submodel |
|---|---|
| Ei5 2018 – | (E) – 120 kW / 163 hp |
| Ei5 2018 – | (E) – 135 kW / 184 hp |
| Ei5 2018 – | (E) – 85 kW / 116 hp |
| Ei5 2018 – | (E) – 93 kW / 126 hp |
MG5 Rear Brake Discs FAQs
Will these rear brake discs fit my MG5?
Yes – they are direct-fit for all MG5 EV variants across all years.
Are these genuine or aftermarket discs?
These are high-quality aftermarket discs that meet or exceed OEM specifications.
Are they suitable for regenerative braking?
Yes – they are specifically optimised for the MG5’s regenerative braking system.
How long does installation take?
Typically 30–45 minutes per side with basic tools.
Do you ship MG5 rear brake discs worldwide?
Yes, we offer fast UK dispatch and worldwide shipping on all MG5 brake discs.
