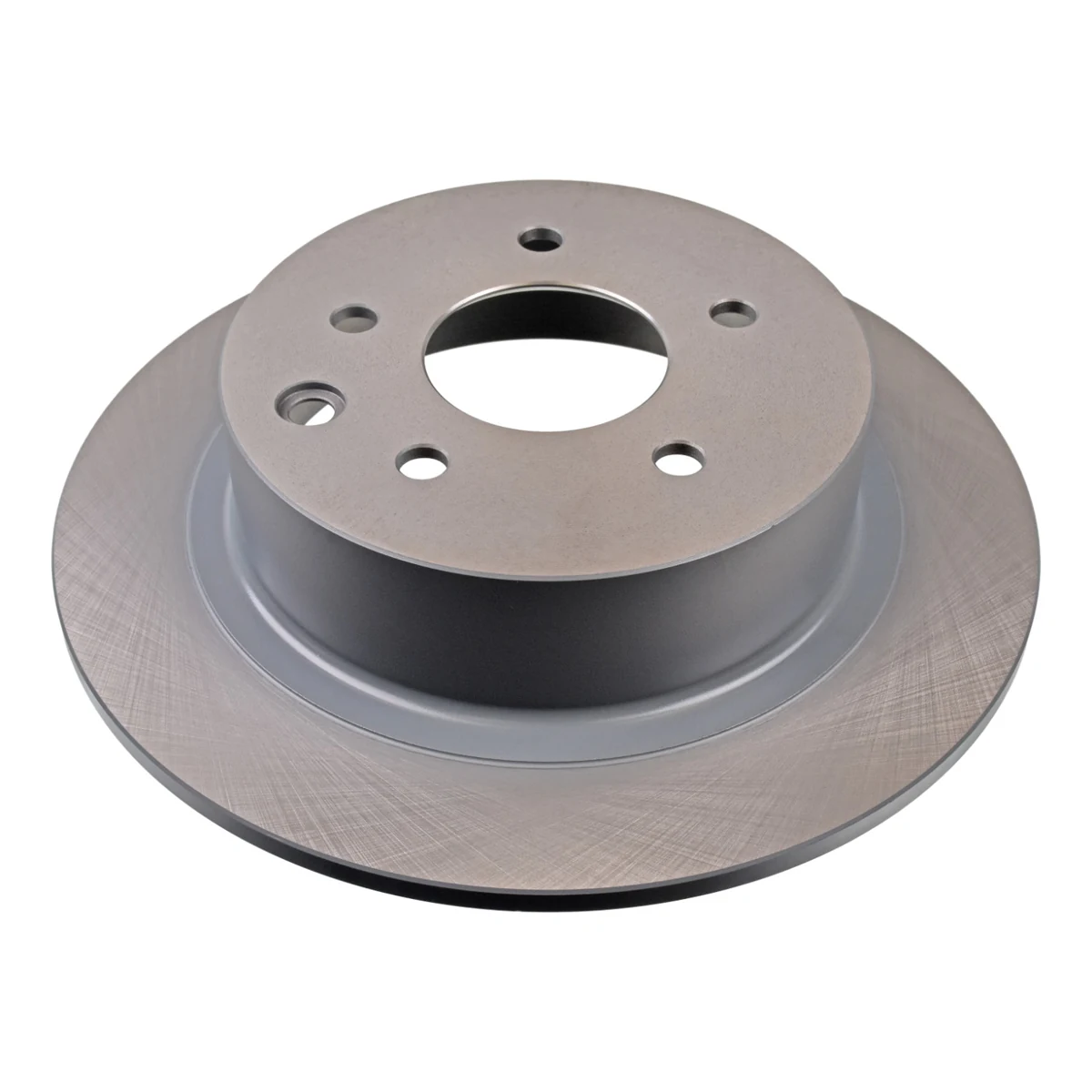

Nissan e-NV200 Rear Brake Disc – 292 mm
This rear brake disc fits the Nissan e-NV200 electric van. It is a 292 mm solid disc, 9 mm thick when new, with five wheel stud holes on a 114.3 mm pitch circle and a 68 mm centring diameter. The coated finish helps keep rust off the hub face and the parts of the disc the pads do not touch.
Replace the discs when they reach the 8 mm minimum thickness, show a deep lip or scoring, or cause a judder or noise when you brake. On an electric van, regenerative braking does much of the slowing, so the rear discs are used lightly and often rust before they wear thin.
This is Febi part number 108383, made by the bilstein group. It is priced per disc and sold in pairs, so both sides of the axle get a new disc.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this disc for the rear axle of the Nissan e-NV200 (ME0) electric van from 2014, with the 80 kW / 109 hp motor. The table shows the version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 292 mm solid rear disc
- Coated finish resists corrosion
- Priced per disc, sold in pairs
- 5 stud holes, 114.3 mm PCD
Specifications
- Fitting Position: Rear axle
- Outer Diameter: 292 mm
- Disc Thickness: 9 mm
- Minimum Thickness: 8 mm
- Disc Type: Solid
- Surface: Coated
- Wheel Stud Holes: 5
- Pitch Circle Diameter: 114.3 mm
- Centring Diameter: 68 mm
- Part Number: Febi 108383
Replaces Nissan part numbers 43206-JD00B, 43206-JA00A and 43206-JD00A.
Installation
Professional installation recommended. Fit new discs in pairs with new rear pads, clean the hub face carefully before fitting, and bed the new discs and pads in gently over the first few miles.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle |
| Outer Diameter | 292 mm |
| Disc Thickness | 9 mm |
| Minimum Thickness | 8 mm |
| Disc Type | Solid |
| Surface | Coated |
| Wheel Stud Holes | 5 |
| Pitch Circle Diameter | 114.3 mm |
| Centring Diameter | 68 mm |
| Part Number | Febi 108383 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Nissan | E-NV200 (ME0) 2014 – | (E) – 80 kW / 109 hp |
Nissan e-NV200 Rear Brake Disc – 292 mm FAQs
Which part numbers does it replace?
It replaces Nissan part numbers 43206-JD00B, 43206-JA00A and 43206-JD00A.
Is the price for one disc or a pair?
The price shown is per disc. Discs are sold in pairs, so the basket goes up in twos.
Should I change the pads too?
Yes. Fit new pads whenever you fit new discs so they bed in together and brake evenly.
Why have my rear discs rusted?
Regenerative braking does most of the work, so the rear discs are used lightly and can rust. Regular firm stops help keep them clean.
Will it fit my Nissan e-NV200?
The bilstein group parts finder lists it for the Nissan e-NV200 (ME0) electric van from 2014, 80 kW / 109 hp. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Nissan part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
