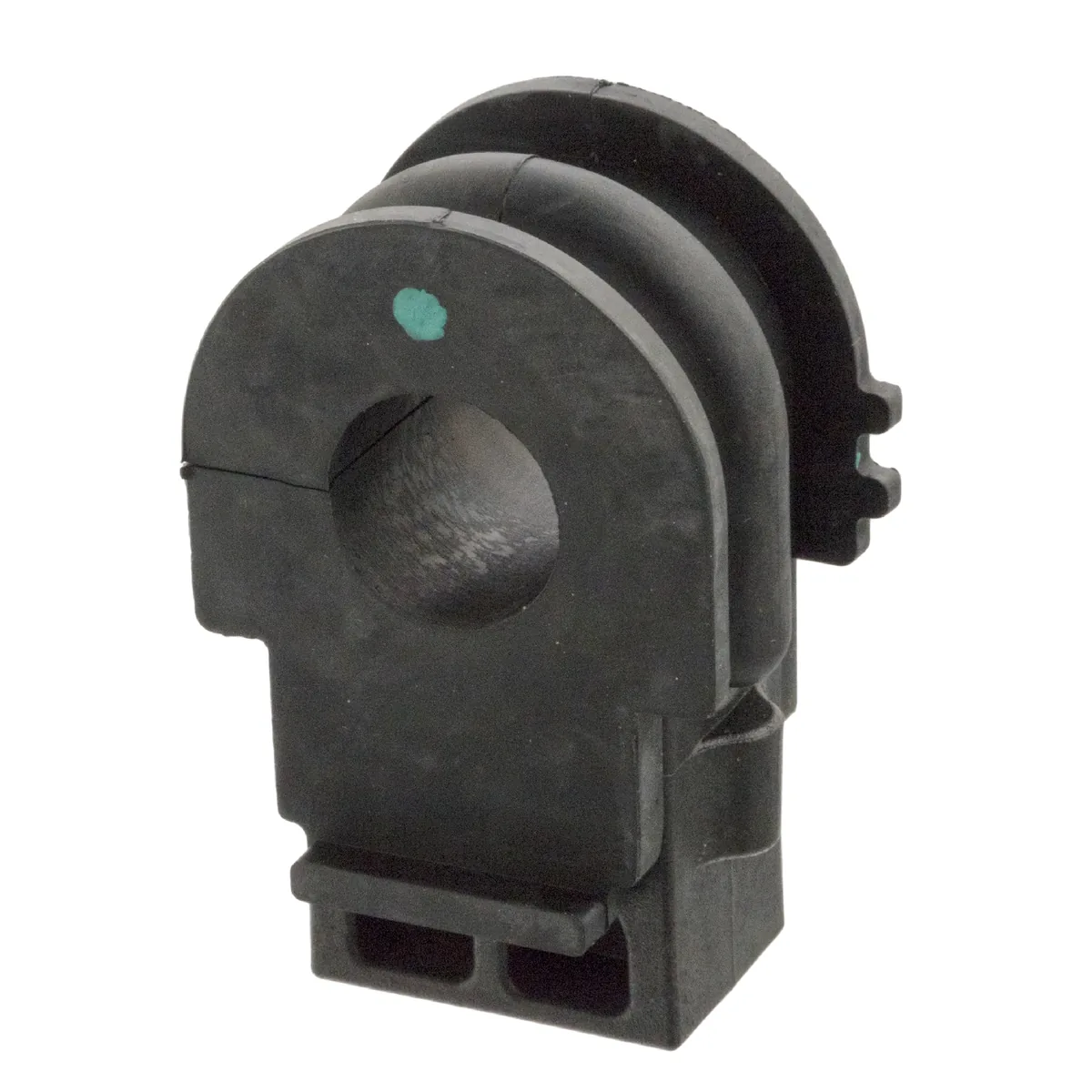

Nissan Leaf (ZE0) Front Anti-Roll Bar Bush – 21 mm
This front anti-roll bar bush holds the front anti-roll bar to the subframe on the first-generation Nissan Leaf (ZE0). The rubber bush has a 21 mm bore and lets the bar twist while it keeps the body level through corners.
Worn or split anti-roll bar bushes usually cause a knock, clunk or creak from the front over bumps and uneven roads, and the car can feel less settled in corners.
Choose Febi 34067 or Blue Print ADN18059 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to.
The table below shows the Nissan versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW. Compare the Nissan part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 21 mm inner diameter
- Rubber bush
- Stops knocks and creaks from the front
- For the ZE0 Leaf
- Febi and Blue Print options
Specifications
- Fitting Position: Front axle
- Inner Diameter: 21 mm
- Material: Rubber
- Part Number: Febi 34067 | Blue Print ADN18059
Replaces Nissan part numbers 54613-JD04A and 54613-4EA0B. The parts finder also lists Renault number 54 61 34E A0B.
Installation
Professional installation recommended. Clean the anti-roll bar where the bush sits, fit the new bush and tighten the clamp bolts with the suspension at its normal ride height.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle |
| Inner Diameter | 21 mm |
| Material | Rubber |
| Part Number | Febi 34067 | Blue Print ADN18059 |
Fits The Following Nissan Models
| Model | Submodel |
|---|---|
| Nissan Leaf (ZE0) 2010 – 2018 | (E) – 80 kW / 109 hp |
Nissan Leaf (ZE0) Front Anti-Roll Bar Bush – 21 mm FAQs
Which part numbers does it replace?
Replaces Nissan part numbers 54613-JD04A and 54613-4EA0B. The parts finder also lists Renault number 54 61 34E A0B. Febi and Blue Print part numbers are listed in the specifications.
How many do I need?
The bar has a bush on each side. It is sold as one bush, so order two to do both sides.
Is this the Powerflex bush?
No. This is a standard rubber replacement from the bilstein group. We list the Powerflex polyurethane bush separately.
Will it fit my Nissan Leaf?
Listed in the parts finder for the Nissan Leaf (ZE0, 2010 – 2018) 80 kW. Check the notes in the fitment table and compare the Nissan part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Nissan part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
