Rear Brake Pads – Honda e

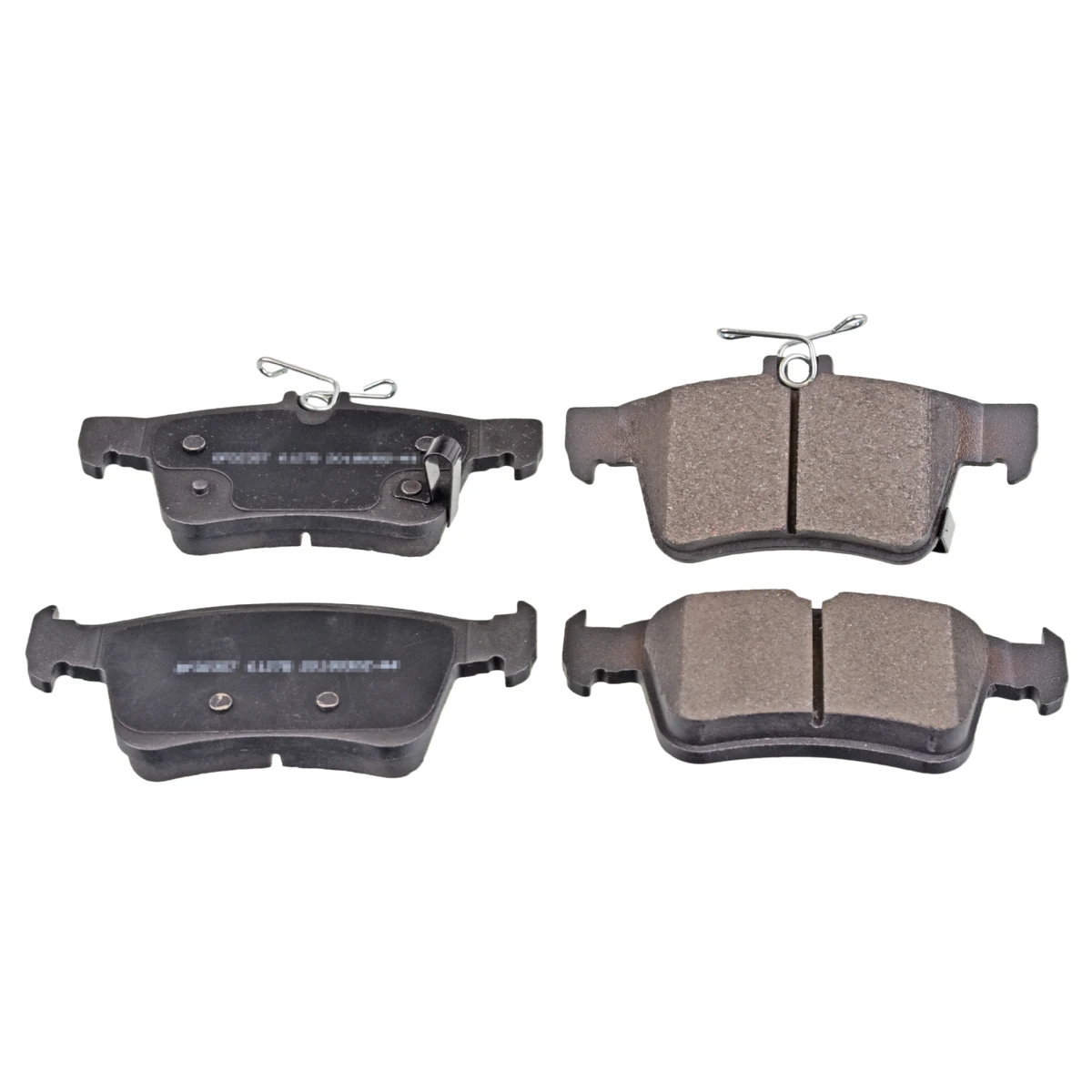

This Blue Print brake pad set is for the rear axle. The pads are 122.5 mm long, 49.3 and 54.4 mm wide and 14.4 mm thick including the backing plate. They have an acoustic wear warning and are ECE R90 approved.
Electric cars brake mostly with the motor, so rear pads wear slowly, but they can corrode, glaze or stick when they are used less. Signs are noise, a pulsing pedal or uneven braking. Replace the pads on both sides of the axle together. The specifications below show the size and type, so you can compare them with your old part before ordering.
This is Blue Print part number ADH242101, made by the bilstein group.
Blue Print is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this rear brake pad set for the Honda e (ZC7, 2019 on) 100 and 113 kW. The table shows every version listed. Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- ECE R90 approved
- Acoustic wear warning
- 14.4 mm thick incl. backing plate
- Made by the bilstein group
Specifications
- Approval: ECE R90 Approved
- Brake Lining Thickness incl. Backing Plate: 14.4 mm
- Length: 122.5 mm
- Wear Warning Contact: With acoustic wear warning
- Width: 49.3 mm, 54.4 mm
- Fitting Position: Rear axle
- Part Number: Blue Print ADH242101
Replaces Honda part numbers including 43022-TYF-E01, 43022-TBA-A02, 43022-T60-A01. The full list is in the FAQs.
Installation
Professional installation recommended. The electric parking brake must be put into service mode before the caliper pistons are wound back. Check the discs at the same time and bed the new pads in gently.
Explore More Parts
| Attribute | Value |
|---|---|
| Approval | ECE R90 Approved |
| Brake Lining Thickness incl. Backing Plate | 14.4 mm |
| Length | 122.5 mm |
| Wear Warning Contact | With acoustic wear warning |
| Width | 49.3 mm, 54.4 mm |
| Fitting Position | Rear axle |
| Part Number | Blue Print ADH242101 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Honda | e (ZC7) 2019 – | (E) – 113 kW / 154 hp |
| Honda | e (ZC7) 2019 – | (E) – 100 kW / 136 hp |
Rear Brake Pads – Honda e FAQs
Which part numbers does it replace?
It replaces Honda part numbers 43022-TYF-E01, 43022-TBA-A02, 43022-T60-A01, 43022-TEA-T12, 43022-TGH-A01, 43022-TGH-A11 and 43022-TGN-G02.
Is it a set for the rear axle?
Yes, it is a brake pad set for the rear axle.
Does it have a wear warning?
Yes, it has an acoustic wear warning.
Is it approved?
Yes, it is ECE R90 approved.
Will it fit my Honda e?
The parts finder lists it for the Honda e. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Honda part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
