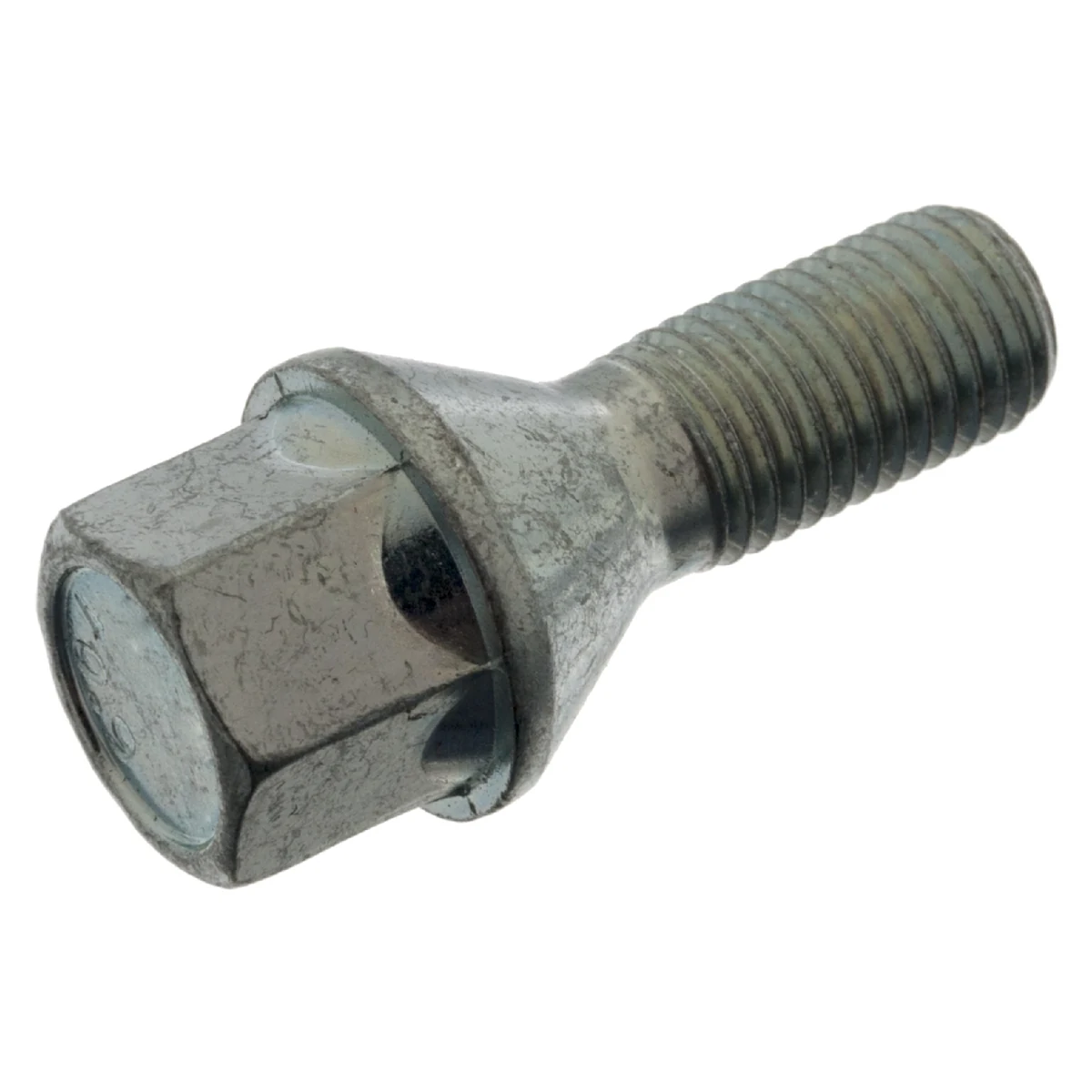

Renault Twizy & Kangoo Van Z.E. Wheel Bolt – M12 x 1.5, 26 mm, Galvanised Grade 10.9
This wheel bolt fits the Renault Twizy and the electric Renault Kangoo, including the Kangoo Van Z.E. It is an M12 x 1.5 hexagonal bolt with a conical seat, a 26 mm length under the head and a 17 mm hex, made from galvanised grade 10.9 steel.
Replace wheel bolts that are rusted, rounded off, stretched or have damaged threads, and replace any that are missing.
This is Febi part number 49875, made by the bilstein group. It replaces Renault part number 40 22 221 21R. The Twizy is listed for more than one wheel bolt, so compare the length, thread length and coating with one of your existing bolts before ordering.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The bilstein group parts finder lists this bolt for the front and rear axles of the Renault Twizy from 2012 in the 4 kW, 8 kW, 9 kW and 13 kW versions. It is also listed for the electric Renault Kangoo I (22 kW) and the Kangoo Van Z.E. (Kangoo II Express and Rapid, 44 kW). Compare the part number on your existing part with the numbers on this page before ordering.
Key Benefits
- M12 x 1.5 conical seat
- 26 mm length under head, 19 mm thread
- Galvanised grade 10.9 steel
- Sold individually
Specifications
- Thread: M12 x 1.5
- Seat: Conical collar
- Length: 50 mm
- Length Under Head: 26 mm
- Thread Length: 19 mm
- Wrench Size: 17 mm
- Material: Steel, galvanised
- Strength Grade: 10.9
Replaces Renault 40 22 221 21R.
Installation
Easy to fit with the right tools. Start each bolt by hand to avoid cross-threading, tighten the bolts in a diagonal pattern with a torque wrench to the figure in the workshop manual.
Explore More Parts
- All Renault Kangoo I Parts
- All Renault Kangoo II Parts
- All Renault Twizy Parts
- All Wheel Nuts and Wheel Bolts
| Attribute | Value |
|---|---|
| Thread | M12 x 1.5 |
| Seat | Conical collar |
| Length | 50 mm |
| Length Under Head | 26 mm |
| Thread Length | 19 mm |
| Wrench Size | 17 mm |
| Material | Steel, galvanised |
| Strength Grade | 10.9 |
Fits The Following Models
| Make | Model | Submodel |
|---|---|---|
| Renault | Kangoo I 1997 – 2021 | (E) – 22 kW / 30 hp |
| Renault | Kangoo I Express 1997 – 2018 | (E) – 22 kW / 30 hp |
| Renault | Kangoo II Express 2008 – 2021 | (E) – 44 kW / 60 hp |
| Renault | Kangoo II Rapid 2008 – 2021 | (E) – 44 kW / 60 hp |
| Renault | Twizy 2012 – | (E) – 13 kW / 18 hp |
| Renault | Twizy 2012 – | (E) – 4 kW / 5 hp |
| Renault | Twizy 2012 – | (E) – 8 kW / 11 hp |
| Renault | Twizy 2012 – | (E) – 9 kW / 12 hp |
Renault Twizy & Kangoo Van Z.E. Wheel Bolt – M12 x 1.5, 26 mm, Galvanised Grade 10.9 FAQs
Which part numbers does it replace?
It replaces Renault 40 22 221 21R.
Is the price for one bolt?
Yes. The bolt is sold individually, so choose the quantity you need in the basket.
Which wheel bolt do I need for my Twizy?
The Twizy is listed for more than one bolt. Compare the length under the head, the thread length and the coating with your existing bolts.
Does it fit the front and rear wheels?
Yes. The parts finder lists it for both the front and rear axles.
Will it fit my Twizy or Kangoo?
The parts finder lists it for the Twizy from 2012 in the 4 to 13 kW versions, the electric Kangoo I and the Kangoo Van Z.E. Compare the part number on your existing part, or send us your registration and we will confirm.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
