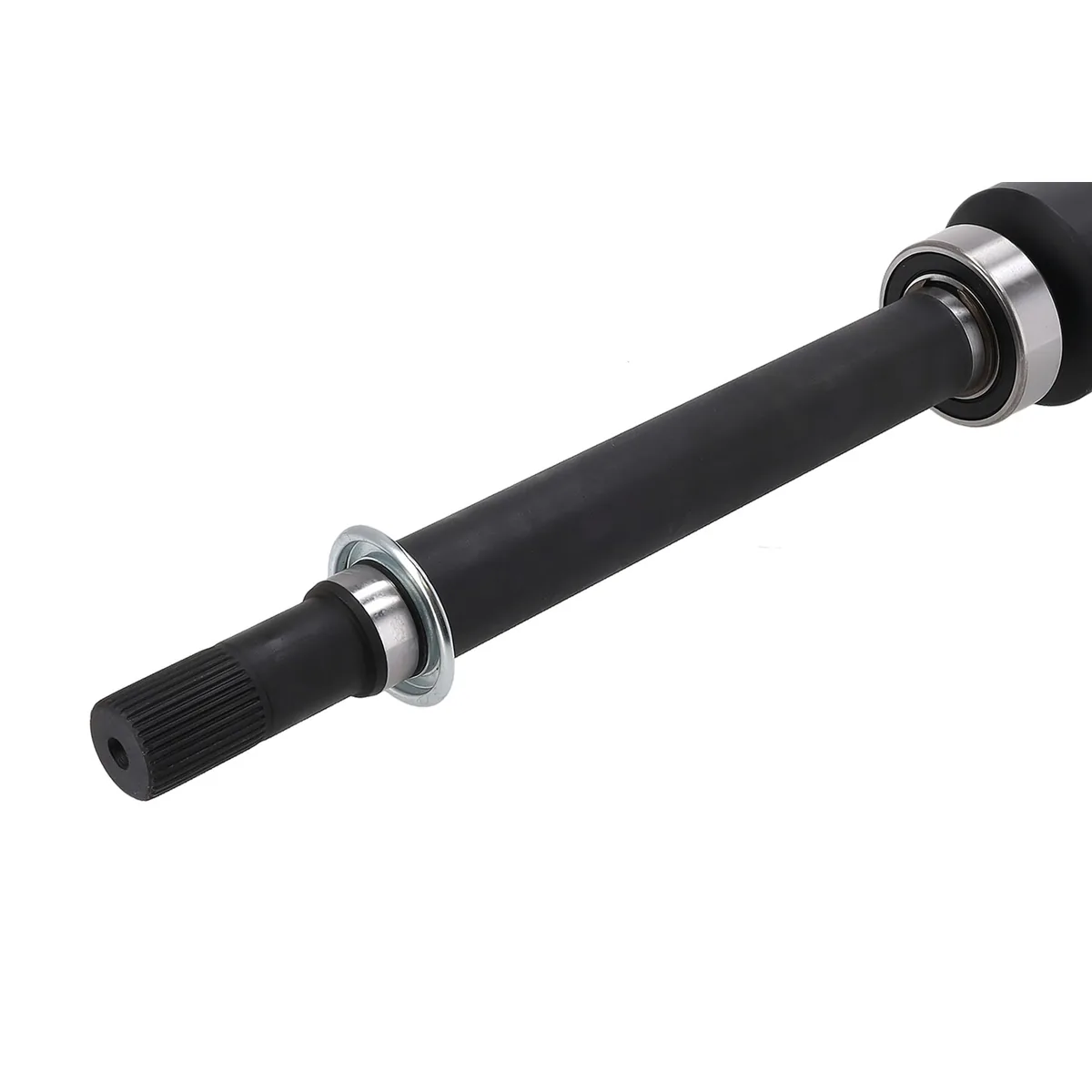

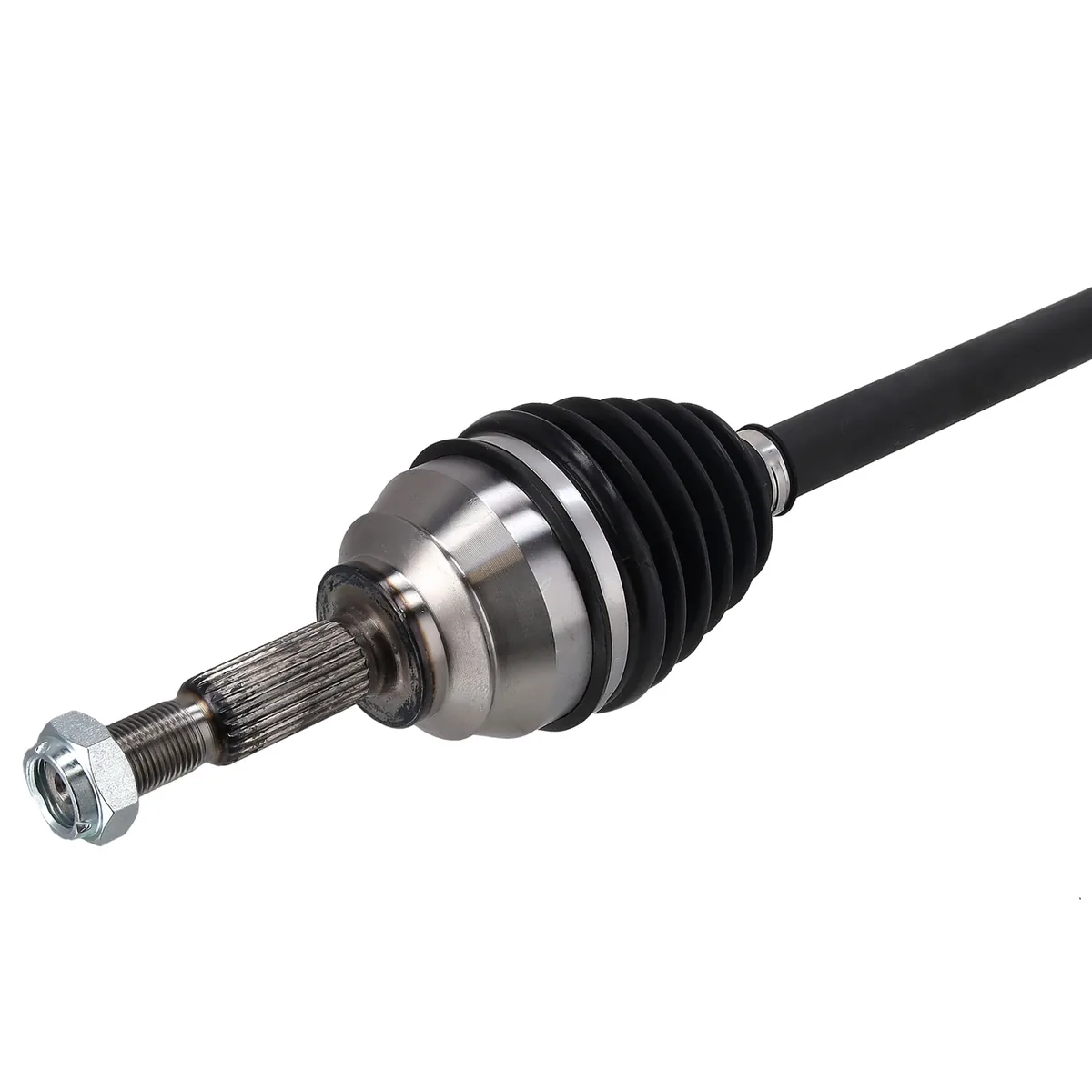

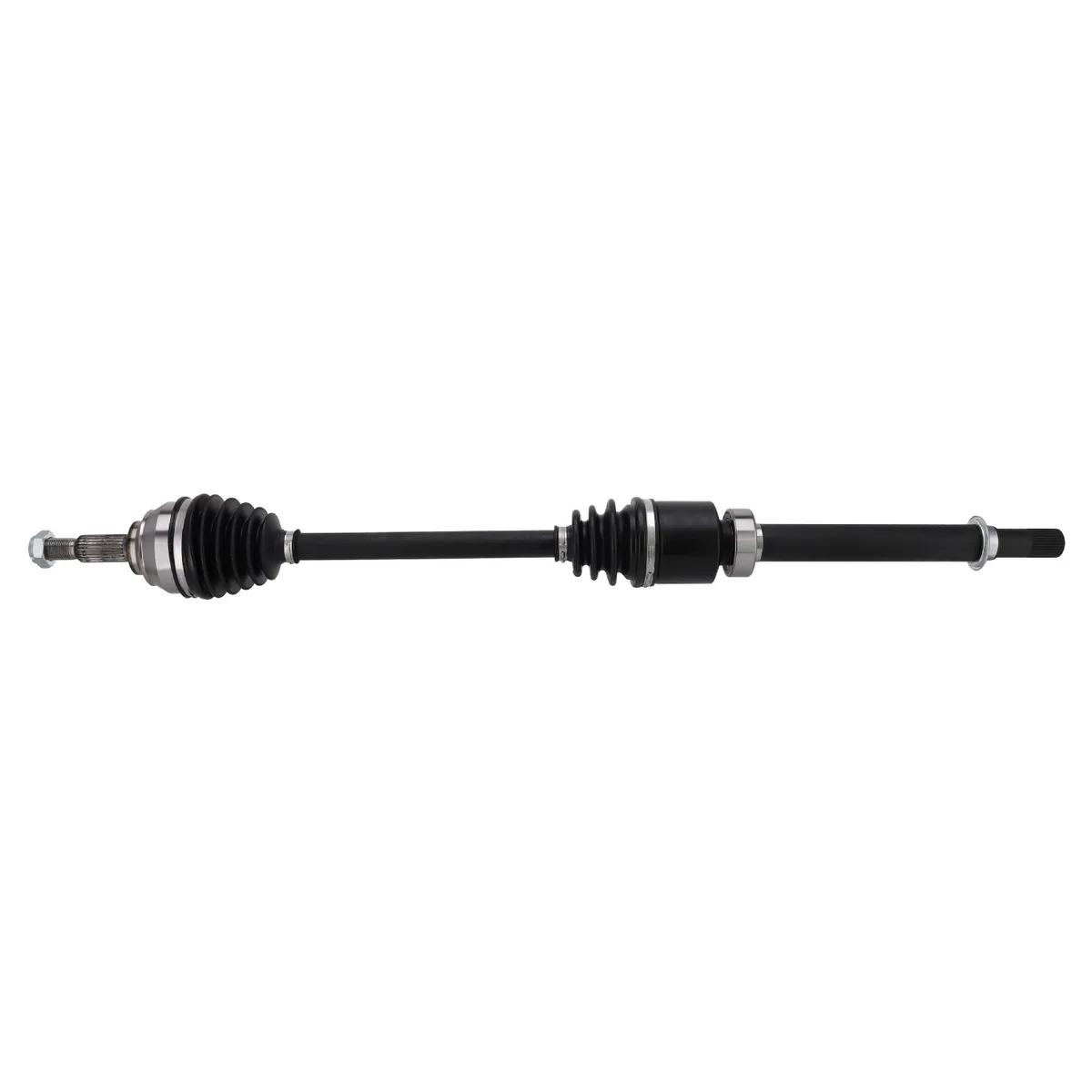

Renault Zoe 65 kW Front Drive Shaft
This front left or right drive shaft is for the Renault Zoe 65 kW. It is a complete shaft with both CV joints and the hub nut, 663 mm (left) / 903 mm (right) long when compressed. Choose the left or right side from the Side menu.
Replace the drive shaft if a CV joint clicks on full lock, there is vibration when pulling away, the boots have split and the joints are dry, or the shaft is damaged. The instant torque of an electric motor puts a lot of load through the joints.
These are Febi part numbers 1006204 (left) and 1007419 (right), made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 65 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Complete front left or right shaft
- 663 mm (left) / 903 mm (right) compressed
- Hub nut included
- For the Zoe 65 kW
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front axle left or right
- Length (compressed): 663 mm (left) / 903 mm (right)
- Teeth: Gear side 33 internal, wheel side 23 (left); Transmission side 33, wheel side 23 (right)
- Thread: M20 x 1.5
- Contents: With nut
- Part Number: Febi 1006204 (left) / 1007419 (right)
Replaces Renault part numbers 39 10 188 82R for the left side, and 39 10 000 90R for the right side.
Installation
Professional installation recommended. Use a new hub nut and tighten it to the service figure, check the transmission seal and fit the shaft without straining the joints.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle left or right |
| Length (compressed) | 663 mm (left) / 903 mm (right) |
| Teeth | Gear side 33 internal, wheel side 23 (left); Transmission side 33, wheel side 23 (right) |
| Thread | M20 x 1.5 |
| Contents | With nut |
| Part Number | Febi 1006204 (left) / 1007419 (right) |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
Renault Zoe 65 kW Front Drive Shaft FAQs
Which part numbers does it replace?
Replaces Renault part numbers 39 10 188 82R for the left side, and 39 10 000 90R for the right side. The Febi part numbers are 1006204 (left) and 1007419 (right).
Is it new or remanufactured?
It is a new Febi drive shaft, so there is no old core to return.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 65 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
What are the main specifications?
Fitting position: Front axle left or right. Length (compressed): 663 mm (left) / 903 mm (right). Teeth: Gear side 33 internal, wheel side 23 (left); Transmission side 33, wheel side 23 (right). Thread: M20 x 1.5. Contents: With nut. Part number: Febi 1006204 (left) / 1007419 (right).
