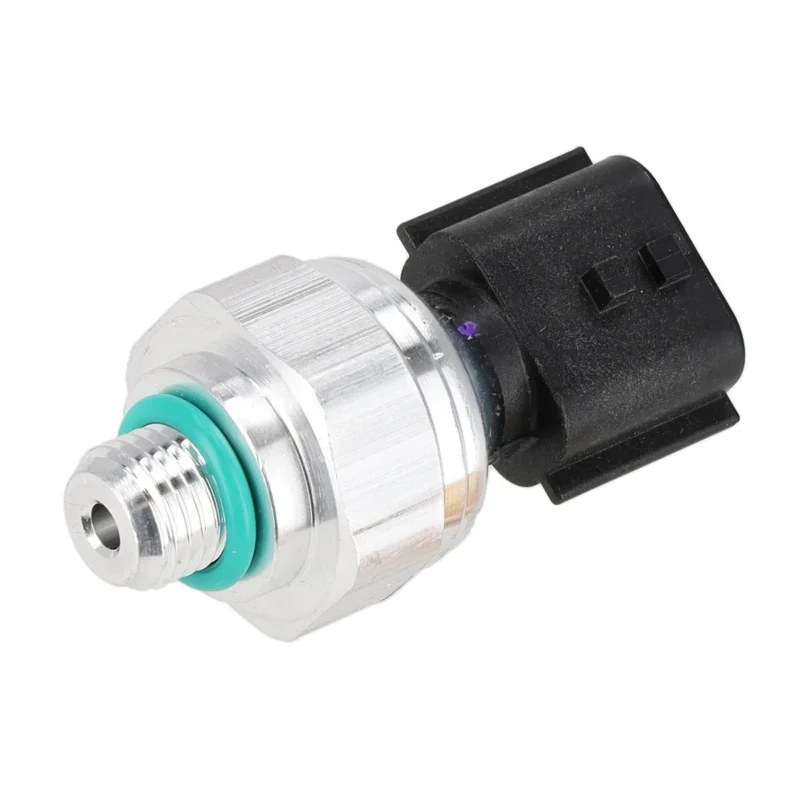

Renault Zoe & Megane E-Tech Air Conditioning Pressure Switch

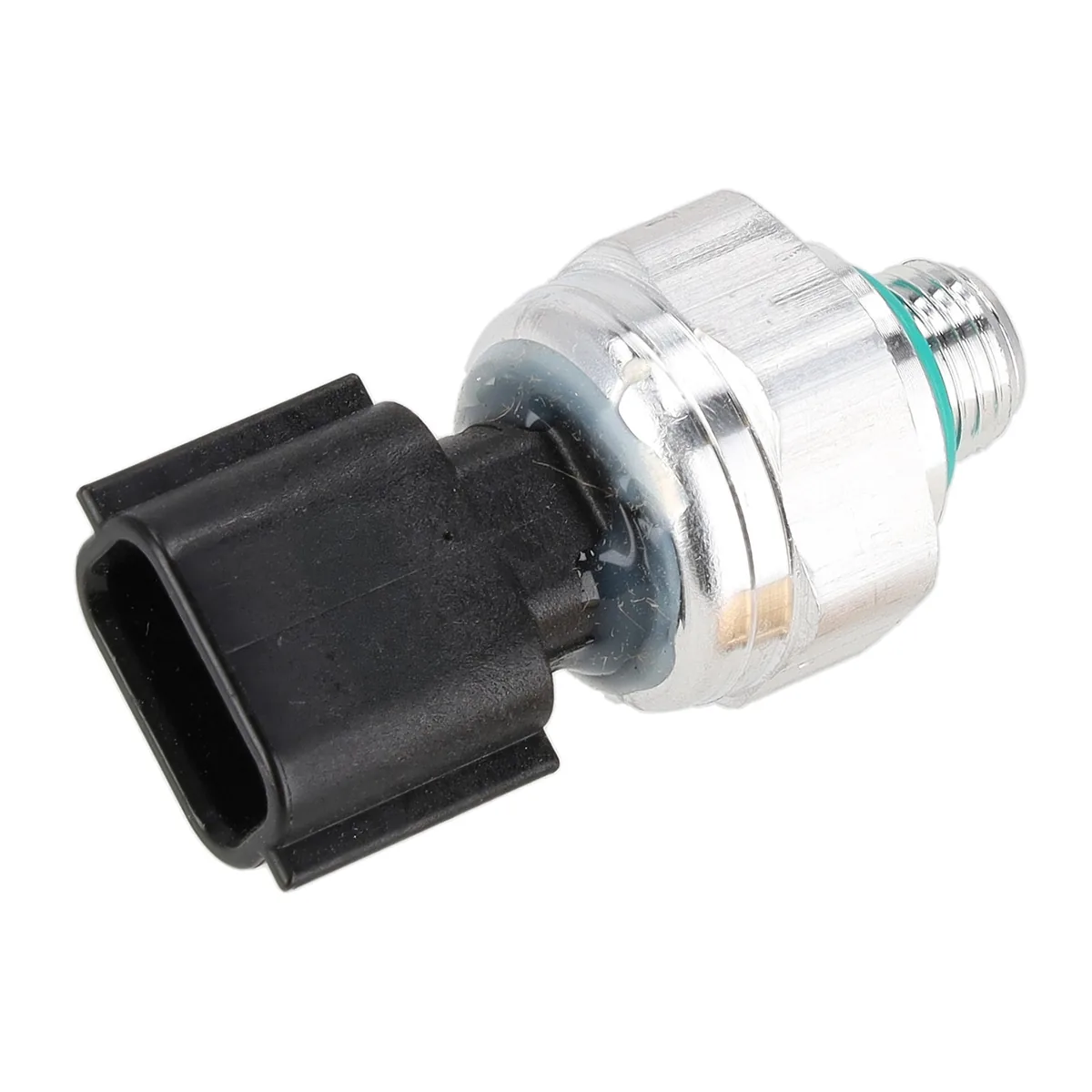

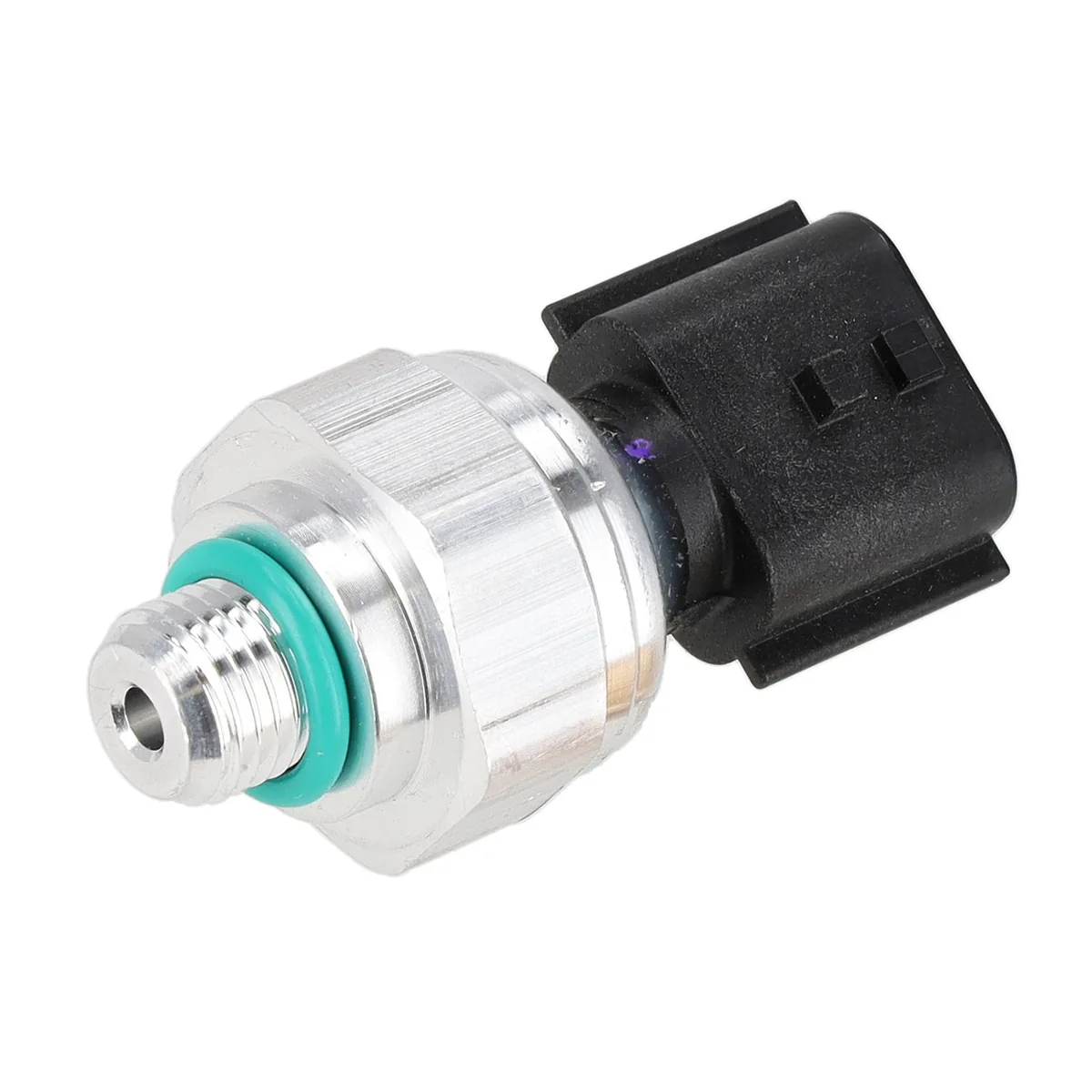

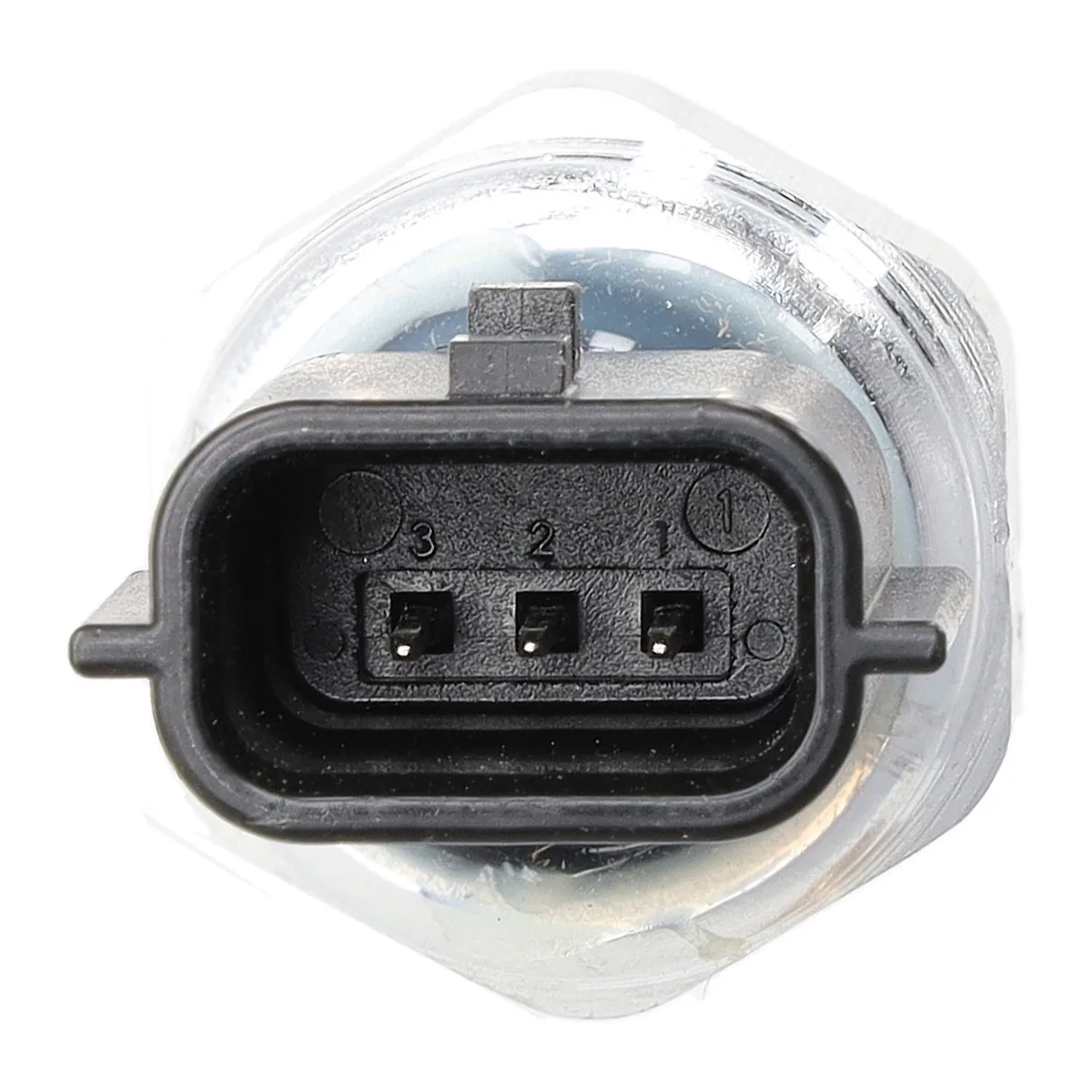

This air conditioning pressure switch, or pressure sensor, reports the refrigerant pressure to the climate control on the Renault Zoe and Megane E-Tech Electric. It is a 3-pin sensor with a 3/8″ 24 UNF thread.
Replace the switch if the air conditioning will not switch on, cuts in and out, or a fault code points to the pressure sensor. A faulty sensor can stop the compressor from running.
This is Febi part number 182413, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to. If you are replacing several parts at once, use the links below to browse our other Renault Zoe parts.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW and Megane E-Tech Electric 96 and 160 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 3-pin pressure sensor
- 3/8″ 24 UNF thread
- 21 mm hex
- Zoe and Megane E-Tech Electric
- Febi quality from the bilstein group
Specifications
- Connections: 3
- Thread: 3/8″ 24 UNF
- Wrench Size: 21 mm
- Part Number: Febi 182413
Replaces Renault part numbers 92 13 617 22R and 92 13 668 01R.
Installation
Professional installation recommended. Some systems have a valve under the switch, but the refrigerant should still be handled by a qualified technician. Use a new seal and check for leaks afterwards.
Explore More Parts
| Attribute | Value |
|---|---|
| Connections | 3 |
| Thread | 3/8″ 24 UNF |
| Wrench Size | 21 mm |
| Part Number | Febi 182413 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Megane E-Tech Electric (2021 –) | (E) – 160 kW / 218 hp |
| Renault Megane E-Tech Electric (2021 –) | (E) – 96 kW / 131 hp |
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe & Megane E-Tech Air Conditioning Pressure Switch FAQs
Which part numbers does it replace?
Replaces Renault part numbers 92 13 617 22R and 92 13 668 01R. The Febi part number is 182413.
Does it fit every Zoe?
Yes. The parts finder lists it for the Zoe 57, 65, 68, 80 and 100 kW.
Do I need to empty the system?
It depends on the car. Have it checked by an air conditioning technician before removing the switch.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW and Megane E-Tech Electric 96 and 160 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
