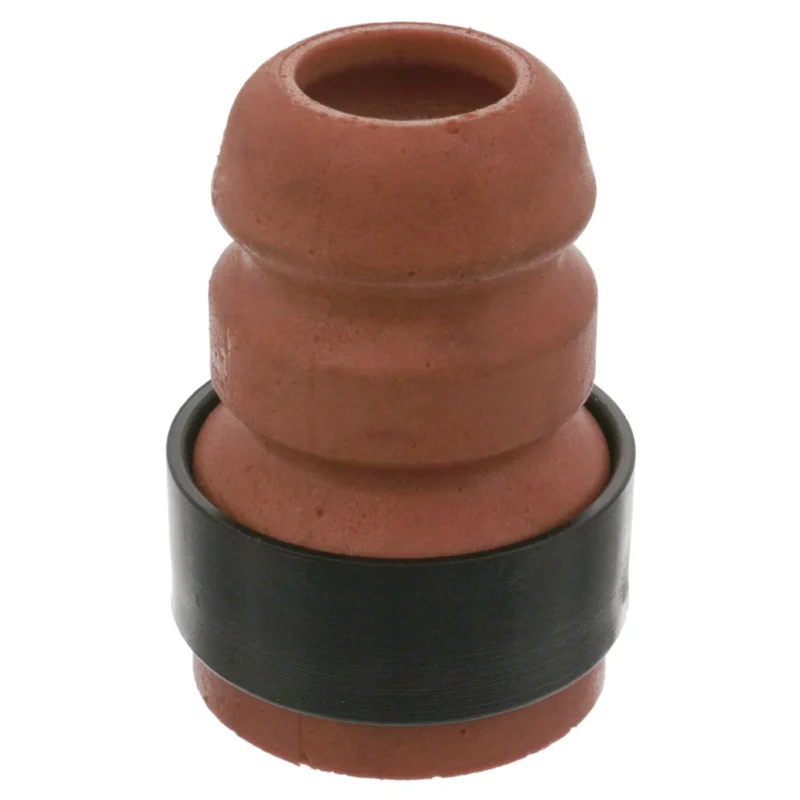

Renault Zoe Front Shock Absorber Bump Stop
This front bump stop sits on the shock absorber piston rod of the Renault Zoe and cushions the strut at full compression. It is foamed polyurethane, 79.5 mm long with a 25 mm bore, and fits either side.
Replace the bump stop if it is cracked, crumbling or missing, or if you hear knocks from the front over large bumps.
This is Febi part number 101936, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to. If you are replacing several parts at once, use the links below to browse our other Renault Zoe parts. Products are designed to be used as originally intended and should be fitted by a competent person, and they are usually supplied without fitting instructions.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Single front bump stop
- Foamed polyurethane
- 25 mm bore
- Fits left or right
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front axle, left or right
- Inner Diameter: 25 mm
- Length: 79.5 mm
- Width: 51 mm
- Material: Foamed polyurethane
- Part Number: Febi 101936
Replaces Renault part number 54 05 037 01R.
Installation
Professional installation recommended. Fit with new shock absorbers or whenever the struts are stripped, using proper spring compressors.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Inner Diameter | 25 mm |
| Length | 79.5 mm |
| Width | 51 mm |
| Material | Foamed polyurethane |
| Part Number | Febi 101936 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe Front Shock Absorber Bump Stop FAQs
Which part numbers does it replace?
Replaces Renault part number 54 05 037 01R. The Febi part number is 101936.
Do I need two?
Yes, one per strut. The kit Febi 173573 has two, and we list it separately.
Does it fit every Zoe?
Yes. The parts finder lists it for the Zoe 57, 65, 68, 80 and 100 kW.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
