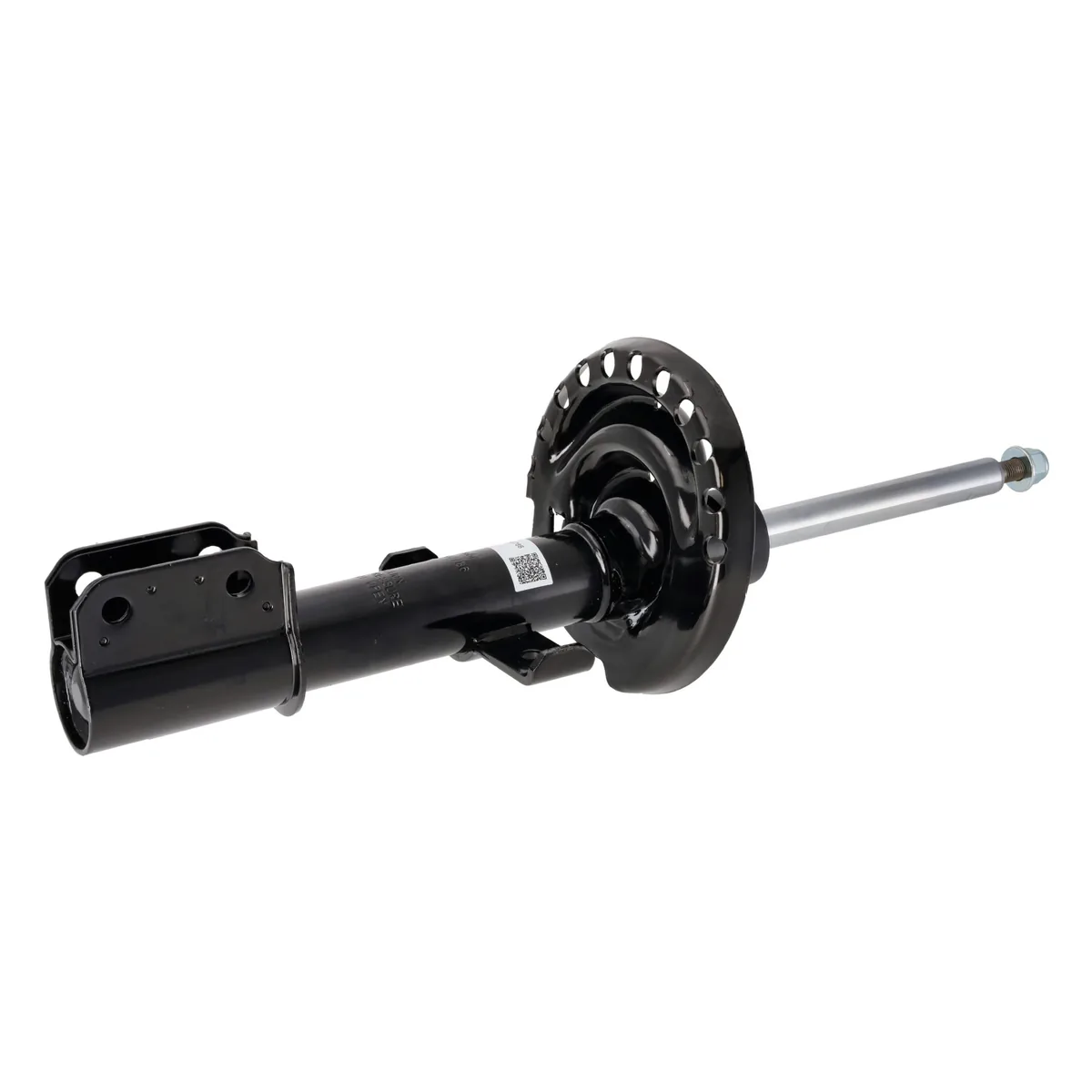

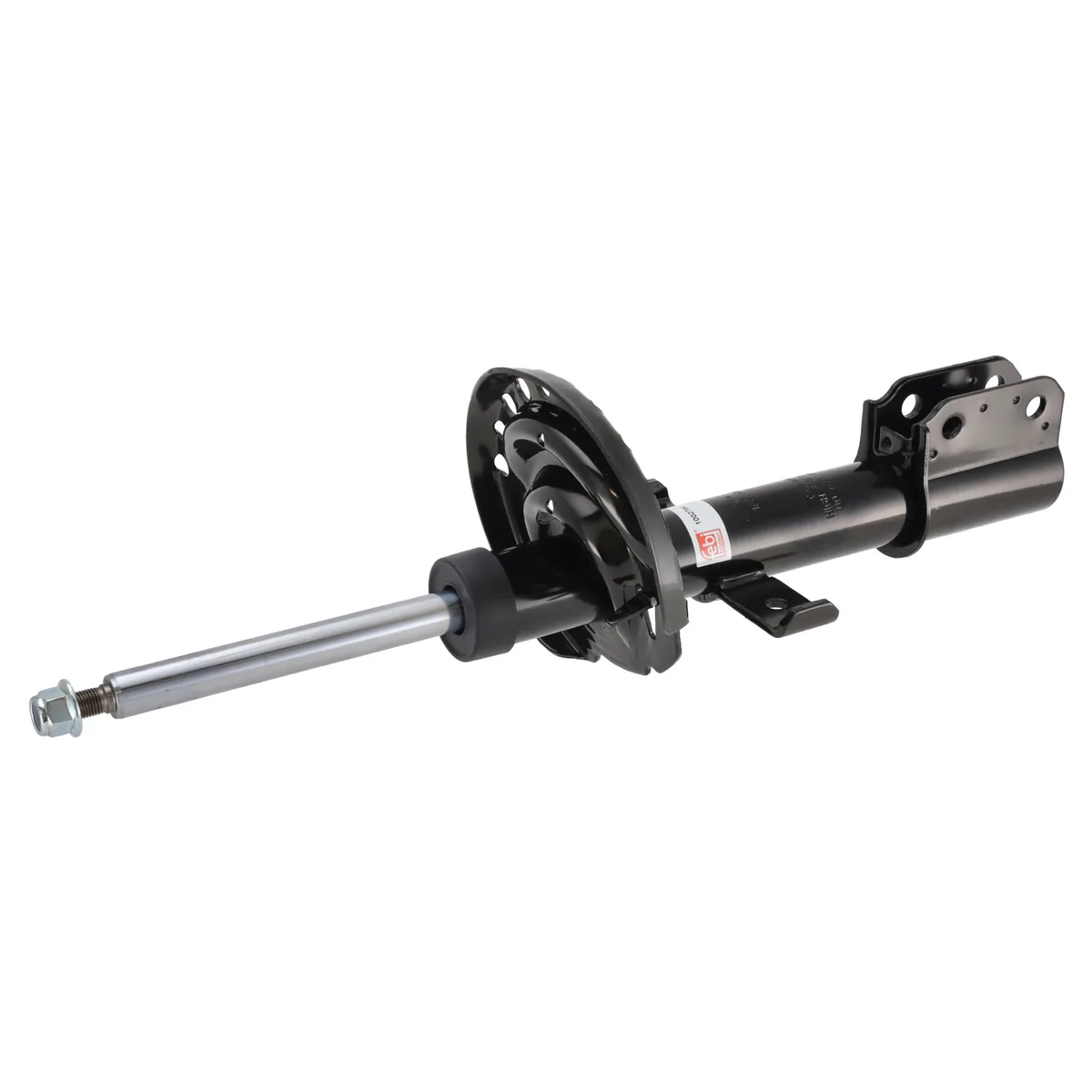

Renault Zoe Front Shock Absorber – Standard Suspension
This front shock absorber is the gas pressure suspension strut for the Renault Zoe with standard suspension. It is 481 mm long when extended, with a 20 mm piston rod and 45 mm tube, and fits either side.
Replace the shock absorbers if the car bounces after bumps, leans in corners, the tyres wear unevenly, or a strut is leaking oil. The Zoe carries a heavy battery, so dampers work hard.
This is Febi part number 1002786, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “Chassis: for vehicles with standard suspension”. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Gas pressure front strut
- 20 mm piston rod
- Fits left or right
- For standard suspension
- Febi quality from the bilstein group
Specifications
- Fitting Position: Front axle, left or right
- Type: Gas pressure suspension strut
- Max Length: 481 mm
- Min Length: 340 mm
- Piston Rod Diameter: 20 mm
- Tube Diameter: 45 mm
- Thread: M12 x 1.25
- Part Number: Febi 1002786
Replaces Renault part number 54 30 274 11R.
Installation
Professional installation recommended. Fit in pairs, use proper spring compressors, fit new top mounts and protection kits if worn, and have the wheel alignment checked. If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Type | Gas pressure suspension strut |
| Max Length | 481 mm |
| Min Length | 340 mm |
| Piston Rod Diameter | 20 mm |
| Tube Diameter | 45 mm |
| Thread | M12 x 1.25 |
| Part Number | Febi 1002786 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) Chassis: for vehicles with standard suspension | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) Chassis: for vehicles with standard suspension | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) Chassis: for vehicles with standard suspension | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) Chassis: for vehicles with standard suspension | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) Chassis: for vehicles with standard suspension | (E) – 80 kW / 109 hp |
Renault Zoe Front Shock Absorber – Standard Suspension FAQs
Which part numbers does it replace?
Replaces Renault part number 54 30 274 11R. The Febi part number is 1002786.
Should I change them in pairs?
Yes. Front shock absorbers should be changed in pairs so both sides behave the same.
Is the spring included?
No. Transfer the spring and top mount, or fit new ones if they are worn.
Will the driver assistance sensors need calibrating?
They may. The parts finder notes: “If the vehicle is equipped with driver assistance systems, a sensor calibration may be necessary.”
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “Chassis: for vehicles with standard suspension”. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
