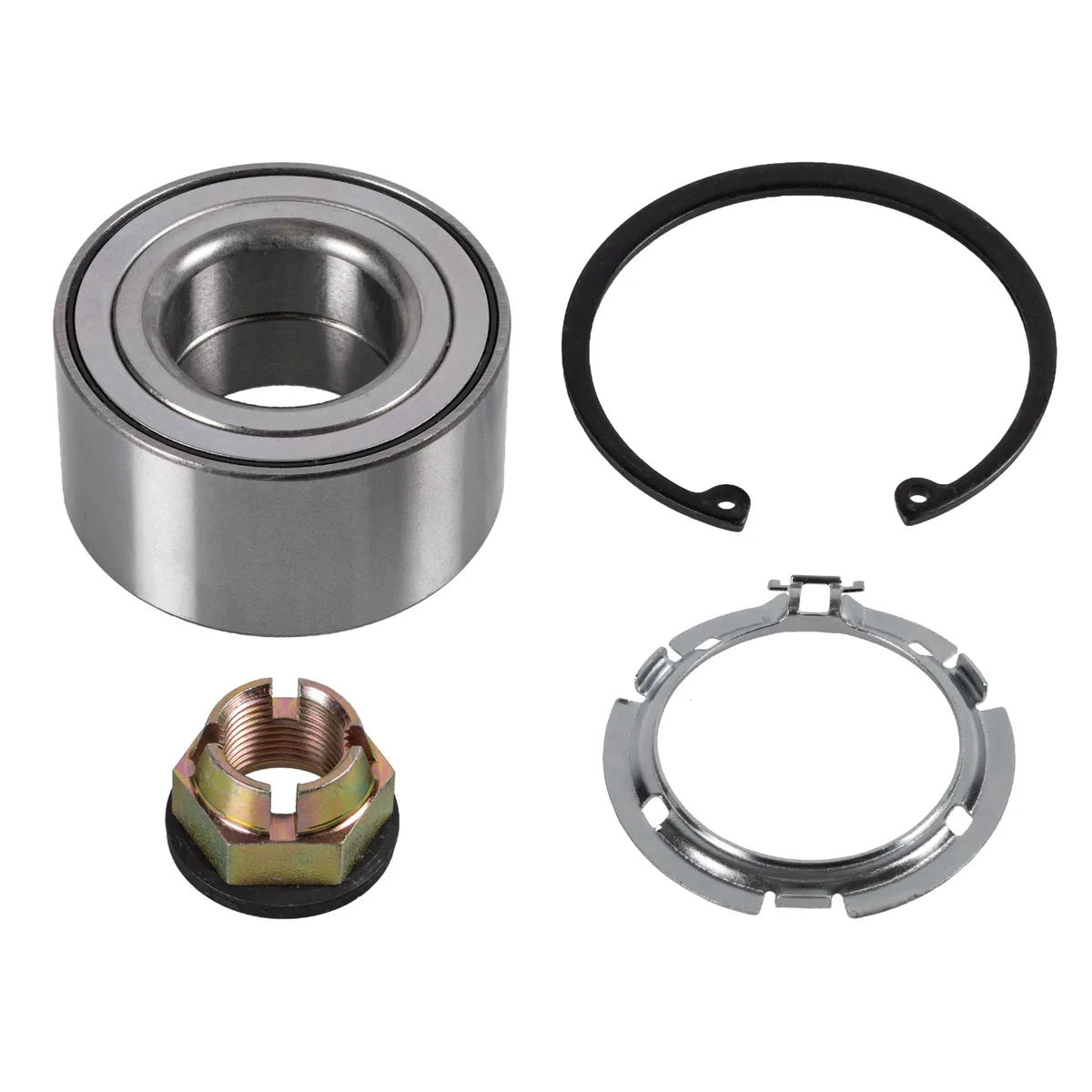

Renault Zoe & Kangoo Van Z.E. Front Wheel Bearing Kit – 37 x 72 mm
This front wheel bearing kit is for the Renault Zoe 57, 65, 68 and 80 kW and the Kangoo Van Z.E. It is a 37 x 72 mm angular ball bearing with an integrated ABS sensor ring, and fits either side.
Replace the bearing if you hear a rumble or hum that rises with speed, there is play at the wheel, or the ABS warning light comes on because the sensor ring is damaged.
Choose Febi 24315 or Blue Print ADN18249 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW and Kangoo Van Z.E. 44 kW. Not listed for the Zoe 100 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “Rim Size [in]: 14″”. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 37 x 72 mm bearing
- Integrated ABS sensor ring
- Fits left or right
- Zoe 57 to 80 kW and Kangoo Van Z.E.
- Febi and Blue Print options
Specifications
- Fitting Position: Front axle, left or right
- Bearing Type: Angular ball bearing
- Inner Diameter: 37 mm
- Outer Diameter: 72 mm
- Width: 37 mm
- ABS: Integrated sensor ring
- Part Number: Febi 24315 | Blue Print ADN18249
Replaces Renault part numbers 40 21 029 77R S1, 40 21 015 54R, 40 21 042 49R, 40 21 091 22R, 86 60 001 818, 40 21 057 33R, 60 01 550 915 and 77 01 207 677.
Installation
Professional installation recommended. Press the bearing in and the hub on with the correct tools, fit the sensor ring side towards the sensor and tighten the axle nut to the service figure.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right |
| Bearing Type | Angular ball bearing |
| Inner Diameter | 37 mm |
| Outer Diameter | 72 mm |
| Width | 37 mm |
| ABS | Integrated sensor ring |
| Part Number | Febi 24315 | Blue Print ADN18249 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Kangoo Van Z.E. – Kangoo II Express (2008 – 2021) Rim Size [in]: 14″ |
(E) – 44 kW / 60 hp |
| Renault Kangoo Van Z.E. – Kangoo II Rapid (2008 – 2021) Rim Size [in]: 14″ |
(E) – 44 kW / 60 hp |
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe & Kangoo Van Z.E. Front Wheel Bearing Kit – 37 x 72 mm FAQs
Which part numbers does it replace?
Replaces Renault part numbers 40 21 029 77R S1, 40 21 015 54R, 40 21 042 49R, 40 21 091 22R, 86 60 001 818, 40 21 057 33R, 60 01 550 915 and 77 01 207 677. Febi and Blue Print part numbers are listed in the specifications.
Does it fit the Zoe 100 kW?
No. The Zoe 80 and 100 kW use a 42 mm bearing, Febi 33988, which we list separately.
Which way round does it go?
The side with the ABS sensor ring must face the wheel speed sensor.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW and Kangoo Van Z.E. 44 kW. Not listed for the Zoe 100 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “Rim Size [in]: 14″”. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
