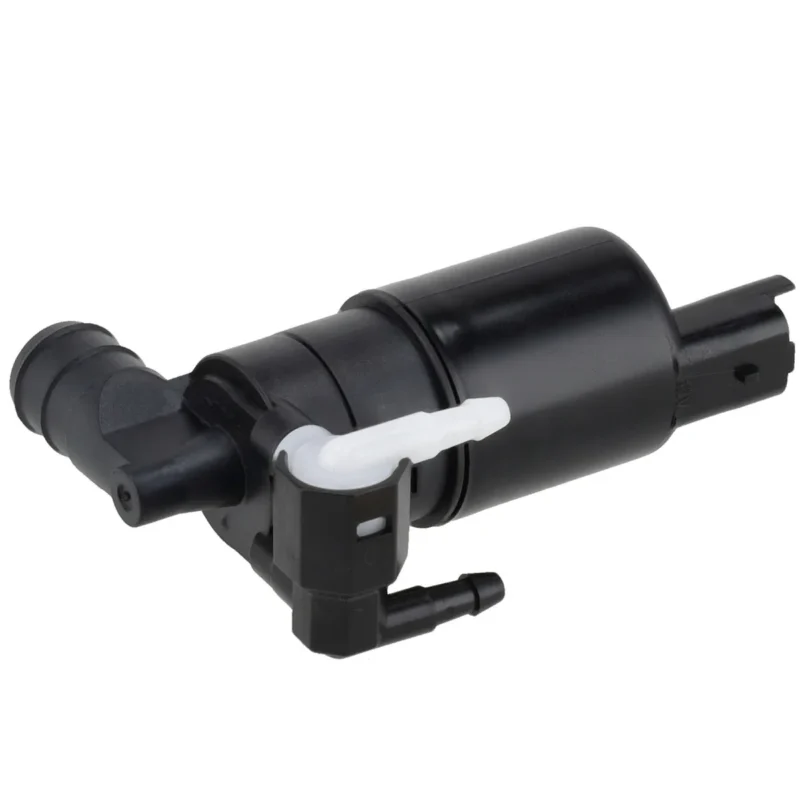

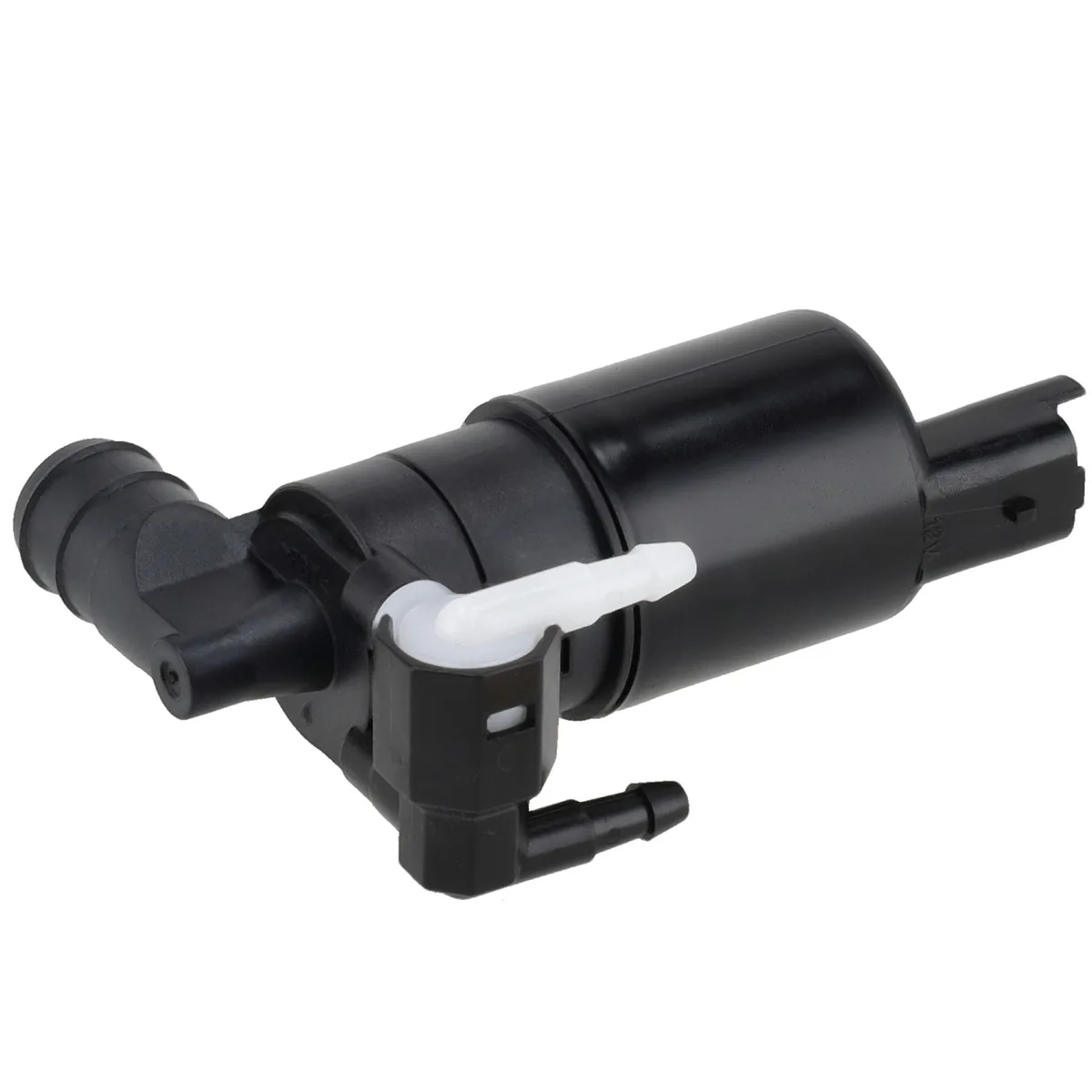

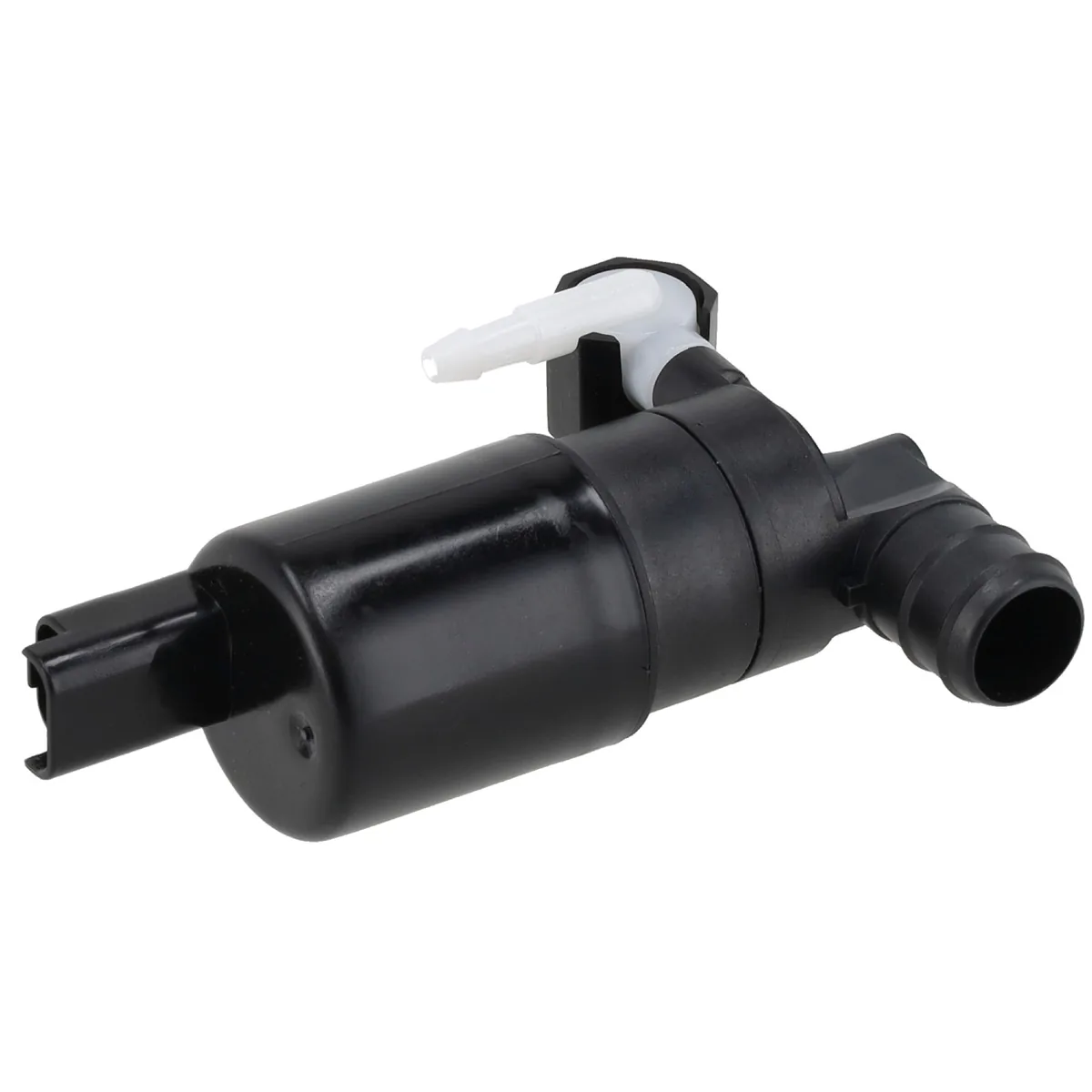

Renault Zoe & Kangoo Windscreen Washer Pump – Twin Outlet
This windscreen washer pump sits in the washer bottle of the Renault Zoe and Kangoo electric models. It is a 12 V twin-outlet pump that feeds the front washers and, where fitted, the rear washer.
Replace the pump if the washers do not spray but you can hear nothing, or if the pump hums but no fluid comes out. A failed washer is an MOT fail.
Choose Febi 24633 or Blue Print ADN10326 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW, Kangoo Van Z.E. 44 kW, Kangoo E-Tech Electric 90 kW, Kangoo Van E-Tech Electric 90 kW and Grand Kangoo E-Tech Electric 90 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “for vehicles with rear-window wiper”. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- 12 V twin-outlet pump
- Front and rear washers

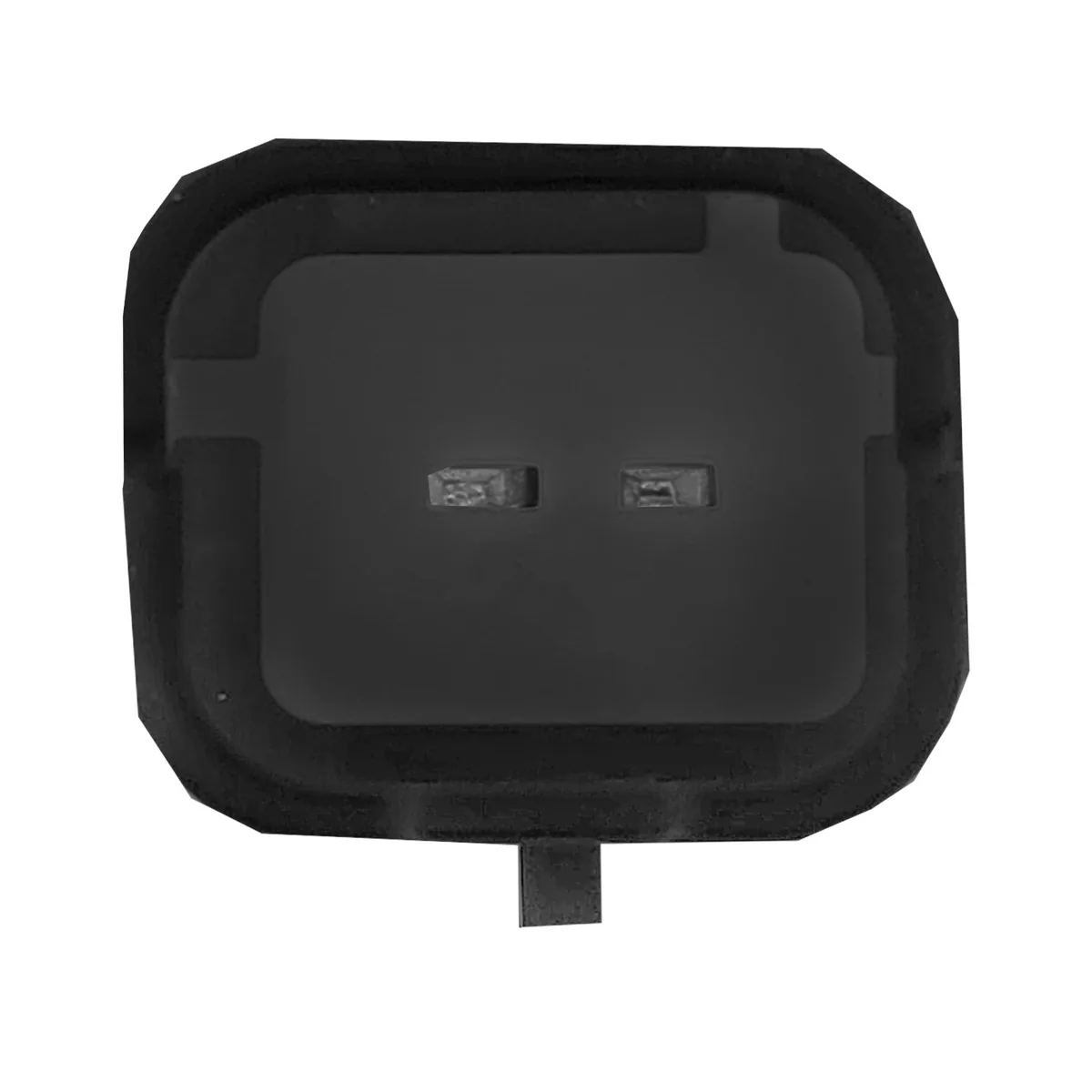

- 2-pin connector
- Zoe and Kangoo electric models
- Febi and Blue Print options
Specifications
- Connections: 2
- Pump Type: Dual pump
- Voltage: 12 V
- Part Number: Febi 24633 | Blue Print ADN10326
Replaces Renault part numbers 82 00 194 414, 28 62 008 51R, 28 92 000 04R, 28 92 084 12R, 77 00 428 386, 82 00 316 568, 28 62 027 46R, 28 92 024 68R, 60 01 549 444, 77 00 430 078 and 82 00 030 639.
Installation
Professional installation recommended. Drain the bottle or work quickly, fit a new grommet if the old one is hard, and check both washer circuits work.
Explore More Parts
- All Renault Zoe Parts
- All Wiper / Wash System
- All Renault Kangoo III Parts
- All Renault Grand Kangoo III Parts
- All Renault Kangoo II Parts
| Attribute | Value |
|---|---|
| Connections | 2 |
| Pump Type | Dual pump |
| Voltage | 12 V |
| Part Number | Febi 24633 | Blue Print ADN10326 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Grand Kangoo E-Tech Electric (2024 –) | (E) – 90 kW / 122 hp |
| Renault Kangoo Van Z.E. – Kangoo II Express (2008 – 2021) for vehicles with rear-window wiper | (E) – 44 kW / 60 hp |
| Renault Kangoo Van Z.E. – Kangoo II Rapid (2008 – 2021) for vehicles with rear-window wiper | (E) – 44 kW / 60 hp |
| Renault Kangoo E-Tech Electric (2022 –) | (E) – 90 kW / 122 hp |
| Renault Kangoo Van E-Tech Electric (2022 –) | (E) – 90 kW / 122 hp |
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe & Kangoo Windscreen Washer Pump – Twin Outlet FAQs
Which part numbers does it replace?
Replaces Renault part numbers 82 00 194 414, 28 62 008 51R, 28 92 000 04R, 28 92 084 12R, 77 00 428 386, 82 00 316 568, 28 62 027 46R, 28 92 024 68R, 60 01 549 444, 77 00 430 078 and 82 00 030 639. Febi and Blue Print part numbers are listed in the specifications.
Is the grommet included?
The parts finder lists the pump only. Fit a new grommet if the old one is hard or leaking.
Does it fit every Zoe?
Yes. It is listed for the Zoe 57, 65, 68, 80 and 100 kW.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW, Kangoo Van Z.E. 44 kW, Kangoo E-Tech Electric 90 kW, Kangoo Van E-Tech Electric 90 kW and Grand Kangoo E-Tech Electric 90 kW. Some versions carry a note in the fitment table. The parts finder adds this note: “for vehicles with rear-window wiper”. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
