Renault Zoe Outer CV Boot Kit – Wheel Side

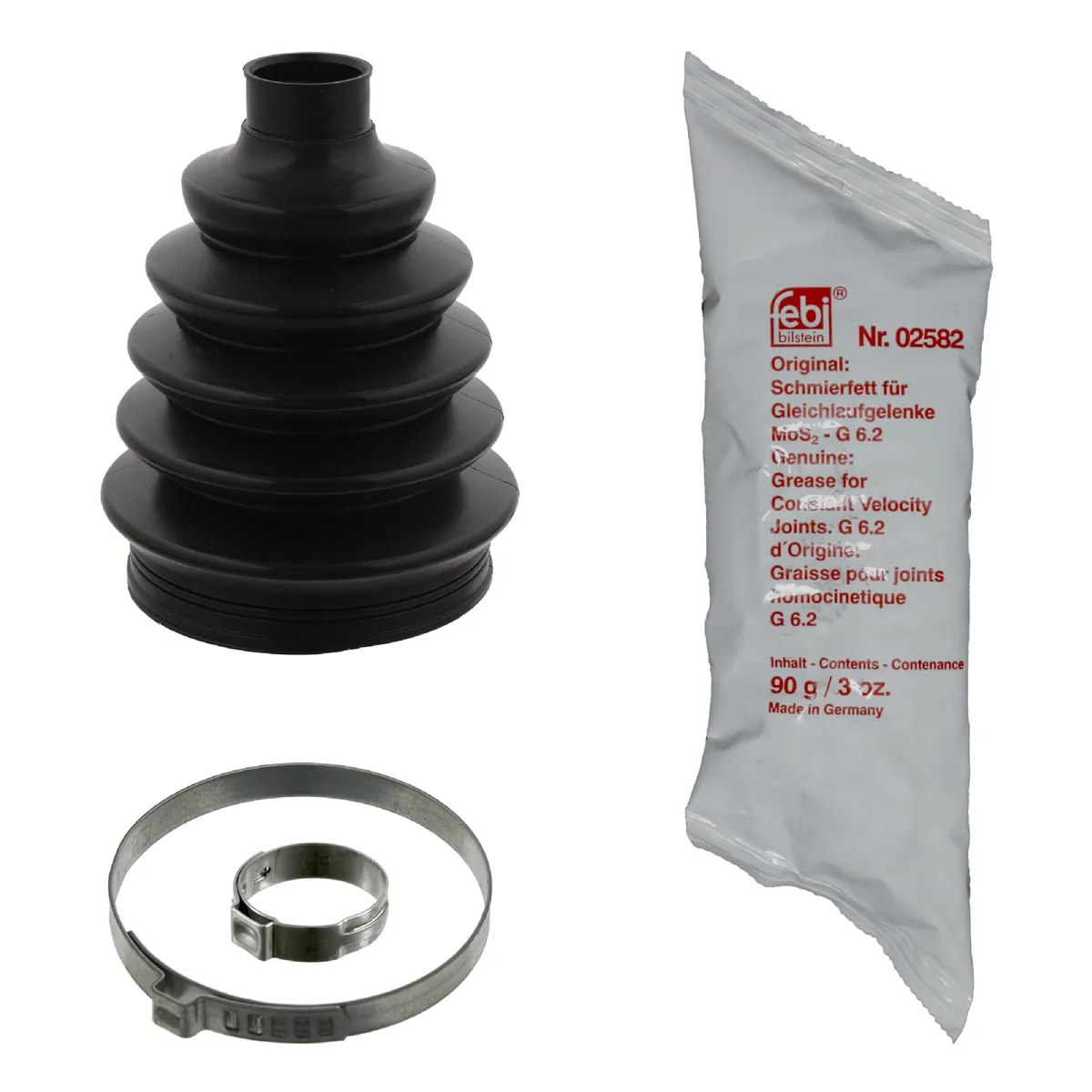

This outer CV boot kit seals the wheel-side CV joint of the front drive shafts on the Renault Zoe 57, 65, 68 and 80 kW. The kit has a thermoplastic boot, two clamps and a 90 g bag of grease.
Replace the boot as soon as it is split or leaking grease. Outer boots flex the most on full lock, so they split more often than inner ones.
Choose Febi 31688 or Blue Print ADT38107 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW. Not listed for the Zoe 100 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Outer wheel-side boot
- Two clamps included
- 90 g bag of grease
- Fits left or right
- Febi and Blue Print options
Specifications
- Fitting Position: Front axle, left or right, wheel side
- Inner Diameter: 24 / 78 mm
- Length: 117 mm
- Material: Thermoplastic
- Contents: Boot, 2 clamps, 90 g grease
- Part Number: Febi 31688 | Blue Print ADT38107
Replaces Renault part numbers 82 01 648 353 SK1, C9241BM525, 39 24 111 75R SK1, 82 01 639 072 SK1 and 82 01 639 075 SK1.
Installation
Professional installation recommended. Clean out the old grease, inspect the joint, pack it with the grease supplied and tighten both clamps with the correct tool.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Front axle, left or right, wheel side |
| Inner Diameter | 24 / 78 mm |
| Length | 117 mm |
| Material | Thermoplastic |
| Contents | Boot, 2 clamps, 90 g grease |
| Part Number | Febi 31688 | Blue Print ADT38107 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe Outer CV Boot Kit – Wheel Side FAQs
Which part numbers does it replace?
Replaces Renault part numbers 82 01 648 353 SK1, C9241BM525, 39 24 111 75R SK1, 82 01 639 072 SK1 and 82 01 639 075 SK1. Febi and Blue Print part numbers are listed in the specifications.
Is grease included?
Yes. A 90 g bag of grease and both clamps are in the kit.
Does it fit the Zoe 100 kW?
No. The parts finder lists it for the Zoe 57, 65, 68 and 80 kW.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68 and 80 kW. Not listed for the Zoe 100 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
