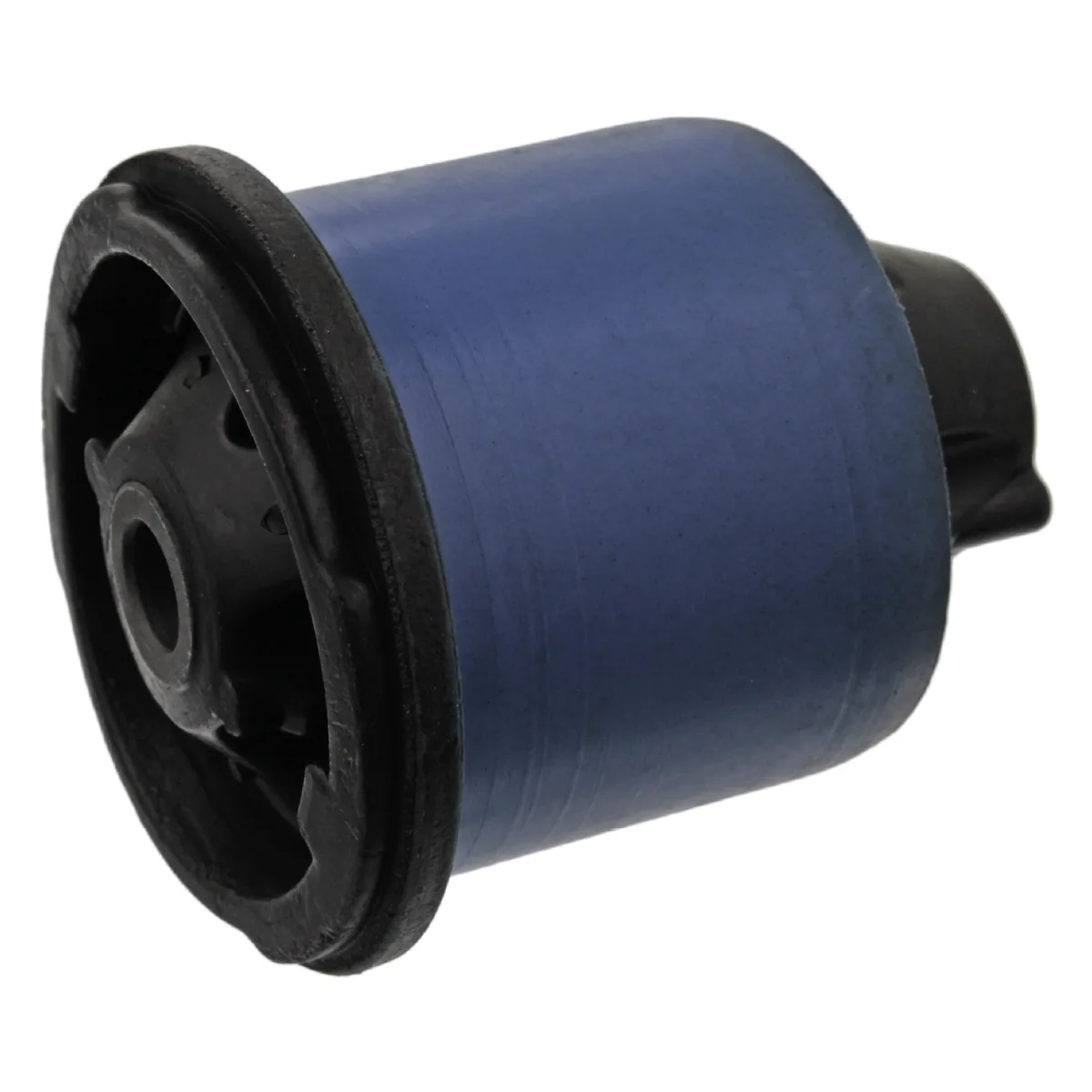

Renault Zoe Rear Axle Beam Mount
This rear axle beam mount is the bush that locates the rear axle beam to the body of the Renault Zoe. It is a 67 mm rubber and metal bush with a 12 mm bore, and fits either side.
Replace the mounts if you hear knocks or clunks from the rear, the car feels unsettled over bumps, or the rubber is cracked, split or soft.
This is Febi part number 27539, made by the bilstein group.
Febi is a brand of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to. If you are replacing several parts at once, use the links below to browse our other Renault Zoe parts.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rear axle beam bush
- 67 mm outer diameter
- Fits left or right
- Restores rear stability
- Febi quality from the bilstein group
Specifications
- Fitting Position: Rear axle, left or right
- Inner Diameter: 12 mm
- Outer Diameter: 67 mm
- Height: 55 mm
- Part Number: Febi 27539
Replaces Renault part numbers 60 01 549 988, 55 04 523 79R, 60 01 549 989, 55 04 580 96R, 82 00 287 912 and 82 00 568 119.
Installation
Professional installation recommended. Support the axle beam, press out the old bush with a suitable tool, and tighten the bolts with the car at normal ride height.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear axle, left or right |
| Inner Diameter | 12 mm |
| Outer Diameter | 67 mm |
| Height | 55 mm |
| Part Number | Febi 27539 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe Rear Axle Beam Mount FAQs
Which part numbers does it replace?
Replaces Renault part numbers 60 01 549 988, 55 04 523 79R, 60 01 549 989, 55 04 580 96R, 82 00 287 912 and 82 00 568 119. The Febi part number is 27539.
How many do I need?
There is one each side. Change both together for even handling.
Do I need a press?
Usually yes. A bush tool or press makes the job much easier.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
