Renault Zoe Rear Brake Drum With Wheel Bearing and ABS Sensor Ring

£99.96

Renault Zoe rear brake drum with integrated wheel bearing and ABS sensor ring. 272mm diameter, 50mm width, 61.92mm centre hole. Complete assembly replaces many cross-references. Ideal for Zoe EV owners with bearing noise, ABS faults, or full rear brake refresh. Supports regenerative braking for reduced wear. UK stock, quick dispatch.

Add to Cart
renault zoe rear brake drum with wheel bearing abs sensor ring uk
Renault Zoe Rear Brake Drum With Wheel Bearing and ABS Sensor Ring
£99.96
SKU: N/A Categories: , , Brand: ,
Free UK Shipping on orders Over £30
  • Free UK shipping on all order over £30
Delivery

All parts shipped from our UK warehouse.

  • Order before 12:00pm for same day dispatch on in stock items.
  • Delivery starting from £1.95 depending on size and weight.
Easy Returns
  • 14 days no questions asked returns policy.
  • 30 days for unused orders.
payment

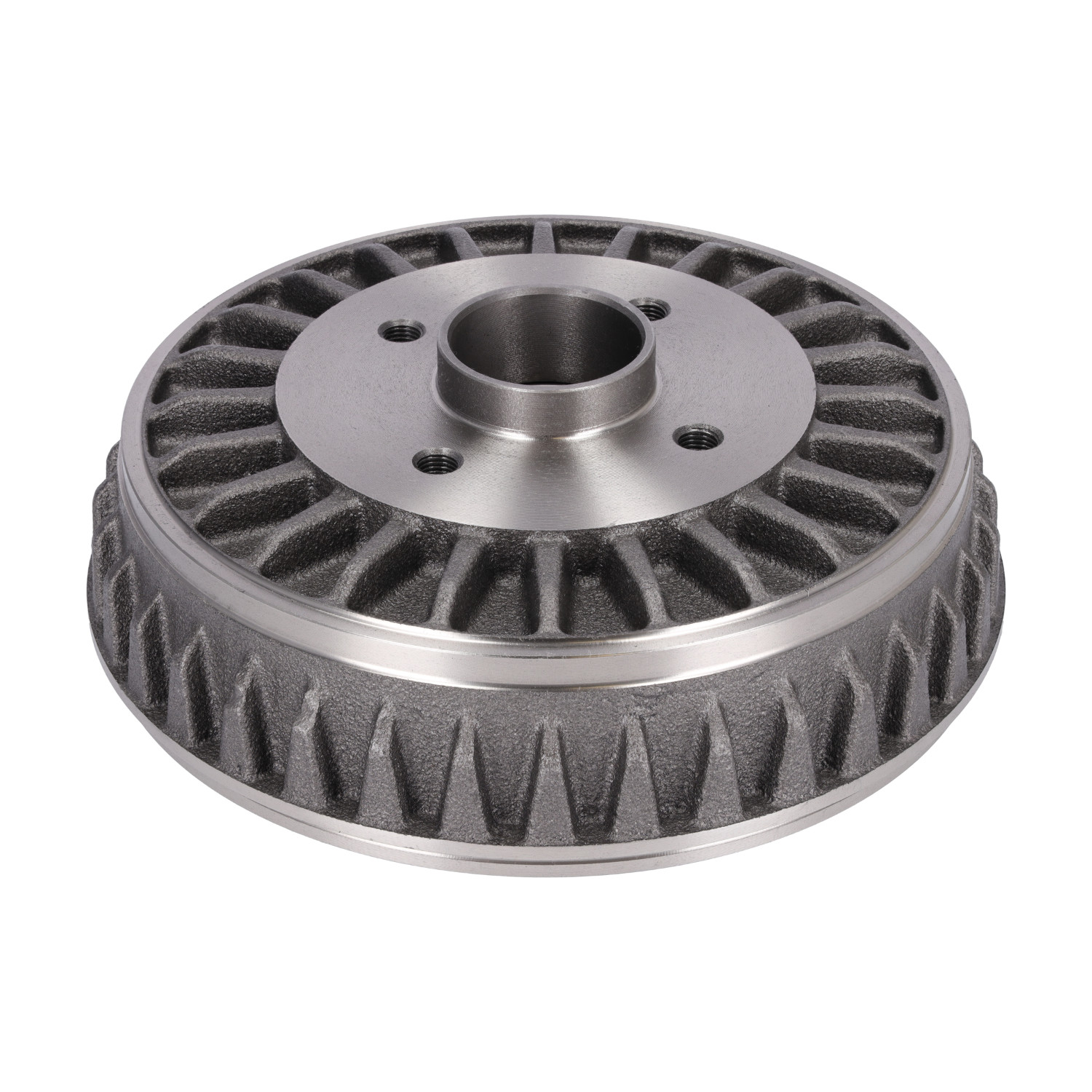

Renault Zoe Rear Brake Drum with Wheel Bearing & ABS Sensor Ring

Complete rear brake drum assembly for your Renault Zoe electric vehicle, including integrated wheel bearing and ABS sensor ring. This all-in-one replacement solves common issues like bearing noise, ABS warning lights, or worn drums – restoring safe, quiet braking while working perfectly with the Zoe’s regenerative system to minimise wear. Ideal for high-mileage Zoe owners in the UK facing urban potholes or wet weather corrosion.

Key Features and Benefits

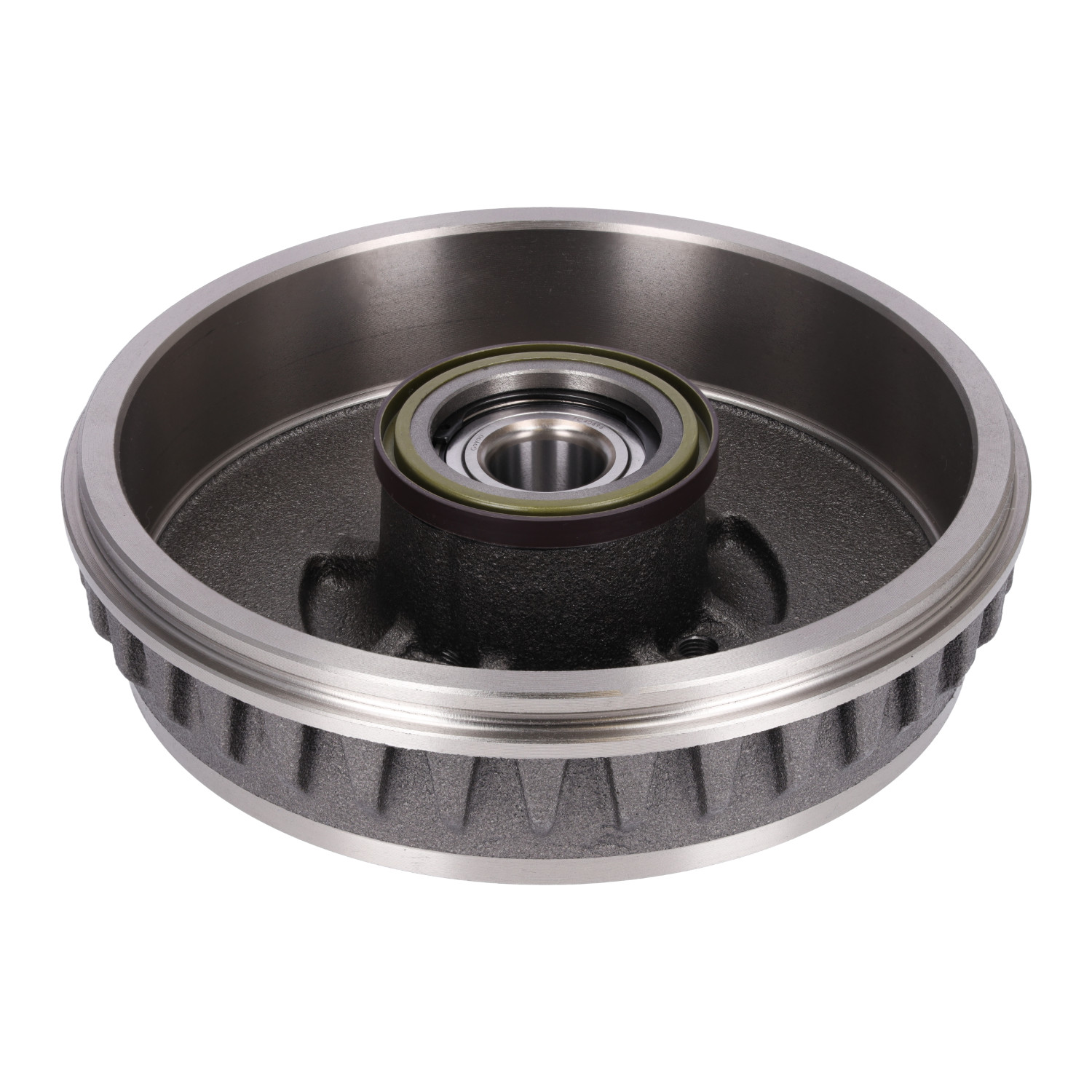

  • Integrated Wheel Bearing: Pre-assembled high-quality bearing for smooth rotation and long life.
  • Built-in ABS Sensor Ring: Ensures accurate wheel speed signals for ABS and stability control.
  • Complete Assembly: No separate bearing/ring press needed – direct bolt-on replacement saves time and labour.
  • EV-Optimised: Regenerative braking reduces drum heating/wear; coated surface resists UK rust.
  • 272mm Diameter: Matches original sizing for correct braking performance and handbrake function.
  • UK Stocked: Fast dispatch from our warehouse with worldwide shipping options.

Technical Specifications

  • Brake Drum Type: With Wheel Bearing & ABS Sensor Ring
  • Outer Diameter: 272 mm
  • Inner Diameter: 228.6 mm (max 228.5 mm)
  • Width: 50 mm
  • Centre Diameter: 61.92 mm
  • Height/Thickness: 74.2 mm
  • No. of Wheel Bolt/Stud Holes: 4
  • Pitch Circle Diameter: 100 mm
  • Weight: 8.35 kg
  • Dimensions: 350 × 350 × 100 mm

Compatibility

This rear brake drum assembly fits Renault Zoe electric models (2012–present), including:

  • Zoe (BFM_) 2012+ – (E) 80 kW / 109 hp
  • Zoe (BFM_) 2012+ – (E) 100 kW / 136 hp
  • All Zoe variants (R90, R110, R135) with rear drum brakes

Replaces multiple Renault/Dacia part numbers and many more cross-references (see full list on page). Always verify with your VIN or current drum for exact match. Pair with our Renault Zoe Cabin Air Filter or EV brake range for a full service.

Replace in pairs for balanced braking.

Why Choose This for Your Renault Zoe EV?

The Zoe’s regenerative braking reduces drum wear, but when bearings or ABS rings fail, replacement is essential for safety and MOT compliance. This complete assembly saves time and ensures correct ABS function. At EV Accessories, we specialise in Renault Zoe parts (alongside Tesla, MG, VW ID.4) – shop with confidence via our returns policy and support.

Order now for reliable electric van braking!

Attributes
Additional Information / Partswith wheel bearing
Centre Diameter61.92 mm
Height or Thickness74.2 mm
Inner Diameter228.6 mm
Max. Inner Diameter228.5 mm
No. of Wheel Bolt/Stud Holes4
Outer Diameter261 mm
Pitch Circle Diameter100 mm
Width50 mm
Suitable to replaceReference(s)
Dacia43 20 005 05R | 43 20 072 12R | 43 20 092 34R | 43 20 337 13R | 43 20 015 01R | 43 20 041 97R | 43 20 055 73R | 43 20 073 20R | 60 01 548 985 | 60 01 550 813 | 82 00 381 151
Lada432001501R
Mercedes-Benz415 423 01 01
Nissan43200-00Q0K | 43200-00Q1L
Renault43 20 005 05R | 43 20 021 76R | 43 20 072 12R | 43 20 240 62R | 43 20 273 46R | 43 20 293 32R | 43 20 322 73R | 43 20 337 13R | 43 20 375 63R | 43 20 015 01R | 43 20 041 97R | 43 20 055 73R | 43 20 073 20R | 43 20 092 34R | 43 20 207 17R | 43 20 218 72R | 43 20 243 42R | 43 20 314 39R | 43 20 351 24R | 43 20 397 45R | 60 01 548 985 | 60 01 550 813 | 82 00 381 151
Samsung432009234R | 432007212R

Used on the following vehicles.

ModelSubmodel
Captur I 2013 –0.9 TCe – 66 kW / 90 hp
Captur I 2013 –1.2 TCe 16V – 83 kW / 113 hp
Captur I 2013 –1.2 TCe 16V – 85 kW / 116 hp
Captur I 2013 –1.2 TCe 16V – 87 kW / 118 hp
Captur I 2013 –1.2 TCe 16V – 88 kW / 120 hp
Captur I 2013 –1.2 TCe 16V – 97 kW / 132 hp
Captur I 2013 –1.3 TCe 16V – 110 kW / 150 hp
Captur I 2013 –1.3 16V – 125 kW / 170 hp
Captur I 2013 –1.3 16V – 96 kW / 131 hp
Captur I 2013 –1.5 – 66 kW / 90 hp
Captur I 2013 –1.5 dCi – 63 kW / 86 hp
Captur I 2013 –1.5 dCi – 66 kW / 90 hp
Captur I 2013 –1.5 dCi – 81 kW / 110 hp
Captur I 2013 –1.5 16V – 78 kW / 106 hp
Captur I 2013 –1.6 16V – 84 kW / 114 hp
Captur I 2013 –1.6 16V – 88 kW / 120 hp
Captur I 2013 –2.0 16V – 105 kW / 143 hp
Captur I 2013 –2.0 16V – 109 kW / 148 hp
Captur I 2013 –2.0 16V – 98 kW / 133 hp
Clio IV 2012 – 20210.9 – 56 kW / 76 hp
Clio IV 2012 – 20210.9 – 66 kW / 90 hp
Clio IV 2012 – 20211.2 16V – 47 kW / 64 hp
Clio IV 2012 – 20211.2 16V – 53 kW / 72 hp
Clio IV 2012 – 20211.2 16V – 54 kW / 73 hp
Clio IV 2012 – 20211.2 16V – 55 kW / 75 hp
Clio IV 2012 – 20211.2 16V – 87 kW / 118 hp
Clio IV 2012 – 20211.2 16V – 88 kW / 120 hp
Clio IV 2012 – 20211.5 – 55 kW / 75 hp
Clio IV 2012 – 20211.5 dCi – 55 kW / 75 hp
Clio IV 2012 – 20211.5 dCi – 62 kW / 84 hp
Clio IV 2012 – 20211.5 dCi – 63 kW / 86 hp
Clio IV 2012 – 20211.5 dCi – 66 kW / 90 hp
Clio IV 2012 – 20211.5 dCi – 81 kW / 110 hp
Clio IV 2012 – 20211.6 16V – 147 kW / 200 hp
Clio IV 2012 – 20211.6 16V – 162 kW / 220 hp
Clio IV Grandtour 2012 – 20210.9 – 56 kW / 76 hp
Clio IV Grandtour 2012 – 20210.9 – 66 kW / 90 hp
Clio IV Grandtour 2012 – 20211.2 – 88 kW / 120 hp
Clio IV Grandtour 2012 – 20211.2 TCe 16V – 87 kW / 118 hp
Clio IV Grandtour 2012 – 20211.2 TCe 16V – 88 kW / 120 hp
Clio IV Grandtour 2012 – 20211.2 16V – 54 kW / 73 hp
Clio IV Grandtour 2012 – 20211.5 dCi – 55 kW / 75 hp
Clio IV Grandtour 2012 – 20211.5 dCi – 66 kW / 90 hp
Clio IV Grandtour 2012 – 20211.5 dCi – 81 kW / 110 hp
Clio IV Grandtour 2012 – 20211.5 dCi 90 – 66 kW / 90 hp
Clio IV Mio 2012 – 20161.0 16V – 59 kW / 80 hp
Clio IV Van 2014 – 20210.9 – 56 kW / 76 hp
Clio IV Van 2014 – 20210.9 – 66 kW / 90 hp
Clio IV Van 2014 – 20211.2 16V – 53 kW / 72 hp
Clio IV Van 2014 – 20211.2 16V – 54 kW / 73 hp
Clio IV Van 2014 – 20211.5 dCi – 55 kW / 75 hp
Clio IV Van 2014 – 20211.5 dCi – 66 kW / 90 hp
Dokker 2013 –1.5 dCi – 63 kW / 86 hp
Dokker 2013 –1.5 dCi – 66 kW / 90 hp
Dokker 2013 –1.6 – 59 kW / 80 hp
Dokker 2013 –1.6 – 62 kW / 84 hp
Dokker 2013 –1.6 – 63 kW / 86 hp
Dokker Van 2013 –1.5 dCi – 63 kW / 86 hp
Dokker Van 2013 –1.5 dCi – 66 kW / 90 hp
Dokker Van 2013 –1.6 – 62 kW / 84 hp
Dokker Van 2013 –1.6 – 63 kW / 86 hp
Express 1997 –1.3 TCe 100 – 75 kW / 102 hp
Express 1997 –1.5 Blue dCi 75 – 55 kW / 75 hp
Express 1997 –1.5 Blue dCi 95 – 70 kW / 95 hp
Express 1997 –1.5 dCi 95 – 70 kW / 95 hp
Express 1997 –1.6 – 54 kW / 73 hp
Express 1997 –1.6 SCe 110 16V – 82 kW / 111 hp
Kangoo II 2007 –(E) – 44 kW / 60 hp
Kangoo II 2007 –1.2 – 84 kW / 114 hp
Kangoo II 2007 –1.2 16V – 84 kW / 114 hp
Kangoo II 2007 –1.5 dCi – 48 kW / 65 hp
Kangoo II 2007 –1.5 dCi – 50 kW / 68 hp
Kangoo II 2007 –1.5 dCi – 66 kW / 90 hp
Kangoo II 2007 –1.5 dCi – 70 kW / 95 hp
Kangoo II 2007 –1.5 dCi – 78 kW / 106 hp
Kangoo II 2007 –1.5 dCi 105 – 76 kW / 103 hp
Kangoo II 2007 –1.5 dCi 110 – 80 kW / 109 hp
Kangoo II 2007 –1.5 dCi 110 – 81 kW / 110 hp
Kangoo II 2007 –1.5 dCi 115 – 85 kW / 116 hp
Kangoo II 2007 –1.5 dCi 70 – 50 kW / 68 hp
Kangoo II 2007 –1.5 dCi 75 – 55 kW / 75 hp
Kangoo II 2007 –1.5 dCi 80 – 59 kW / 80 hp
Kangoo II 2007 –1.5 dCi 85 – 63 kW / 86 hp
Kangoo II 2007 –1.5 dCi 90 – 66 kW / 90 hp
Kangoo II 2007 –1.5 dCi 90 – 67 kW / 91 hp
Kangoo II 2007 –1.6 – 64 kW / 87 hp
Kangoo II 2007 –1.6 16V – 72 kW / 98 hp
Kangoo II 2007 –1.6 16V – 74 kW / 101 hp
Kangoo II 2007 –1.6 16V – 78 kW / 106 hp
Kangoo II 2007 –1.6 16V – 84 kW / 114 hp
Kangoo II Be Bop 2009 – 20121.5 dCi – 55 kW / 75 hp
Kangoo II Be Bop 2009 – 20121.5 dCi 105 – 76 kW / 103 hp
Kangoo II Be Bop 2009 – 20121.5 dCi 110 – 80 kW / 109 hp
Kangoo II Be Bop 2009 – 20121.5 dCi 75 – 66 kW / 90 hp
Kangoo II Be Bop 2009 – 20121.5 dCi 90 – 66 kW / 90 hp
Kangoo II Be Bop 2009 – 20121.6 16V – 78 kW / 106 hp
Kangoo II Express 2008 – 2021(E) – 44 kW / 60 hp
Kangoo II Express 2008 – 20211.2 16V – 84 kW / 114 hp
Kangoo II Express 2008 – 20211.5 dCi – 55 kW / 75 hp
Kangoo II Express 2008 – 20211.5 dCi – 66 kW / 90 hp
Kangoo II Express 2008 – 20211.5 dCi 105 – 76 kW / 103 hp
Kangoo II Express 2008 – 20211.5 dCi 110 – 80 kW / 109 hp
Kangoo II Express 2008 – 20211.5 dCi 110 – 81 kW / 110 hp
Kangoo II Express 2008 – 20211.5 dCi 115 – 85 kW / 116 hp
Kangoo II Express 2008 – 20211.5 dCi 70 – 50 kW / 68 hp
Kangoo II Express 2008 – 20211.5 dCi 75 – 55 kW / 75 hp
Kangoo II Express 2008 – 20211.5 dCi 80 – 59 kW / 80 hp
Kangoo II Express 2008 – 20211.5 dCi 85 – 63 kW / 86 hp
Kangoo II Express 2008 – 20211.5 dCi 90 – 66 kW / 90 hp
Kangoo II Express 2008 – 20211.5 dCi 90 – 67 kW / 91 hp
Kangoo II Express 2008 – 20211.5 dCi 95 – 70 kW / 95 hp
Kangoo II Express 2008 – 20211.6 – 64 kW / 87 hp
Kangoo II Express 2008 – 20211.6 16V – 78 kW / 106 hp
Kangoo II Express 2008 – 20211.6 16V – 81 kW / 110 hp
Kangoo II Express 2008 – 20211.6 16V – 85 kW / 116 hp
Kangoo II Express Small Van 2008 – 20211.5 dCi – 66 kW / 90 hp
Kangoo II Express Small Van 2008 – 20211.6 16V – 78 kW / 106 hp
Kangoo II Rapid 2008 – 2021(E) – 44 kW / 60 hp
Kangoo II Rapid 2008 – 20211.2 16V – 84 kW / 114 hp
Kangoo II Rapid 2008 – 20211.5 dCi – 66 kW / 90 hp
Kangoo II Rapid 2008 – 20211.5 dCi 105 – 76 kW / 103 hp
Kangoo II Rapid 2008 – 20211.5 dCi 110 – 80 kW / 109 hp
Kangoo II Rapid 2008 – 20211.5 dCi 110 – 81 kW / 110 hp
Kangoo II Rapid 2008 – 20211.5 dCi 115 – 85 kW / 116 hp
Kangoo II Rapid 2008 – 20211.5 dCi 70 – 50 kW / 68 hp
Kangoo II Rapid 2008 – 20211.5 dCi 75 – 55 kW / 75 hp
Kangoo II Rapid 2008 – 20211.5 dCi 80 – 59 kW / 80 hp
Kangoo II Rapid 2008 – 20211.5 dCi 85 – 63 kW / 86 hp
Kangoo II Rapid 2008 – 20211.5 dCi 90 – 66 kW / 90 hp
Kangoo II Rapid 2008 – 20211.5 dCi 95 – 70 kW / 95 hp
Kangoo II Rapid 2008 – 20211.6 – 64 kW / 87 hp
Kangoo II Rapid 2008 – 20211.6 16V – 78 kW / 106 hp
Kangoo II Rapid Small Van 2013 – 20211.5 dCi – 55 kW / 75 hp
Kangoo II Small Bus 2010 – 20211.5 dCi – 55 kW / 75 hp
Kangoo II Small Bus 2010 – 20211.5 dCi – 66 kW / 90 hp
Lodgy 2013 –1.5 dCi – 63 kW / 86 hp
Lodgy 2013 –1.6 – 59 kW / 80 hp
Lodgy 2013 –1.6 – 66 kW / 90 hp
Logan I MCV 2006 – 20151.4 – 55 kW / 75 hp
Logan I MCV 2006 – 20151.5 dCi – 50 kW / 68 hp
Logan I MCV 2006 – 20151.5 dCi – 63 kW / 86 hp
Logan I MCV 2006 – 20151.6 – 64 kW / 87 hp
Logan I MCV 2006 – 20151.6 16V – 77 kW / 105 hp
Logan II 2012 –0.9 – 66 kW / 90 hp
Logan II 2012 –1.0 – 60 kW / 82 hp
Logan II 2012 –1.0 16V – 59 kW / 80 hp
Logan II 2012 –1.2 16V – 53 kW / 72 hp
Logan II 2012 –1.2 16V – 54 kW / 73 hp
Logan II 2012 –1.2 16V – 55 kW / 75 hp
Logan II 2012 –1.5 dCi – 55 kW / 75 hp
Logan II 2012 –1.5 dCi – 62 kW / 84 hp
Logan II 2012 –1.5 dCi – 63 kW / 86 hp
Logan II 2012 –1.5 dCi – 66 kW / 90 hp
Logan II 2012 –1.6 – 59 kW / 80 hp
Logan II 2012 –1.6 – 60 kW / 82 hp
Logan II 2012 –1.6 – 63 kW / 86 hp
Logan II 2012 –1.6 – 66 kW / 90 hp
Logan II 2012 –1.6 – 78 kW / 106 hp
Logan II 2012 –1.6 16V – 75 kW / 102 hp
Logan II 2012 –1.6 16V – 77 kW / 105 hp
Logan II 2012 –1.6 16V – 78 kW / 106 hp
Logan II 2012 –1.6 16V – 81 kW / 110 hp
Logan II 2012 –1.6 16V – 83 kW / 113 hp
Logan II 2012 –1.6 16V – 87 kW / 118 hp
Logan II MCV 2013 –0.9 – 66 kW / 90 hp
Logan II MCV 2013 –1.2 16V – 53 kW / 72 hp
Logan II MCV 2013 –1.2 16V – 54 kW / 73 hp
Logan II MCV 2013 –1.2 16V – 55 kW / 75 hp
Logan II MCV 2013 –1.5 dCi – 55 kW / 75 hp
Logan II MCV 2013 –1.5 dCi – 60 kW / 82 hp
Logan II MCV 2013 –1.5 dCi – 62 kW / 84 hp
Logan II MCV 2013 –1.5 dCi – 63 kW / 86 hp
Logan II MCV 2013 –1.5 dCi – 66 kW / 90 hp
Logan II MCV 2013 –1.6 – 59 kW / 80 hp
Logan II MCV 2013 –1.6 – 63 kW / 86 hp
Logan II MCV 2013 –1.6 – 66 kW / 90 hp
Logan II MCV 2013 –1.6 – 78 kW / 106 hp
Sandero II 2012 –0.9 – 66 kW / 90 hp
Sandero II Stepway 2012 –0.9 – 66 kW / 90 hp
Symbol III 2012 –0.9 – 66 kW / 90 hp
Symbol III 2012 –1.2 16V – 55 kW / 75 hp
Zoe 2012 –
suitable for engine code: 5AM450
Construction Year from: 07/2015		(E) – 100 kW / 136 hp
Zoe 2012 –(E) – 57 kW / 77 hp
Zoe 2012 –(E) – 65 kW / 88 hp
Zoe 2012 –(E) – 68 kW / 92 hp
Zoe 2012 –(E) – 80 kW / 109 hp

Additional information

Weight 8.35 kg
Dimensions 350 × 350 × 100 mm
Brand

,

Car Model

,

Drive Train Position

Renault Part Numbers

, , , , , , , , , , , , , , , , , , , , , ,

Car Brand

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Related products
