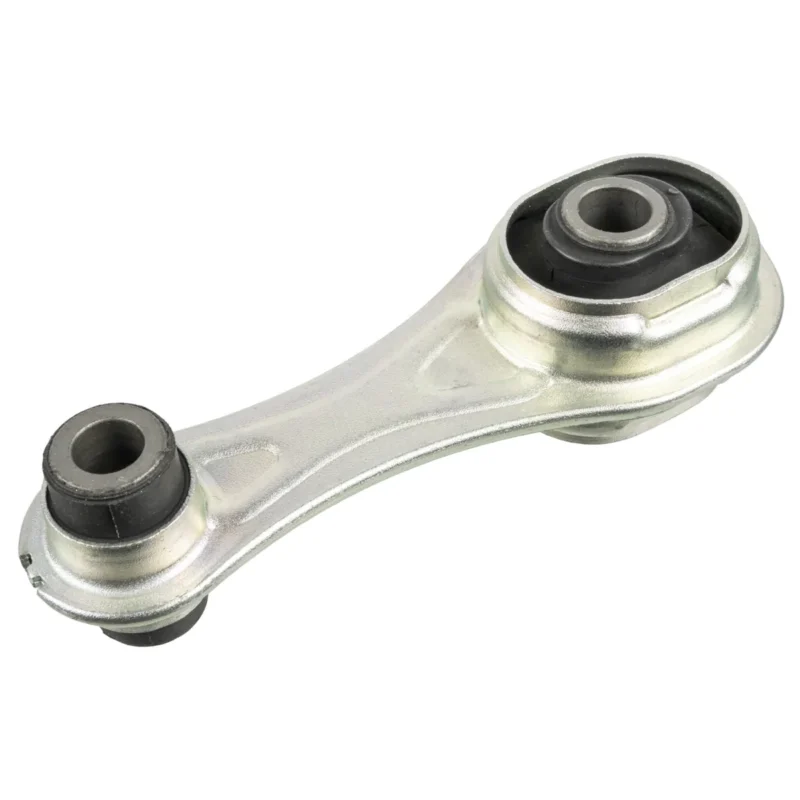

Renault Zoe Rear Motor Mount
This rear motor mount holds the electric motor and transmission unit of the Renault Zoe to the subframe. The parts finder calls it an engine mounting; on the Zoe it supports the electric drive unit. It is a rubber and metal bush.
Replace the mount if you feel a clunk when pulling away or lifting off, there is vibration through the car, or the rubber is cracked or torn.
Choose Febi 173505 or Blue Print ADBP800398 from the options. Both are made by the bilstein group to the same specification, so they are the same part under two brand names.
Febi and Blue Print are brands of the bilstein group, a German parts maker that supplies replacement parts for cars and vans across the world. Each part is made to match the original in fit and function, so it fits without modification. Getting the right part first time saves time in the workshop, so compare the numbers on your old part with the ones listed here before you order. Keep the old part until the new one is fitted and working, so you can compare them side by side if you need to. If you are replacing several parts at once, use the links below to browse our other Renault Zoe parts.
The table below shows the Renault versions listed in the bilstein group parts finder, with each note word for word. Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Compare the Renault part number on your existing part with the numbers on this page before ordering.
Key Benefits
- Rear motor mount
- Rubber and metal bush
- Stops clunks on take-off
- Fits every Zoe power output listed
- Febi and Blue Print options
Specifications
- Fitting Position: Rear
- Mounting Type: Non-hydraulic rubber and metal bush
- Part Number: Febi 173505 | Blue Print ADBP800398
Replaces Renault part numbers 11 23 856 98R and 11 23 839 05R.
Installation
Professional installation recommended. Support the drive unit before removing the old mount and tighten the bolts to the service figure.
Explore More Parts
| Attribute | Value |
|---|---|
| Fitting Position | Rear |
| Mounting Type | Non-hydraulic rubber and metal bush |
| Part Number | Febi 173505 | Blue Print ADBP800398 |
Fits The Following Renault Models
| Model | Submodel |
|---|---|
| Renault Zoe (2012 –) | (E) – 100 kW / 136 hp |
| Renault Zoe (2012 –) | (E) – 57 kW / 77 hp |
| Renault Zoe (2012 –) | (E) – 65 kW / 88 hp |
| Renault Zoe (2012 –) | (E) – 68 kW / 92 hp |
| Renault Zoe (2012 –) | (E) – 80 kW / 109 hp |
Renault Zoe Rear Motor Mount FAQs
Which part numbers does it replace?
Replaces Renault part numbers 11 23 856 98R and 11 23 839 05R. Febi and Blue Print part numbers are listed in the specifications.
Why is it called an engine mounting?
The parts finder uses that name. On the Zoe it supports the electric motor and transmission.
Does it fit every Zoe?
Yes. It is listed for the Zoe 57, 65, 68, 80 and 100 kW.
Will it fit my Renault Zoe?
Listed in the parts finder for the Renault Zoe 57, 65, 68, 80 and 100 kW. Check the notes in the fitment table and compare the Renault part number on your existing part.
Is Febi the same as Blue Print?
Yes. Both are made by the bilstein group and they are the same part.
Is this a genuine Renault part?
No. It is a quality replacement part made by the bilstein group to match the original in fit and function.
